327025: DescriptionElectric Fuse, ELECTRIC FUSE, 25A, 32VDC, 1000A (IR), INLINE/HOLDER, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size882KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

327025 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	327025	-	-	View	Buy Now

327025 Overview

Electric Fuse, ELECTRIC FUSE, 25A, 32VDC, 1000A (IR), INLINE/HOLDER, ROHS COMPLIANT

327025 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	3.8 mm
body height	7.9 mm
Body length or diameter	9.1 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	585 J
Installation features	INLINE/HOLDER
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
physical size	9.1mm x 3.8mm x 7.9mm
Rated breaking capacity	1000 A
Rated current	25 A
Rated voltage (DC)	32 V
surface mount	NO
Terminal shape	TAB/BLADE
Base Number Matches	1

Preview

Download Datasheet

View All

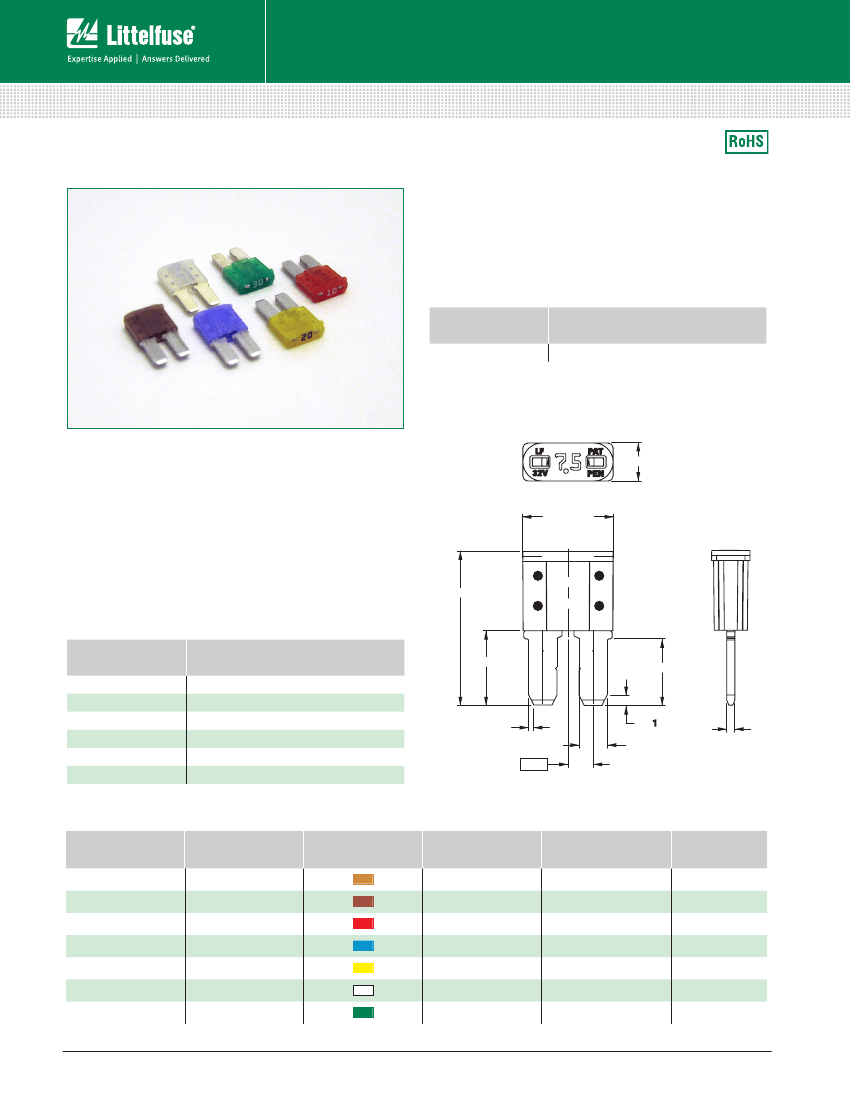

Blade Fuses

MICRO2

™

BLADE FUSE 32V

Specifications

Voltage Rating:

Interrupting Ratings:

Operating Temperature Range:

32 VDC

1000A @ 32 VDC

-40˚C to +125˚C

Ordering Information

Part Number

0327xxx.ZXS

Package Size

4000

Dimensions

Dimensions in mm

Description

The MICRO2

TM

Fuse is the new standard for vehicle circuit protec-

tion. Its sub-miniature design meets the need for more circuits to

be protected while utilizing less space and its ability to cope with

high temperatures in adverse environments makes the MICRO2

TM

Fuse the recommended choice for protection.

3.8

9.1 MAX

15.3

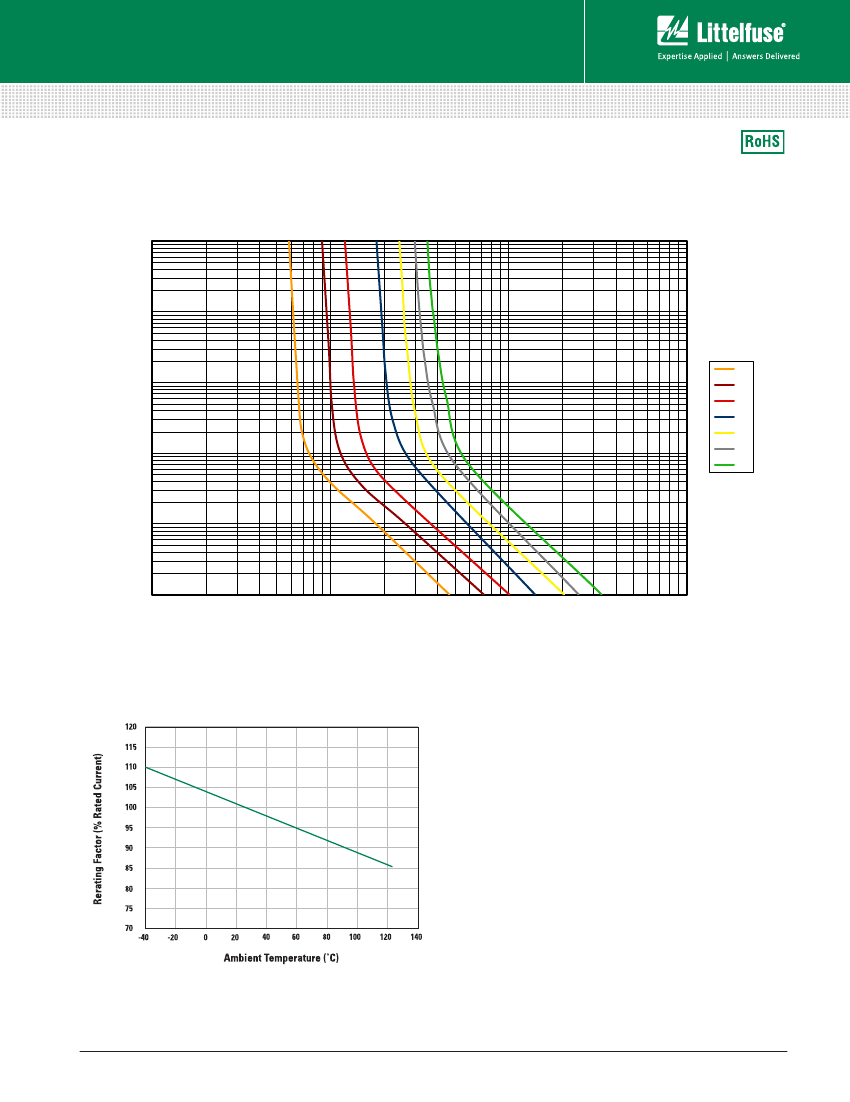

Time-Current Characteristics

% of Rating

110

135

160

200

350

600

Opening Time Min / Max

100 h / –

0.75 sec / 120 sec

0.30 sec / 50 sec

0.15 sec / 5 sec

0.04 sec / 0.50 sec

0.02 sec / 0.100 sec

7.4

2X 6.2 MIN

4X 0.5

4X

2X 2.8

2X 0.8

2X 2.5

Ratings

Part Number

0327005._

032707.5_

0327010._

0327015._

0327020._

0327025._

0327030._

Current Rating (A)

5

7.5

10

15

20

25

30

Housing Color

Typ. Voltage Drop (mV)

116

106

102

94

91

90

88

Cold Resistance (mΩ)

17.4

10.8

7.7

4.8

3.4

2.6

2.1

I

2

t (A

2

s)

17

47

89

189

397

585

1028

www.littelfuse.com

2

327025 Related Products

	327025	327005	0327005	327010	327015	327020	327030	32707.5	032707.5
Description	Electric Fuse, ELECTRIC FUSE, 25A, 32VDC, 1000A (IR), INLINE/HOLDER, ROHS COMPLIANT	Electric Fuse, ELECTRIC FUSE, 5A, 32VDC, 1000A (IR), INLINE/HOLDER, ROHS COMPLIANT	Electric Fuse, 5A, 32VDC, 1000A (IR), Inline/holder, ROHS COMPLIANT	Electric Fuse, ELECTRIC FUSE, 10A, 32VDC, 1000A (IR), INLINE/HOLDER, ROHS COMPLIANT	Electric Fuse, ELECTRIC FUSE, 15A, 32VDC, 1000A (IR), INLINE/HOLDER, ROHS COMPLIANT	Electric Fuse, ELECTRIC FUSE, 20A, 32VDC, 1000A (IR), INLINE/HOLDER, ROHS COMPLIANT	Electric Fuse, ELECTRIC FUSE, 30A, 32VDC, 1000A (IR), INLINE/HOLDER, ROHS COMPLIANT	Electric Fuse, ELECTRIC FUSE, 7.5A, 32VDC, 1000A (IR), INLINE/HOLDER, ROHS COMPLIANT	Electric Fuse, 7.5A, 32VDC, 1000A (IR), Inline/holder, ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	3.8 mm	3.8 mm	3.8 mm	3.8 mm	3.8 mm	3.8 mm	3.8 mm	3.8 mm	3.8 mm
body height	7.9 mm	7.9 mm	7.9 mm	7.9 mm	7.9 mm	7.9 mm	7.9 mm	7.9 mm	7.9 mm
Body length or diameter	9.1 mm	9.1 mm	9.1 mm	9.1 mm	9.1 mm	9.1 mm	9.1 mm	9.1 mm	9.1 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Joule integral nominal	585 J	17 J	17 J	89 J	189 J	397 J	1028 J	47 J	47 J
Installation features	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
physical size	9.1mm x 3.8mm x 7.9mm	9.1mm x 3.8mm x 7.9mm	9.1mm x 3.8mm x 7.9mm	9.1mm x 3.8mm x 7.9mm	9.1mm x 3.8mm x 7.9mm	9.1mm x 3.8mm x 7.9mm	9.1mm x 3.8mm x 7.9mm	9.1mm x 3.8mm x 7.9mm	9.1mm x 3.8mm x 7.9mm
Rated breaking capacity	1000 A	1000 A	1000 A	1000 A	1000 A	1000 A	1000 A	1000 A	1000 A
Rated current	25 A	5 A	5 A	10 A	15 A	20 A	30 A	7.5 A	7.5 A
Rated voltage (DC)	32 V	32 V	32 V	32 V	32 V	32 V	32 V	32 V	32 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal shape	TAB/BLADE	TAB/BLADE	TAB/BLADE	TAB/BLADE	TAB/BLADE	TAB/BLADE	TAB/BLADE	TAB/BLADE	TAB/BLADE
Base Number Matches	1	1	1	1	1	1	1	1	1
