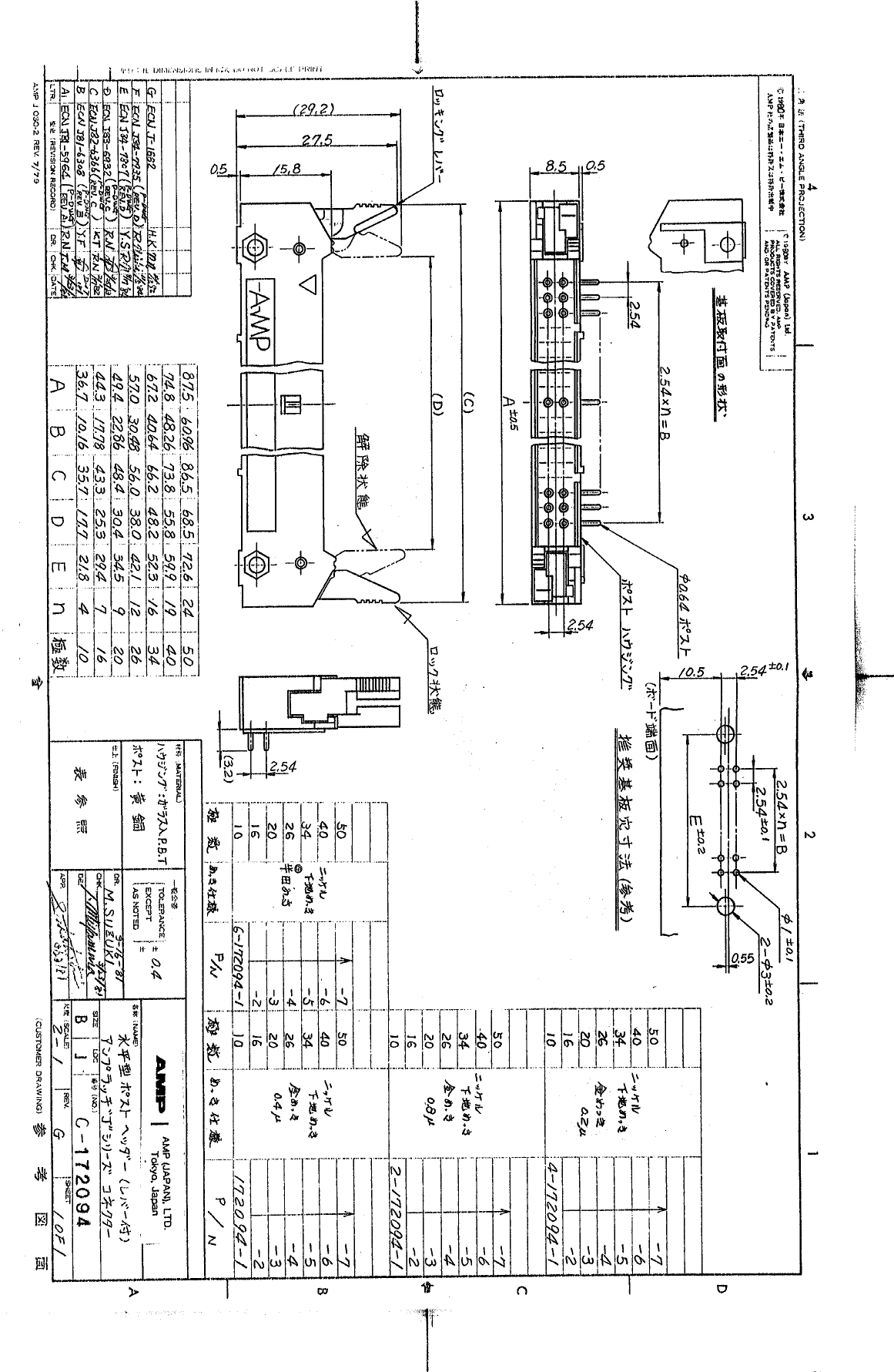

2-172094-4: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,26 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,LATCH & EJECT,BLACK; CategoryThe connector The connector; File Size75KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2-172094-4 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,26 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,LATCH & EJECT,BLACK

2-172094-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Board mount options	HOLE .112-.124
body width	0.354 inch
subject depth	0.642 inch
body length	2.244 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	172094
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	31u inch
polarization key	CENTER
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.106 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	26
Base Number Matches	1

Preview

Download Datasheet

View All

2-172094-4 Related Products

	2-172094-4	2-172094-2	2-172094-5
Description	HEADER CONNECTOR,PCB MNT,RECEPT,26 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,LATCH & EJECT,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,16 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,LATCH & EJECT,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,34 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,LATCH & EJECT,BLACK
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	compli	compliant	compliant
Board mount options	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124
body width	0.354 inch	0.354 inch	0.354 inch
subject depth	0.642 inch	0.642 inch	0.642 inch
body length	2.244 inch	1.744 inch	2.646 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch
Installation option 1	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT
Installation option 2	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	2	2	2
Number of rows loaded	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm
Plating thickness	31u inch	31u inch	31u inch
polarization key	CENTER	SHRD CENTER	SHRD CENTER
Rated current (signal)	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA
Terminal length	0.106 inch	0.106 inch	0.106 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	26	16	34
Objectid	-	302977366	302977369
ECCN code	-	EAR99	EAR99
Filter function	-	NO	NO
Mixed contacts	-	NO	NO
