Data sheet
OMNIMATE Signal - series BL/SL 5.08
SLF 5.08/06/180F SN OR BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Product image

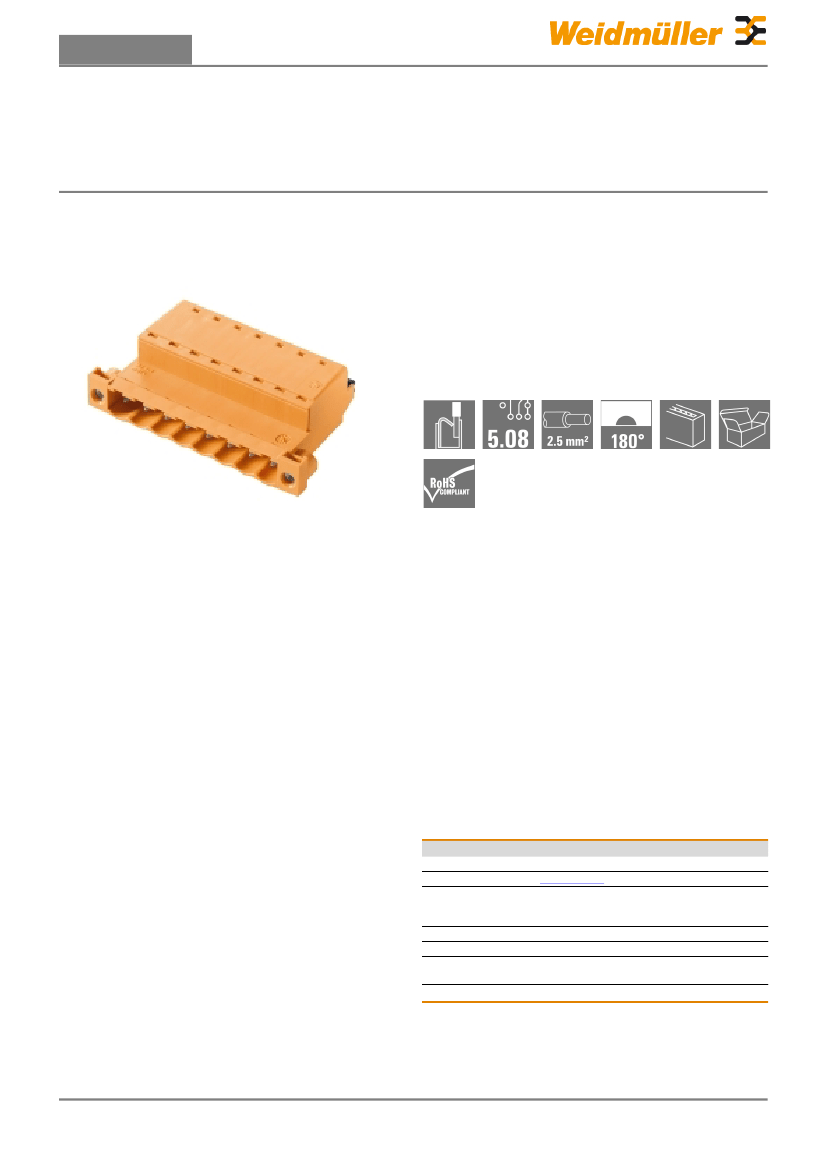

Male plug with PUSH IN wire connection and straight
outlet direction, when used with BLF 5.08HC as wire-to-
wire application for panel feed-through The male plugs
provide space for labelling and can be coded.
Similar to illustration
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
Product data
Packaging
SLF 5.08/06/180F SN OR BX
1335680000
PCB plug-in connector, male plug, 5.08 mm, No.
of poles: 6, 180°, PUSH IN, Spring connection,
Clamping range, max. : 3.31 mm², Box
4050118139396
42 pc(s).
IEC: 400 V / 25.9 A / 0.2 - 2.5 mm²
UL: 300 V / 14 A / AWG 26 - AWG 12
Box
Creation date November 16, 2018 5:30:48 AM CET
Catalogue status 09.11.2018 / We reserve the right to make technical changes.
1
Data sheet
OMNIMATE Signal - series BL/SL 5.08
SLF 5.08/06/180F SN OR BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
14.2 mm
30 mm
11.462 g
Height (inches)
Depth (inches)
Dimensions and weights
Height
Depth
Net weight
0.559 inch
1.181 inch
System parameters
Product family
OMNIMATE Signal - series
BL/SL 5.08
PUSH IN, Spring
connection
0.2 inch
6
1 inch
2.5 mm²
4.50 mΩ
10 mm
DIN 5264
7N
Type of connection
Pitch in mm (P)
Conductor outlet direction
L1 in mm
Pin series quantity
Touch-safe protection acc. to DIN VDE
57 106
Can be coded
Screwdriver blade
Plugging cycles
Pulling force/pole, max.
Field connection
5.08 mm
180°
25.4 mm
1
Finger-safe plugged/ back-
of-hand-safe unplugged
Yes
0.6 x 3.5
25
5.5 N
Wire connection method
Pitch in inches (P)
No. of poles
L1 in inches
Rated cross-section
Volume resistance
Stripping length
Screwdriver blade standard
Plugging force/pole, max.
Material data
Insulating material
Colour chart (similar)
PBT
UL 94 flammability rating
Contact surface
Storage temperature, min.
Max. relative humidity during storage
Operating temperature, max.
Temperature range, installation, max.
RAL 2000
V-0
tinned
-25 °C
80 %
100 °C
100 °C
Colour
Insulation resistance
Orange
Contact material
Layer structure of plug contact
Storage temperature, max.
Operating temperature, min.
Temperature range, installation, min.
≥ 10
8
Ω
CuSn
4-8 µm Sn hot-dip tinned
55 °C
-50 °C
-25 °C
Conductors suitable for connection
Clamping range, min.
0.13 mm²
Wire connection cross section AWG,
min.
AWG 26
Solid, min. H05(07) V-U
0.2 mm²
Flexible, min. H05(07) V-K
0.2 mm²
w. plastic collar ferrule, DIN 46228 pt 4,
min.
0.2 mm²
w. wire end ferrule, DIN 46228 pt 1, min
0.2 mm²
Plug gauge in accordance with EN
60999 a x b; ø
2.8 mm x 2.0 mm
Clamping range, max.
3.31 mm²
Wire connection cross section AWG,
max.
AWG 12
Solid, max. H05(07) V-U
2.5 mm²
Flexible, max. H05(07) V-K
2.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4,
max.
2.5 mm²
w. wire end ferrule, DIN 46228 pt 1,
max.
2.5 mm²
Creation date November 16, 2018 5:30:48 AM CET
Catalogue status 09.11.2018 / We reserve the right to make technical changes.
2
Data sheet
OMNIMATE Signal - series BL/SL 5.08
SLF 5.08/06/180F SN OR BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
Rated data acc. to IEC
tested acc. to standard
IEC 60664-1, IEC 61984
21.7 A
18.5 A
320 V
4 kV
4 kV
Rated current, min. no. of poles
(Tu=20°C)
Rated current, min. no. of poles
(Tu=40°C)
Rated voltage for surge voltage class /
pollution degree II/2
Rated voltage for surge voltage class /
pollution degree III/3
Rated impulse voltage for surge voltage
class/ pollution degree III/2
Short-time withstand current resistance
25.9 A
22.5 A
400 V
250 V
4 kV
3 x 1s with 120 A
Rated current, max. no. of poles
(Tu=20°C)
Rated current, max. no. of poles
(Tu=40°C)
Rated voltage for surge voltage class /
pollution degree III/2
Rated impulse voltage for surge voltage
class/ pollution degree II/2
Rated impulse voltage for surge voltage
class/ contamination degree III/3
Rated data acc. to CSA
Institute (CSA)
Certificate No. (CSA)
200039-1121690
300 V
10 A
AWG 12
Rated voltage (Use group B)
Rated current (use group B)
Wire cross-section, AWG, min.
Reference to approval values
300 V
10 A
AWG 26
Specifications are
maximum values, details -
see approval certificate.
Rated voltage (use group D)
Rated current (use group D)
Wire cross-section, AWG, max.
Rated data acc. to UL 1059
Institute (cURus)
Certificate No. (cURus)
E60693
300 V
10 A
AWG 12
Rated voltage (use group B)
Rated current (use group B)
Wire cross-section, AWG, min.
Reference to approval values
300 V
14 A
AWG 26
Specifications are
maximum values, details -
see approval certificate.
Rated voltage (use group D)
Rated current (use group D)
Wire cross-section, AWG, max.
Packaging
Packaging
VPE width
Box
135 mm
VPE length
VPE height
30 mm
350 mm
Classifications
ETIM 4.0
ETIM 6.0
eClass 7.1
eClass 9.0
EC002637
EC002637
27-44-04-02
27-44-04-02
ETIM 5.0
eClass 6.2
eClass 8.1
eClass 9.1
EC002637
27-26-07-04
27-44-04-02
27-44-04-02
Creation date November 16, 2018 5:30:48 AM CET
Catalogue status 09.11.2018 / We reserve the right to make technical changes.
3
Data sheet
OMNIMATE Signal - series BL/SL 5.08
SLF 5.08/06/180F SN OR BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
• Additional colours on request
• Gold-plated contact surfaces on request
Notes
Notes
• Rated current related to rated cross-section & min. No. of poles.
• Wire end ferrule without plastic collar to DIN 46228/1
• Wire end ferrule with plastic collar to DIN 46228/4
• P on drawing = pitch
Conformity: The products are developed, manufactured and delivered according international recognized
standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties
in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
IPC conformity
Approvals
Approvals
ROHS
Conform
Downloads
Approval/Certificate/Document of
Conformity
Brochure/Catalogue
White Paper wire connection
Declaration of the Manufacturer
FL DRIVES EN
MB DEVICE MANUF. EN
FL DRIVES DE
CAT 2 PORTFOLIOGUIDE EN
FL BUILDING SAFETY EN
FL APPL LED LIGHTING EN
FL INDUSTR.CONTROLS EN
FL MACHINE SAFETY EN
FL HEATING ELECTR EN
FL APPL_INVERTER EN
FL_BASE_STATION_EN
FL ELEVATOR EN
FL POWER SUPPLY EN
FL 72H SAMPLE SER EN
PO OMNIMATE EN
Download Whitepaper
Creation date November 16, 2018 5:30:48 AM CET
Catalogue status 09.11.2018 / We reserve the right to make technical changes.
4
Data sheet
OMNIMATE Signal - series BL/SL 5.08
SLF 5.08/06/180F SN OR BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

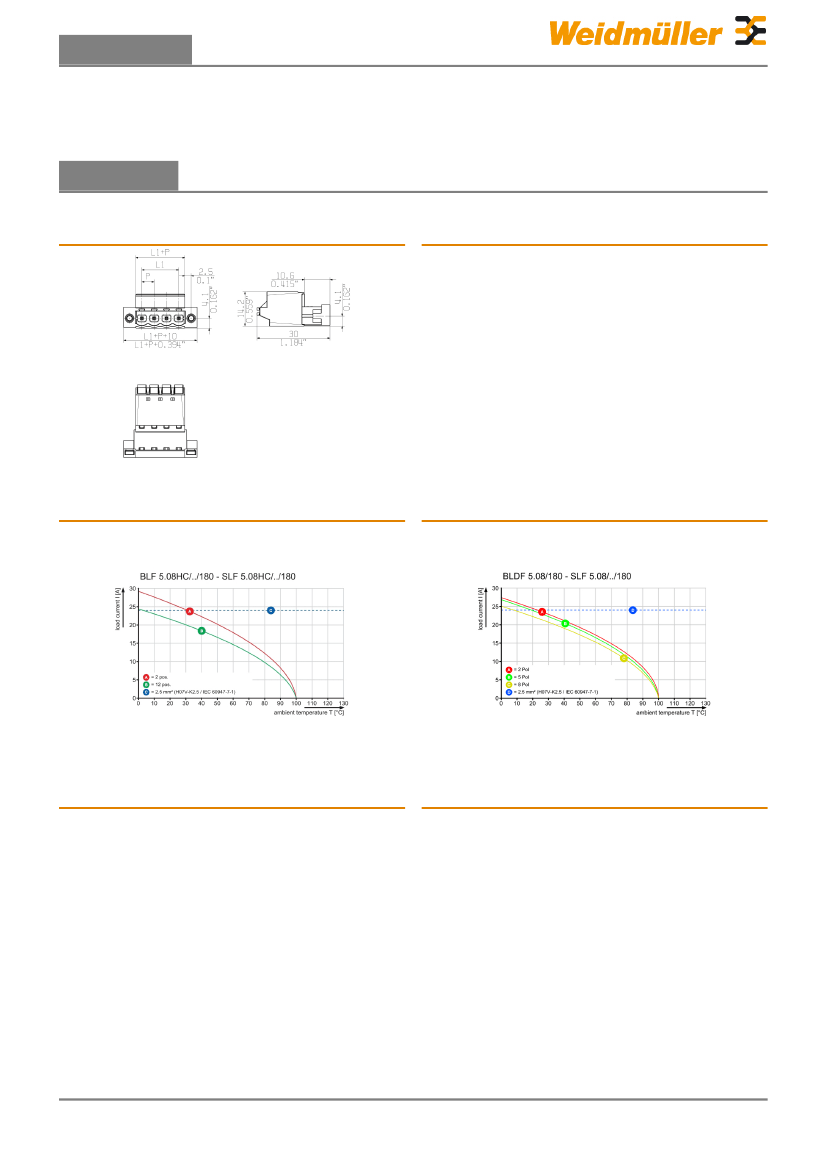

Drawings
Dimensional drawing
Graph
Creation date November 16, 2018 5:30:48 AM CET
Catalogue status 09.11.2018 / We reserve the right to make technical changes.
5
