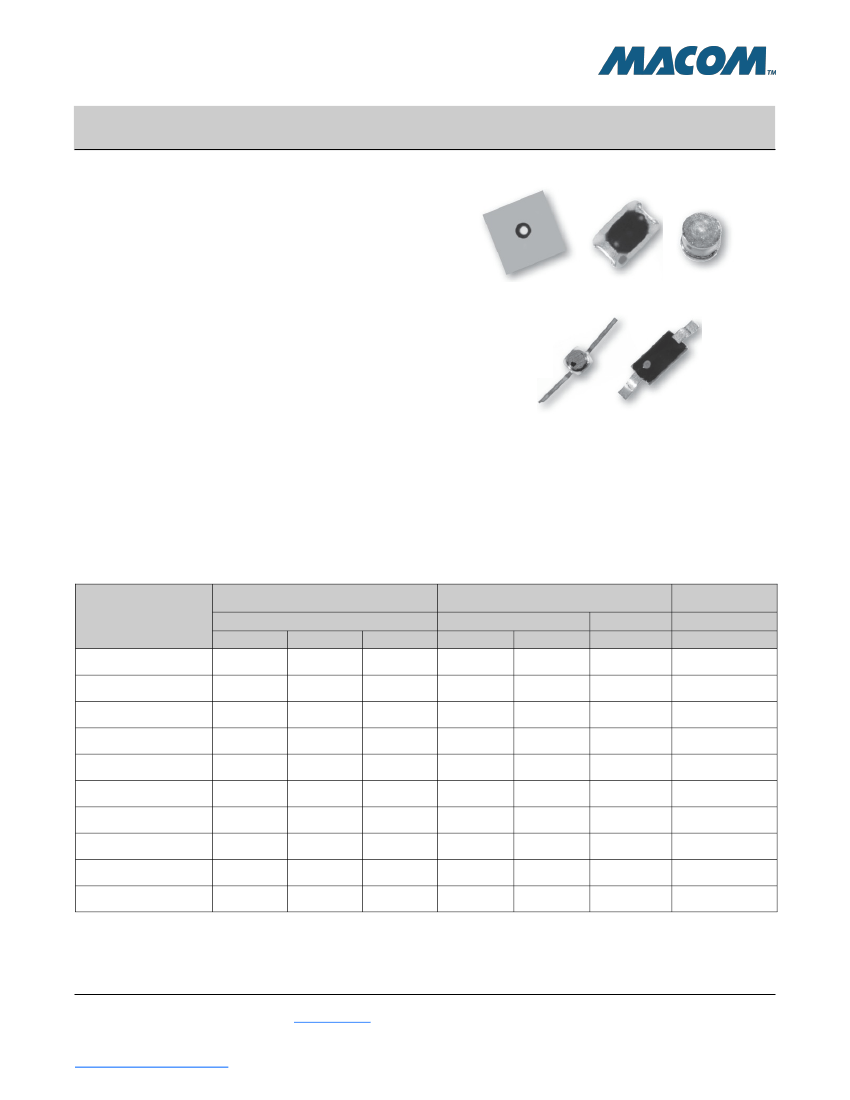

leakage and excellent post tuning drift. Available in
three constant gamma families of 0.75, 1.0 and 1.25.
These diodes will find application in tunable filters
and oscillators up to 40 GHz. Optimum performance
is obtained using die however packaged devices are
available as well screened per MIL-PRF-19500 and
MIL-PRF-38534.
Chip (C01A)
Electrical Specifications: T
A
= +25°C, V
B
= 22 V min., I
R
= 100 nA max.
Total Capacitance (pF)
Model
Min.
MGV100-08
MGV100-09
MGV100-20
MGV100-21
MGV100-22
MGV100-23
MGV100-24
MGV100-25
MGV100-26
MGV100-27
0.30
0.40
0.50
0.58
0.72
0.90
1.08
1.35
1.63
1.80
V
R
= 4 V, 1 MHz
Nom.
0.35
0.45
0.55
0.65
0.80
1.00
1.20
1.50
1.70
2.00
Max.
0.40
0.50
0.61
0.72
0.88
1.10
1.32
1.65
1.87
2.20
Tuning Ratio
V
R
= 2 to 12
Min.
Typ.
2.7
2.7
2.7
2.7
2.7
2.7
2.7
2.7
2.7
2.7
3.4
3.4
3.4
3.4
3.4
3.4
3.4
3.4
3.4
3.4
Q
V
R
= 2 to 20 V
R
= 4 V, 50 MHz
Typ.
Min.
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
4,000
4,000
4,000
4,000
3,000
3,000
3,000
3,000
3,000
3,000
* Restrictions on Hazardous Substances, European Union Directive 2011/65/EU.
1
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MGV100-x Series
GaAs Hyperabrupt Varactor Diodes
1.0 Constant Gamma
Packaged (E28, 28X, H20, P55, 0805-2)
Electrical Specifications: T
A
= +25°C, V
B
= 22 V min., I
R
= 100 nA max.
Total Capacitance (pF)
Model
MGV100-08-E28 / 28 X
MGV100-08H20
MGV100-08-P55
MGV100-08-0805-2
MGV100-09-E28 / 28 X
MGV100-09-H20
MGV100-09-P55
MGV100-09-0805-2
MGV100-20-E28 / 28 X
MGV100-20-H20
MGV100-20-P55
MGV100-20-0805-2
MGV100-21-E28 / 28 X
MGV100-21-H20
MGV100-21-P55
MGV100-21-0805-2
MGV100-22-E28 / 28 X
MGV100-22-H20
MGV100-22-P55
MGV100-22-0805-2
MGV100-23-E28 / 28 X
MGV100-23-H20
MGV100-23-P55
MGV100-23-0805-2
MGV100-24-E28 / 28 X
MGV100-24-H20
MGV100-24-P55
MGV100-24-0805-2
MGV100-25-E28 / 28 X
MGV100-25-H20
MGV100-25-P55
MGV100-25-0805-2
MGV100-26-E28 / 28 X
MGV100-26-H20
MGV100-26-P55
MGV100-26-0805-2
MGV100-27-E28 / 28 X
MGV100-27-H20
MGV100-27-P55
MGV100-27-0805-2
Min.
0.37
0.46
0.41
0.35
0.47
0.56
0.51
0.45
0.57
0.66
0.61
0.55
0.65
0.74
0.69
0.63
0.79
0.88
0.83
0.77
0.97
1.06
1.01
0.95
1.15
1.24
1.19
1.13
1.42
1.51
1.46
1.40
1.70
1.79
1.74
1.68
1.87
1.96
1.91
1.85
V
R
= 4 V, 1 MHz
Nom.
0.43
0.53
0.48
0.41
0.53
0.63
0.58
0.51
0.63
0.73
0.68
0.61
0.73
0.83
0.78
0.71
0.88
0.98
0.93
0.86
1.08
1.18
1.13
1.06
1.28
1.38
1.33
1.26
1.58
1.68
1.63
1.56
1.78
1.88
1.83
1.76
2.08
2.18
2.13
2.06
Max.
0.49
0.61
0.55
0.47
0.59
0.71
0.65
0.57
0.70
0.82
0.76
0.68
0.81
0.93
0.87
0.79
0.97
1.09
1.03
0.95
1.19
1.31
1.25
1.17
1.41
1.53
1.47
1.39
1.74
1.86
1.80
1.72
1.96
2.08
2.02
1.94
2.29
2.41
2.35
2.27
Tuning Ratio
V
R
= 2 to 12
Min.
Typ.
1.9
2.7
0.8
1.9
1.4
2.3
2.1
2.9
2.1
2.9
1.3
2.2
1.7
2.5
2.2
3.0
2.2
3.0
1.6
2.4
1.9
2.7
2.3
3.1
2.3
3.0
1.7
2.6
2.0
2.8
2.4
3.1
2.4
3.1
1.9
2.7
2.1
2.9
2.4
3.2
2.4
3.2
2.1
2.8
2.3
3.0
2.5
3.2
2.5
3.2
2.2
2.9
2.3
3.1
2.5
3.2
2.5
3.2
2.3
3.0
2.4
3.1
2.6
3.3
2.5
3.3
2.4
3.1
2.5
3.2
2.6
3.3
2.6
3.3
2.4
3.1
2.5
3.2
2.6
3.3
Q
V
R
= 2 to 20 V
R
= 4 V, 50 MHz
Typ.
Min.
4.0
4,000
2.8
4,000
3.4
4,000
4.3
4,000
4.2
4,000
3.2
4,000
3.7
4,000
4.4
4,000
4.3
4,000
3.5
4,000
3.9
4,000
4.5
4,000
4.4
4,000
3.8
4,000
4.1
4,000
4.6
4,000
4.5
3,000
4.0
3,000
4.3
3,000
4.7
3,000
4.6
3,000
4.2
3,000
4.4
3,000
4.7
3,000
4.7
3,000
4.3
3,000
4.5
3,000
4.8
3,000
4.8
3,000
4.5
3,000
4.6
3,000
4.8
3,000
4.8
3,000
4.5
3,000
4.7
3,000
4.8
3,000
4.8
3,000
4.6
3,000
4.7
3,000
4.9
3,000
Rev. V1
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MGV100-x Series
GaAs Hyperabrupt Varactor Diodes
1.0 Constant Gamma

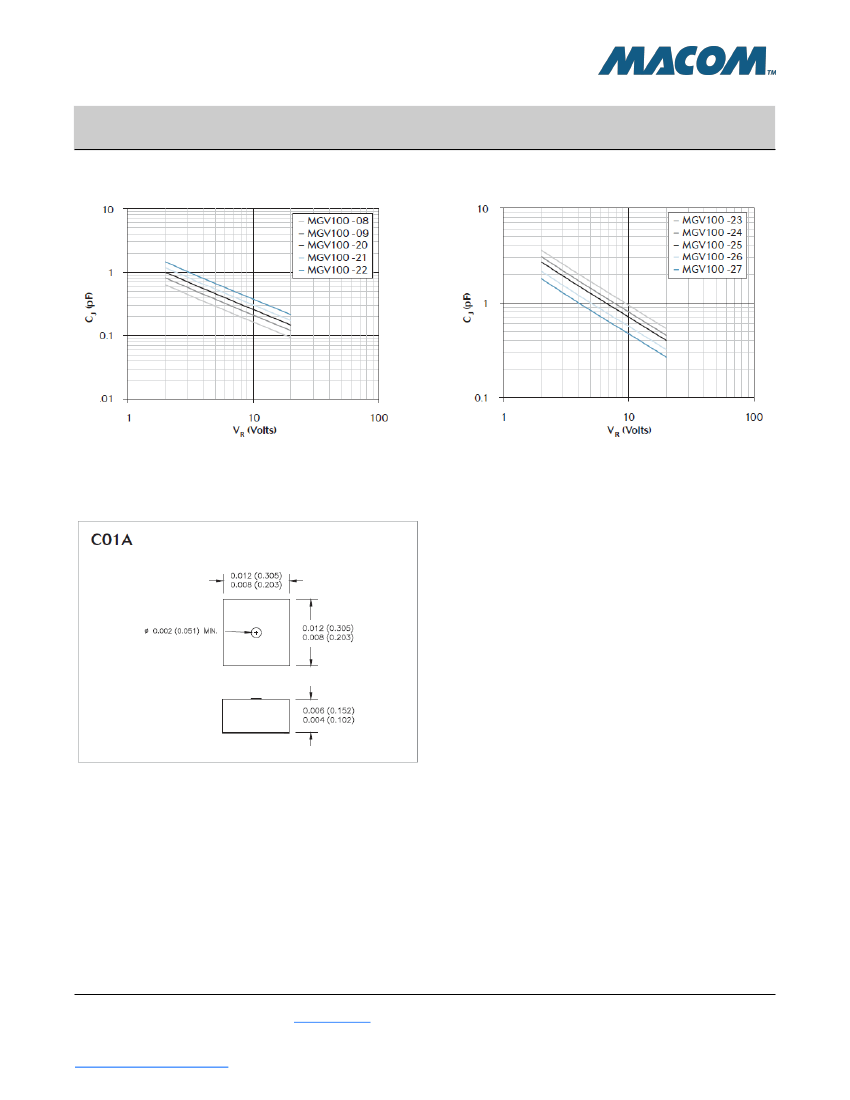

Typical Performance, Chips
Rev. V1
Chip Outline Drawings
3
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MGV100-x Series
GaAs Hyperabrupt Varactor Diodes
1.0 Constant Gamma

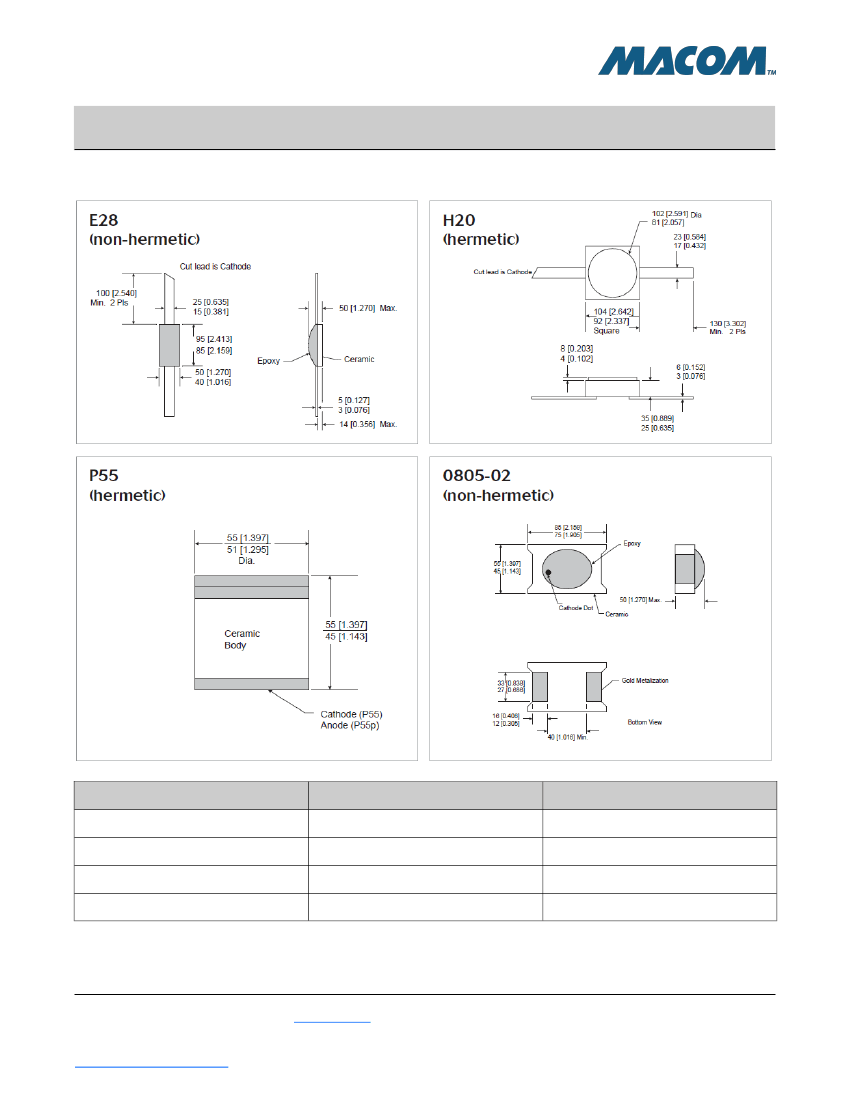

Packaged Outline Drawings
Rev. V1
Package Style
E28 / 28X
H20
P55
0805-2
Capacitance @ 1 GHz
0.08
0.18
0.13
0.06
Inductance @ 1 GHz
0.40
0.50
0.35
0.40
4
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MGV100-x Series
GaAs Hyperabrupt Varactor Diodes
1.0 Constant Gamma
Rev. V1
M/A-COM Technology Solutions Inc. All rights reserved.
Information in this document is provided in connection with M/A-COM Technology Solutions Inc ("MACOM")
products. These materials are provided by MACOM as a service to its customers and may be used for
informational purposes only. Except as provided in MACOM's Terms and Conditions of Sale for such products or
in any separate agreement related to this document, MACOM assumes no liability whatsoever. MACOM
assumes no responsibility for errors or omissions in these materials. MACOM may make changes to
specifications and product descriptions at any time, without notice. MACOM makes no commitment to update
the information and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future
changes to its specifications and product descriptions. No license, express or implied, by estoppels or otherwise,
to any intellectual property rights is granted by this document.
THESE MATERIALS ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, RELATING TO SALE AND/OR USE OF MACOM PRODUCTS INCLUDING LIABILITY OR
WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, CONSEQUENTIAL OR
INCIDENTAL DAMAGES, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR
OTHER INTELLECTUAL PROPERTY RIGHT. MACOM FURTHER DOES NOT WARRANT THE ACCURACY
OR COMPLETENESS OF THE INFORMATION, TEXT, GRAPHICS OR OTHER ITEMS CONTAINED WITHIN
THESE MATERIALS. MACOM SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR LOST PROFITS,
WHICH MAY RESULT FROM THE USE OF THESE MATERIALS.
MACOM products are not intended for use in medical, lifesaving or life sustaining applications. MACOM
customers using or selling MACOM products for use in such applications do so at their own risk and agree to
fully indemnify MACOM for any damages resulting from such improper use or sale.
5
