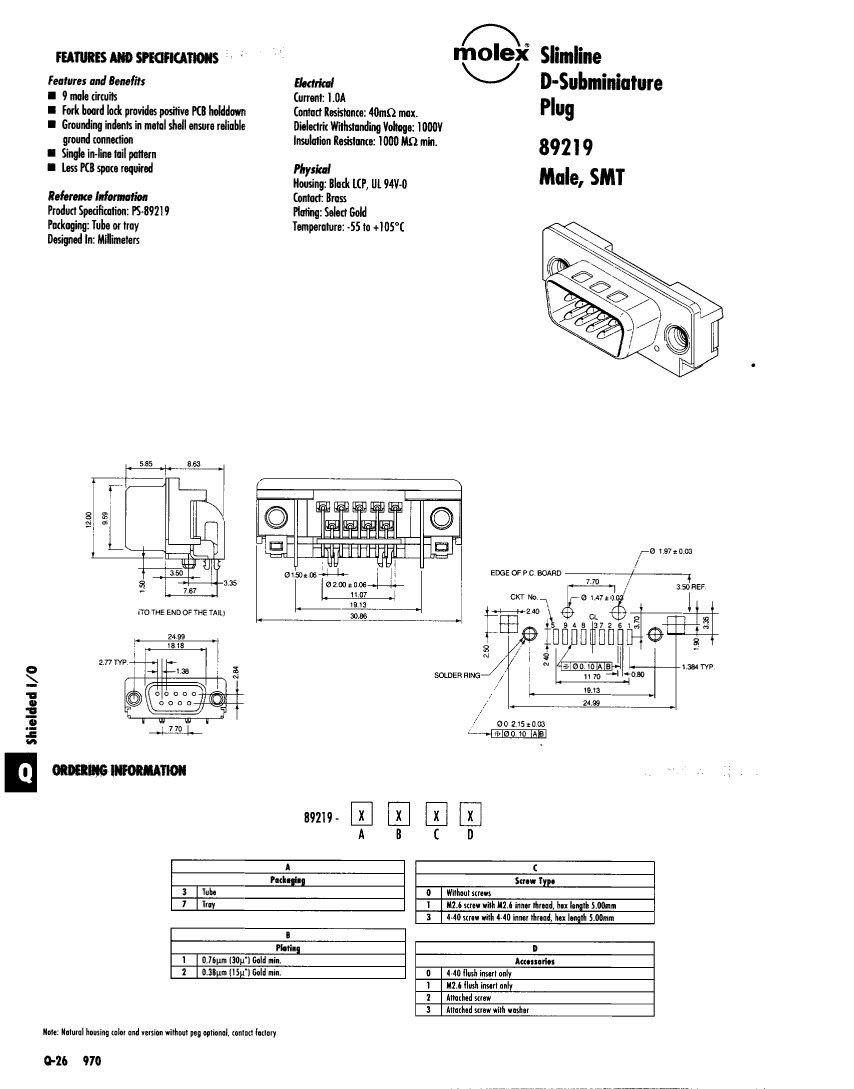

D Subminiature Connector, 9 Contact(s), Male, 0.109 inch Pitch, Surface Mount Terminal, Hole .112-.124, Plug
| Parameter Name | Attribute value |
| Maker | Molex |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| body width | 0.472 inch |
| subject depth | 0.34 inch |
| body length | 1.215 inch |
| Body/casing type | PLUG |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | AU |
| Contact point gender | MALE |
| Contact material | BRASS |
| contact mode | STAGGERED |
| Contact resistance | 40 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1000VAC V |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) |
| MIL compliance | NO |
| Manufacturer's serial number | 89219 |
| Plug contact pitch | 0.109 inch |
| Match contact row spacing | 0.112 inch |
| Mixed contacts | NO |
| Installation option 1 | HOLE .112-.124 |
| Installation option 2 | SCREW |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| PCB row number | 1 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | RECTANGULAR |
| Plating thickness | 15u inch |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Shell material | LIQUID CRYSTAL POLYMER |
| Housing size | 1/E |
| Terminal pitch | 1.3716 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 9 |
| UL Flammability Code | 94V-0 |
