S1803A-22.0000 Overview

CMOS/LSTTL Output Clock Oscillator, 22MHz Nom,

S1803A-22.0000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	1 YEARS AGING AVAILABLE; ENABLE/DISABLE FUNCTION
maximum descent time	7 ns
Frequency Adjustment - Mechanical	NO
JESD-609 code	e4
Manufacturer's serial number	S1803
Installation features	SURFACE MOUNT
Nominal operating frequency	22 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS/LSTTL
Output load	10 LS TTL, 15 pF
physical size	190.5mm x 127.0mm x 29.21mm
longest rise time	7 ns
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	Gold (Au)
Base Number Matches	1

Preview

Download Datasheet

View All

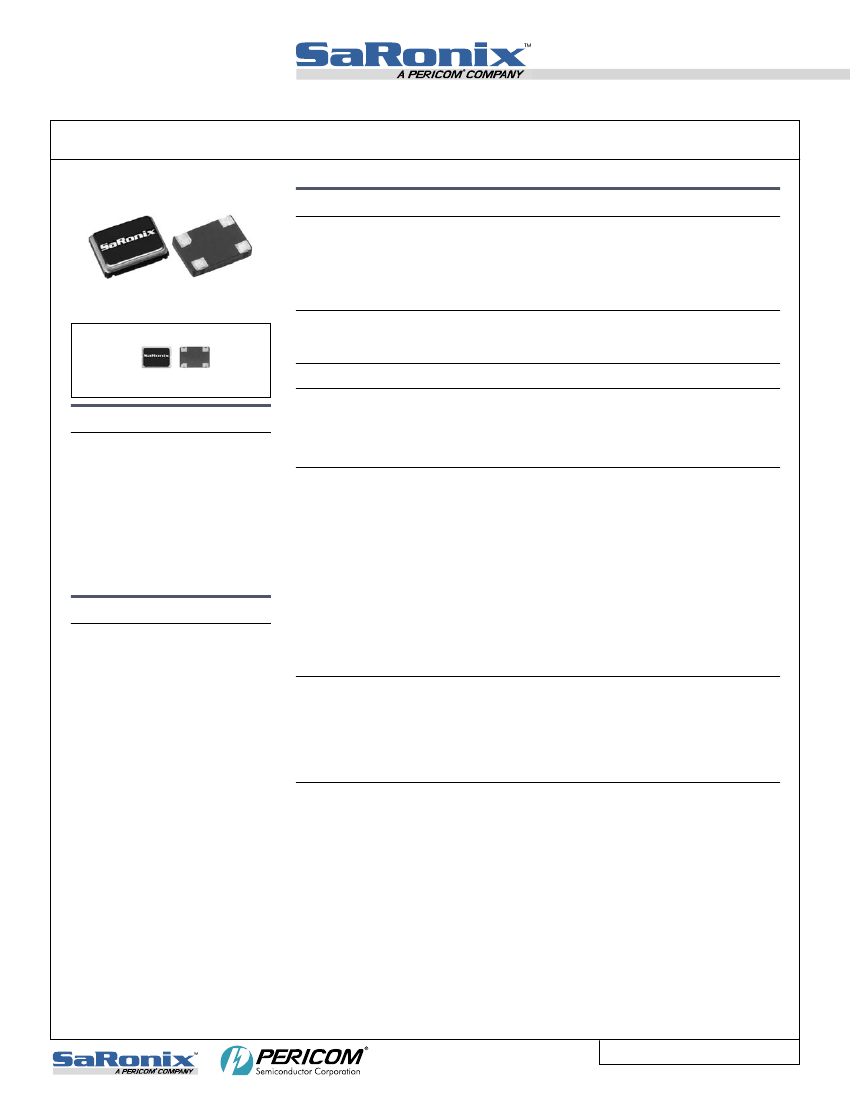

Crystal Clock Oscillator

Technical Data

Frequency Range:

Frequency Stability:

*Aging

3.3 & 5V, HCMOS/LVCMOS, TTL

S1800 / S1803 / S1850 Series

1.5440 MHz to 80 MHz

±20, ±25, ±50, ±100 ppm over all conditions; calibration, tolerance,

operating temperature, input voltage change, load change, shock and

vibration and aging*

(1 Year @ 25°C average ambient temperature)

Temperature Range:

Operating:

Storage:

Supply Voltage:

ACTUAL SIZE

-10 to +70°C or -40 to +85°C

-55 to +125°C

+5.0V ±10%, 3.3V ±10%

S1800

25mA max

35mA max

n/a

10µA max

S1803

15mA max

25mA max

40mA max

10µA max

S1850

27mA max

35mA max

75mA max

n/a

Description

The 5V S1800, S1850 and 3.3V S1803 are

crystal-controlled, low-current oscillators

providing precise rise and fall times to

drive high speed CMOS and TTL loads.

The sub-miniature, very low profile lead-

less ceramic packages have gold-plated

contact pads, ideal for today's pick-and-

place SMT environments. The S1850 is

a high output load version available to

80 MHz.

Applications & Features

• Sub-miniature, 1.1 mm high ceramic

package ideal for SMT applications

• 10µA max standby mode on S1800

and S1803

• Tight Stability, low power, and low

profile ideal for 802.11 applications

• Available as 3.3V and 5V versions

LVCMOS, HCMOS, TTL compatible

• Perfect for PC's; notebook, palmtop

computers; portable applications;

PCMCIA cards;disc drives. Anywhere

small size, low power, surface mount-

ability are a priority

• Available on tape & reel; 16mm tape,

1000pcs per reel

Supply Current:

1.544 to 32 MHz:

32+ to 50 MHz:

50+ to 80 MHz:

Output disabled (Standby):

Output:

Symmetry:

Rise & Fall Times:

Logic 0:

Logic 1:

Load:

Accumulated Jitter:

Phase Jitter:

Total Jitter:

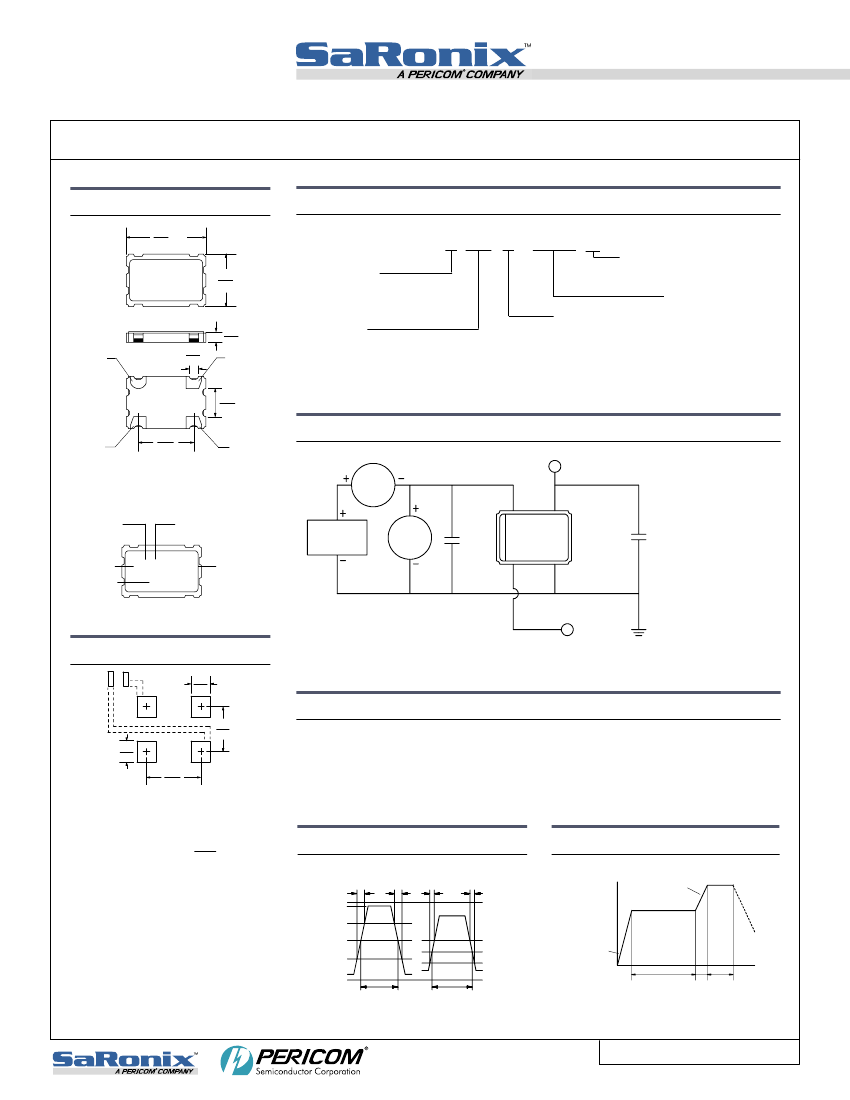

Mechanical:

Shock:

Solderability:

Vibration:

Solvent Resistance:

Terminal Strength:

Resistance to Soldering Heat:

Environmental:

Thermal Shock:

Moisture Resistance:

45/55% max @ 50% V

, 40/60% max @ 1.5V on S1800 & 1850

S1800: 10ns max, 20% to 80% V

S1803: 7ns max, (to 50MHz), 5ns (>50 MHz), 20% to 80% V

S1850: 7ns max, 20% to 80% V

10% V

max

90% V

min

S1800/S1803: 15pF max, 10 LSTTL

S1850: 50 pF max 1.544 to 50 MHz, 10 TTL

30 pF max 50+ to 70 MHz, 10 TTL

20 pF max 70+ to 80 MHz (HCMOS), 10 TTL

5ps RMS (1-sigma) max in 20,000 adjacent periods

1.5ps RMS (1-sigma) max in 10kHz ~ 20MHz freq. band

50ps max peak-to-peak in 100,000 random periods

MIL-STD-883, Method 2002, Condition B

MIL-STD-883, Method 2003

MIL-STD-883, Method 2007, Condition A

MIL-STD-202, Method 215

MIL-STD-883, Method 2004, Condition D

MIL-STD-202, Method 210, Condition I or J

MIL-STD-883, Method 1011, Condition A

MIL-STD-883, Method 1004

DS-181

REV G

www.pericom.com/saronix
