GP2S27T3J00F: DescriptionDiffuse Photoelectric Sensor, 1mm Min, 1mm Max, 0.02-0.12mA, Rectangular, Through Hole Mount,; CategoryThe sensor Sensor/transducer; File Size431KB，19 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/; Environmental Compliance

Download Datasheet Parametric Compare View All

GP2S27T3J00F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	GP2S27T3J00F	-	-	View	Buy Now

GP2S27T3J00F Overview

Diffuse Photoelectric Sensor, 1mm Min, 1mm Max, 0.02-0.12mA, Rectangular, Through Hole Mount,

GP2S27T3J00F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
body width	3 mm
body height	1.7 mm
Body length or diameter	4 mm
Maximum measuring range (mm)	1 mm
Minimum measuring range (mm)	1 mm
Installation features	THROUGH HOLE MOUNT
Maximum working current	20 mA
Output range	0.02-0.12mA
Output type	ANALOG CURRENT
Package Shape/Form	RECTANGULAR
Response time	20 µs
Sensor/Transducer Type	LINEAR POSITION SENSOR,PHOTOELECTRIC,DIFFUSE
Maximum supply voltage	1.4 V
Minimum supply voltage	1.2 V
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

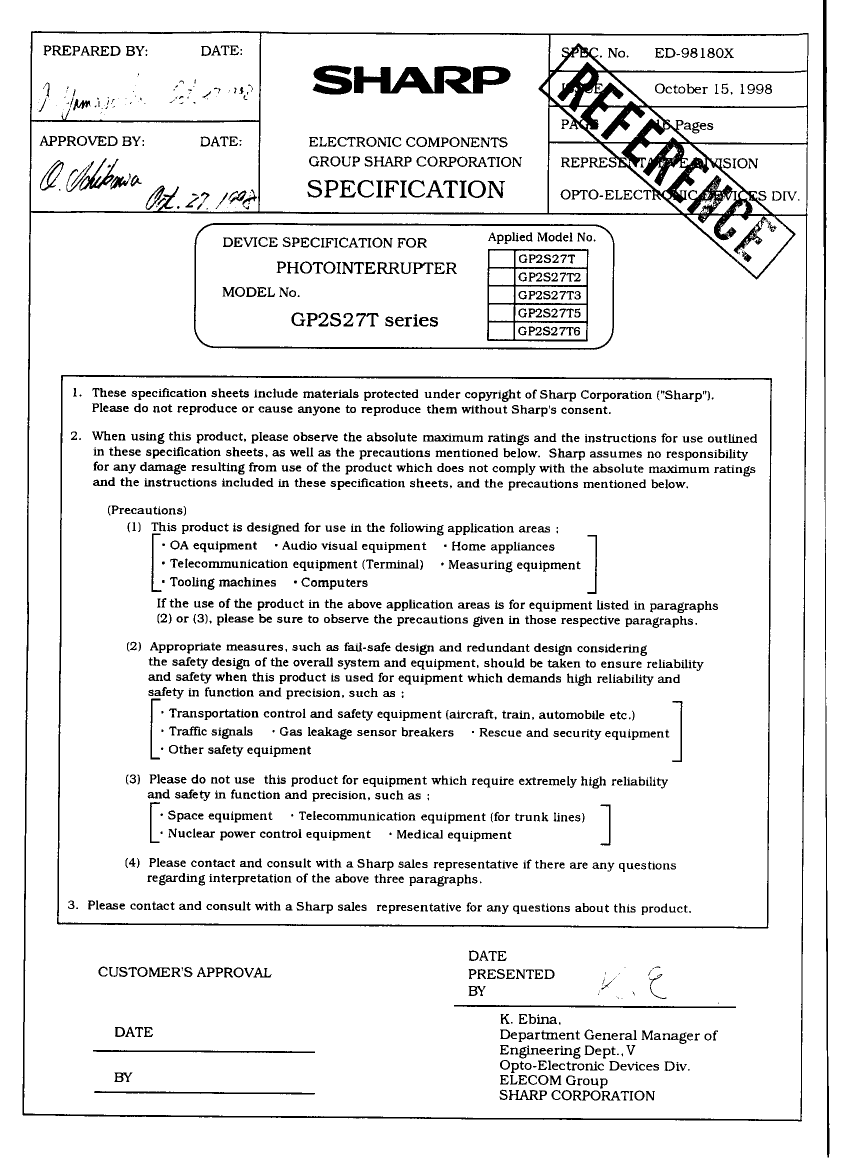

RODUCT

PECIFICATION

Optoelectronics Components Group

GP2S27T300F

Photointerrupter

(Model Number: GP2S27T series)

Spec. Issue Date:

October 15, 1998

Spec No: ED-98180X
