74HC540PW-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74HC540PW-T

74HC540PW-T: DescriptionIC HC/UH SERIES, 8-BIT DRIVER, INVERTED OUTPUT, PDSO20, Bus Driver/Transceiver; Categorylogic logic; File Size83KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

74HC540PW-T Overview

IC HC/UH SERIES, 8-BIT DRIVER, INVERTED OUTPUT, PDSO20, Bus Driver/Transceiver

74HC540PW-T Parametric

Parameter Name	Attribute value
package instruction	TSSOP,
Reach Compliance Code	unknown
Other features	WITH DUAL OUTPUT ENABLE
series	HC/UH
JESD-30 code	R-PDSO-G20
length	6.5 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	30 ns
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm
Base Number Matches	1

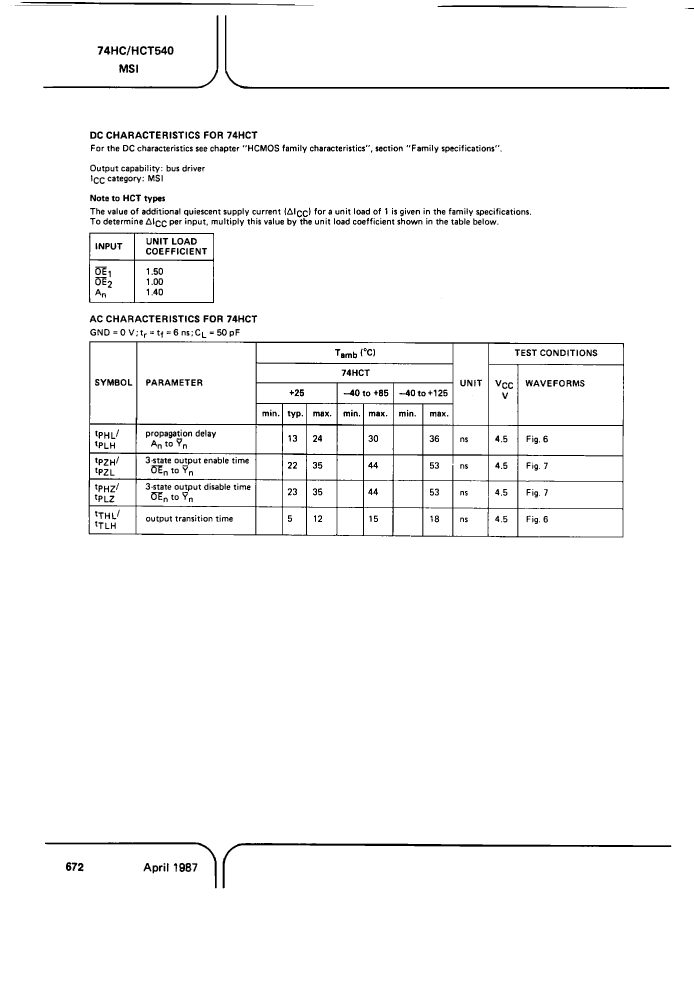

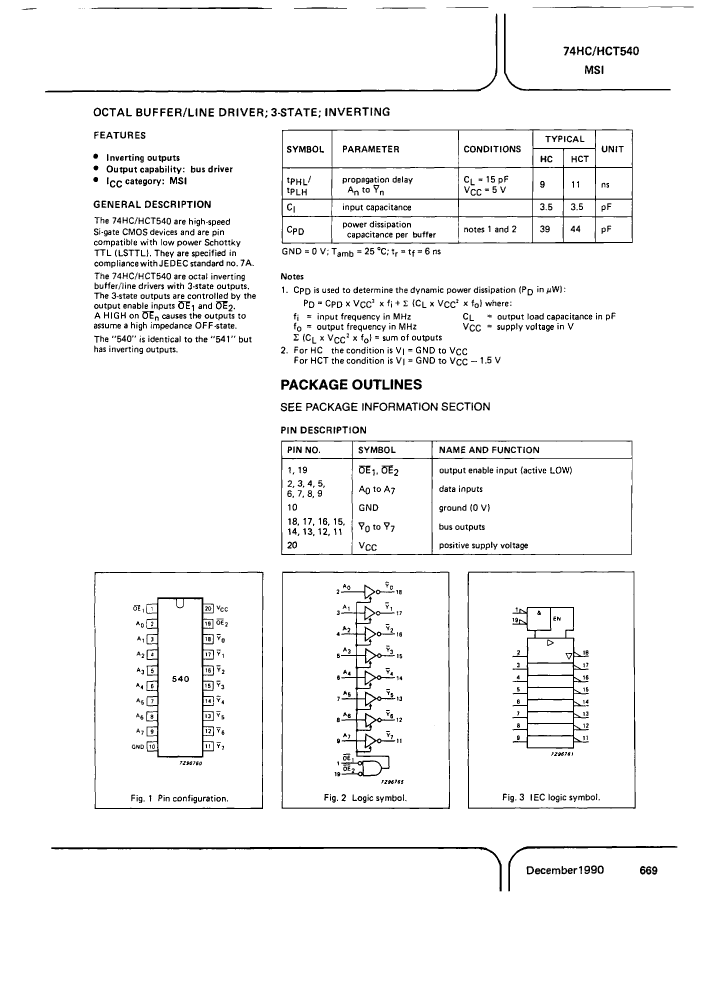

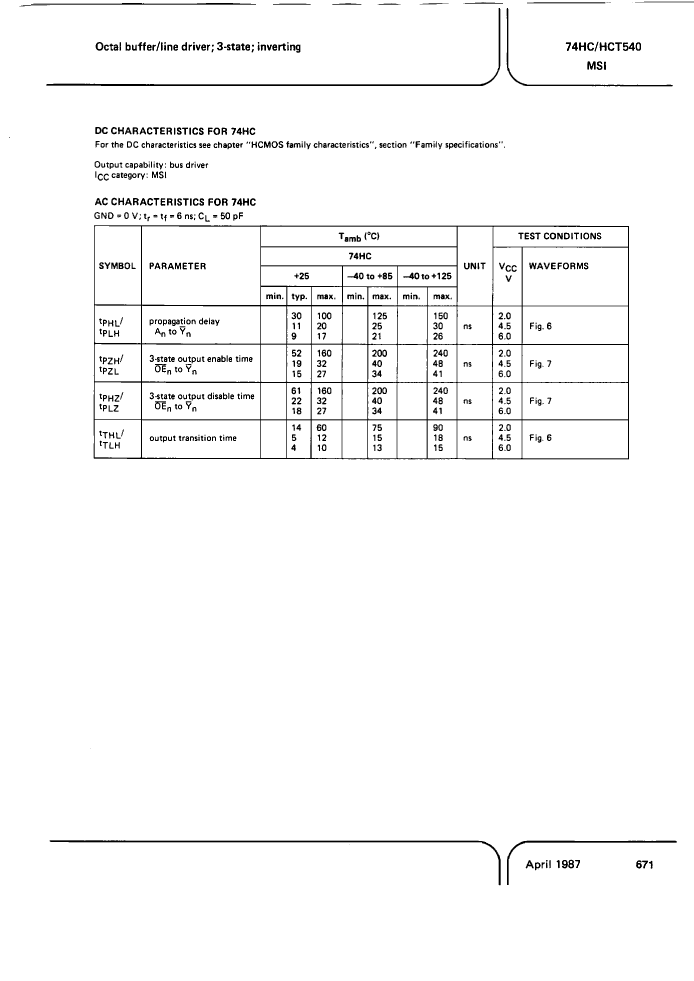

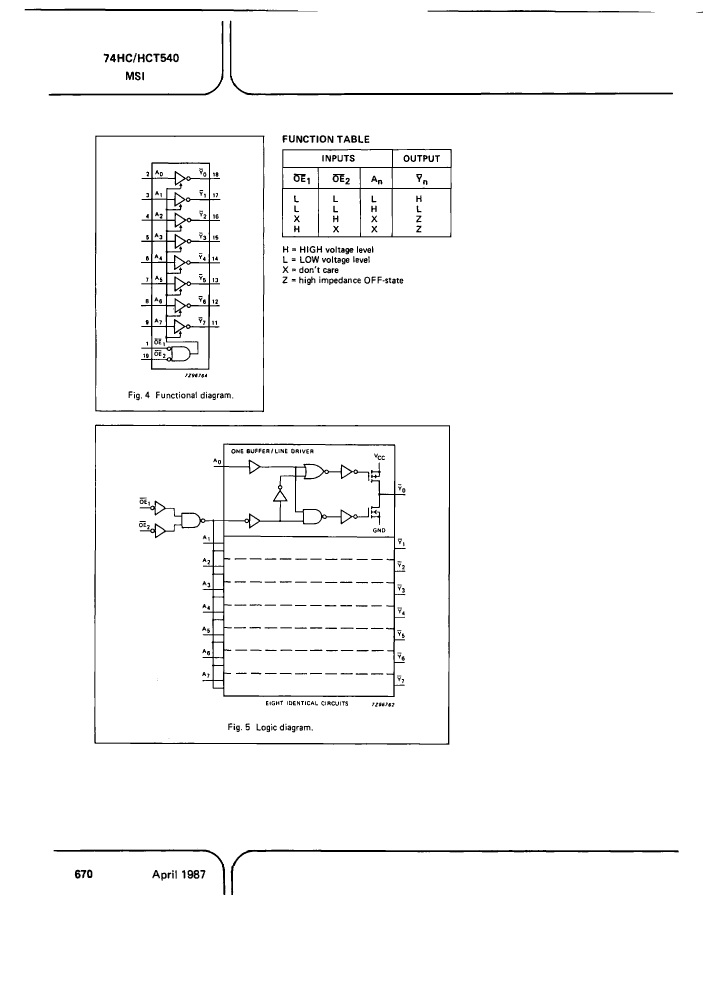

Preview

Download Datasheet

View All

74HC540PW-T Related Products

	74HC540PW-T	74HCT540PW	74HC540PW	74HCT540PW-T
Description	IC HC/UH SERIES, 8-BIT DRIVER, INVERTED OUTPUT, PDSO20, Bus Driver/Transceiver	IC HCT SERIES, 8-BIT DRIVER, INVERTED OUTPUT, PDSO20, Bus Driver/Transceiver	IC HC/UH SERIES, 8-BIT DRIVER, INVERTED OUTPUT, PDSO20, Bus Driver/Transceiver	IC HCT SERIES, 8-BIT DRIVER, INVERTED OUTPUT, PDSO20, Bus Driver/Transceiver
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE
series	HC/UH	HCT	HC/UH	HCT
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20
length	6.5 mm	6.5 mm	6.5 mm	6.5 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	8	8	8	8
Number of functions	1	1	1	1
Number of ports	2	2	2	2
Number of terminals	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	TSSOP	TSSOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	30 ns	36 ns	30 ns	36 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.1 mm	1.1 mm	1.1 mm	1.1 mm
Maximum supply voltage (Vsup)	6 V	5.5 V	6 V	5.5 V
Minimum supply voltage (Vsup)	2 V	4.5 V	2 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	4.4 mm	4.4 mm	4.4 mm	4.4 mm
package instruction	TSSOP,	-	TSSOP,	TSSOP,
Maker	-	NXP	NXP	NXP
