05005HS-22A2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > 05005HS-22A2

Preview

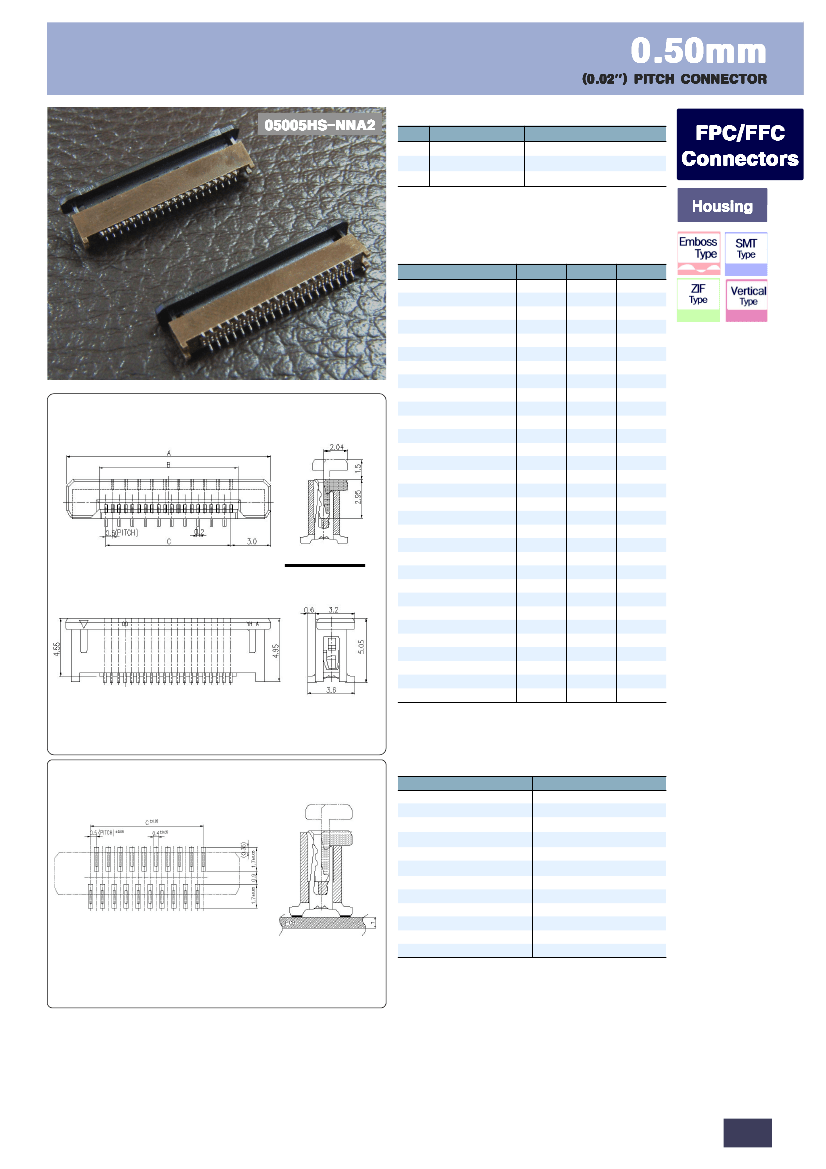

05005HS-22A2: Description0.50mm P1TCH CONNECTOR; File Size2MB，1 Pages; ManufacturerYEONHO ELECTRONICS CO., LTD.; Websitehttp://www.yeonho.com/

Download Datasheet Compare View All

05005HS-22A2 Overview

0.50mm P1TCH CONNECTOR

Preview

Download Datasheet

View All

Material

I/NO

DESCRIPTION

HOUSING

ACTUATOR

TERMINAL

PPS, UL94V-0

MATERIAL

Phosphor Bronze, Au-plated

Available Pin

SECTION A-A''

05005HS-20A2

05005HS-21A2

05005HS-22A2

05005HS-23A2

05005HS-24A2

05005HS-25A2

05005HS-26A2

05005HS-27A2

05005HS-28A2

05005HS-29A2

05005HS-30A2

05005HS-31A2

05005HS-32A2

05005HS-33A2

05005HS-34A2

05005HS-35A2

05005HS-36A2

05005HS-37A2

05005HS-38A2

05005HS-39A2

05005HS-40A2

05005HS-41A2

05005HS-42A2

05005HS-43A2

05005HS-44A2

05005HS-45A2

05005HS-46A2

05005HS-47A2

05005HS-48A2

05005HS-49A2

05005HS-50A2

PARTS NO.

16.0

16.5

17.0

17.5

18.0

18.5

19.0

19.5

20.0

20.5

21.0

21.5

22.0

22.5

23.0

23.5

24.0

24.5

25.0

25.5

26.0

26.5

27.0

27.5

28.0

28.5

29.0

29.5

30.0

30.5

31.0

10.5

11.0

11.5

12.0

12.5

13.0

13.5

14.0

14.5

15.0

15.5

16.0

16.5

17.0

17.5

18.0

18.5

19.0

19.5

20.0

20.5

21.0

21.5

22.0

22.5

23.0

23.5

24.0

24.5

25.0

25.5

9.5

10.0

10.5

11.0

11.5

12.0

12.5

13.0

13.5

14.0

14.5

15.0

15.5

16.0

16.5

17.0

17.5

18.0

18.5

19.0

19.5

20.0

20.5

21.0

21.5

22.0

22.5

23.0

23.5

24.0

24.5

Specification

PCB LAYOUT (05005HS-NNA2)

PCB ASS‘Y

Contact Resistance

Withstanding Voltage

Insulation Resistance

Applicable Wire

Applicable P.C.B

Applicable FPC/FFC

Solder Height

Crimp Tensile Strength

UL FILE NO

ITEM

Voltage Rating

Current Rating

Operating Temperature

SPEC

AC/DC 50V

AC/DC 0.5A

30m

Ω

MAX

AC250V/1min

-25

℃

~+85

℃

100M

Ω

MIN

0.8 ~ 1.6mm

0.30±0.02mm

0.15mm

Yeonho Electronics

http://www.yeonho.com
