TB62725BF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> TB62725BF

TB62725BF: DescriptionIC LED DISPLAY DRIVER, PDSO16, 0.225 INCH, 1 MM PITCH, PLASTIC, SSOP-16, Display Driver; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size349KB，19 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TB62725BF Overview

IC LED DISPLAY DRIVER, PDSO16, 0.225 INCH, 1 MM PITCH, PLASTIC, SSOP-16, Display Driver

TB62725BF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	SSOP, SOP16,.25,40
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
data entry mode	SERIAL
display mode	SEGMENT
Interface integrated circuit type	LED DISPLAY DRIVER
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	8.2 mm
Multiplex display function	NO
Number of functions	1
Number of segments	8
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SOP16,.25,40
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
power supply	3.3/5 V
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	YES
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1 mm
Terminal location	DUAL
width	4.6 mm
minfmax	20 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

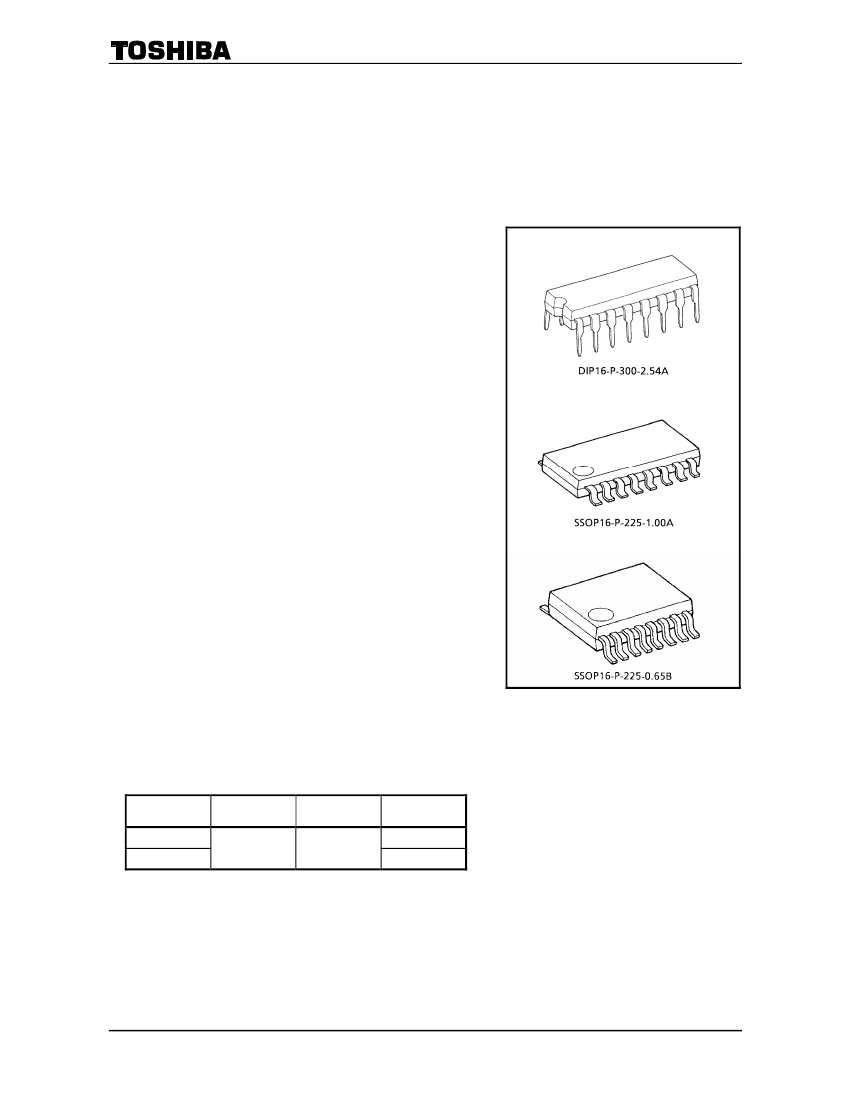

TB62725BP/BF/BFN

TOSHIBA Bi-CMOS Integrated Circuit Silicon Monolithic

TB62725BP,TB62725BF,TB62725BFN

8-bit Constant-Current LED Driver of the 3.3-V and 5-V Power Supply Voltage Operation

The TB62725BP/BF/BFN are comprised of constant-current

drivers designed for LEDs and LED displays. The output current

value can be set using an external resistor.

As a result, all outputs will have virtually the same current

levels.

This driver incorporates an 8-bit constant-current output, an

8-bit shift register, an 8-bit latch circuit and an 8-bit AND-gate

circuit.

These drivers have been designed using the Bi-CMOS process.

TB62725BP

TB62725BF

Features

Output current capability and number of outputs:

90 mA × 8 outputs

Constant current range: 5 to 80 mA

Application output voltage:

0.7 V (output current 5 to 80 mA)

0.4 V (output current 5 to 40 mA)

For anode-common LEDs

Input signal voltage level: 3.3-V and 5-V CMOS level (Schmitt

trigger input)

Maximum output terminal voltage: 17 V

Serial data transfer rate: 20 MHz (max, cascade connection)

Operating temperature range: T

opr

−40

to 85°C

Package:

Type BP:

Type BF:

Type BFN:

DIP16-P-300-2.54A

SSOP16-P-225-1.00A

SSOP16-P-225-0.65B

Weight

DIP16-P-300-2.54A: 1.11 g (typ.)

SSOP16-P-225-1.00A: 0.14 g (typ.)

SSOP16-P-225-0.65B: 0.07 g (typ.)

TB62725BFN

Package and pin layout: Pin layout and functionality are similar

to those of the TB62705C series and TB62725A series.

(Each characteristic value is different.)

Constant-current accuracy (all outputs on)

Output Voltage

0.4 V

0.7 V

Current Error

between Bits

±6%

Current Error

between ICs

±15%

Output Current

5 to 40 mA

5 to 90 mA

2006-06-13

TB62725BF Related Products

	TB62725BF	TB62725BFN	TB62725BP
Description	IC LED DISPLAY DRIVER, PDSO16, 0.225 INCH, 1 MM PITCH, PLASTIC, SSOP-16, Display Driver	IC LED DISPLAY DRIVER, PDSO16, 0.225 INCH, 0.65 MM PITCH, PLASTIC, SSOP-16, Display Driver	IC LED DISPLAY DRIVER, PDIP16, 0.300 INCH, 2.54 MM PITCH, PLASTIC, DIP-16, Display Driver
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	SOIC	SOIC	DIP
package instruction	SSOP, SOP16,.25,40	LSSOP, SSOP16,.25	DIP, DIP16,.3
Contacts	16	16	16
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
data entry mode	SERIAL	SERIAL	SERIAL
display mode	SEGMENT	SEGMENT	SEGMENT
Interface integrated circuit type	LED DISPLAY DRIVER	LED DISPLAY DRIVER	LED DISPLAY DRIVER
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16
JESD-609 code	e0	e0	e0
length	8.2 mm	5 mm	19.25 mm
Multiplex display function	NO	NO	NO
Number of functions	1	1	1
Number of segments	8	8	8
Number of terminals	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	LSSOP	DIP
Encapsulate equivalent code	SOP16,.25,40	SSOP16,.25	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	IN-LINE
power supply	3.3/5 V	3.3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.9 mm	1.6 mm	4.45 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	3 V	3 V	3 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	BICMOS	BICMOS	BICMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	1 mm	0.65 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
width	4.6 mm	4.4 mm	7.62 mm
minfmax	20 MHz	20 MHz	20 MHz
Base Number Matches	1	1	1
