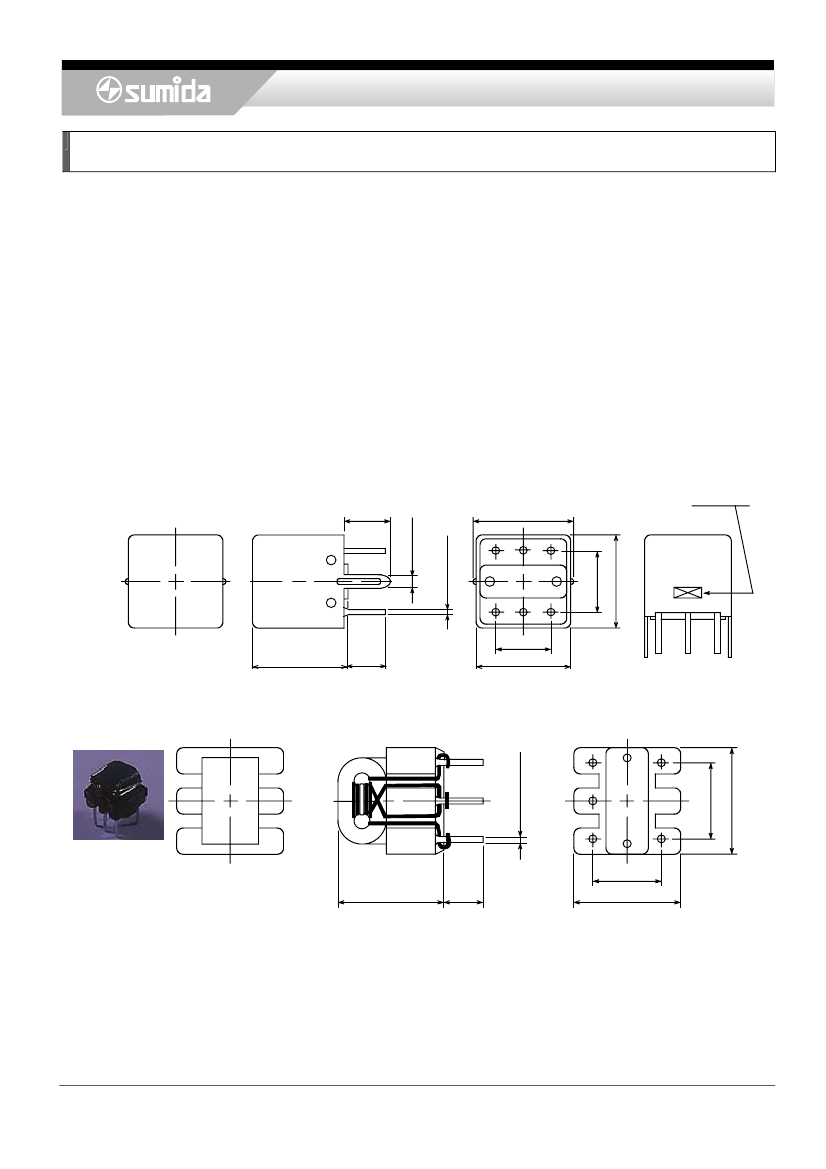

Balun coil< Pin Type: BM Series>

Type: BM-7A/BM-7AN

◆

Product Description

・8.2×8.2mm

Max.(L×W),8.0mm Max. Height(BM-7A,Shielded Type)

・7.2×7.2mm

Max.(L×W),7.0mm Max. Height(BM-7AN,Unshielded Type)

・Operating

frequency: 100kHz½1GHz

◆

Feature

・Balance-unbalance

transformer,common mode choke.

・Ideally

used in EMC and balance-unbalance converter circuit, CATV signal transfer.

・RoHS

Compliance.

◆

Dimensions (mm)

BM-7A

3.1±0.4

1.3±0.1

＋0.1

φ0.5−0.05

Stamp・date code

捺印・½造密番

7.9

4.5±0.2

7.7±0.5

7277

7.5±0.5

＋1.0

−0.5

3.0

4.5±0.2

7.7±0.5

1

3

BM-7AN

＋0.1

φ0.5−0.05

4.5±0.2

6.9±0.3

7.0 MAX.

＋1.0

−0.5

3.0

Please refer to the sales offices on our website for a representative near you

www.sumida.com

6.9±0.3

1/2
