FTE-151-01-G-DV-EC-A: DescriptionBoard Connector, 102 Contact(s), 2 Row(s), Male, Straight, 0.032 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size758KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

FTE-151-01-G-DV-EC-A Overview

Board Connector, 102 Contact(s), 2 Row(s), Male, Straight, 0.032 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle

FTE-151-01-G-DV-EC-A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	WITH ALIGNMENT PIN
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e4
Plug contact pitch	0.032 inch
Match contact row spacing	0.047 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.302 mm
Plating thickness	10u inch
Rated current (signal)	2.7 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.7874 mm
Termination type	SURFACE MOUNT
Total number of contacts	102
Base Number Matches	1

Preview

Download Datasheet

View All

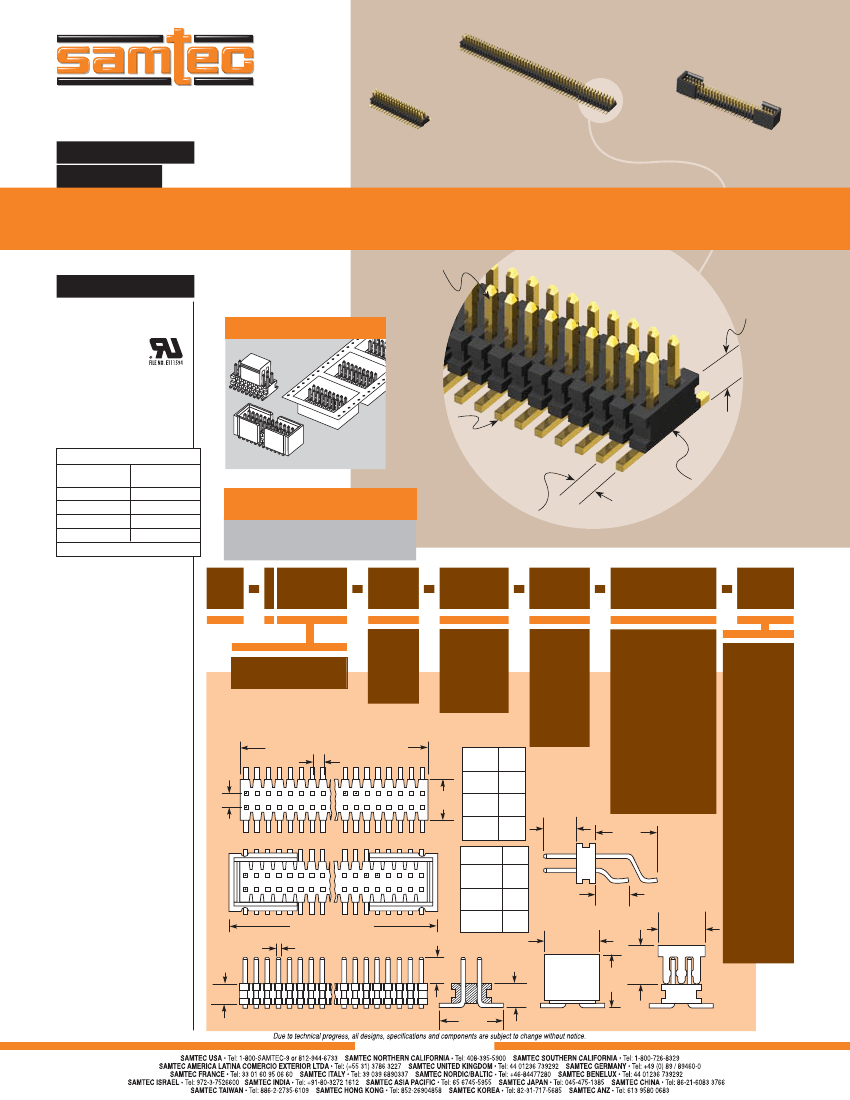

F-212

FTE–155–01–G–DV

FTE–120–01–G–DV–A

FTE–130–01–G–DV–ES

(0,80mm) .0315"

FTE SERIES

SMT MICRO HEADER

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?FTE

Insulator Material:

Black Liquid Crystal

Polymer

Terminal Material:

Phosphor Bronze

Plating:

Au over 50µ" (1,27µm) Ni

Operating Temp Range:

-55°C to +125°C

RoHS Compliant:

Yes

CURRENT RATING

AMBIENT

FTE/CLE

TEMP

3.1A

20°C

2.8A

40°C

2.4A

60°C

1.6A

95°C

6 POSITIONS (2x3) POWERED

Mates with:

CLE

Choice

of post

heights

OPTIONS

–P OPTION

Low proﬁle

(1,70mm)

.067"

Surface

Mount

–TR OPTION

–ES OPTION

APPLICATION SPECIFIC

OPTION

End shrouds with board locks and

Gold ﬂash plating available.

Call Samtec.

Optional

End Shrouds

for blind mating

(0,80mm) .0315"

micro pitch

Processing:

Lead-Free Solderable:

Yes

-DV Lead Coplanarity:

(0,10mm) .004" max

-DH Lead Coplanarity:

(0,10mm) .004" max (05-25)

(0,15mm) .006" max (26-50)

FTE

NO.

PER PINS

ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

PLATING

OPTION

TAIL

OPTION

FLEX-SHROUD

OPTIONS

Style –01 –DV only

(11 pins/row min.)

OTHER

OPTION

–G

= 10µ"

(0,25µm)

Gold on post,

Gold ﬂash on

balance

–DV

= Dual

Vertical

05 thru 90

–ES

= End Shroud

–A

= Alignment

(5 pos. min.)

Metal or

plastic at

Samtec

discretion

(–DV only)

–DH

= Dual

Horizontal

(50 pos.

max.)

–EC

= End Shroud with

Locking Clips

(Manual placement

required)

No. of positions x (0,80) .0315

(0,80) .0315

180

LEAD

STYLE

(1,90)

.075

(4,45)

.175

(3,05)

.120

–01

(3,05)

.120

(1,20)

.047

179

–EP

= End Shroud with

Guide Posts

–K

= (2,50mm)

.098" DIA

Polyimide

Film Pick &

Place Pad

(–DH only)

–02

–03

OPTION

(5,08)

.200

(1,57)

.062

(4,11)

.162

(5,51)

.217

–P

(2,29)

.090

–DH OPTION

(4,17)

.164

= Plastic Pick

& Place Pad

(8 pos. min.)

–DV only

–ES

–EC

No. of positions x

(0,80) .0315 + Z

(0,30) .012 SQ

–EP

(5,08) .200

(3,18) .125

–TR

= Tape & Reel

Packaging

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

(1,38)

.055

(Shrouded options removed for clarity)

(1,70)

.067

(4,57)

.180

–ES OPTION

(3,18)

(4,09) .125

.161

–P OPTION

WWW.SAMTEC.COM
