10022HS-06

Description

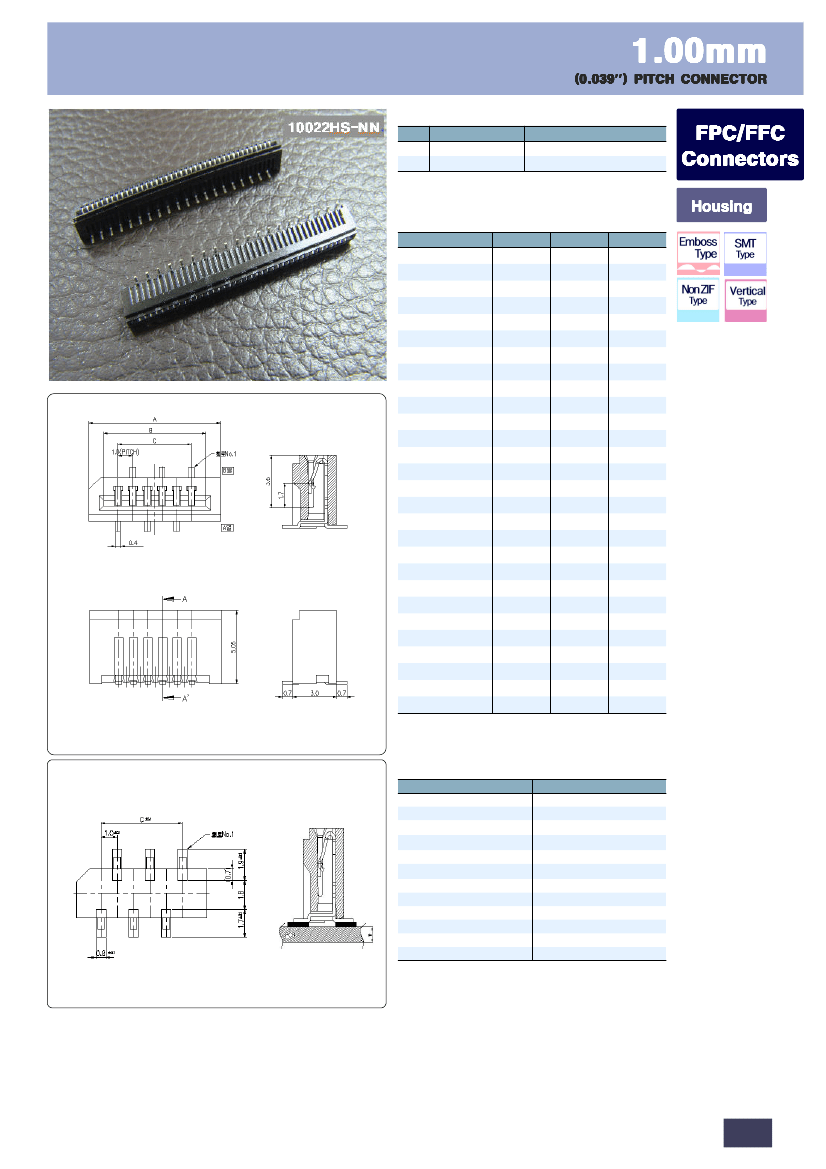

1.00mm P1TCH CONNECTOR
File Size567KB,1 Pages
ManufacturerYEONHO ELECTRONICS CO., LTD.
Websitehttp://www.yeonho.com/
Download Datasheet View All

10022HS-06 Overview

1.00mm P1TCH CONNECTOR

Material
I/NO
1
2
DESCRIPTION
HOUSING
TERMINAL
Phosphor Bronze, Tin-plated
PPS, UL94V-0
MATERIAL
Available Pin
10022HS-04
10022HS-05
10022HS-06
10022HS-07
10022HS-08
10022HS-09
10022HS-10
10022HS-11
10022HS-12
10022HS-13
10022HS-14
10022HS-15
10022HS-16
10022HS-17
10022HS-18
10022HS-19
10022HS-20
10022HS-21
10022HS-22
10022HS-23
10022HS-24
10022HS-25
10022HS-26
10022HS-27
10022HS-28
10022HS-29
10022HS-30
10022HS-35
PARTS NO.
7.0
9.0
A
8.0
5.0
7.0
9.0
B
6.0
8.0
3.0
5.0
7.0
9.0
C
4.0
6.0
8.0
11.0
13.0
15.0
17.0
19.0
21.0
23.0
25.0
27.0
29.0
31.0
33.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
32.0
38.0
11.0
13.0
15.0
17.0
19.0
21.0
23.0
25.0
27.0
29.0
31.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
36.0
11.0
13.0
15.0
17.0
19.0
21.0
23.0
25.0
27.0
29.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
34.0
Specification
Contact Resistance
Withstanding Voltage
Insulation Resistance
Applicable Wire
Applicable P.C.B
Applicable FPC/FFC
Solder Height
Crimp Tensile Strength
UL FILE NO
ITEM
Voltage Rating
Current Rating
Operating Temperature
SPEC
AC/DC 50V
AC/DC 0.5A
30m
MAX
AC500V/1min
-25
~+85
100M
MIN
-
0.8 ~ 1.6mm
0.30±0.03mm
0.15mm
-
-
PCB LAYOUT
PCB ASS‘Y
Yeonho Electronics
http://www.yeonho.com
31
