Power Inductors <SMD Type: CDPH Series>
Type: CDPH28D11F
◆
Product Description
・3.2×3.0mm
Max.(L×W),1.2mm Max. Height.
・Inductance
Range: 0.56½12μH.
・Rated
current range:0.59½2.45A.
・Custom
design is available.
◆
Feature
・Magnetically
shielded construction.
・Ideally
used as DC-DC Converter inductors in Mobile phone,PDA,MP3/MP4,DSC/DVC etc.
・Ideal
for a variety of DC-DC converter inductor applications. (DVC, DSC, Cellular phone, PAD)
・Low
Profile (H=1.2mm Max.)
・Low
Rdc (Flat wire use)
・RoHS
Compliance.
◆

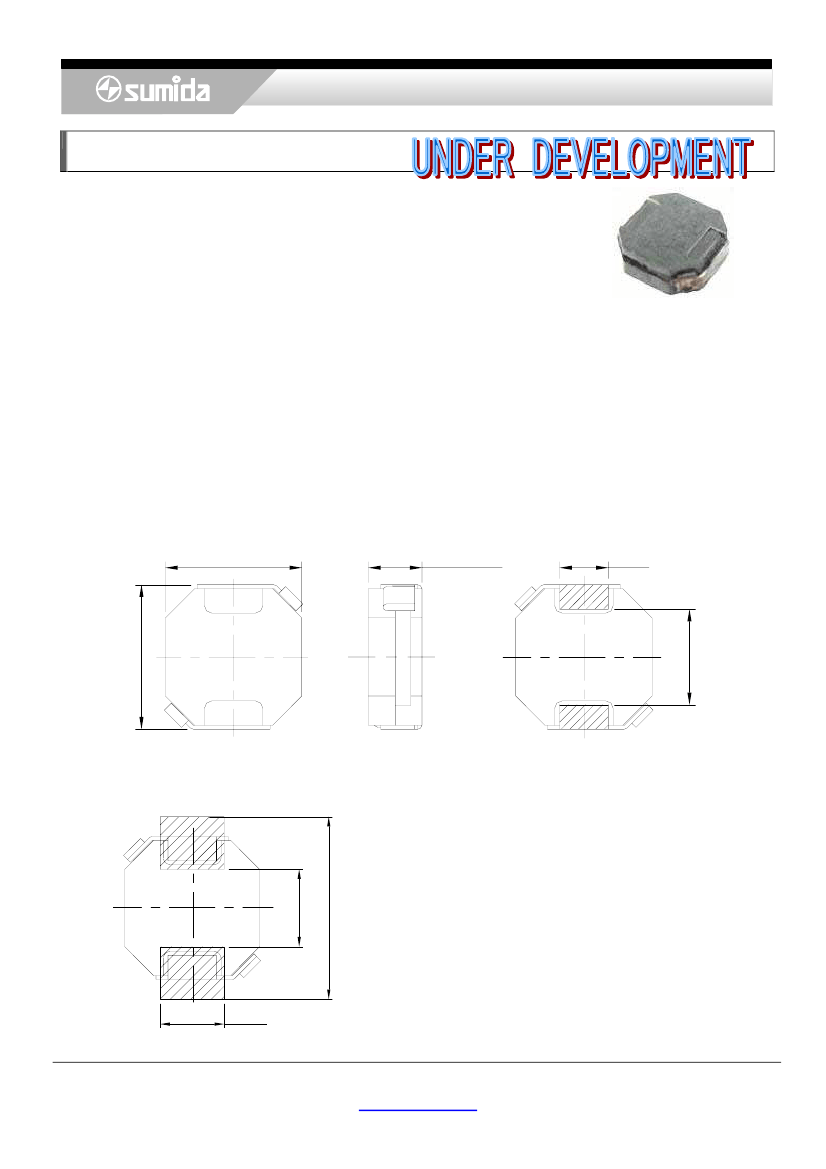

Dimensions (mm)
3.0 Max.
1.2 Max.
1.0
3.2 Max.
◆
Land Pattern (mm)
1.8
1.2
Please refer to the sales offices on our website for a representative near you
www.sumida.com
3.6
2.0
1/2
Power Inductors <SMD Type: CDPH Series>
Type: CDPH28D11F
◆
Specification
Part Name
※
Stamp
Inductance
(μH)
100kHz/1V
D.C.R.(mΩ)
Max.(Typ.)
( 20℃)
Saturation
Current
Max.(Typ.)
(A)
※1
Temperature
Rise Current
Max.(Typ.)
(A)
※2
CDPH28D11FNP-R56N□
CDPH28D11FNP-1R2M□
CDPH28D11FNP-1R5M□
CDPH28D11FNP-2R2M□
CDPH28D11FNP-2R7M□
CDPH28D11FNP-3R3M□
CDPH28D11FNP-3R9M
□
CDPH28D11FNP-4R7M
□
CDPH28D11FNP-6R8M
□
CDPH28D11FNP-100M
□
CDPH28D11FNP-120M
□
A
B
C
D
E
F
G
H
I
J
K
0.56±30%
1.2±20%
1.5±20%
2.2±20%
2.7±20%
3.3±20%
3.9±20%
4.7±20%
6.8±20%
10.0±20%
12.0±20%
41 (33)
73 (58)
86 (69)
96 (77)
116 (93)
128 (102)
144 (115)
184 (147)
300 (240)
408 (326)
453 (362)
2.45(3.27)
1.78(2.37)
1.59(2.12)
1.31(1.75)
1.22(1.63)
1.14(1.52)
1.03(1.37)
0.95(1.27)
0.83(1.10)
0.65(0.87)
0.59(0.79)
2.62(3.00)
1.83(2.08)
1.74(1.98)
1.72(1.94)
1.49(1.69)
1.42(1.58)
1.34(1.53)
1.18(1.32)
0.89(1.00)
0.76(0.86)
0.73(0.83)
※
Description of part name
CDPH28D11FNP-1R5M□
B Box
C
Carrier Tape
※1.Saturation
current: The DC current at which the inductance decreases by 30% from its nominal value .
(Ta=20℃)
※2.Temperature
rise current: The DC current at which the temperature rise is
△t=40℃
(Ta=20℃) .
