CDRH3D23NP-1R5P datasheet, PDF

Datasheet> All Categories > CDRH3D23NP-1R5P

Preview

CDRH3D23NP-1R5P: DescriptionPower Inductors; File Size168KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/

Download Datasheet View All

CDRH3D23NP-1R5P Overview

Power Inductors

Preview

Download Datasheet

View All

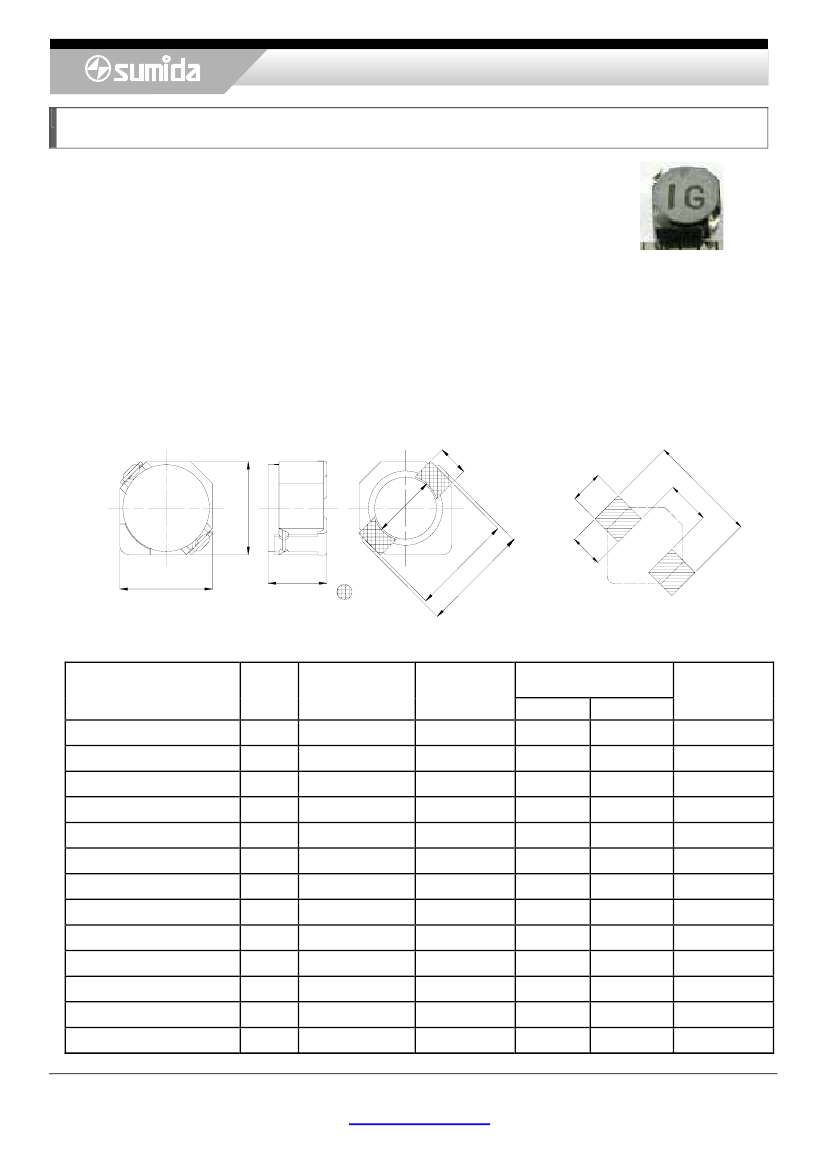

Power Inductors <SMD Type: CDRH Series>

Type: CDRH3D23; CDH3D23/HP

◆

Product Description

・3.92×3.92mm

Max.(L×W), 2.5mm Max. Height.

・Inductance

range: 1.0½47.0μH

・Rated

current range: 0.35½2.8A(

CDRH3D23

);0.53½2.55A(

CDRH3D23/HP

)

・Custom

design is available.

◆

Feature

・Magnetically

shielded construction.

・Ideally

used in Mobilephone,PDA,MP3,DSC/DVC etc as DC-DC Converter inductors.

・RoHS

Compliance.

◆

Dimensions (mm)

1±

◆

Land Pattern (mm)

※3.8±0.12

(2.3)

2.5 Max.

Electrode

◆

Specification (CDRH3D23)

Part Name

※

CDRH3D23NP-1R0P□

CDRH3D23NP-1R5P□

CDRH3D23NP-2R2P□

CDRH3D23NP-3R3P□

CDRH3D23NP-4R7P□

CDRH3D23NP-5R6P□

CDRH3D23NP-6R8P□

CDRH3D23NP-8R2P□

CDRH3D23NP-100M□

CDRH3D23NP-150M□

CDRH3D23NP-220M□

CDRH3D23NP-330M□

CDRH3D23NP-470M□

Stamp

Inductance

（μH）

100kHz/1V

1.0µH±25％

1.5µH±25％

2.2µH±25％

3.3µH±25％

4.7µH±25％

5.6µH±25％

6.8µH±25％

8.2µH±25％

10.0µH±20％

15.0µH±20％

22.0µH±20％

33.0µH±20％

47.0µH±20％

D.C.R.(mΩ)

Max.(Typ.)

(at 20℃)

25.0(20)

29.0(24)

38.3(31)

56.3(45)

68.8(55)

75.0(60)

87.8(72)

94.8(77)

117(95)

191(154)

270(219)

381(307)

546(441)

Saturation Current

（A）※1

(at 20℃)

(at 100℃)

2.80

2.20

1.80

1.45

1.30

1.10

1.00

0.95

0.85

0.70

0.55

0.50

0.35

2.00

1.65

1.30

1.10

0.95

0.80

0.75

0.70

0.60

0.50

0.40

0.35

0.25

Temperature

Rise Current

(A)※2

3.10

2.90

2.50

2.20

1.90

1.80

1.70

1.60

1.40

0.85

0.75

0.6

0.55

Please refer to the sales offices on our website for a representative near you

www.sumida.com

5. ±0

Ma 2

1/2
