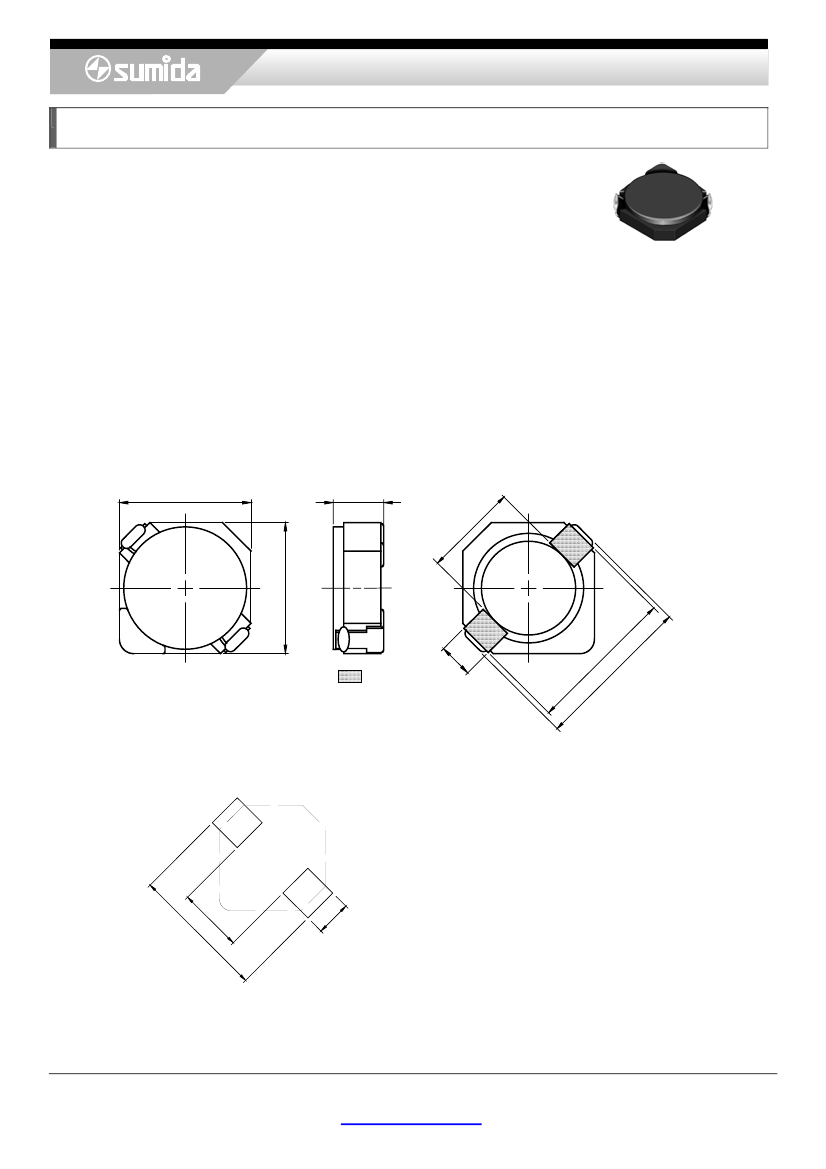

Power Inductors <SMD Type: CDRH Series>
Type: CDRH4D11
◆
Product Description
・4.8×4.8mm
Max.(L×W), 1.2mm Max. Height.
・Inductance
range: 0.6½47μH.
・Rated
current range: 0.31½2.6A.
・Custom
design is available.
◆
Feature
・Magnetically
shielded construction.
・Ideally
used in Mobile phone,PDA,MP3,DSC/DVC,HDD,portable DVD etc as DC-DC converter
inductors.
・RoHS
Compliance.
◆
Dimensions (mm)
※
4.6±0.2
1.2 Max.
4.6±0.2
※
6. 5.2
0
Ma
x.
1.
2
Elec trode
◆Land
Pattern (mm)
Please refer to the sales offices on our website for a representative near you
1.
6
2.
9
www.sumida.com
3.
0
6.
3
1/2
Power Inductors <SMD Type: CDRH Series>
Type: CDRH4D11
◆
Specification
Part Name
※
CDRH4D11NP-R60NC
CDRH4D11NP-1R0NC
CDRH4D11NP-1R5NC
CDRH4D11NP-2R2NC
CDRH4D11NP-3R3NC
CDRH4D11NP-4R7NC
CDRH4D11NP-5R6NC
CDRH4D11NP-6R8NC
CDRH4D11NP-8R2NC
CDRH4D11NP-100MC
CDRH4D11NP-150MC
CDRH4D11NP-220MC
CDRH4D11NP-330MC
CDRH4D11NP-470MC
Stamp
R60
1R0
1R5
2R2
3R3
4R7
5R6
6R8
8R2
100
150
220
330
470
Inductance
(μH)
100kHz/1V
0.60±30％
1.0±30％
1.5±30％
2.2±30％
3.3±30％
4.7±30％
5.6±30％
6.8±30％
8.2±30％
10±20％
15±20％
22±20％
33±20％
47±20％
D.C.R.(mΩ)
Max.(Typ.)
(at 20℃)
28.0(21.6)
33.8(27.1)
56.0(44.8)
81.0(65.0)
106.7(85.4)
137.6(110.0)
154.0(123.4)
206.5(165.0)
273.8(219.0)
297.0(237.6)
460.0(368.0)
706.4(565.0)
1004(836.8)
1259(1049)
Saturation Current
（A）※1
(at 20℃)
2.60
2.10
1.73
1.35
1.17
0.99
0.90
0.81
0.74
0.68
0.53
0.44
0.36
0.31
(at105℃)
2.00
1.58
1.30
1.00
0.86
0.72
0.68
0.60
0.54
0.50
0.40
0.32
0.27
0.23
Temperature
Rise Current
(A)
※2
3.50
2.80
2.00
1.70
1.45
1.30
1.20
1.00
0.83
0.78
0.63
0.50
0.39
0.34
※
Description of part name
CDRH4D11NP-R60N□
B Box
C Carrier Tape
※1.Saturation
current: The DC current at which the inductance decreases by 35% from its nominal value.
※2.Temperature
rise current: The DC current at which the temperature rise is
△t＝40℃.(Ta＝20℃)
Please refer to the sales offices on our website for a representative near you
www.sumida.com
2/2
