POWER INDUCTORS <SMD Type: CDR Series>
Type: CDR910
◆
Product Description
・12.95×9.4mm
Max.(L×W), 11.3mm Max. Height.
・Inductance
Range: 10
uH
½1.0mH
・Rated
current range: 0.44½4.8A
・In
addition to the standards versions shown here, custom inductors are also available
to meet your exact requirements.
◆
Feature
・Magnetically
unshielded construction.
・Ideally
used in Communication devices like
×
DSL modem, router and access point.
・RoHS
Compliance.
◆

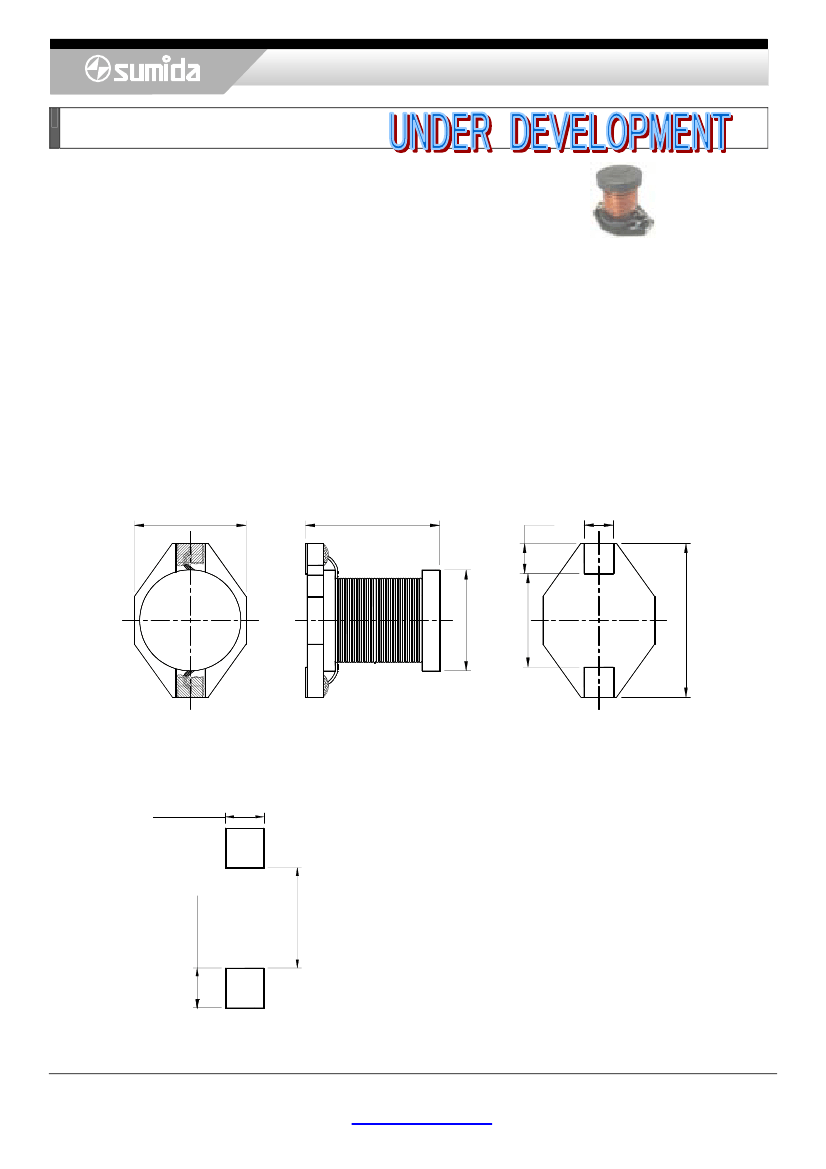

Dimensions (mm)
9.4 Max.
11.3 Max.
2.54
2.6
1
12.95 Max.
8.5
7.6
2
◆
Land Pattern (mm)
2.79 Ref.
Please refer to the sales offices on our website for a representative near you
2.92 Ref.
7.37 Ref.
www.sumida.com
1/2
POWER INDUCTORS <SMD Type: CDR Series>
Type: CDR910
◆
Specification
Part Name
※
CDR910NP-100M□
CDR910NP-150M□
CDR910NP-180M□
CDR910NP-220M□
CDR910NP-330M□
CDR910NP-470M□
CDR910NP-680M□
CDR910NP-101M□
CDR910NP-151M□
CDR910NP-221M□
CDR910NP-331M□
CDR910NP-471M□
CDR910NP-681M□
CDR910NP-102M□
Stamp
100
150
180
220
330
470
680
101
151
221
331
471
681
102
Inductance
［Within½
100kHz/1V
10uH±20%
15uH±20%
18uH±20%
22uH±20%
33uH±20%
47uH±20%
68uH±20%
100uH±20%
150uH±20%
220uH±20%
330uH±20%
470uH±20%
680uH±20%
1000uH±20%
D.C.R.(mΩ)
Max.(Typ.)
(at 20℃)
24 (20)
29 (24)
32 (26)
45 (36)
65 (54)
85 (68)
125 (100)
190 (155)
280 (230)
360 (300)
565 (470)
820 (670)
1260 (1050)
1850 (1522)
Saturation Current
Max.(Typ.)
（A）※1
6.88(8.60)
5.76(7.20)
5.29 (6.62)
4.72 (5.90)
3.76 (4.70)
3.20 (4.00)
2.68 (3.35)
2.18 (2.72)
1.76 (2.20)
1.46 (1.83)
1.20 (1.50)
1.00 (1.25)
0.84 (1.05)
0.68 (0.85)
Temperature
rise current
Max.(Typ.)
(A)※2
4.80 (5.50)
4.30 (4.90)
4.00 (4.60)
3.40 (3.90)
2.60 (3.00)
2.42 (2.78)
1.90 (2.20)
1.50 (1.72)
1.20 (1.38)
1.10 (1.25)
0.85 (0.96)
0.71 (0.81)
0.54 (0.62)
0.44 (0.50)
※
Description of part name
CDR910NP-100M□
B
C
Box
Carrier Tape
※1.Saturation
current: The DC current at which the inductance decreases to 90% of it’s initial value.
(Ta＝20℃)
※2.Temperature
rise current: The DC current at which the temperature rise is
△t＝40℃.(Ta＝20℃)
Please refer to the sales offices on our website for a representative near you
www.sumida.com
2/2
