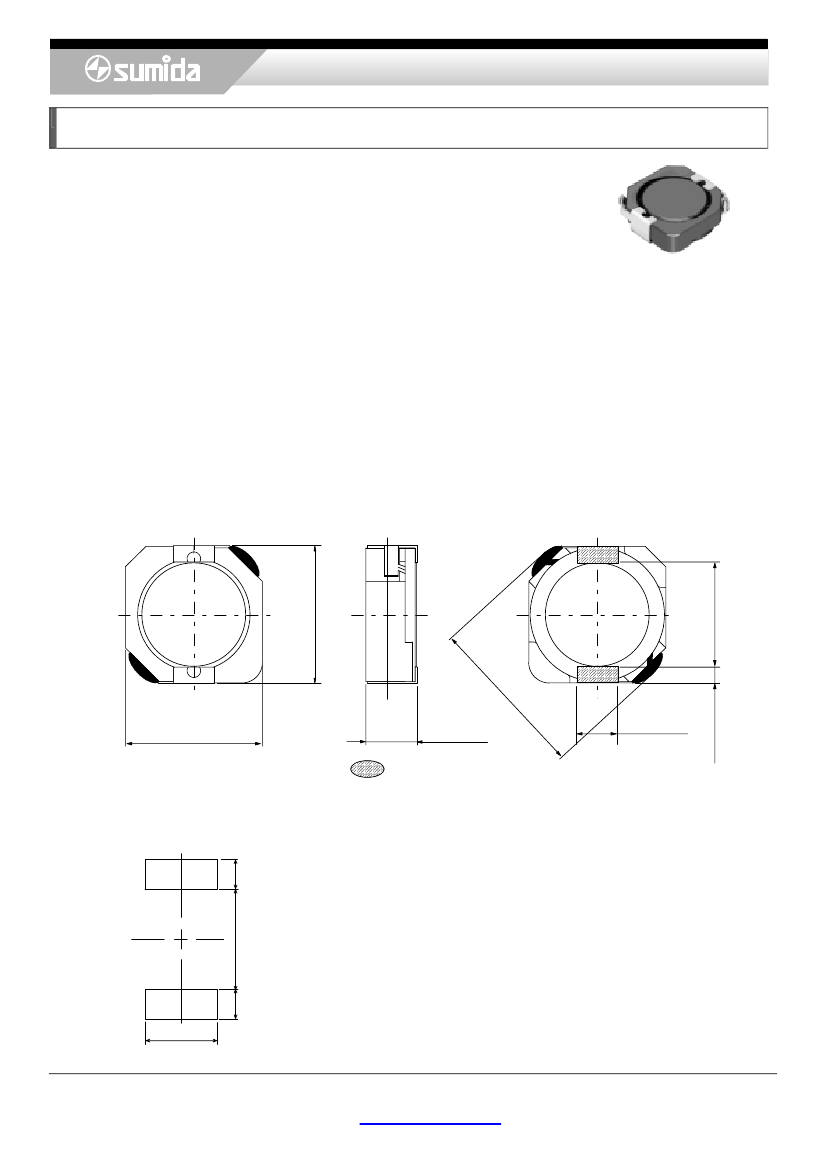

POWER INDUCTORS <SMD Type: CDRH Series>

Type: CDRH103R

◆

Product Description

・10.3×10.5mm

Max.(L×W), 3.1mm Max. Height.

・Inductance

Range:0.8½150μH

・Rated

current range: 0.51½8.3A

・In

addition to the standard versions of inductors shown here, custom inductors are available

to meet your exact requirements.

◆

Feature

・Magnetically

shielded construction.

・Ideally

used in Notebook PC, LCD TV,DVD, Game machine, STB ,Projector etc as

DC-DC Converter inductors.

・RoHS

Compliance

◆

Dimensions (mm)

10.2±0.3

10.0±0.3

2.8±0.3

Electrode

3.0±0.1

◆

Land Pattern (mm)

1.6

3.2

Please refer to the sales offices on our website for a representative near you

1.6

7.3

www.sumida.com

1.2±0.15

1/2

7.7±0.3
