CDRH2D13NP-4R7MB datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> CDRH2D13NP-4R7MB

Preview

CDRH2D13NP-4R7MB: DescriptionPOWER INDUCTORS; CategoryPassive components inductor; File Size142KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CDRH2D13NP-4R7MB Overview

POWER INDUCTORS

CDRH2D13NP-4R7MB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
DC Resistance	0.126 Ω
Nominal inductance(L)	4.7 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDRH2D13
Number of functions	1
Number of terminals	2
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

POWER INDUCTORS <SMD Type: CDRH Series>

Type: CDRH2D13

◆

Product Description

・3.12×3.12mm

Max.(L×W),1.5mm Max.Height.

・Inductance

Range: 4.7μH.

・Rated

current range:0.92 A.

◆

Feature

・Magnetically

shielded construction.

・Ideally

used in Mobilephone,PDA,MP3,DSC/DVC,etc as DC-DC Converter inductors.

・RoHS

Compliance.

◆

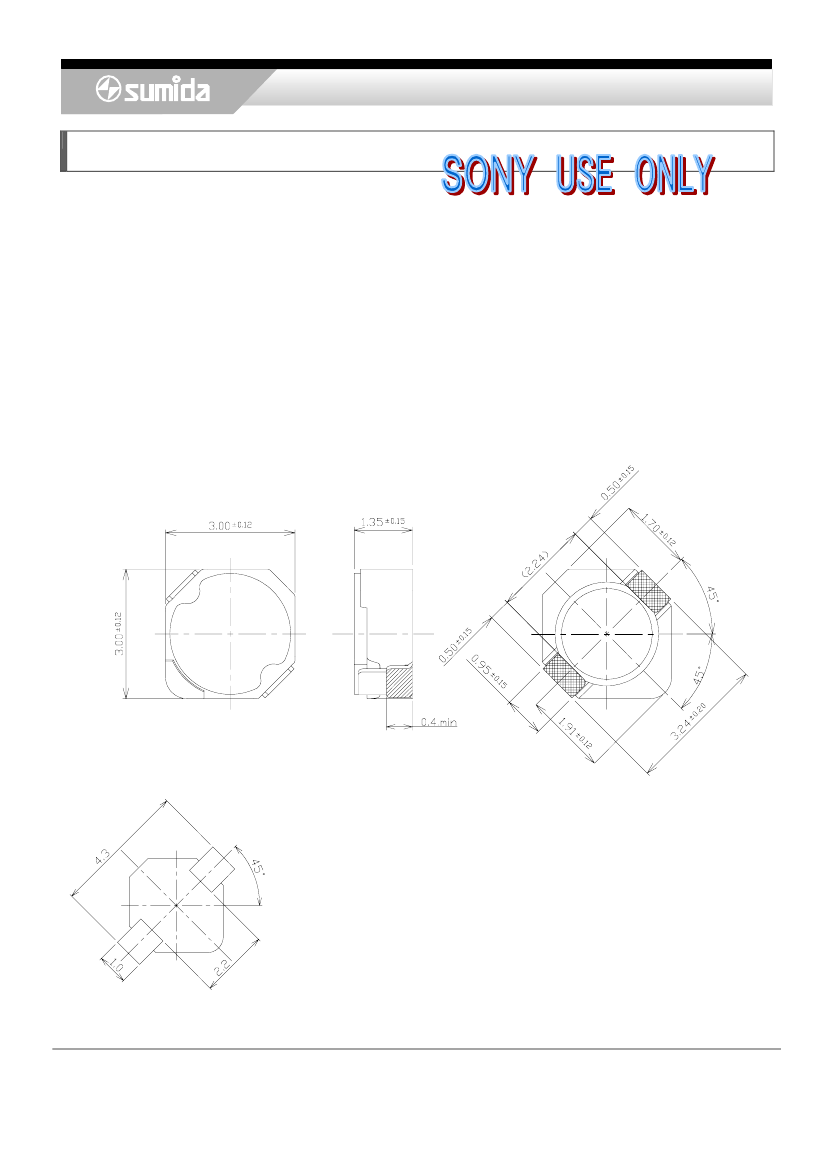

Dimensions (mm)

◆

Land Pattern (mm)

Please refer to the sales offices on our website for a representative near you

www.sumida.com

1/2

CDRH2D13NP-4R7MB Related Products

	CDRH2D13NP-4R7MB	CDRH2D13	CDRH2D13NP-4R7MC
Description	POWER INDUCTORS	POWER INDUCTORS	POWER INDUCTORS
Is it lead-free?	Lead free	-	Lead free
Is it Rohs certified?	conform to	-	conform to
Reach Compliance Code	unknow	-	unknow
ECCN code	EAR99	-	EAR99
DC Resistance	0.126 Ω	-	0.126 Ω
Nominal inductance(L)	4.7 µH	-	4.7 µH
Inductor Applications	POWER INDUCTOR	-	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDRH2D13	-	CDRH2D13
Number of functions	1	-	1
Number of terminals	2	-	2
Shape/Size Description	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE
shield	YES	-	YES
surface mount	YES	-	YES
Terminal location	DUAL ENDED	-	DUAL ENDED
Terminal shape	WRAPAROUND	-	WRAPAROUND
Test frequency	0.1 MHz	-	0.1 MHz
Tolerance	20%	-	20%
Base Number Matches	1	-	1
