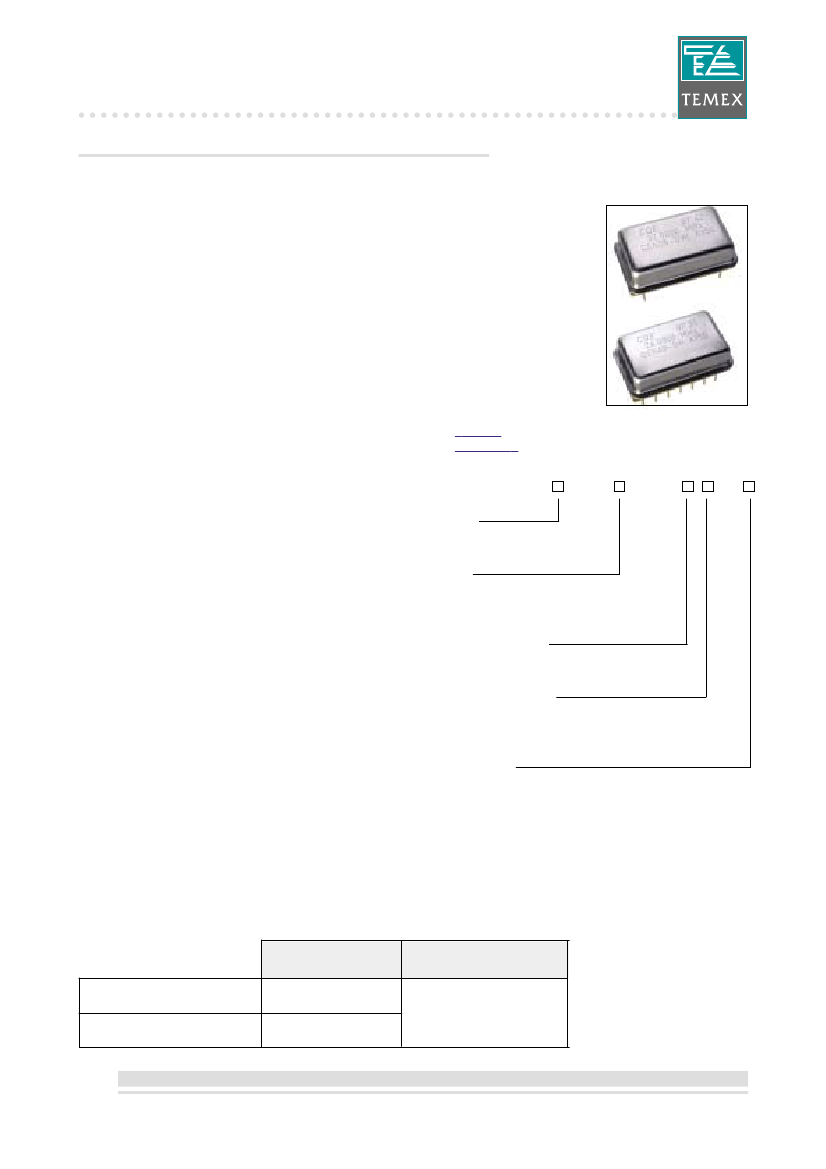

CRYSTAL OSCILLATOR - XO
QEN 49/55-DH
INDUSTRIAL & MILITARY DIL XO
Description
To complete our standard QEN 14-H and QEN 4-H, we propose our QEN 49/55-DH
that uses an Ag/Pd hybrid circuit board and a crystal resonator mounted on
3 points in a DIL 14. These low cost oscillators are designed for high vibration resis-
tance clock oscillator and extended temperature range up to -55° C to +125° C.
The QEN 55-DH utilizes HCMOS active circuit technology up to 100 MHz. The same
performances are presented for higher environmental severity in a 14 pins DIL
package under the designation QEN 49-DH.
The tristate output is ideal for automated test or frequency switching applications.
Frequency range
1 MHz to 100 MHz
Applications
Airborne indoor applications
Railroad security equipment
Every outdoor electronics
Features
Temperature ranges:
up to -55° C to +125° C
Frequency stability:
±25 to ±100 ppm
Supply voltage:
+5 V
Current consumption:
10 to 30 mA
Load:
15 pF-25pF/2-6TTL-gates
Option duty cycle:
Up to 14 MHz
50/50 ± 5%
From 14 MHz 50/50 ± 10%
Option:
Enable/Disable
Option :external trimmer
3 to 20 pF
up to 33 MHz on pin 1
Ageing (45°C/1
st
year) :
≤
± 5 ppm
Minimum ordering information requirement
(See
Table 1
for available combinations)
(See
page 3-19
for package drawing)
Example: QEN 55 - DHR 16 MHz AY50 / T
/
Package
55 = DIL 4 pins
49 = DIL 14 pins
Option
R = 50/50 ± 10 % (or ± 5 %)
I = tristate
*
T = trimmer
*
Temperature range
DT = -40° C ~ +85° C
AY = -55° C ~ +125° C
∞
Frequency stability
± 25 ppm
∞
± 50 ppm
± 100 ppm
Tinned pins: T
Note:
1. Options with the same marker may not be combined with each
other.
2. Frequency stability inclusive of 25° C calibration, temperature,
Vcc and load change.
Table 1:
Other temperature ranges
and stability available
QEN 49/55-DH
2TTL-gates/15 pF
10 ns
6 TTL-gates/25 pF
5 ns
1 MHz - 14 MHz
14 MHz - 100 MHz
3-14
Vol. 2
Option
Enable/disable on pin 1
“0” on pin 1 =High Z on pin 3
“1” on pin 1 =enable on pin 3
Attention: should pin 1 not be
used, please always tie to Vcc
SALES OFFICES: VISIT OUR WEB SITE AT
http://www.temex.net
