BL-R2132K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BL-R2132K

BL-R2132K: DescriptionGaP /GaP Green Low power consumption.; CategoryLED optoelectronic/LED photoelectric; File Size129KB，2 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric View All

BL-R2132K Overview

GaP /GaP Green Low power consumption.

BL-R2132K Parametric

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	L-078, 2 PIN
Reach Compliance Code	unknow
color	GREEN
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	DIFFUSED
Nominal luminous intensity	7.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	7.7 mm
method of packing	BULK
peak wavelength	568 nm
shape	RECTANGULAR
size	6.9 mm
surface mount	NO
Terminal pitch	2.54 mm
perspective	125 deg

Preview

Download Datasheet

View All

BRIGHT LED ELECTRONICS CORP.

SINCE 1981

BL-R2132F

●

Features:

1. Chip material: GaP /GaP

2. Emitted color : Green

3. Lens Appearance : Green Diffused

4. Low power consumption.

5. Most suitable for use like level indicator.

6. Excellent uniformity of light emittance.

7. Long life solid state reliability.

8. Compatible.

9. This product don’t contained restriction

substance, compliance ROHS standard.

●

Package dimensions:

2.1(.082)

6.9(.271)

7.7(.303)

1.5(.059)

MAX.

25.4(1.00)

MIN.

0.5(.020)

SQ. TYP.

7.0(.027)

1.0(.039)

MIN.

2.54(.10) NOM.

2.2(.087)

●

Applications:

1. TV set

2. Monitor

3. Telephone

4. Computer

5. Circuit board

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.25mm (0.01”) unless otherwise specified.

3. Lead spacing is measured where the leads emerge from

the package.

4. Specifications are subject to change without notice.

●

Absolute maximum ratings(Ta=25℃)

Parameter

Power Dissipation

Forward Current

Peak Forward Current*

Reverse

Voltage

Operating Temperature

Storage Temperature

Soldering Temperature

Symbol

Topr

Tstg

Tsol

Rating

150

-40

℃

~80

℃

-40

℃

~85

℃

260

℃

(for 5 seconds)

Unit

Condition for I

is pulse of 1/10 duty and 0.1msec width.

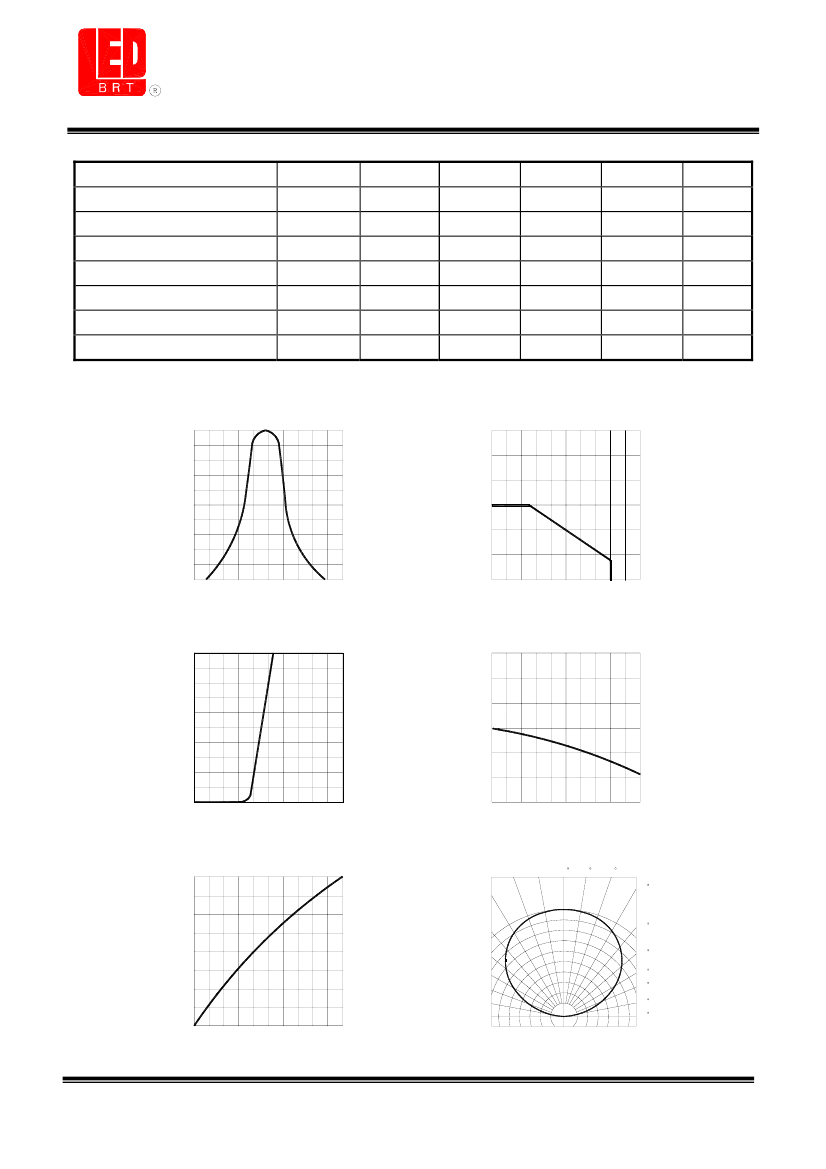

Ver.1.0 Page: 1 of 2
