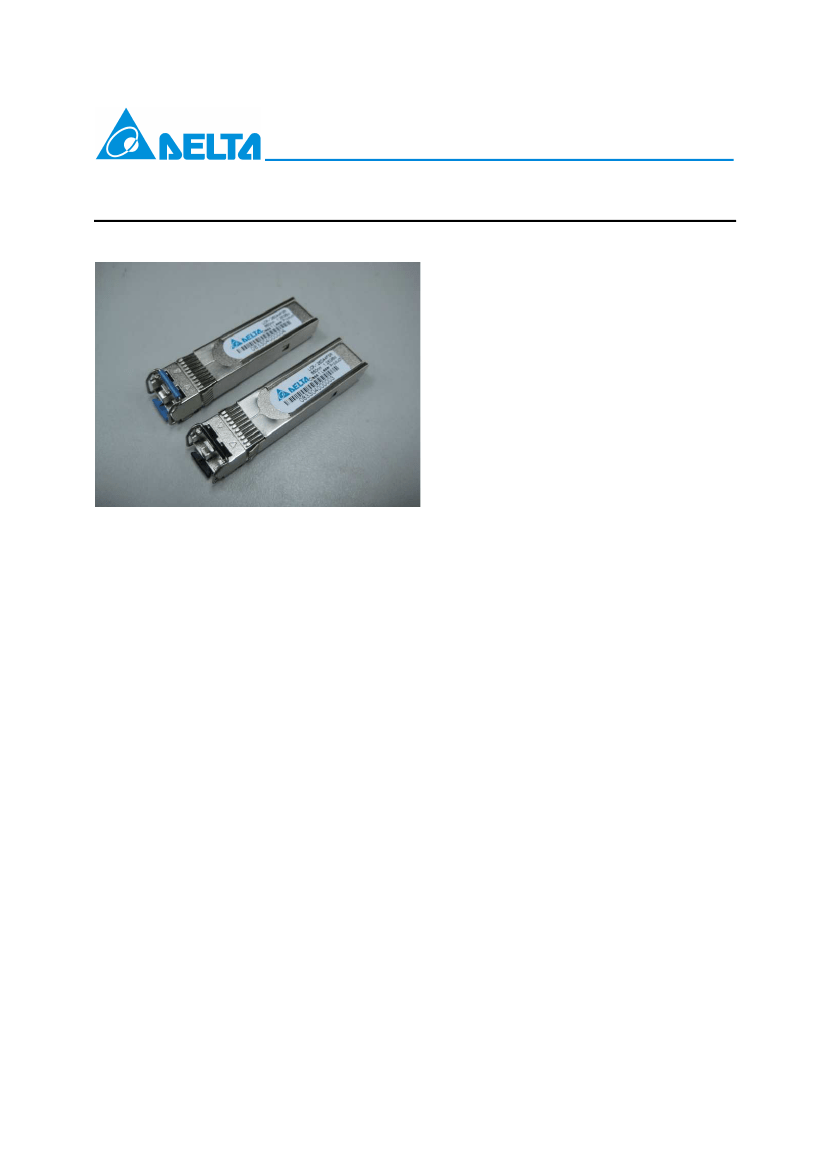

LCP-6144B4MDRx
RoHS Compliant 1310nm 6.144 Gbps SFP
Transceiver for CPRI Application
FEATURES
RoHs compliance
Compliant with SFP transceiver SFF-8472
MSA specification
1310nm DFB laser
Built-in digital diagnostic monitoring function
Compliant with CPRI protocols for wireless
base station
Compliant with Industry Standard RFT
Electrical Connector and Cage
Duplex LC connector
Laser Class 1 Product which comply with the
requirements of EN 60825
Description
The LCP-6144B4MDRx is hot pluggable 3.3V
Small-Form-Factor transceiver modules designed
for high-speed communication applications that
require rates up to 6.144Gbps.
The LCP-6144B4MDRx is designed to be
compliant
Agreement
monitoring
with
SFF-8472
with
SFP
digital
Multi-source
diagnostic
V
CC
,
TX
Applications
Up to 40km link over SMF for 6.144Gbps CPRI
application
(MSA)
functions:
Temperature,
optical power, TX laser bias current, and RX
received optical power.
The post-amplifier of the LCP-6144B4MDRx
also includes a Loss of Signal (LOS) circuit that
provides a TTL logic-high output when the received
optical level is below a preset LOS Assert
threshold.
1
DELTA ELECTRONICS, INC.
Revision: S5
2011/06/22
www.deltaww.com
LCP-6144B4MDRx
Absolute Maximum Ratings
Parameter
Storage Temperature
Supply Voltage Range @3.3V
Symbol
T
S
V
CC3
Min.
-40
-0.5
Typ.
Max.
85
3.6
Unit
℃
V
Recommended Operating Conditions
Parameter
Case Operating Temperature
Supply Voltage @3.3V
Relative Humidity (non condensation)
Note 1: See order information for detail
Symbol
T
C
V
CC3
-
Min.
-5
3.135
5
Typ.
3.30
Max.
+70
3.465
85
Unit
℃
V
%
Note
1
Electrical Characteristics
(V
CC
=3.135V to 3.465V)
Parameter
Total Supply Current
Transmitter
Transmitter Differential Input Voltage
Transmitter Disable Input-High
Transmitter Disable Input-Low
Transmitter Fault Pull up Resistor
Transmitter Fault Output-High
Transmitter Fault Output-Low
Receiver
Receiver Differential Output Voltage
Receiver LOS Load
LOS Output Voltage-Low
LOS Output Voltage-High
Output Data Rise/Fall Time @6.144Gbps
Notes:
1.
2.
3.
4.
Pull up to V
CC
on host Board.
Internally AC coupled, but requires a 100 Ohm differential termination at or internal to Serializer/ Deserializer.
Unfiltered, 20 – 80%.
Symbol
I
CC
Vin,pp
V
DISH
V
DISL
R
TX_FAULT
V
TXFH
V
TXFL
V
out,pp
R
RXLOS
V
LOSH
V
LOSL
t
r
/ t
f
Min.
Typ.
Max.
330
1
V
CC
+0.3
0.8
10
V
CC
+0.3
0.8
Unit
mA
V
V
V
k
V
V
V
k
V
V
psec
Note
0.3
2
0
4.7
2
0
0.4
4.7
2
0
30
0.7
1
2
1
10
V
CC
+0.3
0.8
3
2
4
Internally AC coupled and terminated to 100 Ohm differential load.
2
DELTA ELECTRONICS, INC.
Revision: S5
2011/06/22
www.deltaww.com
LCP-6144B4MDRx
Optical Transmitter Characteristics
Parameter
Center Wavelength
Side Mode Suppression Ratio
Optical Modulaion Amplitude
Spectral Width(-20dB)
Average output power
Transmitter eye mask
Symbol
λ
SMSR
OMA
AP
Min
1260
30
963
Typ
Max
1360
Units
Notes
nm
dB
uW
1
nm
1
4
dBm
{0.25, 0.40, 0.45, 0.25, 0.28, 0.40}
Output Eye Mask
4. Optical Receiver Characteristics
Parameter
Overload
Sensitivity in OMA @ 6.144Gbps
LOS De-assert
LOS Assert
Return Loss
LOS Hysteresis
Symbol
P
O
RSO
LOS
D
LOS
A
Min
Typ
Max
0
39
-16
-30
12
0.5
Units
dBm
uW
dBm
dBm
dB
dB
Notes
[1]
Notes:
-12
1. Value in OMA measured with 2^7-1 PRBS for BER = 10 .
3
DELTA ELECTRONICS, INC.
Revision: S5
2011/06/22
www.deltaww.com
LCP-6144B4MDRx

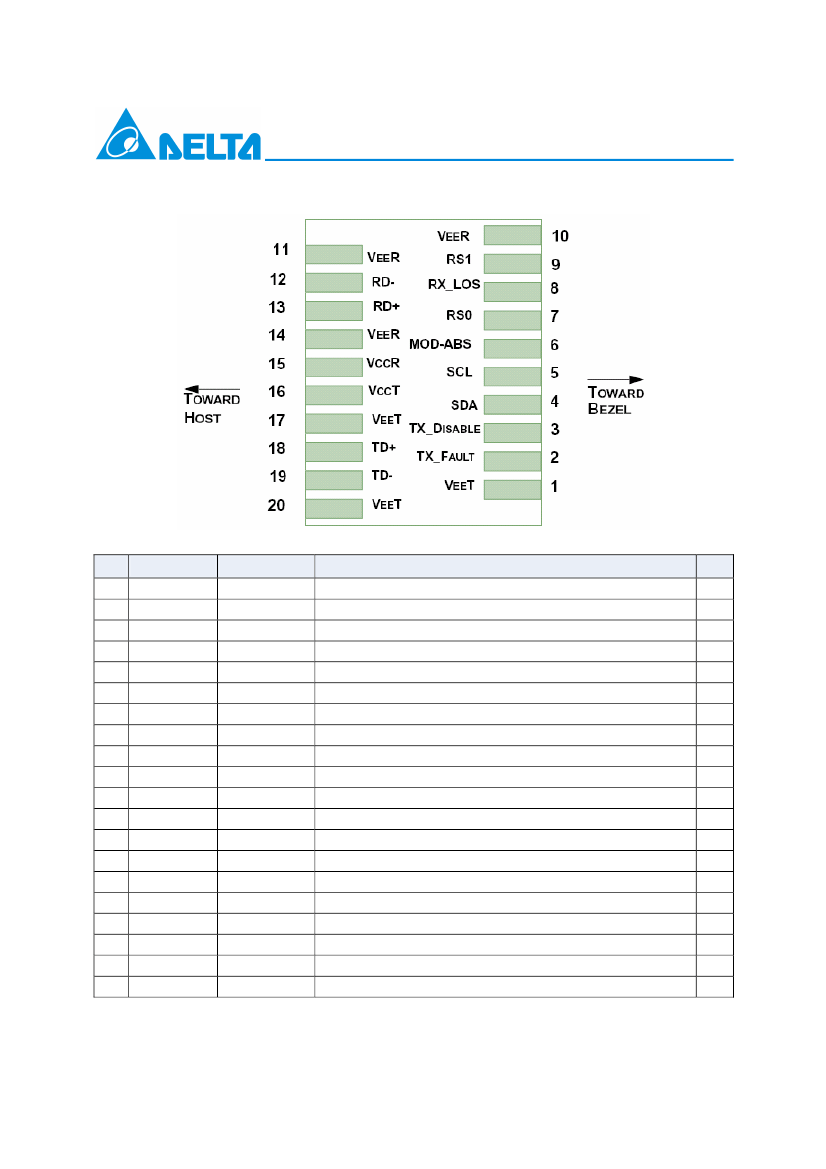

SFP+ Transceiver Electrical Pad Layout
Module Electrical Pin Definition
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
CML-I
CML-I
CML-O
CML-O
LVTTL-I
LVTTL-O
LVTTL-I
LVTTL-O
LVTTL-I
LVTTL-I/O
LVTTL-I/O
Logic
Symbol
VeeT
TX_Fault
TX_Disable
SDA
SCL
MOD_ABS
RS0
RX_LOS
RS1
VeeR
VeeR
RD-
RD+
VeeR
VccR
VccT
VeeT
TD+
TD-
VeeT
Name/Description
Module Transmitter Ground
Module Transmitter Fault
Transmitter Disable; Turns off transmitter laser output
2- write Serial Interface Data Line
2- write Serial Interface Clock
Module Absent, connected to V
ee
T or V
ee
R in the module
Not Implement
Receiver Loss of Signal Indication
Not Implement
Module Receiver Ground
Module Receiver Ground
Receiver Inverted Data Output
Receiver Non-Inverter Data Output
Module Receiver Ground
Module Receiver 3.3V Supply
Module Transmitter 3.3V Supply
Module Transmitter Ground
Transmitter Non-Inverted Data Input
Transmitter Inverted Data Input
Module Transmitter Griund
1
1
1
1
1
2
4
Note
1
2
3
4
DELTA ELECTRONICS, INC.
Revision: S5
2011/06/22
www.deltaww.com
LCP-6144B4MDRx
Note:
1. The module signal ground pins, VeeR and VeeT, shall be isolated from the module case.
2. This pin is an open collector/drain output pin and shall be pulled up with 4.7k-10k ohms to Host_Vcc
on the host board. Pull ups can be connected to multiple power supplies, however the host board
design shall ensure that no module pin has voltage exceeding module VccT/R + 0.5V.
3. This pin is an open collector/drain input pin and shall be pulled up with 4.7k-10k ohms to VccT in the
Module.
4. This pin shall be pulled up with 4.7k-10k ohms to Host_Vcc on the host board.
Low speed electrical control pins and 2-wire interface
In addition to the 2-wire serial interface, the SFP+ module has the following low speed pins for control and
status:
‧
TX_Fault
‧
TX_Disable
‧
RS0/RS1
‧
MOD_ABS
‧
RX_LOS
1 TX_Fault
TX_Fault is a module output pin that when High, indicates that the module transmitter has detected a fault
condition related to laser operation or safety.
The TX_Fault output pin is an open drain/collector and must be pulled p to the Host_Vcc with 4.7k-10k
ohms on the host board
2 TX_Disable
TX_Disable is a module input pin. When TX_Disable is asserted High or Left open, the SFP+ module
transmitter output must be turned off. The TX_DIS pin must be pulled up to VccT in the SFP+ module..
3 RS0/RS1
RS0 and RS1 are module input rate select pins and are pulled low to VeeT with a > 30k
resistor in the
module. RS0 is an input hardware pin which optionally selects the optical receive data path rate coverage
for an SFP+ module. RS1 is an input hardware pin which optionally selects the optical transmit path data
rate coverage for an SFP+ module.
4 MOD_ABS
Mod_ABS is pulled up to Host_Vcc with 4.7k-10k ohms on the host board and connected to VeeT or VeeR
in the SFP+ module. MOD_ABS is then asserted “High” when the SFP+ module is physically absent from
a host slot. In the SFP MSA (INF8074i) this pin had the same function but is called MOD_DEF0.
5
