BLV94 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BLV94

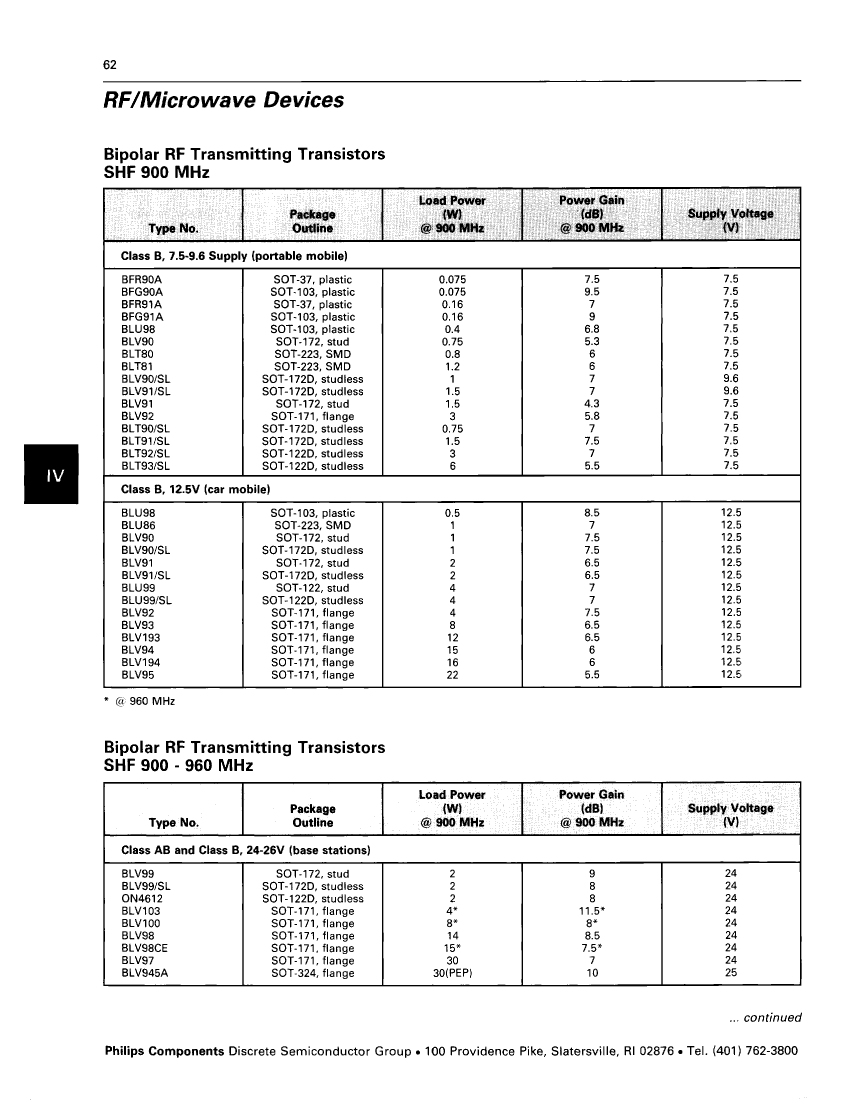

BLV94: DescriptionTRANSISTOR UHF BAND, Si, NPN, RF POWER TRANSISTOR, BIP RF Power; CategoryDiscrete semiconductor The transistor; File Size79KB，1 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BLV94 Overview

TRANSISTOR UHF BAND, Si, NPN, RF POWER TRANSISTOR, BIP RF Power

BLV94 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Maximum collector current (IC)	3 A
Collector-emitter maximum voltage	16 V
Configuration	SINGLE
Minimum DC current gain (hFE)	15
highest frequency band	ULTRA HIGH FREQUENCY BAND
JESD-30 code	R-CDFM-F6
Number of components	1
Number of terminals	6
Maximum operating temperature	200 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	NPN
Minimum power gain (Gp)	6 dB
Certification status	Not Qualified
surface mount	YES
Terminal form	FLAT
Terminal location	DUAL
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Base Number Matches	1

Preview

Download Datasheet

View All

BLV94 Related Products

	BLV94	BLV91	BLU86TRL13	BLT80TRL	BLU98	BLV98	BLV90/SL	BLT80TRL13	BLU86TRL	BLV97
Description	TRANSISTOR UHF BAND, Si, NPN, RF POWER TRANSISTOR, BIP RF Power	TRANSISTOR UHF BAND, Si, NPN, RF POWER TRANSISTOR, BIP RF Power	TRANSISTOR UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, BIP RF Small Signal	UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR	TRANSISTOR UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, BIP RF Small Signal	TRANSISTOR UHF BAND, Si, NPN, RF POWER TRANSISTOR, BIP RF Power	TRANSISTOR UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, BIP RF Small Signal	UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR	TRANSISTOR UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, SMD, 4 PIN, BIP RF Small Signal	TRANSISTOR UHF BAND, Si, NPN, RF POWER TRANSISTOR, BIP RF Power
Reach Compliance Code	unknown	compliant	unknown	unknown	unknown	unknown	compliant	unknown	unknown	unknow
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
highest frequency band	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND
JESD-30 code	R-CDFM-F6	O-CRPM-F4	R-PDSO-G4	R-PDSO-G4	O-PRDB-F4	R-CDFM-F6	O-CRDB-F4	R-PDSO-G4	R-PDSO-G4	R-CDFM-F6
Number of components	1	1	1	1	1	1	1	1	1	1
Number of terminals	6	4	4	4	4	6	4	4	4	6
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	ROUND	RECTANGULAR	RECTANGULAR	ROUND	RECTANGULAR	ROUND	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	POST/STUD MOUNT	SMALL OUTLINE	SMALL OUTLINE	DISK BUTTON	FLANGE MOUNT	DISK BUTTON	SMALL OUTLINE	SMALL OUTLINE	FLANGE MOUNT
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN	NPN	NPN	NPN	NPN
Minimum power gain (Gp)	6 dB	4.3 dB	7 dB	6 dB	8 dB	8.5 dB	7.5 dB	6 dB	7 dB	7 dB
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	NO	YES	YES	YES	YES	YES	YES	YES	YES
Terminal form	FLAT	FLAT	GULL WING	GULL WING	FLAT	FLAT	FLAT	GULL WING	GULL WING	FLAT
Terminal location	DUAL	RADIAL	DUAL	DUAL	RADIAL	DUAL	RADIAL	DUAL	DUAL	DUAL
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Maker	-	-	NXP	NXP	NXP	NXP	-	NXP	NXP	NXP
package instruction	-	-	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	DISK BUTTON, O-PRDB-F4	FLANGE MOUNT, R-CDFM-F6	-	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	FLANGE MOUNT, R-CDFM-F6
