NJU3715G(TE1) datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> NJU3715G(TE1)

Preview

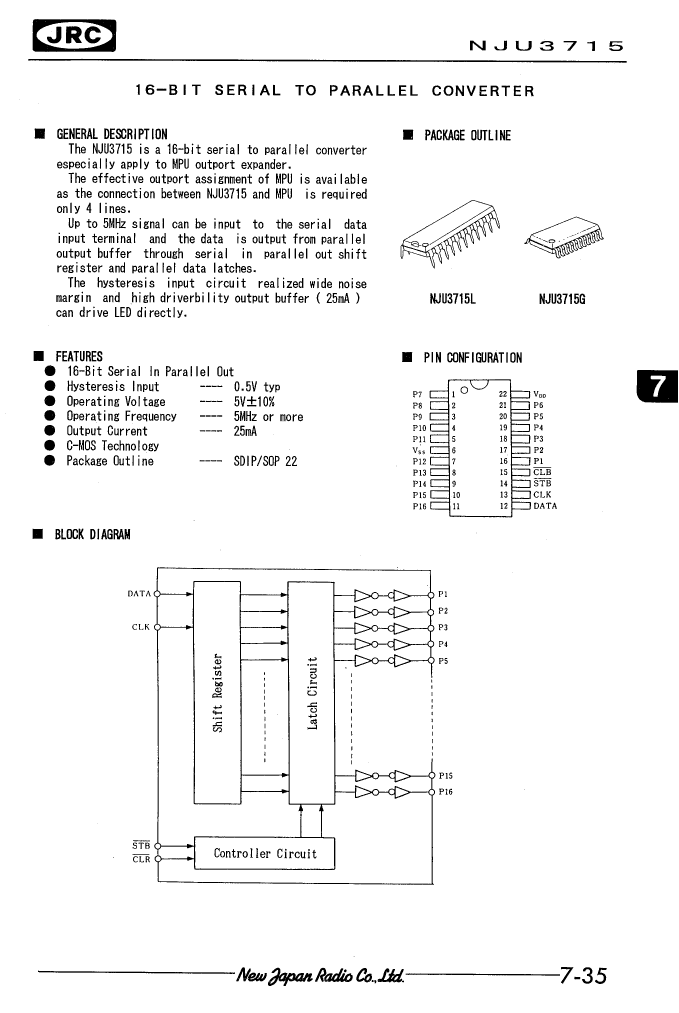

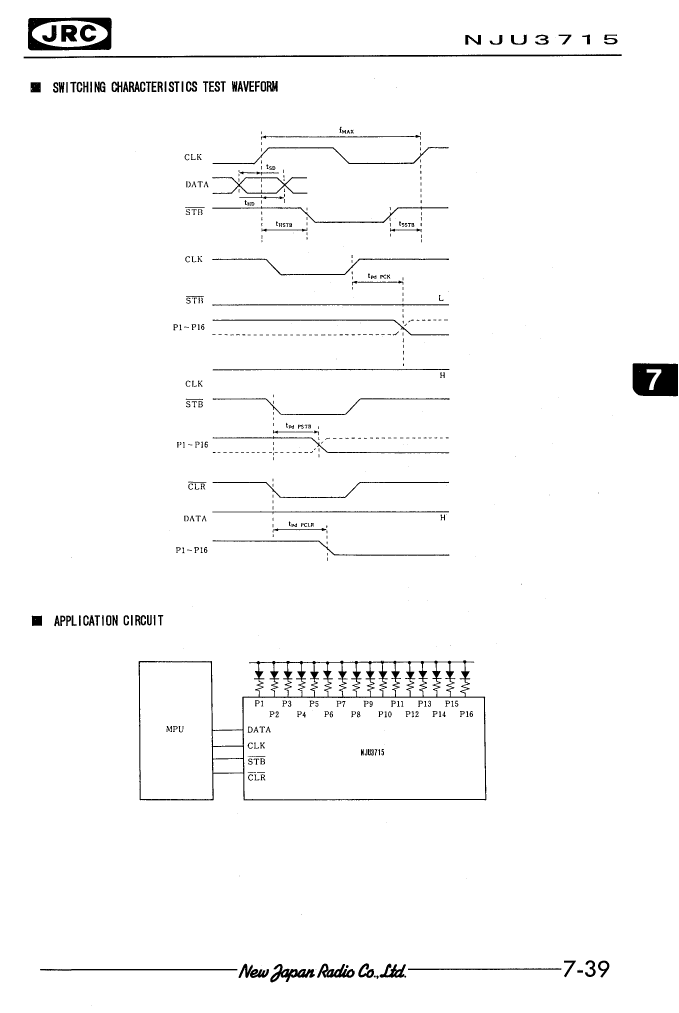

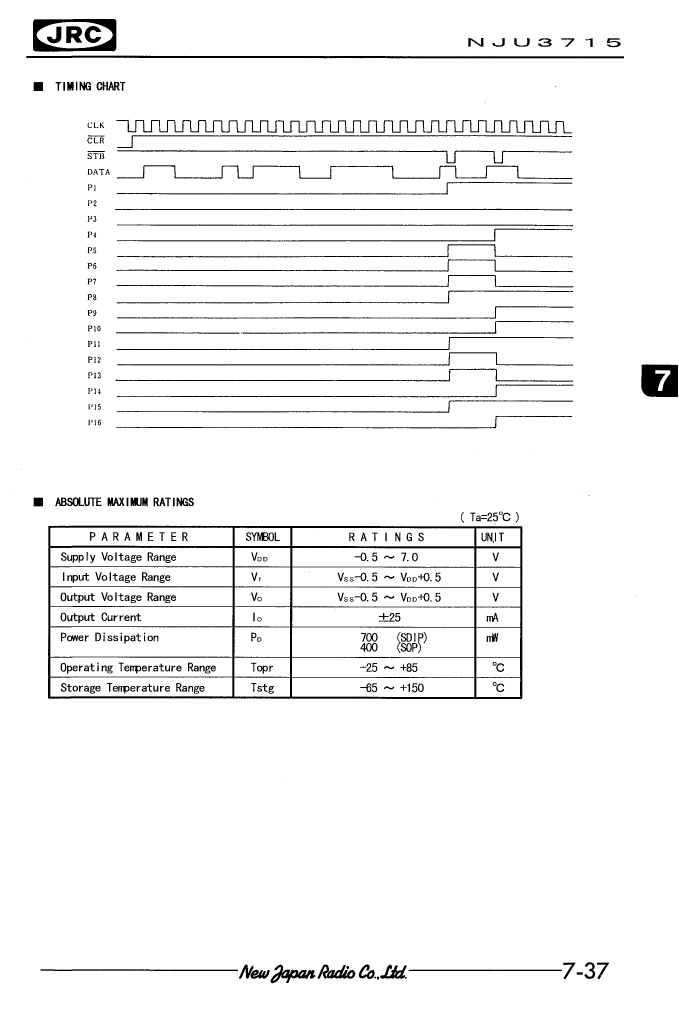

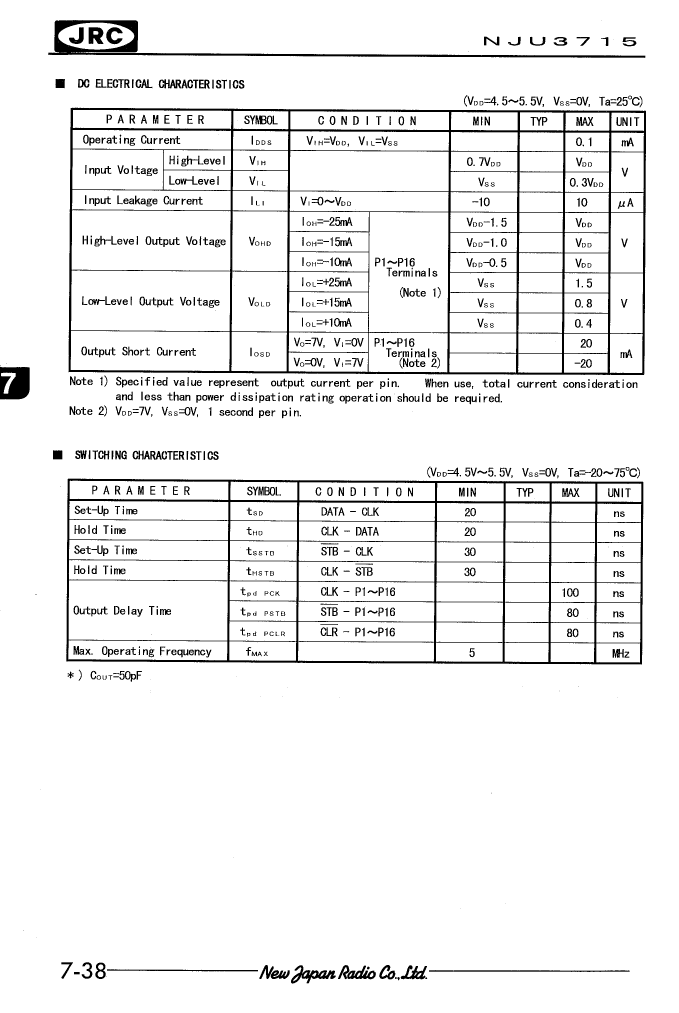

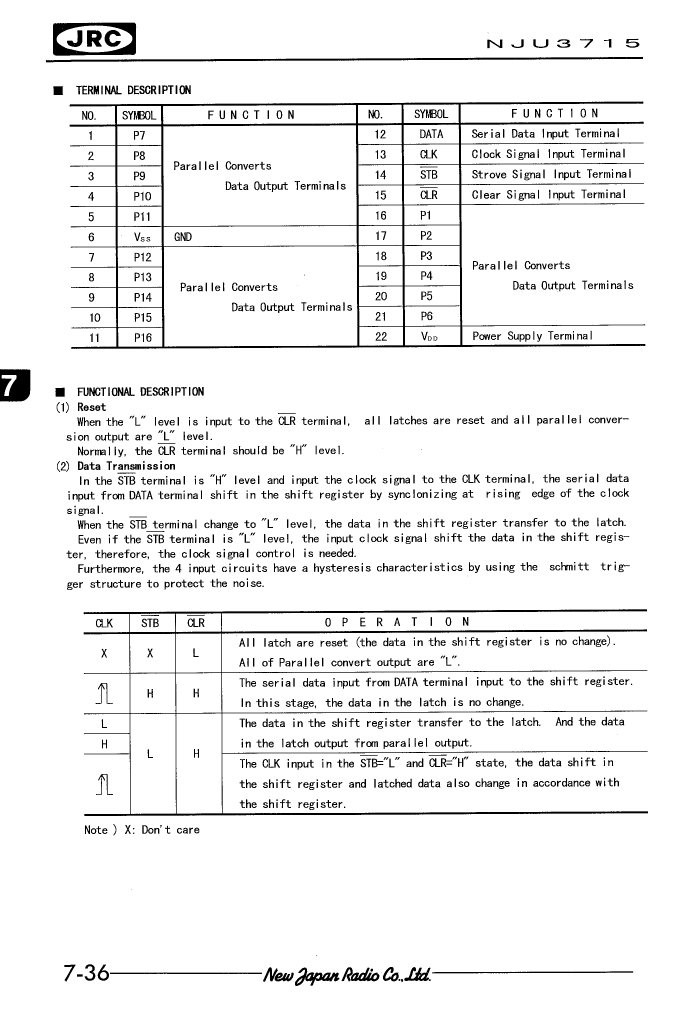

NJU3715G(TE1): DescriptionSerial In Parallel Out, 16-Bit, Right Direction, True Output, CMOS, PDSO22, SOP-22; Categorylogic logic; File Size200KB，6 Pages; ManufacturerNew Japan Radio Co., Ltd..; Environmental Compliance

Download Datasheet Parametric Compare View All

NJU3715G(TE1) Overview

Serial In Parallel Out, 16-Bit, Right Direction, True Output, CMOS, PDSO22, SOP-22

NJU3715G(TE1) Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	SOP,
Contacts	22
Reach Compliance Code	compliant
Other features	PARALLEL OUTPUT IS LATCHED
Counting direction	RIGHT
JESD-30 code	R-PDSO-G22
JESD-609 code	e2
length	13.9 mm
Logic integrated circuit type	SERIAL IN PARALLEL OUT
Humidity sensitivity level	2
Number of digits	16
Number of functions	1
Number of terminals	22
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
propagation delay (tpd)	100 ns
Certification status	Not Qualified
Maximum seat height	2.1 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	TIN SILVER
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	5.4 mm
minfmax	5 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

NJU3715G(TE1) Related Products

	NJU3715G(TE1)	NJU3715G(TE2)
Description	Serial In Parallel Out, 16-Bit, Right Direction, True Output, CMOS, PDSO22, SOP-22	Serial In Parallel Out, 16-Bit, Right Direction, True Output, CMOS, PDSO22, SOP-22
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	SOIC	SOIC
package instruction	SOP,	SOP,
Contacts	22	22
Reach Compliance Code	compliant	compliant
Other features	PARALLEL OUTPUT IS LATCHED	PARALLEL OUTPUT IS LATCHED
Counting direction	RIGHT	RIGHT
JESD-30 code	R-PDSO-G22	R-PDSO-G22
JESD-609 code	e2	e2
length	13.9 mm	13.9 mm
Logic integrated circuit type	SERIAL IN PARALLEL OUT	SERIAL IN PARALLEL OUT
Humidity sensitivity level	2	2
Number of digits	16	16
Number of functions	1	1
Number of terminals	22	22
Maximum operating temperature	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260
propagation delay (tpd)	100 ns	100 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.1 mm	2.1 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	TIN SILVER	TIN SILVER
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Trigger type	POSITIVE EDGE	POSITIVE EDGE
width	5.4 mm	5.4 mm
minfmax	5 MHz	5 MHz
Base Number Matches	1	1
