CY7C1006-12PC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> CY7C1006-12PC

CY7C1006-12PC: DescriptionStandard SRAM, 256KX4, 12ns, CMOS, PDIP28, 0.300 INCH, PLASTIC, DIP-28; Categorystorage storage; File Size541KB，9 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

CY7C1006-12PC Overview

Standard SRAM, 256KX4, 12ns, CMOS, PDIP28, 0.300 INCH, PLASTIC, DIP-28

CY7C1006-12PC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	0.300 INCH, PLASTIC, DIP-28
Contacts	28
Reach Compliance Code	compliant
ECCN code	3A991.B.2.B
Maximum access time	12 ns
Other features	AUTOMATIC POWER-DOWN
I/O type	COMMON
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
length	35.4965 mm
memory density	1048576 bit
Memory IC Type	STANDARD SRAM
memory width	4
Number of functions	1
Number of ports	1
Number of terminals	28
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX4
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	4.826 mm
Maximum standby current	0.00005 A
Minimum standby current	2 V
Maximum slew rate	0.165 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

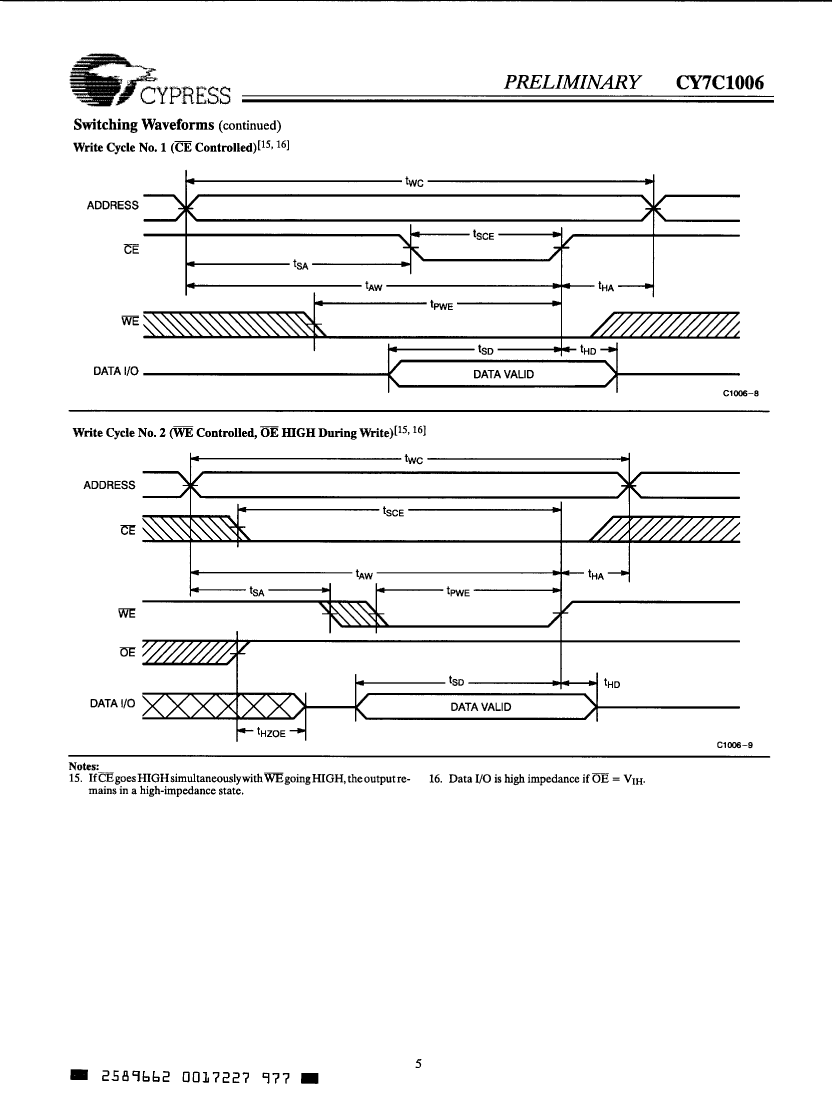

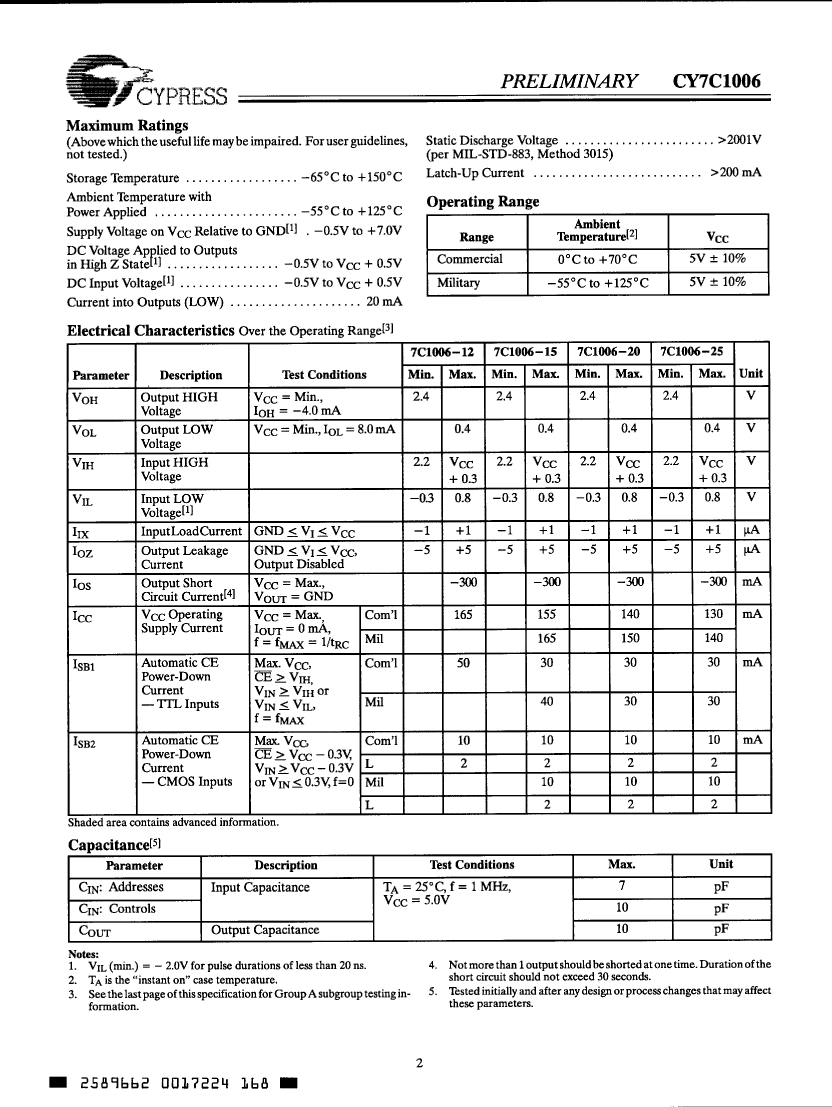

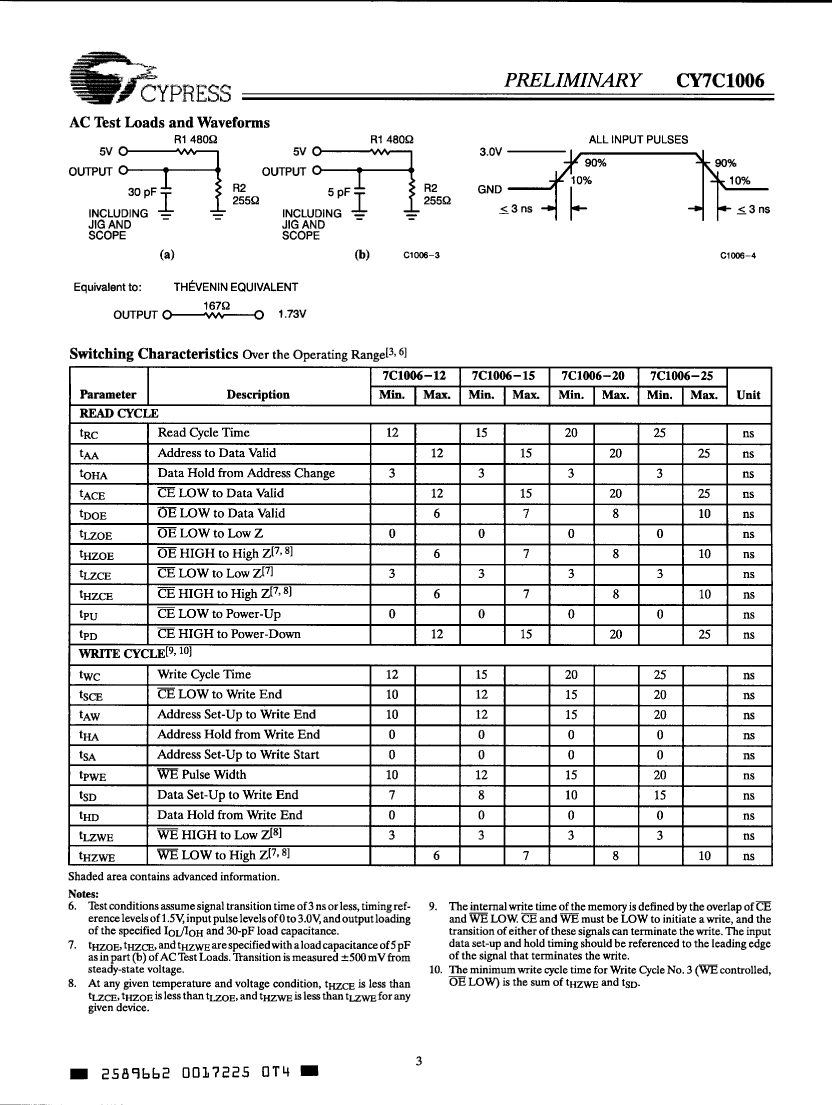

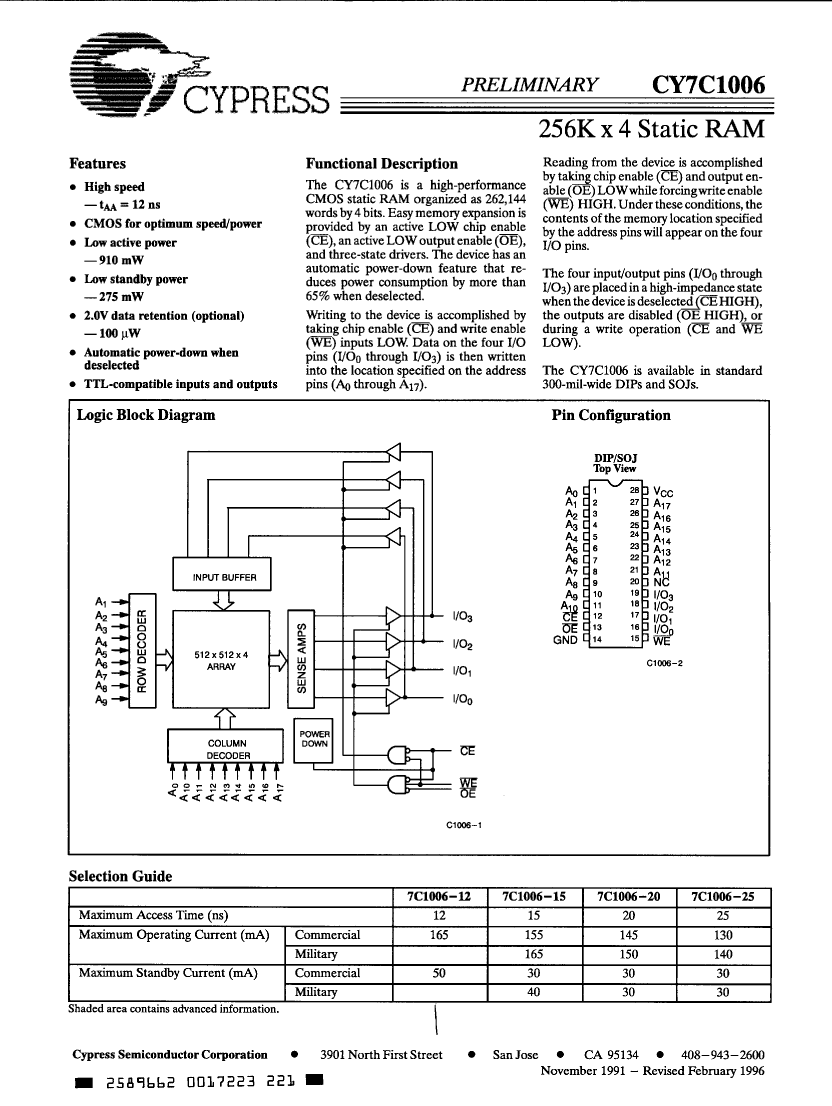

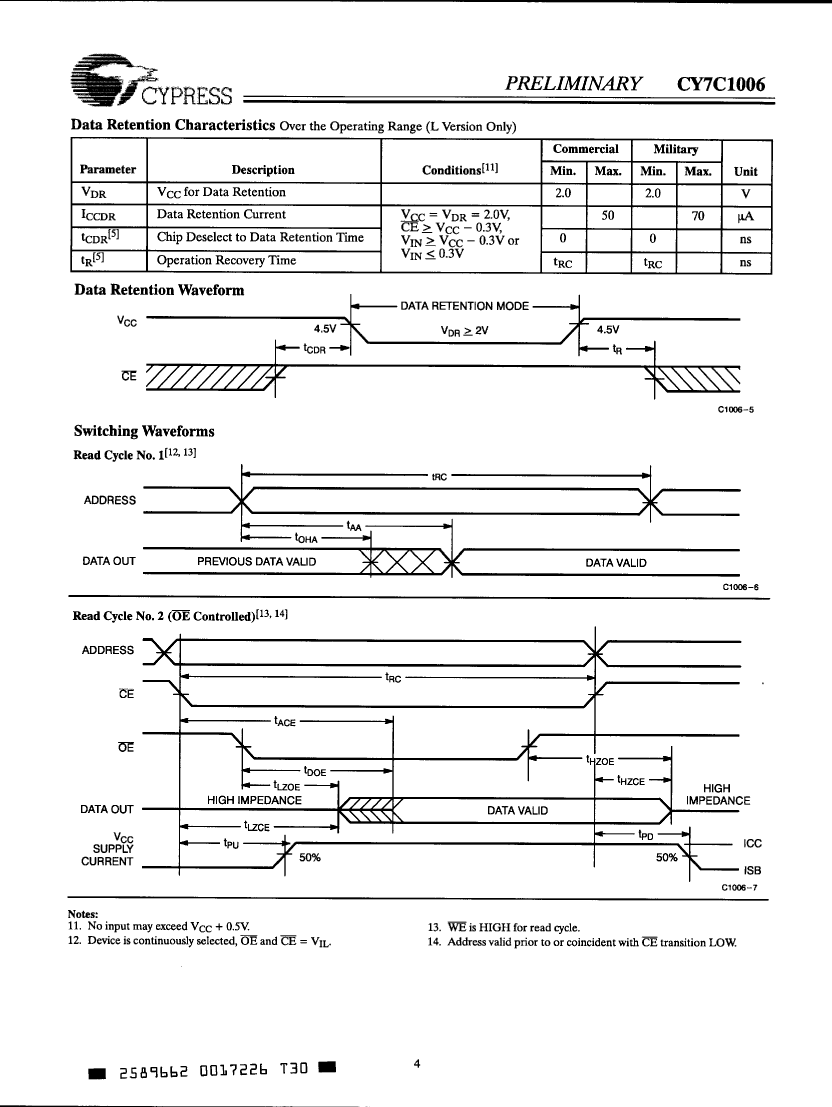

Preview

Download Datasheet

View All

CY7C1006-12PC Related Products

	CY7C1006-12PC	CY7C1006-25DMB	CY7C1006-15DMB	CY7C1006-12VC	CY7C1006-20DMB	CY7C1006-25PC	CY7C1006-20VC	CY7C1006-25VC
Description	Standard SRAM, 256KX4, 12ns, CMOS, PDIP28, 0.300 INCH, PLASTIC, DIP-28	Standard SRAM, 256KX4, 25ns, CMOS, CDIP28, 0.300 INCH, CERDIP-28	Standard SRAM, 256KX4, 15ns, CMOS, CDIP28, 0.300 INCH, CERDIP-28	Standard SRAM, 256KX4, 12ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28	Standard SRAM, 256KX4, 20ns, CMOS, CDIP28, 0.300 INCH, CERDIP-28	Standard SRAM, 256KX4, 25ns, CMOS, PDIP28, 0.300 INCH, PLASTIC, DIP-28	Standard SRAM, 256KX4, 20ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28	Standard SRAM, 256KX4, 25ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	DIP	DIP	SOJ	DIP	DIP	SOJ	SOJ
package instruction	0.300 INCH, PLASTIC, DIP-28	0.300 INCH, CERDIP-28	0.300 INCH, CERDIP-28	0.300 INCH, PLASTIC, SOJ-28	0.300 INCH, CERDIP-28	0.300 INCH, PLASTIC, DIP-28	0.300 INCH, PLASTIC, SOJ-28	0.300 INCH, PLASTIC, SOJ-28
Contacts	28	28	28	28	28	28	28	28
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	not_compliant	not_compliant
ECCN code	3A991.B.2.B	3A001.A.2.C	3A001.A.2.C	3A991.B.2.B	3A001.A.2.C	EAR99	3A991.B.2.B	EAR99
Maximum access time	12 ns	25 ns	15 ns	12 ns	20 ns	25 ns	20 ns	25 ns
Other features	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN	AUTOMATIC POWER-DOWN
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDIP-T28	R-GDIP-T28	R-GDIP-T28	R-PDSO-J28	R-GDIP-T28	R-PDIP-T28	R-PDSO-J28	R-PDSO-J28
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	35.4965 mm	37.0205 mm	37.0205 mm	17.907 mm	37.0205 mm	35.4965 mm	17.907 mm	17.907 mm
memory density	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28	28	28
word count	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000	256000	256000	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	125 °C	125 °C	70 °C	125 °C	70 °C	70 °C	70 °C
organize	256KX4	256KX4	256KX4	256KX4	256KX4	256KX4	256KX4	256KX4
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	SOJ	DIP	DIP	SOJ	SOJ
Encapsulate equivalent code	DIP28,.3	DIP28,.3	DIP28,.3	SOJ28,.34	DIP28,.3	DIP28,.3	SOJ28,.34	SOJ28,.34
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	220	NOT SPECIFIED	NOT SPECIFIED	220	220
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.826 mm	5.08 mm	5.08 mm	3.556 mm	5.08 mm	4.826 mm	3.556 mm	3.556 mm
Maximum standby current	0.00005 A	0.00007 A	0.00007 A	0.01 A	0.00007 A	0.00005 A	0.01 A	0.01 A
Minimum standby current	2 V	2 V	2 V	2 V	2 V	2 V	2 V	2 V
Maximum slew rate	0.165 mA	0.14 mA	0.165 mA	0.165 mA	0.15 mA	0.13 mA	0.14 mA	0.13 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	YES	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	J BEND	THROUGH-HOLE	THROUGH-HOLE	J BEND	J BEND
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm	7.62 mm	7.5 mm	7.62 mm	7.62 mm	7.5 mm	7.5 mm
Is it lead-free?	Contains lead	Contains lead	Contains lead	-	Contains lead	Contains lead	-	-
Base Number Matches	1	1	1	1	1	-	-	-
