REVISION CB
DO NOT
SCALE FROM
THIS PRINT
FTS-1XX-XX-XX-XX-XX
No OF POSITIONS
-02 THRU -50 (UNSHROUDED)
-06 THRU -46 (SHROUDED)
LEAD STYLE
SEE TABLE 1
PLATING SPECIFICATION
-L: 10µ" GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-F: 3µ" GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-S: 30µ" GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-H: 30µ" GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
-SM: 30µ" GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-LM: 10µ" GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-FM: 3µ" GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-G: 10µ" GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
2 MAX SWAY
(EITHER DIRECTION)
.050±.004 1.27±0.10
OPTIONS
-P: PICK AND PLACE PAD (USE PPP-25)
(AVAILABLE ON POSITIONS 04 THRU 50)
(SEE FIG 5, SHT 2 & FIG 7, SHT 3)
(USE PPP-25-NT FOR TAPE & REEL)

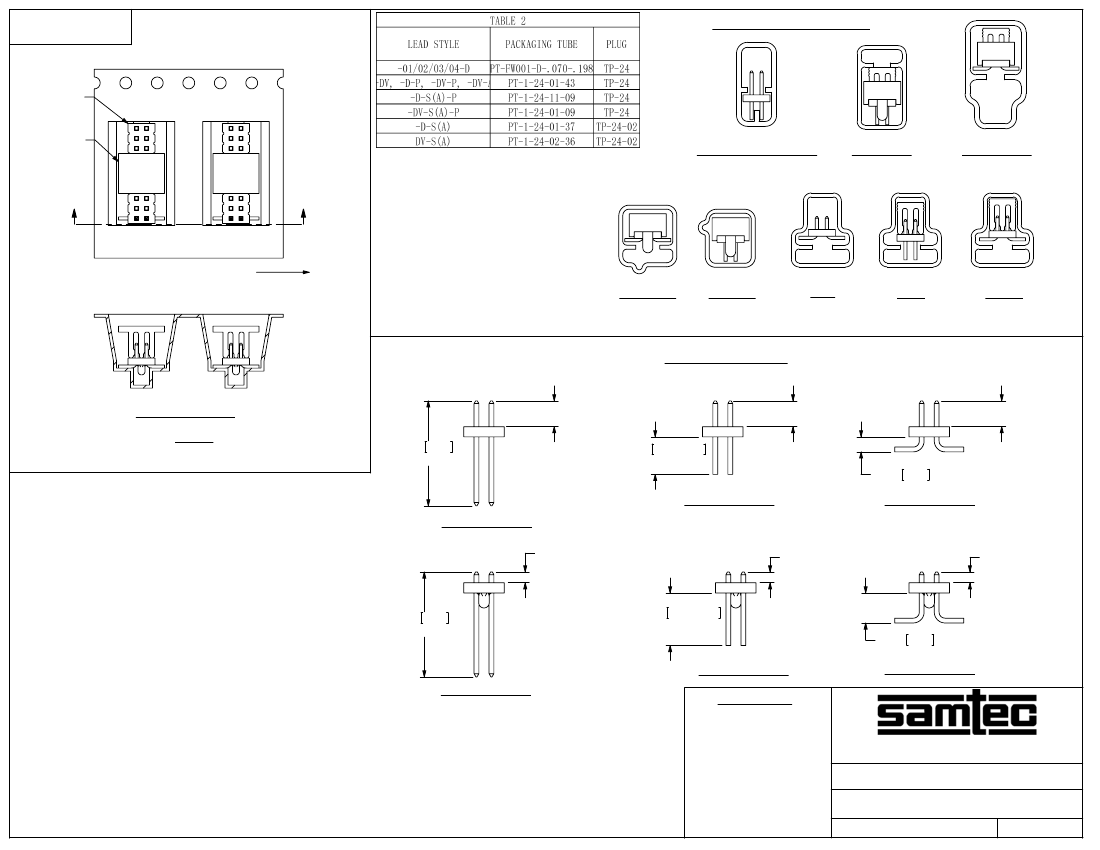

-TR: TAPE & REEL PACKAGING (SEE FIG 10, SHT 4)
(SEE NOTE 14 & 16)
(ONLY AVAILABLE WITH -DV OPTION)
-S: END SHROUDS (SEE FIG 3, SHT 2 & FIG 6 SHT 3)
(LEAD STYLE -02 & -03 ONLY)
(05 POS MINIMUM, 46 POS MAXIMUM)
(NOT AVAILABLE WITH -A OPTION; ORDER -SA FOR
ALIGNMENT PIN WITH SHROUD)
(SEE NOTES 6 & 7)
-SA: END SHROUDS W/ ALIGNMENT PINS
(SEE FIG 4, SHT 2 & FIG 8, SHT 3)
(LEAD STYLE -02 & -03 ONLY)
(05 POS MINIMUM, 46 POS MAXIMUM)
(SEE NOTES 6 & 7)
-A: MOLDED ALIGMENT PIN (USE FTS-XX-DV-XX)
(ONLY AVAILABLE IN -DV OPTION, 5 POS MINIMUM)
(SEE FIG 9, SHT 3)
(NOT AVAILABLE WITH -S OPTION; ORDER -SA FOR
ALIGNMENT PIN AND SHROUD)
TAIL OPTION
-D: DOUBLE ROW THROUGH HOLE
-DV: DOUBLE ROW VERTICAL SURFACE MOUNT
(No OF POS x .0500[1.27]) ±.010[0.25]
.050 1.27 REF
02
.135 3.43
REF
50
C
L
01
49
FTS-XX-DV-XX
(No OF POS x .0500[1.270])
- .0500[1.270]
.016 0.41 SQ
REF (TYP)
2 MAX SWAY
(EITHER DIRECTION)
"A"
(SEE NOTE 15)
.090±.010 2.29±0.25
(SEE NOTE 3)
.070 1.78 REF
(CONTACT AREA)
(SEE NOTE 5)
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. PARTS MAY BE CUT TO POSITION.
3. SHEAR TAILS TO DIMENSION SHOWN.
4. MEASURED AT BEND RADIUS, NOT AT END OF PIN.
5. GOLD PLATING TO BE ON POST, TIN PLATING TO BE ON TAIL.
6. 4 POSITIONS PER ROW WILL BE COVERED BY SHROUDS.
(2 POSITIONS PER ROW ON EACH END).
7. 4 POSITIONS MUST BE ADDED TO PART CALLOUT TO ALLOW
FOR SHROUDS, EXAMPLE FTS-125-02-L-D-SA REQUIRES A
29 POSITION BODY.
8. NOTE DELETED.
9. MINIMUM PUSHOUT FORCE: .5 LB (8 OZ)
10. MAXIMUM CUT FLASH: .015[0.38]
11. PPP-25-NT MUST BE USED FOR ALL TAPE AND REEL PACKAGING.
12. FILL BODY SO THAT THE LEAD IN OF THE CORE IS ON THE TAILS SIDE.
13. MAXIMUM BURR ALLOWANCE: .003[0.08]
14. POSITIONS -05 THRU -50 TO BE TUBED. POSITIONS -02 THRU -04 ON
TAIL OPTION -D TO BE LAYER PACKAGED. POSITIONS -02 THRU -04
ON TAIL OPTION -DV TO BE TAPE AND REELED.
15. MAX HEIGHT VARIATION BETWEEN ROWS: .005[0.13].
16. FOR QUANTITIES LESS THAN 125 PIECES, NO REEL WILL BE SUPPLIED.
T-1SXX-XX-X
(SEE TABLE 1)
2 MAX SWAY
(EITHER DIRECTION)
(No OF POS x .0500[1.270]) - .0500[1.270]
.034 0.86
REF
(SEE NOTE 13)
FTS-1XX-01-XX-D SHOWN

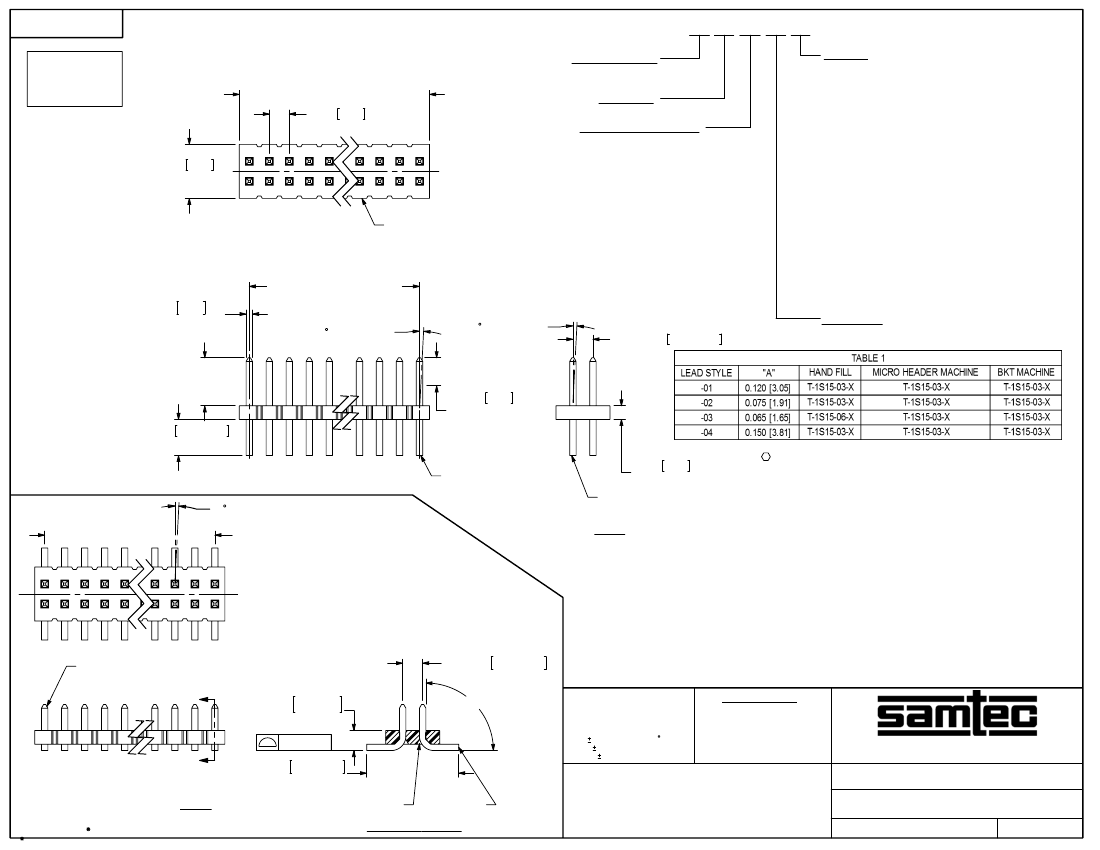

FIG 1
02
50
C
L
01
49
MAY SUBSTITUTE ASP-61746-05-X
FOR RETENTION PURPOSES FOR -DV STYLE ONLY
.050±.006 1.27±0.15
90°±3°
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
"B"
.050
+.005
1.27
+0.13
- .000
0.00
(SEE NOTE 4)
.004[0.10
.230±.010 5.84±0.25
(SEE NOTE 3)
SEE NOTE 12
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
"B"
FIG 2
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
INSULATOR: LCP, UL 94 V0, COLOR: BLACK
TERMINAL: PHOS BRONZE
.050 X .050 C.L. LOW PROFILE
TERMINAL STRIP ASSEMBLY
FTS-1XX-03-XX-DV SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
SEE NOTE 13
F:\DWG\MISC\MKTG\FTS-1XX-XX-XX-XX-XX-MKT.SLDDRW
SECTION "B"-"B"
FTS-1XX-XX-XX-XX-XX
SHEET
1
OF
4
BY:
BRATCHER 11/29/1993
REVISION CB
(No OF POS x .050[1.27]) + .034[0.86]
C
.137 3.48 REF
L
(No OF POS x .050[1.27]) + .325[8.26] REF
(No OF POS x .050[1.27]) + .200[5.08] REF
(No OF POS x .050[1.27]) + .034[0.86]
.200 5.08
REF
.115 2.92
REF
FES
.185 4.70
REF
.2625 6.668
REF
C
L
.137 3.48
REF
.140 3.56
FES-A
.115 2.92
REF
.185 4.70
REF
-DV-S OPTION (SEE NOTES 6 & 7)
FTS-110-02-XX-DV-S SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
NOTE: 4 POSITIONS MUST BE ADDED TO PART CALLOUT TO ACHIEVE DIMS
(NOT AVAILABLE WITH -A OPTION; ORDER -SA FOR ALIGNMENT PIN WITH SHROUD)
{[(No OF POS x .050[1.27]) - .200[5.08]] / 2} ±.020[0.51]
.20 5.1
REF
.23 5.8
REF
FIG 3
.140 3.56
.050 1.27 REF
(No OF POS x .050[1.27]) + .275[6.99]]
.055 1.40 REF
"B"
REF
.130 3.30
PPP-25-NT
(USE PPP-25-NT FOR TAPE AND REEL PACKAGING ONLY)
{[(No OF POS x .050[1.27]) - .200[5.08]] / 2} ±.020[0.51]
.20 5.1
REF
-DV-SA OPTION (SEE NOTES 6 & 7)
FTS-106-02-XX-DV-SA SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
NOTE: 4 POSITIONS MUST BE ADDED TO PART CALLOUT TO ACHIEVE DIMS
FIG 4
.130 3.30 REF
PPP-25
F:\DWG\MISC\MKTG\FTS-1XX-XX-XX-XX-XX-MKT.SLDDRW
"B"
REF
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
-DV-P OPTION
FTS-110-02-XX-DV-P SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)

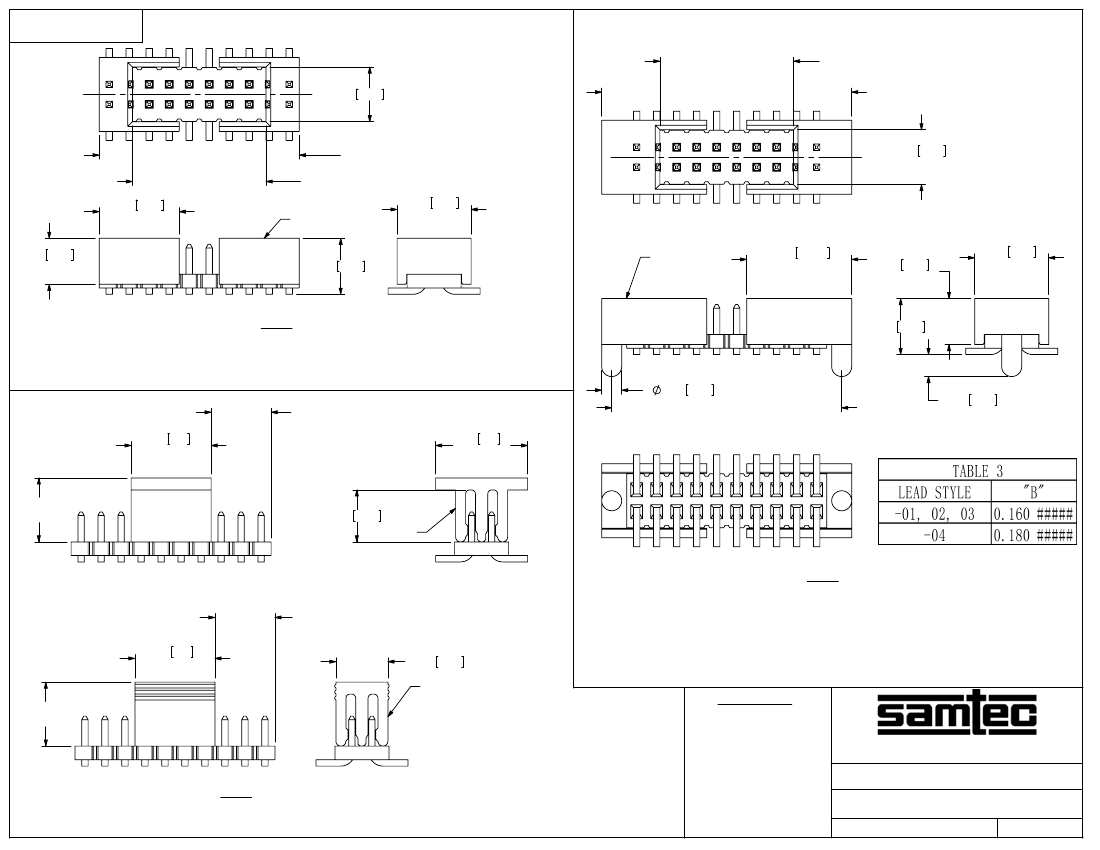

FIG 5
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
.050 X .050 C.L. LOW PROFILE
TERMINAL STRIP ASSEMBLY
FTS-1XX-XX-XX-XX-XX
SHEET
2
OF
4
BY:
BRATCHER 11/29/1993
REVISION CB
(No OF POS x .050[1.27]) + .034[0.86]
C
.137 3.48 REF
L
(No OF POS x .050[1.27]) + .325[8.26] REF
(No OF POS x .050[1.27]) + .200[5.08] REF
(No OF POS x .050[1.27]) + .034[0.86]
.200 5.08
REF
FES
.185 4.70
REF
.2625 6.668
REF
C
L
.137 3.48
REF
.115 2.92
REF
.124 3.15
FES-A
.115 2.92
REF
.185 4.70
REF
.124 3.15
-D-S OPTION (SEE NOTES 6 & 7)
FTS-110-02-XX-D-S SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
NOTE: 4 POSITIONS MUST BE ADDED TO PART CALLOUT TO ACHIEVE DIMS
(NOT AVAILABLE WITH -A OPTION; ORDER -SA FOR ALIGNMENT PIN WITH SHROUD)
.20 5.1
REF
{[(No OF POS x .050[1.27]) - .200[5.08]] / 2} ±.020[0.51]
.13 3.3
REF

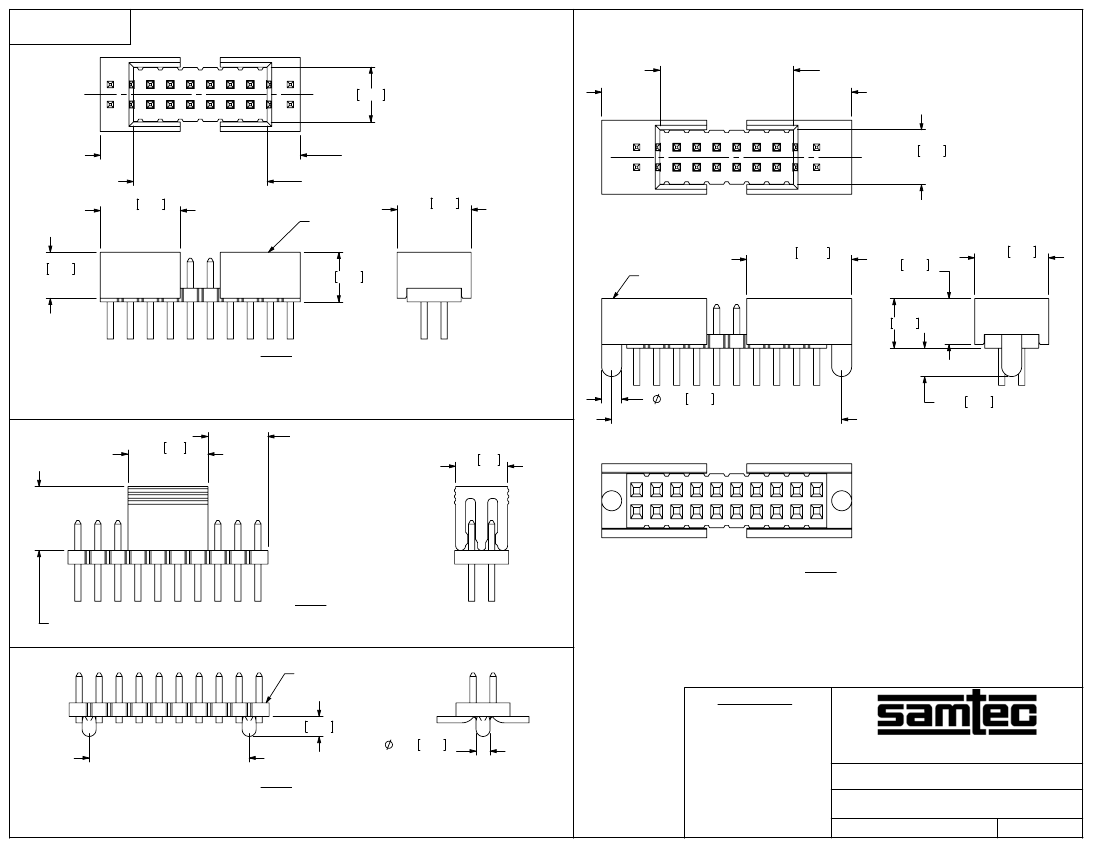

FIG 6
.050 1.27 REF
(No OF POS x .050[1.27]) + .275[6.99]]
.071 1.80 REF
"B" REF
(SEE TABLE 3, SHT 2)
-D-P OPTION
FTS-110-02-XX-D-P SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FTS-XX-DV-XX
FIG 7
-D-SA OPTION (SEE NOTES 6 & 7)
FTS-110-02-XX-D-SA SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
NOTE: 4 POSITIONS MUST BE ADDED TO PART CALLOUT TO ACHIEVE DIMS
FIG 8
F:\DWG\MISC\MKTG\FTS-1XX-XX-XX-XX-XX-MKT.SLDDRW
PROPRIETARY NOTE
.050 1.27 REF
(No OF POS - 2) x .050[1.27]
REF
.035 0.89
REF
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
-A MOLDED ALIGNMENT PIN
FTS-110-02-XX-DV-A SHOWN
(ONLY AVAILABLE IN -DV OPTION)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 9
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
.050 X .050 C.L. LOW PROFILE
TERMINAL STRIP ASSEMBLY
FTS-1XX-XX-XX-XX-XX
SHEET
3
OF
4
BY:
BRATCHER 11/29/1993
