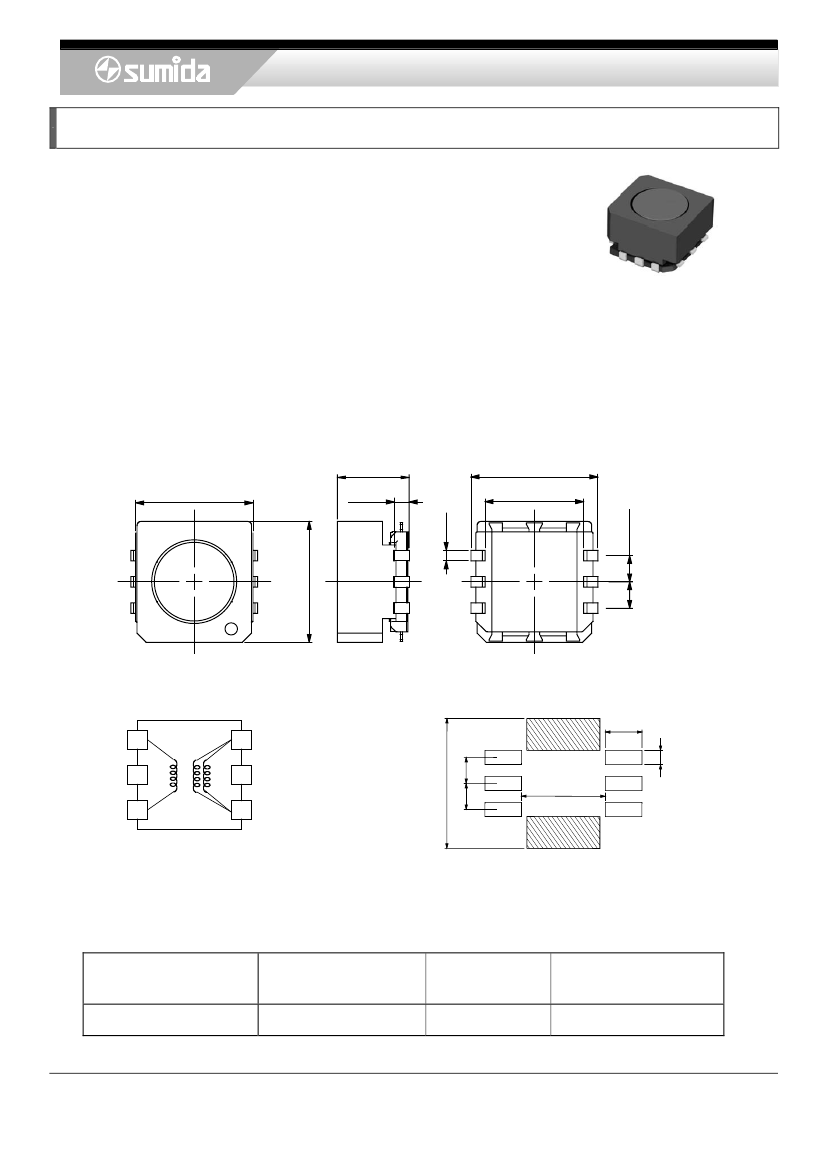

General Power Transformer<SMD Type: CLQ Series>
Type: CLQ4D27
◆
Product Description
・4.9×4.6mm
Max.(L×W), 3.0mm Max.(Height)
・In
addition to the typical versions of parameters shown here,
custom designs are available to meet your exact requirements
◆
Feature
・Magnetically
shielded construction.
・Max.
Operating frequency 1MHz, Max Operating Power 540mW (1MHz).
・Ideally
used in Digital still camera, Digital video camera, LCD TV, Portable equipment.
・RoHs
Compliance
◆
Dimensions (mm)
3.0 MAX.
4.4 ±0.3
0.6
0.4
4.8 ±0.3
3.7
1.0 ±0.2
4
3
4 . 6 ± 0 .3
6
1
◆
Schematics (Bottom)
S
3
2
1
4
◆
Land Pattern (mm)
1.4
0 . 55
1 . 0 1 .0
5
6
5.0
3.2
S
“ S” indicates winding start.
◆
Specification
Sample No.
4368-T088
Inductance (4-6)
(100kHz/1.0V)
12.4μＨ±30% within
D.C.R.
(4-6)
580mΩ Max.
Hi-pot (1,3-4,6)
(0.5mA)
DC 100V/1min.
Please refer to the sales offices on our website for a representative near you
www.sumida.com
1/1
