USH5801-AI-C24 datasheet, PDF - EEWORLD Datasheet

USH5801-AI-C24: DescriptionLatch Based Peripheral Driver, 0.17A, CMOS, CDIP24, CERDIP-24; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size209KB，5 Pages; ManufacturerUniversal Semiconductor Inc

Download Datasheet Parametric Compare View All

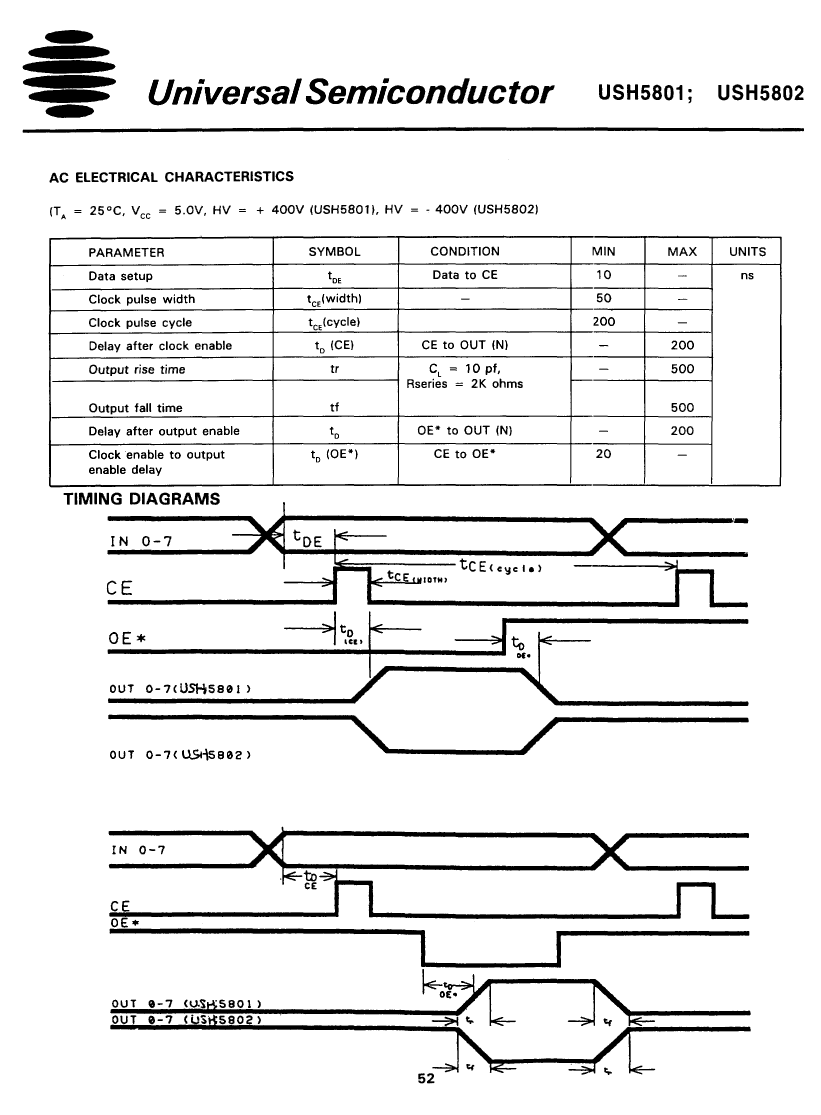

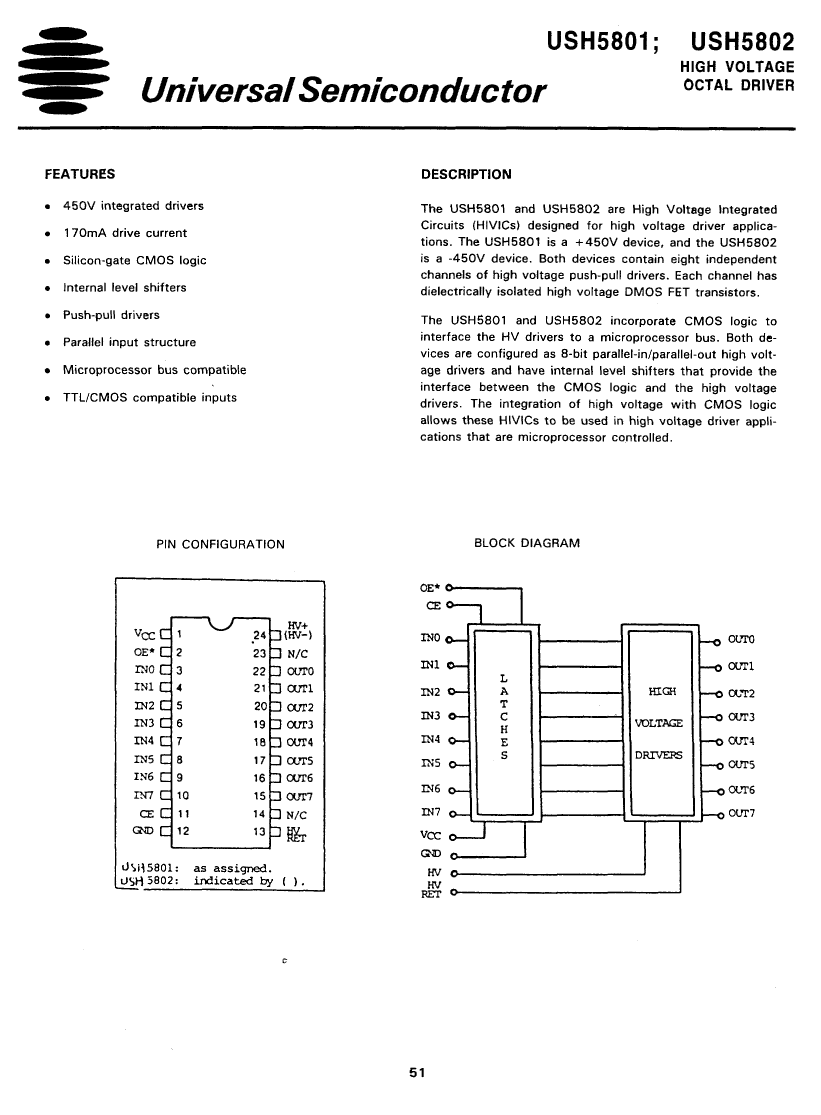

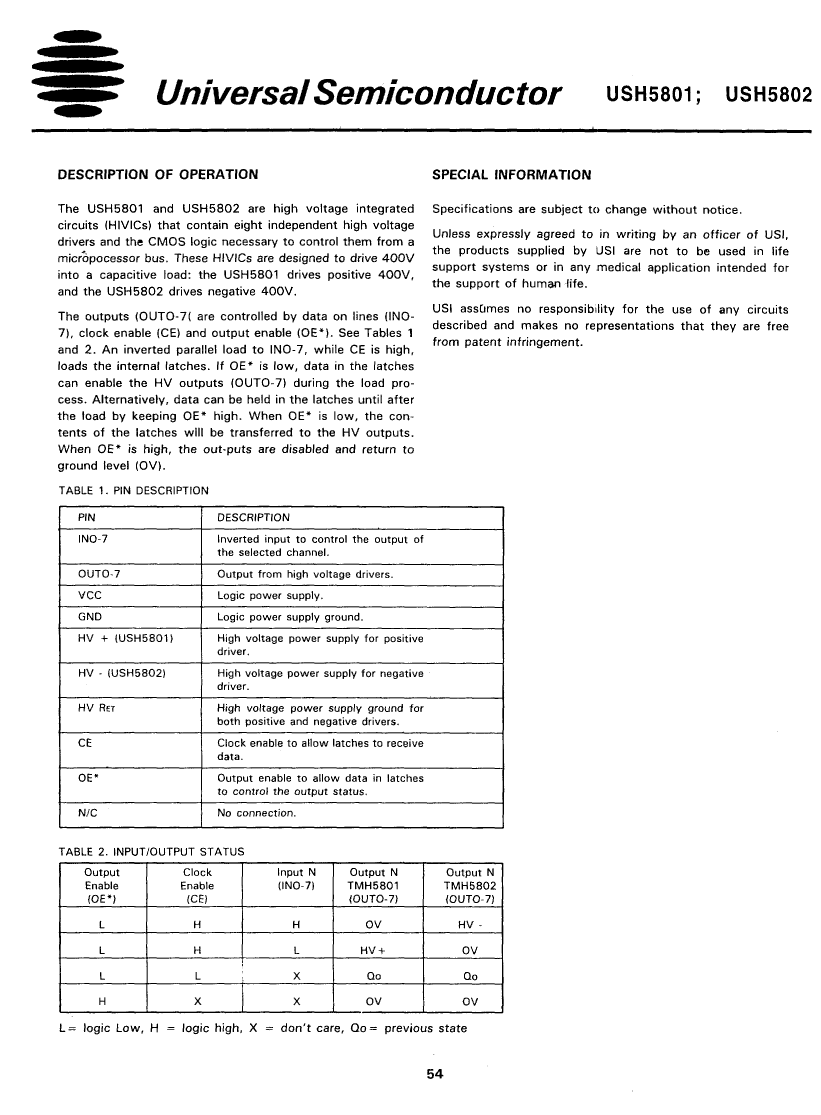

USH5801-AI-C24 Overview

Latch Based Peripheral Driver, 0.17A, CMOS, CDIP24, CERDIP-24

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	,
Contacts	24
Reach Compliance Code	unknown
ECCN code	EAR99
Interface integrated circuit type	LATCH BASED PERIPHERAL DRIVER
JESD-30 code	R-GDIP-T24
Number of functions	8
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output current flow direction	SOURCE AND SINK
Nominal output peak current	0.17 A

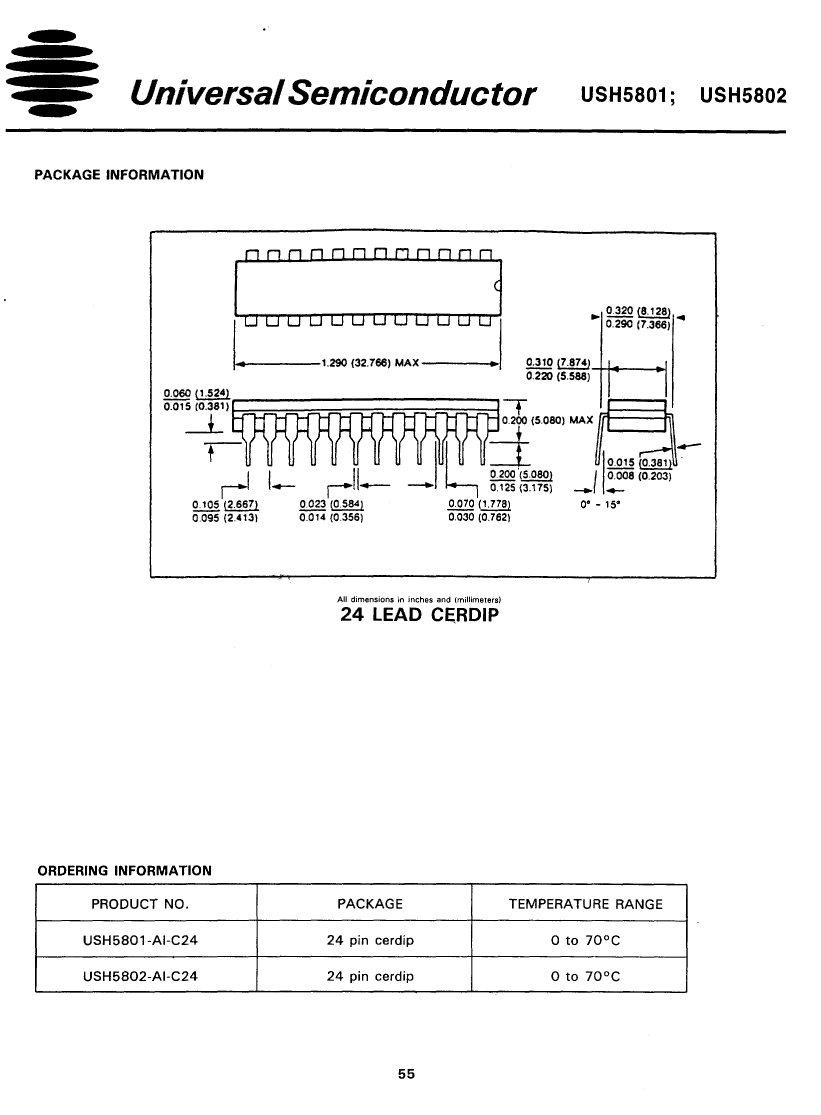

Package body material	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified

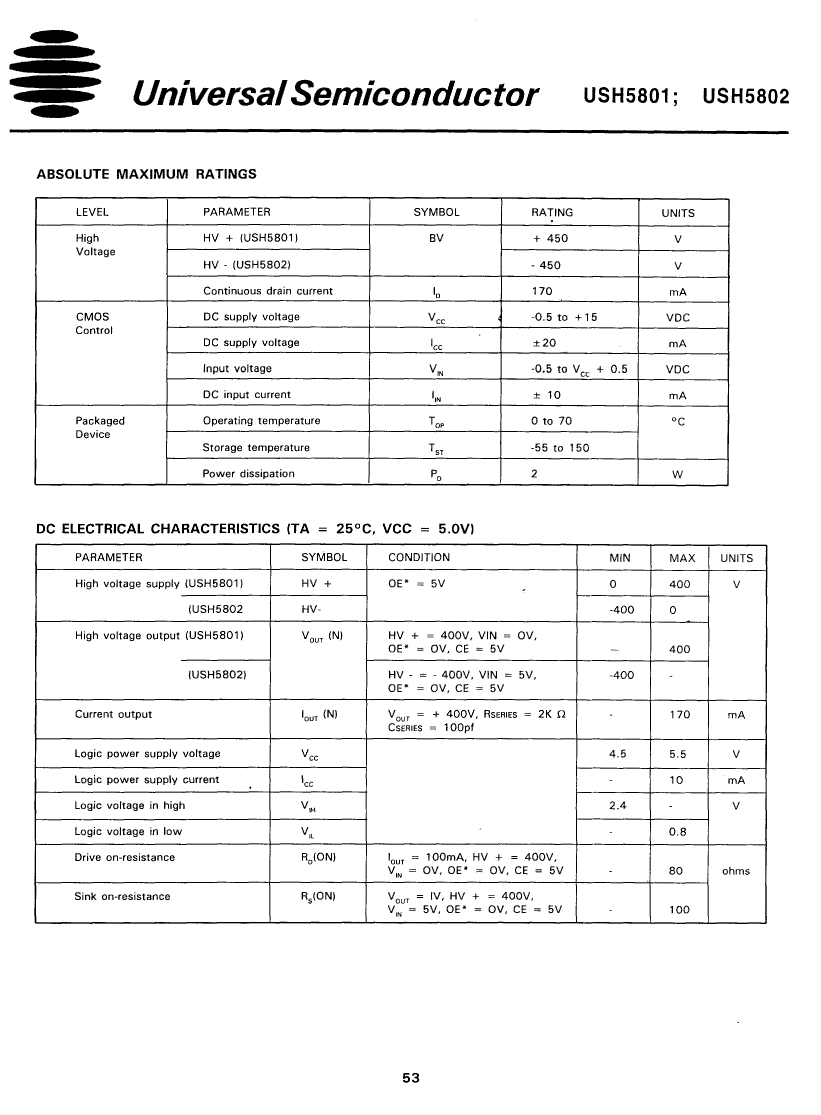

Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
Supply voltage 1-max	400 V
Mains voltage 1-minute
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

	USH5801-AI-C24	USH5802-AI-C24
Description	Latch Based Peripheral Driver, 0.17A, CMOS, CDIP24, CERDIP-24	Latch Based Peripheral Driver, 0.17A, CMOS, CDIP24, CERDIP-24
Parts packaging code	DIP	DIP
Contacts	24	24
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Interface integrated circuit type	LATCH BASED PERIPHERAL DRIVER	LATCH BASED PERIPHERAL DRIVER
JESD-30 code	R-GDIP-T24	R-GDIP-T24
Number of functions	8	8
Number of terminals	24	24
Maximum operating temperature	70 °C	70 °C
Output current flow direction	SOURCE AND SINK	SOURCE AND SINK
Nominal output peak current	0.17 A	0.17 A
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
Supply voltage 1-max	400 V	-400 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL
