PR22MA11NTZ Series
PR32MA11NTZ Series
PR22MA11NTZ Series
PR32MA11NTZ Series
I
T
(rms)≤0.15A, Non-Zero Cross type
DIP 6pin
SSR
■
Description
PR22MA11NTZ Series
and
PR32MA11NTZ Series
Solid State Relays (SSR) are an integration of an
infrared emitting diode (IRED), a Phototriac Detector.
These devices are ideally suited for controlling high
voltage AC loads with solid state reliability while
providing 5.0kV isolation (V
iso
(rms) ) from input to
output.
■
Agency approvals/Compliance
1. Package resin : UL flammability grade (94V-0)
■
Applications
1. Isolated interface between high voltage AC devices
and lower voltage DC control circuitry.
2. Switching small capacity motors, fans, heaters,
solenoids, and valves.
3. Phase or power control in applications such as
lighting and temperature control equipment.
■
Features
1. Output current, I
T
(rms)≤0.15A
2. Non-zero crossing functionary
3. 6 pin DIP package, (SMT gullwing also available)
4. High repetitive peak off-state voltage
(V
DRM
: 600V,
PR32MA11NTZ Series)
(V
DRM
: 400V,
PR22MA11NTZ Series)
5. Superior noise immunity (dV/dt : MIN. 100V/µs)
6. Response time, t
on
: MAX. 100µs
7. Lead-free components are also available (see Model
Line-up section in this datasheet)
8. Double transfer mold construction (Ideal for Flow
Soldering)
9. High isolation voltage between input and output
(V
iso
(rms) : 5.0kV)
Notice The content of data sheet is subject to change without prior notice.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
1
Sheet No.: D4-A00201EN
Date Mar. 31. 2004
© SHARP Corporation
PR22MA11NTZ Series
PR32MA11NTZ Series
■
Internal Connection Diagram
1
2
3
6
5
4
1
2
3
4
5
6
Anode
Cathode
NC
Anode/Cathode
No external connection
Cathode/Anode
■

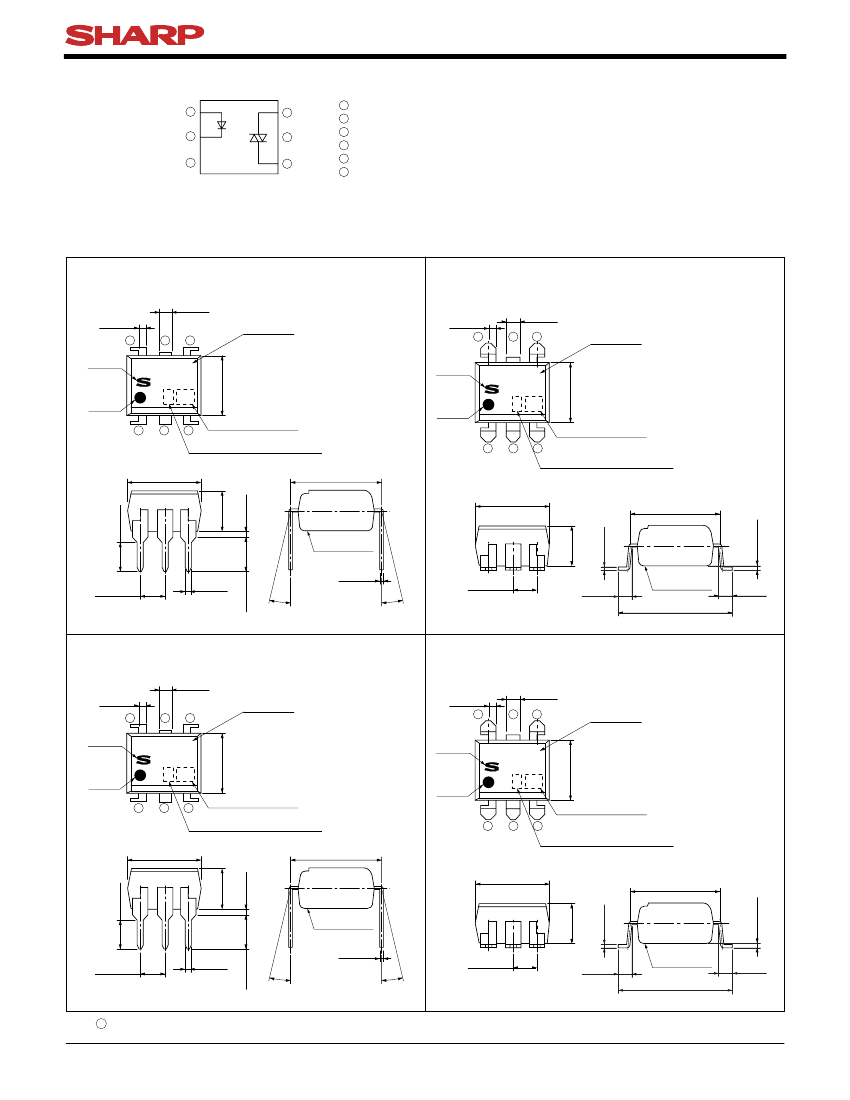

Outline Dimensions
1. Through-Hole [ex.
PR22MA11NTZF]
1.2
±0.3
0.6
±0.2
(Unit : mm)
2. SMT Gullwing Lead-Form [ex.
PR22MA11NXPF]
0.6
±0.2
6
5
1.2
±0.3
4
Model No.
6
5
4
SHARP
mark
"S"
Anode
mark
R22MA1
6.5
±0.5
SHARP
mark
"S"
Anode
mark
Model No.
R22MA1
6.5
±0.5
Date code (2 digit)
1
2
3
1
2
3
Date code (2 digit)
Factory identification mark
Factory identification mark
7.12
±0.5
7.62
±0.3
0.5
TYP.
3.5
±0.5
7.12
±0.5
2.9
±0.5
7.62
±0.3
0.26
±0.1
3.5
±0.5
0.35
±0.25
Epoxy resin
10.0
+0
−0.5
1.0
+0.4
−0
7.62
±0.3
0.26
±0.1
3.5
±0.5
0.35
±0.25
Epoxy resin
10.0
+0
−0.5
1.0
+0.4
−0
Sheet No.: D4-A00201EN
Epoxy resin
3.25
±0.5
±0.1
0.26
±0.1
θ
θ
: 0 to 13˚
θ
2.54
±0.25
0.5
2.54
±0.25
1.0
+0.4
−0
Product mass : approx. 0.35g
Product mass : approx. 0.33g
4. SMT Gullwing Lead-Form [ex.
PR32MA11NXPF]
0.6
±0.2
6
5
3. Through-Hole [ex.
PR32MA11NTZF]
1.2
±0.3
0.6
±0.2
SHARP
mark
"S"
Anode
mark
1
2
3
6
5
4
1.2
±0.3
4
Model No.
R32MA1
6.5
±0.5
SHARP
mark
"S"
Anode
mark
Model No.
R32MA1
6.5
±0.5
Date code (2 digit)
1
2
3
Date code (2 digit)
Factory identification mark
Factory identification mark
7.12
±0.5
7.62
0.5
TYP.
3.5
±0.5
±0.3
7.12
±0.5
2.9
±0.5
Epoxy resin
3.25
±0.5
±0.1
0.26
±0.1
θ
θ
: 0 to 13˚
θ
2.54
±0.25
0.5
2.54
±0.25
1.0
+0.4
−0
Product mass : approx. 0.35g
∗Pin
5
Product mass : approx. 0.33g
is not allowed external connection
2
PR22MA11NTZ Series
PR32MA11NTZ Series
Date code (2 digit)
1st digit
Year of production
A.D
Mark
2002
A
2003
B
2004
C
2005
D
2006
E
2007
F
2008
H
2009
J
2010
K
2011
L
2012
M
·
·
N
·
2nd digit
Month of production
Month
Mark
January
1
February
2
March
3
April
4
May
5
June
6
July
7
August
8
September
9
October
O
November
N
December
D
A.D.
1990
1991
1992
1993
1994
1995
1996
1997
1998
1999
2000
2001
Mark
P
R
S
T
U
V
W
X
A
B
C
·
·
·
repeats in a 20 year cycle
Factory identification mark
Factory identification Mark
no mark
Japan
* This factory marking is for identification purpose only.
Please contact the local SHARP sales representative to see the actural status of the
production.
Country of origin
Rank mark
There is no rank mark indicator and currently there are no rank offered for this device.
Sheet No.: D4-A00201EN
3
PR22MA11NTZ Series
PR32MA11NTZ Series
■
Absolute Maximum Ratings
(T
a
=25˚C)
Parameter
Symbol Rating
Unit
*3
I
F
50
mA
Forward current
Input
V
R
6
V
Reverse voltage
*3
I
T
(rms)
150
mA
RMS ON-state current
*4
I
surge
1.2
A
Peak one cycle surge current
Output
PR22MA11NTZ
400
Repetitive
V
DRM
V
600
peak OFF-state voltage
PR32MA11NTZ
*1
5.0
kV
V
iso
(rms)
Isolation voltage
˚C
T
opr
−30
to
+85
Operating temperature
˚C
T
stg
−40
to
+125
Storage temperature
*2
˚C
T
sol
270
*5
Soldering temperature
*1 40 to 60%RH, AC for 1minute, f=60Hz
*2 For 10s
*3 Refer to Fig.1, Fig.2
*4 f=50Hz sine wave
*5 Lead solder plating models: 260˚C
Soldering area
■
Electro-optical Characteristics
Parameter
Forward voltage
Input
Reverse current
Repetitive peak OFF-state current
ON-state voltage
Output
Holding current
Critical rate of rise of OFF-state voltage
Transfer Minimum trigger current
charac- Isolation resistance
teristics Turn-on time
Symbol
V
F
I
R
I
DRM
V
T
I
H
dV/dt
I
FT
R
ISO
t
on
Conditions
I
F
=20mA
V
R
=3V
V
D
=V
DRM
I
T
=150mA
V
D
=6V
−
V
D
=1/√
2
·V
DRM
V
D
=6V,
R
L
=100Ω
DC500V,40 to 60%RH
V
D
=6V,
R
L
=100Ω,
I
F
=20mA
MIN. TYP.
1.2
−
−
−
−
−
−
−
−
0.1
−
100
−
−
10
10
11
5×10
−
−
1mm
(T
a
=25˚C)
MAX.
1.4
10
2.0
3.0
3.5
−
10
−
100
Unit
V
µA
µA
V
mA
V/µs
mA
Ω
µs
Sheet No.: D4-A00201EN
4
PR22MA11NTZ Series
PR32MA11NTZ Series
■
Model Line-up (1) (Lead-free components)
Lead Form
Shipping Package
Model No.
Through-Hole
Sleeve
50pcs/sleeve
PR22MA11NTZF
PR32MA11NTZF
SMT Gullwing
Taping
1 000pcs/reel
PR22MA11NXPF
PR32MA11NXPF
V
DRM
[V]
400
600
I
FT
[mA]
(V
D
=6V,
R
L
=100Ω)
MAX.10
■
Model Line-up (2) (Lead solder plating components)
Lead Form
Shipping Package
Model No.
Through-Hole
Sleeve
50pcs/sleeve
PR22MA11NTZ
PR32MA11NTZ
SMT Gullwing
Taping
1 000pcs/reel
−
−
V
DRM
[V]
400
600
I
FT
[mA]
(V
D
=6V,
R
L
=100Ω)
MAX.10
Please contact a local SHARP sales representative to see the actual status of the production.
Sheet No.: D4-A00201EN
5
