AMERICAN BRIGHT
OPTOELECTRONICS CORP.
SPICELED InGaN BL-SDx-DLD Series
•
Feature:
1. High brightness surface mount LED.
2. Wide viewing angle.
3. Equivalent to 0603 package outline. Copper lead-frame construction.
4. Qualified according to JEDEC moisture sensitivity Level 2.
5. Compatible to IR reflow soldering.
•

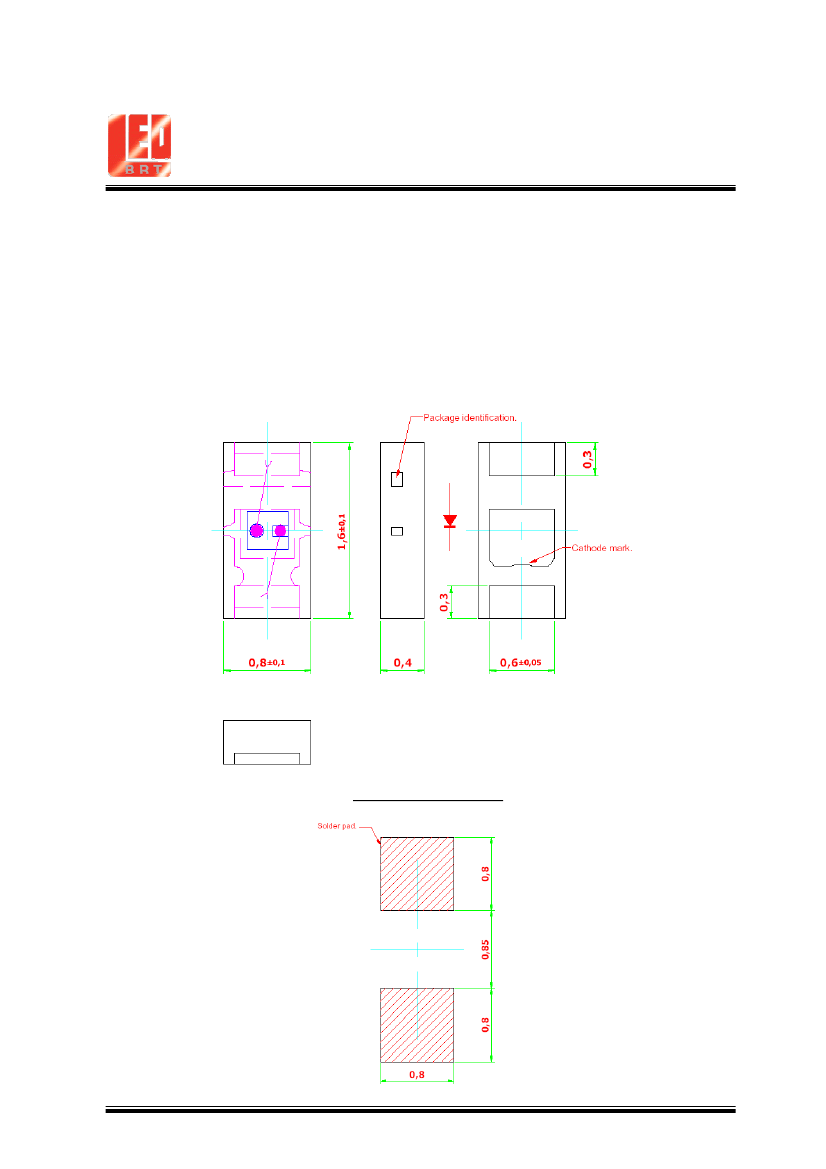

Package Dimension:
Recommended Solder Pad
V.2 Page: 1 of 5
AMERICAN BRIGHT
OPTOELECTRONICS CORP.
•
SPICELED InGaN BL-SDx-DLD Series
Optical Characteristics:
Color
Blue ( 470 nm )
Viewing
Angle
160
Luminous Intensity @ If = 5mA
Iv ( mcd )
7.2 … 18.0
7.2 … 9.0
9.0 … 11.2
11.2 … 14.0
14.0 … 18.0
Part Number
BL-SDB-DLD-C10
•
•
•
•
BIN K1
BIN K2
BIN L1
BIN L2
BL-SDW-DLD-C10
•
•
•
•
BIN N1
BIN N2
BIN P1
BIN P2
White
160
28.5 … 71.5
28.5
35.5
45.0
56.0
…
…
…
…
35.5
45.0
56.0
71.5
Note:
1. Other luminous intensity groups are also available upon request.
2. Luminous intensity is measured with an accuracy of
±11%.
3. Wavelength binning is carried for all units as per the wavelength-binning table. Only one wavelength
group is allowed for each reel.
•
Absolute Maximum Ratings:
Parameter
DC forward current.
Peak pulse current.
(tp
≤
10
µs,
Duty cycle = 0.005)
Reverse voltage.
LED junction temperature.
Operating temperature.
Storage temperature.
Power dissipation
( at room temperature )
Maximum Value
20
100
5
100
-40 … +100
-40 … +100
60
Unit
mA
mA
V
°C
°C
°C
mW
•
•
Material:
Lead-frame
Package
Material
Cu Alloy With NiPdAu Plating.
High Temperature Resistant Epoxy Resin.
Vf Binning:
Vf Bin @ 5mA
Standard
10
11
12
13
Forward Voltage (V)
2.70 … 3.10
2.70 … 2.80
2.80 … 2.90
2.90 … 3.00
3.00 … 3.10
V.2 Page: 2 of 5
AMERICAN BRIGHT
OPTOELECTRONICS CORP.
SPICELED InGaN BL-SDx-DLD Series
•
Wavelength Grouping:
Color
BL-SDB; Blue
Group
Wavelength distribution (nm)
@ If = 5mA
464 - 476
464 - 468
468 - 472
472 – 476
476 – 480
Full
W
X
Y
Z
Wavelength is measured with an accuracy of
±1
nm.
•
BL-SDW: White Chromaticity Coordinate Grouping
D-Spice W hite Bin Structure
0.44
0.43
0.42
0.41
0.40
0.39
0.38
0.37
0.36
0.35
0.34
0.33
0.32
0.31
0.30
0.29
0.28
0.27
0.26
0.25
0.24
0.23
0.22
0.21
0.20
0.19
0.18
0.17
0.16
0.15
0.14
0.13
0.12
0.11
0.10
0.19
Y2
Y1
X2
X1
W2
W1
0.20
0.21
0.22
0.23
0.24
0.25
0.26
0.27
0.28
0.29
0.30
0.31
0.32
0.33
0.34
0.35
0.36
Chromaticity coordinate groups are measured with an accuracy of
±0.01.
Bin
W1
X1
Y1
Cx
Cy
Cx
Cy
Cx
Cy
1
0.260
0.218
0.290
0.270
0.320
0.322
2
0.275
0.244
0.305
0.296
0.335
0.348
3
0.275
0.289
0.305
0.341
0.335
0.393
4
0.260
0.263
0.290
0.315
0.320
0.367
Bin
W2
X2
Y2
Cx
Cy
Cx
Cy
Cx
Cy
1
0.275
0.244
0.305
0.296
0.335
0.348
2
0.290
0.270
0.320
0.322
0.350
0.374
3
0.290
0.315
0.320
0.367
0.350
0.419
4
0.275
0.289
0.305
0.341
0.335
0.393
V.2 Page: 3 of 5
AMERICAN BRIGHT
OPTOELECTRONICS CORP.
•
SPICELED InGaN BL-SDx-DLD Series

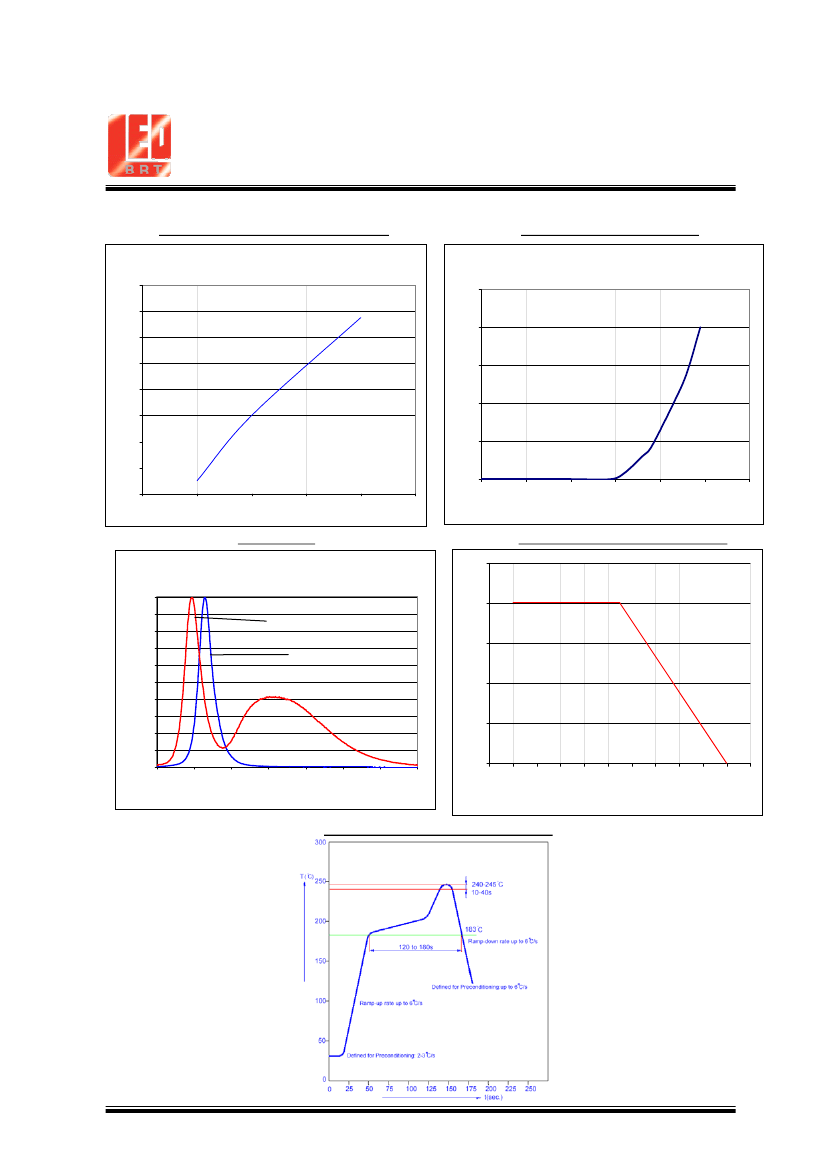

Typical electro-optical characteristics curves:
Fig.1 Relative luminous intensity vs. forward current.
In ten sity vs. D C F o rw ard C u rren t
2
Fig.2 Forward current vs. forward voltage.
Forward Current vs. Forward Voltage
25
Relative intensity. Normalized at 10 mA.
1.8
20
Forward Current (mA)
1.6
1.4
15
1.2
10
1
0.8
5
0.6
0
0.4
0
5
10
15
20
25
F O R W A R D C U R R E N T (m A )
1
1.5
2
2.5
Forward Voltage (V)
3
3.5
4
Fig.3 Color Spectrum
Fig.4 Maximum current vs. ambient temperature
Relative Spectral Emission
1.0
0.9
White
0.8
25
Forward Current, If (mA)
650
700
750
20
Relative Intensity
0.7
Blue
0.6
0.5
0.4
0.3
0.2
0.1
0.0
400
15
10
5
0
450
500
550
600
0
10
20
30
40
50
60
70
80
90 100 110
Wavelength (nm)
Ambient Temperature (
o
C)
Fig.5 Recommended IR-reflow Soldering Profile.
V.2 Page: 4 of 5
AMERICAN BRIGHT
OPTOELECTRONICS CORP.
SPICELED InGaN BL-SDx-DLD Series
•

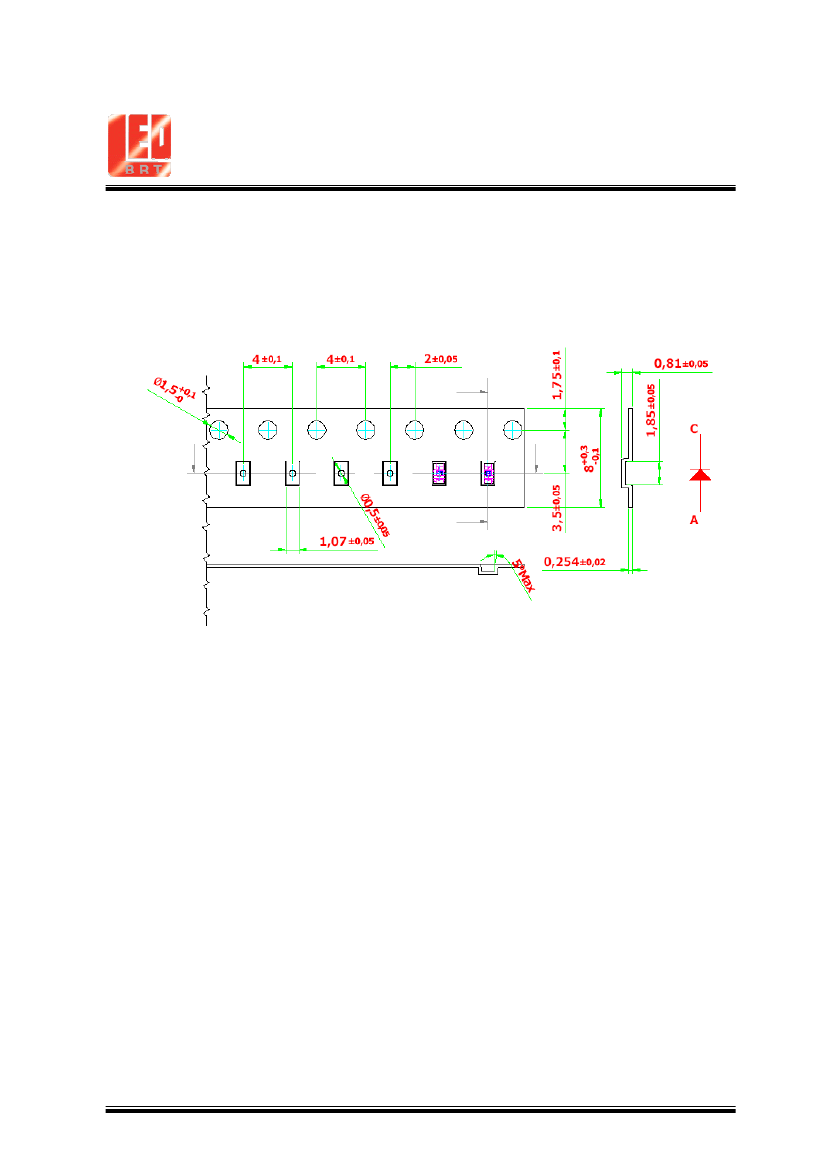

Taping And Orientation:
Reels come in quantity of 3000 units.
Reel diameter is 180 mm.
V.2 Page: 5 of 5
