SP0-2502-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> SP0-2502-6

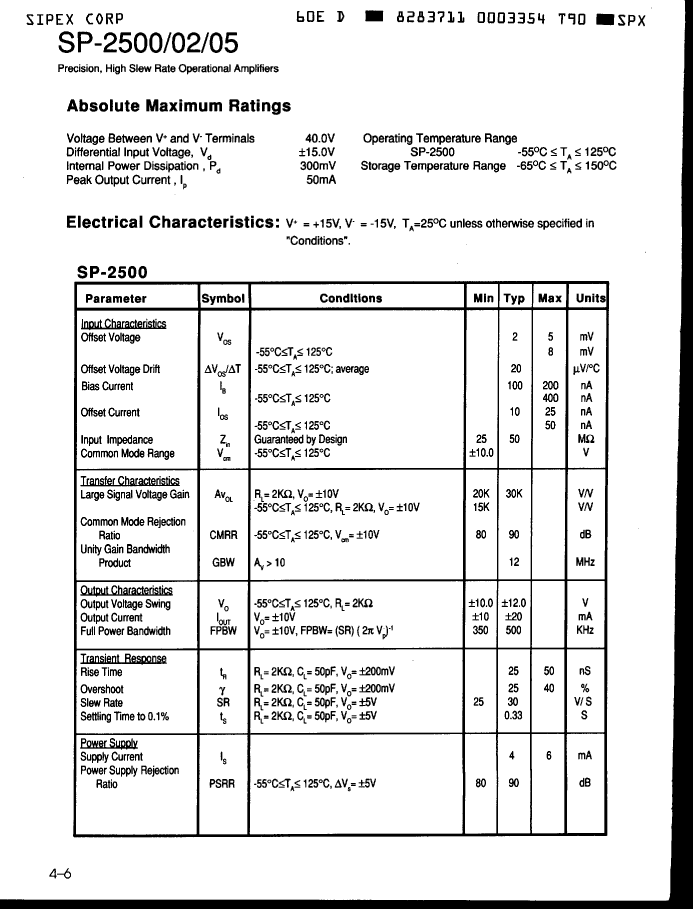

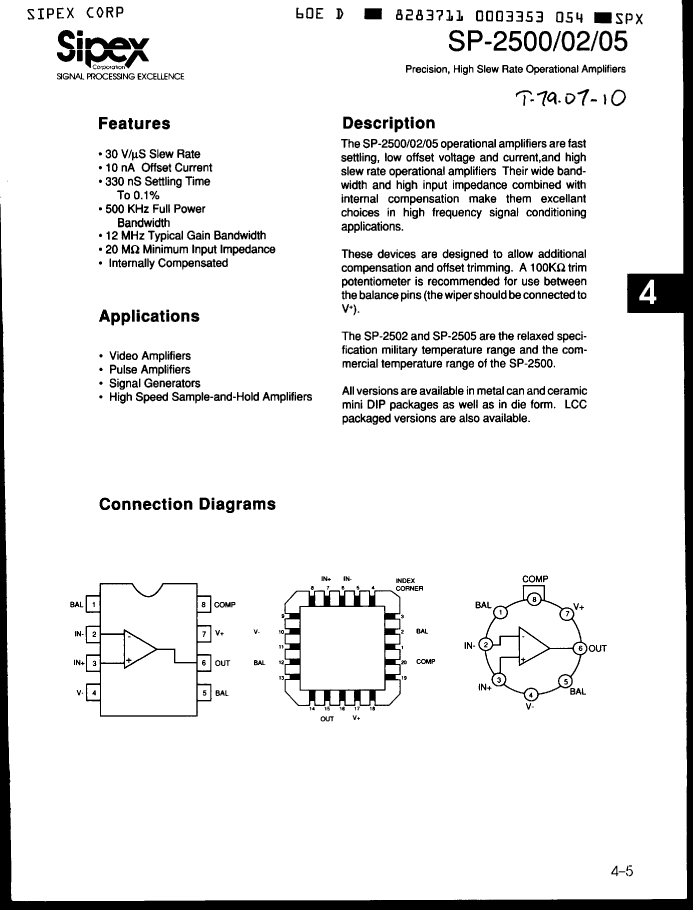

Preview

SP0-2502-6: DescriptionSP0-2502-6 amplifier basic information: SP0-2502-6 is an OPERATIONAL AMPLIFIER. The commonly used packaging method is DIE SP0-2502-6 amplifier core information: Its maximum average bias current is 0.25 µA How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of SP0-2502-6 is 30 V/us. The manufacturer specifies a maximum slew rate of 6 mA for the SP0-2502-6 and a minimum slew rate of 20 V/us. Its minimum voltage gain is 15000. When the op amp is used in a closed loop, at a certain closed loop gain (usually 1 or 2, 10, etc.), the frequency when the SP0-2502-6 gain becomes 0.707 times the low frequency gain is 12000 kHz. The nominal supply voltage of the SP0-2502-6 is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of SP0-2502-6 is 8000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).) Related dimensions of SP0-2502-6: Its terminal position type is: UPPER. SP0-2502-6 amplifier additional information: SP0-2502-6 is not Rohs certified. The corresponding JESD-30 code is: X-XUUC-N. The packaging code of SP0-2502-6 is: DIE. The materials used in the SP0-2502-6 package are mostly UNSPECIFIED. And its package shape is UNSPECIFIED. The SP0-2502-6 package pin format is: UNCASED CHIP. Its terminal forms are: NO LEAD.; CategoryAnalog mixed-signal IC Amplifier circuit; File Size345KB，6 Pages; ManufacturerSIPEX; Websitehttp://www.sipex.com/; Alternative parts：SP0-2502-6

Download Datasheet Parametric View All

SP0-2502-6 Overview

SP0-2502-6 amplifier basic information:

SP0-2502-6 is an OPERATIONAL AMPLIFIER. The commonly used packaging method is DIE

SP0-2502-6 amplifier core information:

Its maximum average bias current is 0.25 µA

How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of SP0-2502-6 is 30 V/us. The manufacturer specifies a maximum slew rate of 6 mA for the SP0-2502-6 and a minimum slew rate of 20 V/us. Its minimum voltage gain is 15000. When the op amp is used in a closed loop, at a certain closed loop gain (usually 1 or 2, 10, etc.), the frequency when the SP0-2502-6 gain becomes 0.707 times the low frequency gain is 12000 kHz.

The nominal supply voltage of the SP0-2502-6 is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of SP0-2502-6 is 8000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

Related dimensions of SP0-2502-6:

Its terminal position type is: UPPER.

SP0-2502-6 amplifier additional information:

SP0-2502-6 is not Rohs certified. The corresponding JESD-30 code is: X-XUUC-N. The packaging code of SP0-2502-6 is: DIE. The materials used in the SP0-2502-6 package are mostly UNSPECIFIED. And its package shape is UNSPECIFIED.

The SP0-2502-6 package pin format is: UNCASED CHIP. Its terminal forms are: NO LEAD.

SP0-2502-6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIE
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.25 µA
Minimum Common Mode Rejection Ratio	74 dB
Nominal Common Mode Rejection Ratio	90 dB
Maximum input offset voltage	8000 µV
JESD-30 code	X-XUUC-N
Negative supply voltage upper limit	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	UNSPECIFIED
Package form	UNCASED CHIP
Certification status	Not Qualified
minimum slew rate	20 V/us
Nominal slew rate	30 V/us
Maximum slew rate	6 mA
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Terminal form	NO LEAD
Terminal location	UPPER
Nominal Uniform Gain Bandwidth	12000 kHz
Minimum voltage gain	15000
Base Number Matches	1

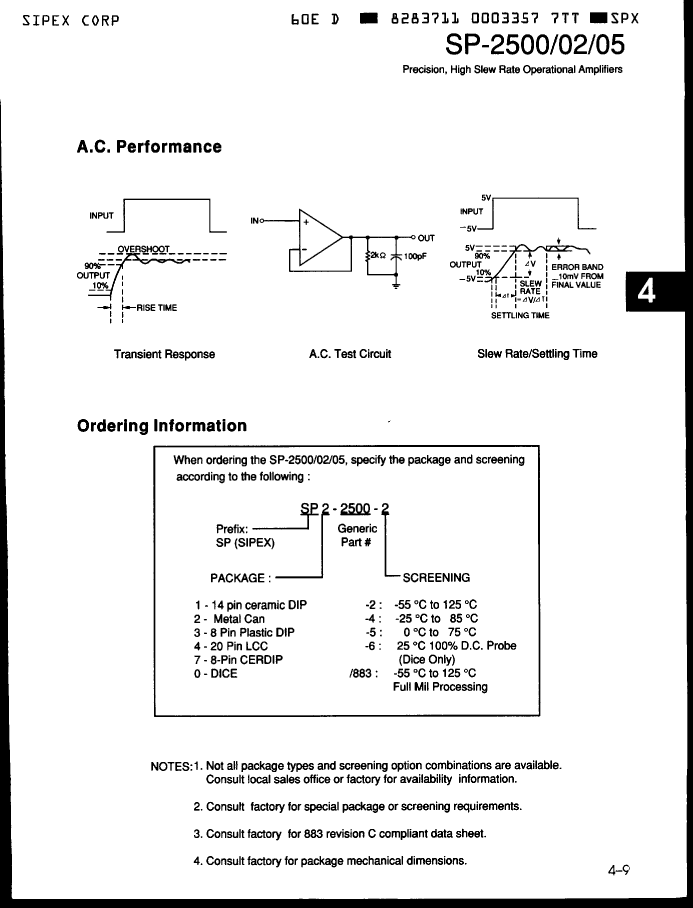

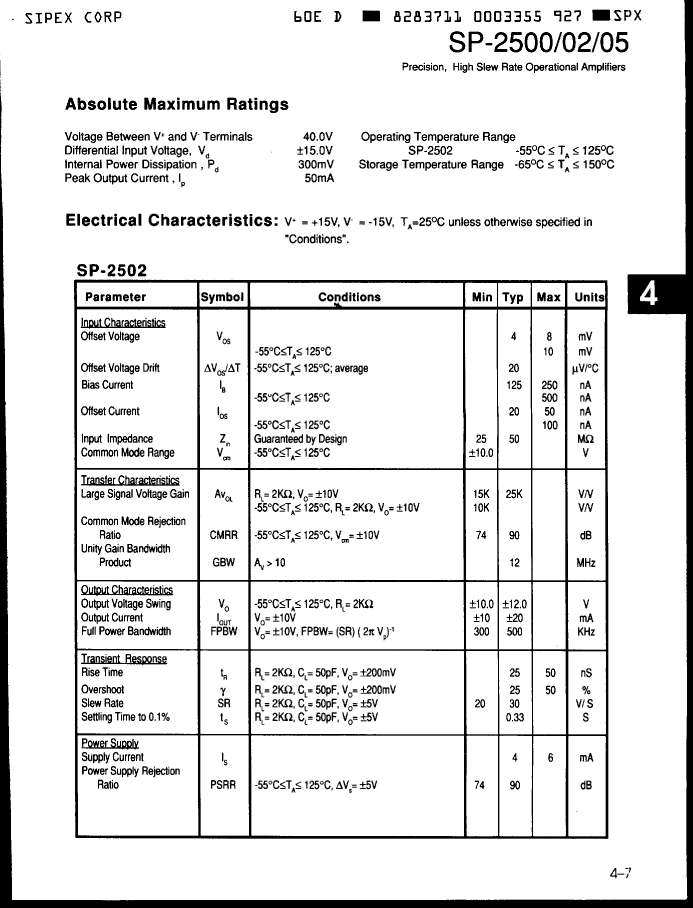

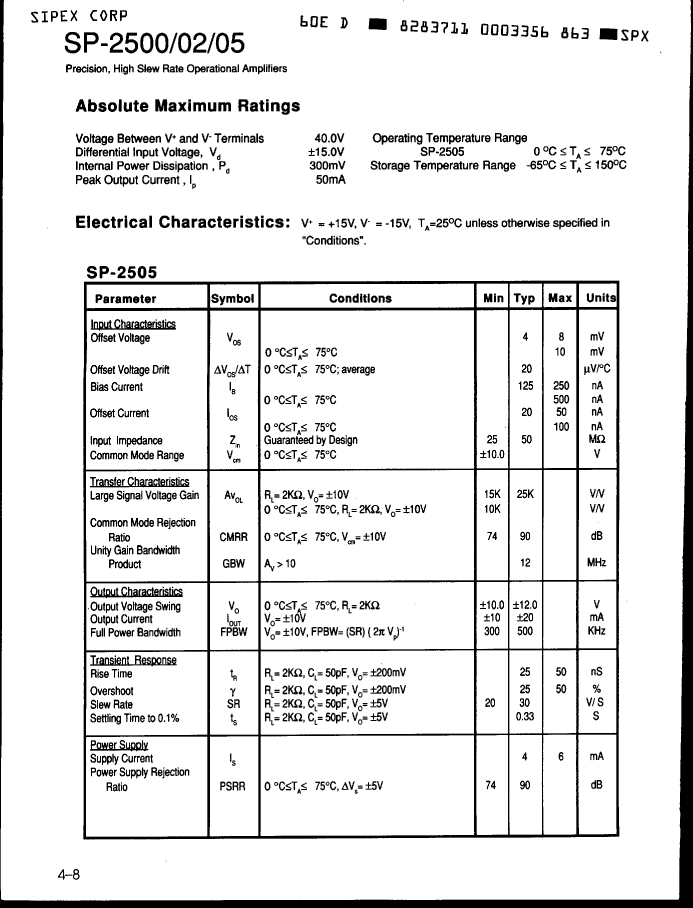

Preview
