Final PD-20685 rev. A 01/06
16CTQ...G
SCHOTTKY RECTIFIER
16 Amp
I
F(AV)
= 16 Amp
V
R
= 60/100V
Major Ratings and Characteristics
Characteristics
I
F(AV)
Rectangular
waveform
V
RRM
I
FSM
@ tp = 5 µs sine
V
F
T
J
@ 8 Apk, T
J
= 125°C
(per leg)
range
Description/ Features
Units
A
V
A
V
This center tap Schottky rectifier series has been optimized
for low reverse leakage at high temperature. The proprietary
barrier technology allows for reliable operation up to 175°C
junction temperature. Typical applications are in switching
power supplies, converters, free-wheeling diodes, and re-
verse battery protection.
175° C T
J
operation
Center tap configuration
Low forward voltage drop
High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
High frequency operation
Guard ring for enhanced ruggedness and long term
reliability
Values
16
60/ 100
650
0.58
- 55 to 175
°C
Case Styles
16CTQ...G
Base
Common
Cathode
2
1
Anode
2
Common
Cathode
3
Anode
TO-220
www.irf.com
1
16CTQ...G
Bulletin PD-20685 rev. A 01/06
Voltage Ratings
Parameters
V
R
Max. DC Reverse Voltage (V)
V
RWM
Max. Working Peak Reverse Voltage (V)
16CTQ060G
60
16CTQ80G
80
16CTQ100G
100
Absolute Maximum Ratings
Parameters
I
F(AV)
Max. Average Forward
Current
I
FSM
E
AS
I
AR
* See Fig. 5
(Per Leg)
(Per Device)
* See Fig. 7
16CTQ Units
8
16
650
210
7.50
0.50
A
mJ
A
A
Conditions
50% duty cycle @ T
C
= 148°C, rectangular wave form
Following any rated
load condition and with
10ms Sine or 6ms Rect. pulse rated V
RRM
applied
5µs Sine or 3µs Rect. pulse
T
J
= 25 °C, I
AS
= 0.50 Amps, L = 60 mH
Current decaying linearly to zero in 1 µsec
Frequency limited by T
J
max. V
A
= 1.5 x V
R
typical
Max. Peak One Cycle Non-Repetitive
Surge Current (Per Leg)
Non-Repetitive Avalanche Energy
(Per Leg)
Repetitive Avalanche Current
(Per Leg)
Electrical Specifications
Parameters
V
FM
Max. Forward Voltage Drop
(Per Leg) * See Fig. 1
(1)
16CTQ Units
0.72
0.88
0.58
0.69
0.28
7.0
0.415
11.07
500
8.0
10000
V
V
V
V
mA
mA
V
mΩ
Conditions
@ 8A
@ 16A
@ 8A
@ 16A
T
J
= 25 °C
T
J
= 125 °C
T
J
= T
J
max.
T
J
= 25 °C
T
J
= 125 °C
V
R
= rated V
R
I
RM
Max. Reverse Leakage Current
(Per Leg) * See Fig. 2
(1)
V
F(TO)
Threshold Voltage
r
t
C
T
L
S
Forward Slope Resistance
Max. Junction Capacitance (Per Leg)
Typical Series Inductance (Per Leg)
pF
nH
V
R
= 5V
DC
(test signal range 100Khz to 1Mhz) 25°C
Measured lead to lead 5mm from package body
(1) Pulse Width < 300µs, Duty Cycle <2%
dv/dt Max. Voltage Rate of Change
V/ µs (Rated V
R
)
Thermal-Mechanical Specifications
Parameters
T
J
T
stg
Max. Junction Temperature Range
Max. Storage Temperature Range
16CTQ Units Conditions
- 55 to 175
- 55 to 175
3.25
0.50
2 (0.07)
Min.
Max.
6 (5)
12 (10)
°C
°C
°C/W
°C/W
g (oz.)
Kg-cm
(Ibf-in)
DC operation
* See Fig. 4
R
thJC
Max. Thermal Resistance Juntion
to Case
Per Leg
R
thCS
Typical Thermal Resistance,
Case to Heatsink
wt
T
Approximate Weight
Mounting Torque
Device Marking
Mounting surface , smooth and greased
16CTQ...G
2
www.irf.com
16CTQ...G
Bulletin PD-20685 rev. A 01/06

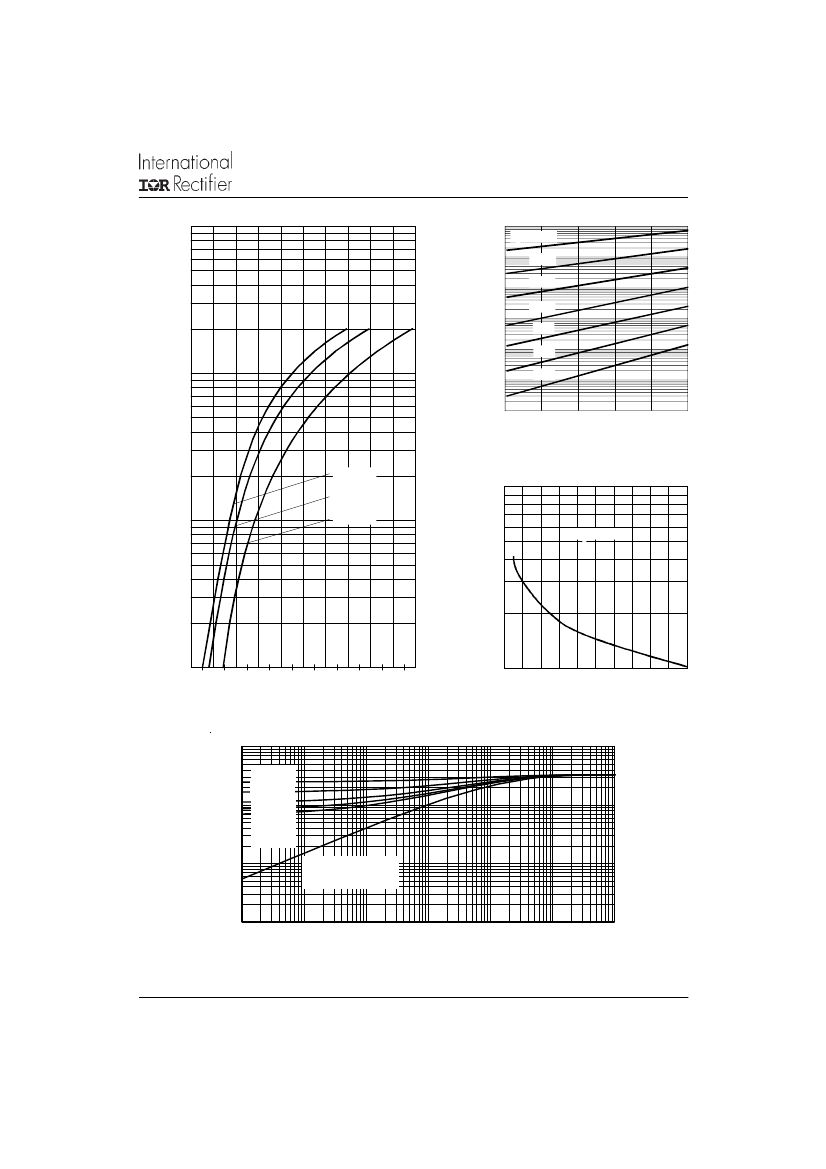

1000
100
10
1
0.1
0.01
0.001
0.0001
T
J
= 175°C
150°C
125°C
100°C
75°C
50°C
25°C
Ins
tantaneous Forward Current - I
F
(A)
100
R
everse Current - I
R
(mA)
0
20
40
60
R
80
(V)
100
R
everse Voltage - V
T
J
= 175°C
T
J
= 125°C
10
T
J
= 25°C
Junction Capacitance - C
T
(pF)
Fig. 2 - Typical Values Of Reverse Current
Vs. Reverse Voltage (Per Leg)
1000
T
J
= 25°C
1
0.2 0.4 0.6 0.8
1
1.2 1.4 1.6 1.8
2
2.2
100
0
20
40
60
80
100
F
orward Voltage Drop - V
FM
(V)
R
evers Volta ge - V
R
(V)
e
Fig. 1 - Max. Forward Voltage Drop Characteristics
(Per Leg)
10
Fig. 3 - Typical Junction Capacitance
Vs. Reverse Voltage (Per Leg)
Thermal Impedance Z
thJC
(°C/W)
D = 0.75
D = 0.50
1
D = 0.33
D = 0.25
D = 0.20
0.1
Single Pulse
(Thermal Resistance)
0.01
1E-05
1E-04
1E-03
1E-02
1E-01
1E+00
1E+01
t
1
, Rectangular Pulse Duration (Seconds)
Fig. 4 - Max. Thermal Impedance Z
thJC
Characteristics (Per Leg)
www.irf.com
3
16CTQ...G
Bulletin PD-20685 rev. A 01/06
180
Allowab le Case T
emperature - (°C)
7
Average Power Los - (Watts)
s
6
5
4
3
2
1
0
D = 0.20
D = 0.25
D = 0.33
D = 0.50
D = 0.75
RMSLimit
DC
170
160
150
140
130
80% Ra ted V a pplied
R
120
110
see note (2)
S
qua re wave (D = 0.50)
DC
100
0
2
4
6
8
10
12
14
0
2
4
6
8
10
12
Average F
orward Current - I
F(AV)
(A)
Average F
orwa rd Current - I
F(AV)
(A)
Fig. 5 - Max. Allowable Case Temperature
Vs. Average Forward Current (Per Leg)
Non-Repetitive Surge Current - I
FSM
(A)
Fig. 6 - Forward Power Loss Characteristics
(Per Leg)
1000
At Any Rated Load Condition
And With Rated Vrrm Applied
Following Surge
100
10
100
1000
10000
Square Wave Pulse Duration - t
p
(microsec)
Fig. 7 - Max. Non-Repetitive Surge Current (Per Leg)
L
HIGH-S
PEED
S CH
WIT
FREE-WHEEL
DIODE
40HF
L40S
02
+
DUT
IR P460
F
R = 25 ohm
g
Vd = 25 Volt
CURRENT
MONIT
OR
Fig. 8 - Unclamped Inductive Test Circuit
(2)
Formula used: T
C
= T
J
- (Pd + Pd
REV
) x R
thJC
;
Pd = Forward Power Loss = I
F(AV)
x V
FM
@ (I
F(AV)
/
D) (see Fig. 6);
Pd
REV
= Inverse Power Loss = V
R1
x I
R
(1 - D); I
R
@ V
R1
= 10 V
4
www.irf.com
16CTQ...G
Bulletin PD-20685 rev. A 01/06

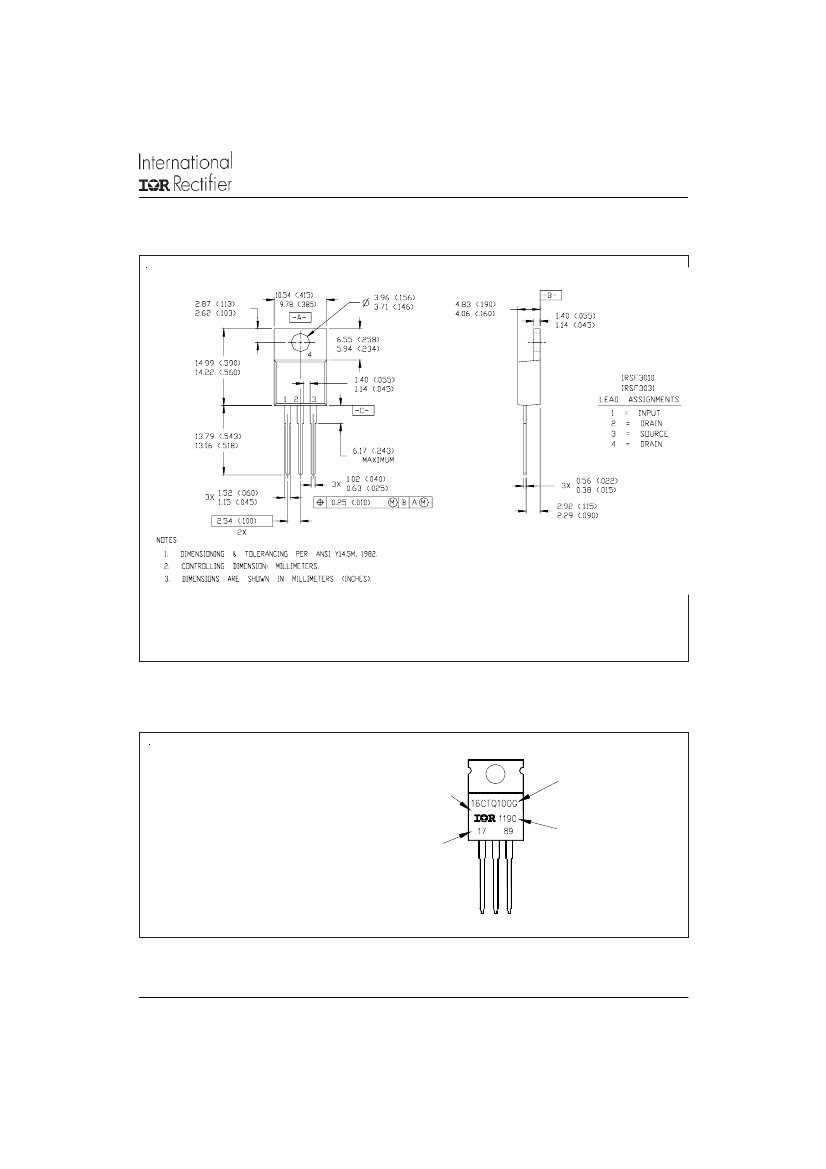

Outline Table
Conform to JEDEC outline TO-220AB
Dimensions in millimeters and (inches)
Part Marking Information
EXAMPLE: THIS IS A 16CTQ100G
LOT CODE 1789
ASSEMBLED ON WW 19, 2001
IN THE ASSEMBLY LINE "C"
INTERNATIONAL
RECTIFIER
LOGO
ASSEMBLY
LOT CODE
PART NUMBER
G = Schottky Generation
DATE CODE
YEAR 1 = 2001
WEEK 19
LINE C
www.irf.com
5
