ASFV-FREQ-N100-T: DescriptionHCMOS Output Clock Oscillator, 1.5MHz Min, 50MHz Max, ROHS COMPLIANT, HERMETIC SEALED PACKAGE-4; CategoryPassive components oscillator; File Size152KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASFV-FREQ-N100-T Overview

HCMOS Output Clock Oscillator, 1.5MHz Min, 50MHz Max, ROHS COMPLIANT, HERMETIC SEALED PACKAGE-4

ASFV-FREQ-N100-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	TAPE AND REEL; TRISTATE FUNCTION
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
maximum descent time	7 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
frequency stability	100%
linearity	10%
Manufacturer's serial number	ASFV
Installation features	SURFACE MOUNT
Maximum operating frequency	50 MHz
Minimum operating frequency	1.5 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	5.0mm x 3.2mm x 1.2mm
longest rise time	7 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	40/60 %
Base Number Matches	1

Preview

Download Datasheet

View All

5.0V HCMOS COMPATIBLE SMD VCXO

ASFV

FEATURES:

• Pb-Free/RoHS Compliant

• Smallest industry package

• Tri state function

• Suitable for high density SMT

• IR reflow capable

• Hermetically sealed

Pb

RoHS

Compliant

APPLICATIONS:

• CCD clock for VTR camera

• Computers and peripherals

• Portable MP3 players and games

5.0 x 3.2 x 1.2mm

| | | | | | | | | | | | | | |

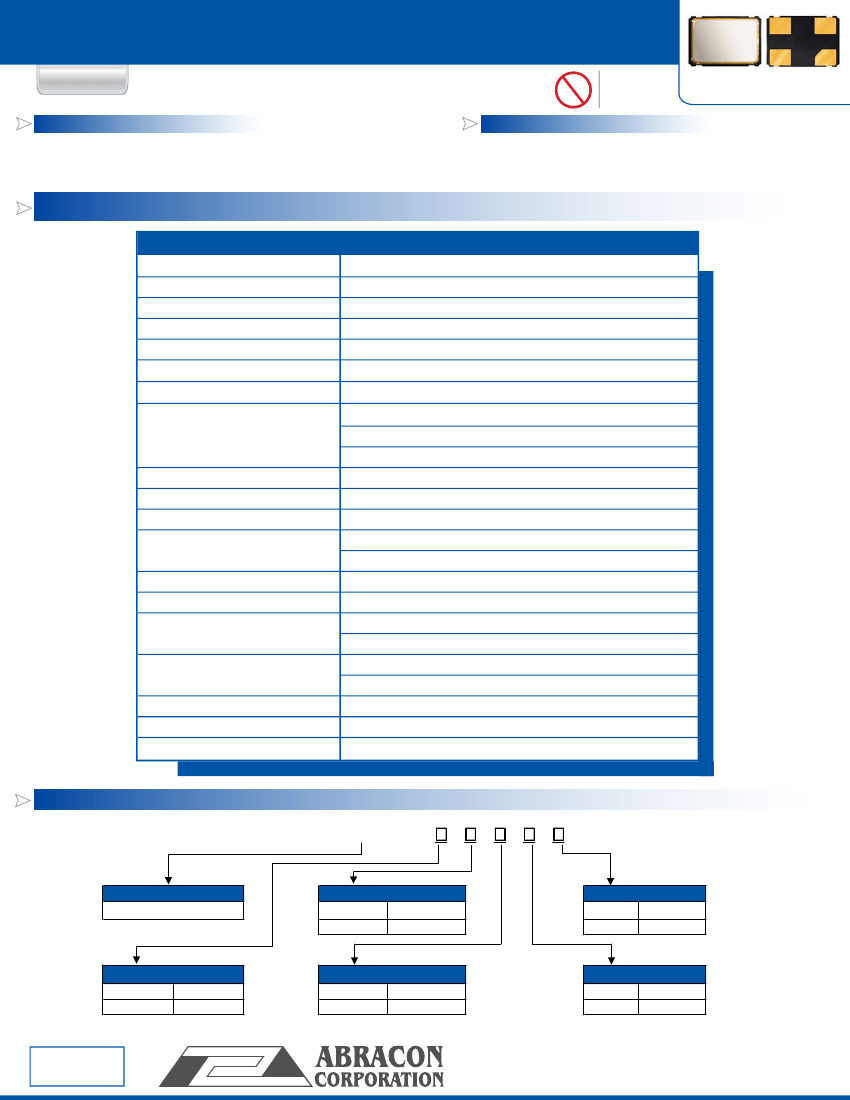

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N:

Frequency range:

Operation mode:

Operating temperature:

Storage temperature:

Overall Frequency Stablilty:

Supply Voltage (Vdd):

Current Consumption (Idd):

ASFV Series

1.500000MHz - 50.000000MHz

Fundamental

-10°C to + 70°C (see options)

-50°C to +100°C

± 100ppm max. (see options)

5.0 V ± 10%

15mA max for 1.5 ~ 19.9MHz

25mA max for 20.0 ~ 40.0MHz

40mA max for 40.1 ~ 50.0MHz

50% ± 10% (see options)

7ns max.

15pF (HCMOS)

VOH = 0.9*Vdd min.

VOL = 0.1*Vdd max.

0.5 to 4.5V

Positive

<±150 ppm freq. deviation: 10% max.; 6% typical

>±150 ppm freq. deviation: 20% max.; 15% typical

5mS max for 1.5 ~ 32MHz

10mS max for Frequency > 32MHz

± 5ppm @25°C

10pS typical

± 60ppm (see options)

Symmetry (Duty Cycle):

Rise and Fall Times:

Output Load:

Output Voltage:

Voltage Control:

Transfer Function:

Linearity:

Start-up-time:

Aging per year:

Phase Jitter RMS:

Pullability:

OPTIONS AND PART IDENTIFICATION:

(Left blank if standard)

ASFV - Frequency -

Overall Freq. Stability

-

Packaging

Blank

Bulk

T

Tape and Reel

Frequency

XX.XXX MHz

R

C

± 2 5 p pm

± 5 0 p pm

Operating Temp.

Blank

STD

L

-40°C to 85°C

Symmetry

Blank

STD

S

50% ± 5%

Pullability

N100 ± 100ppm

N150 ± 150ppm

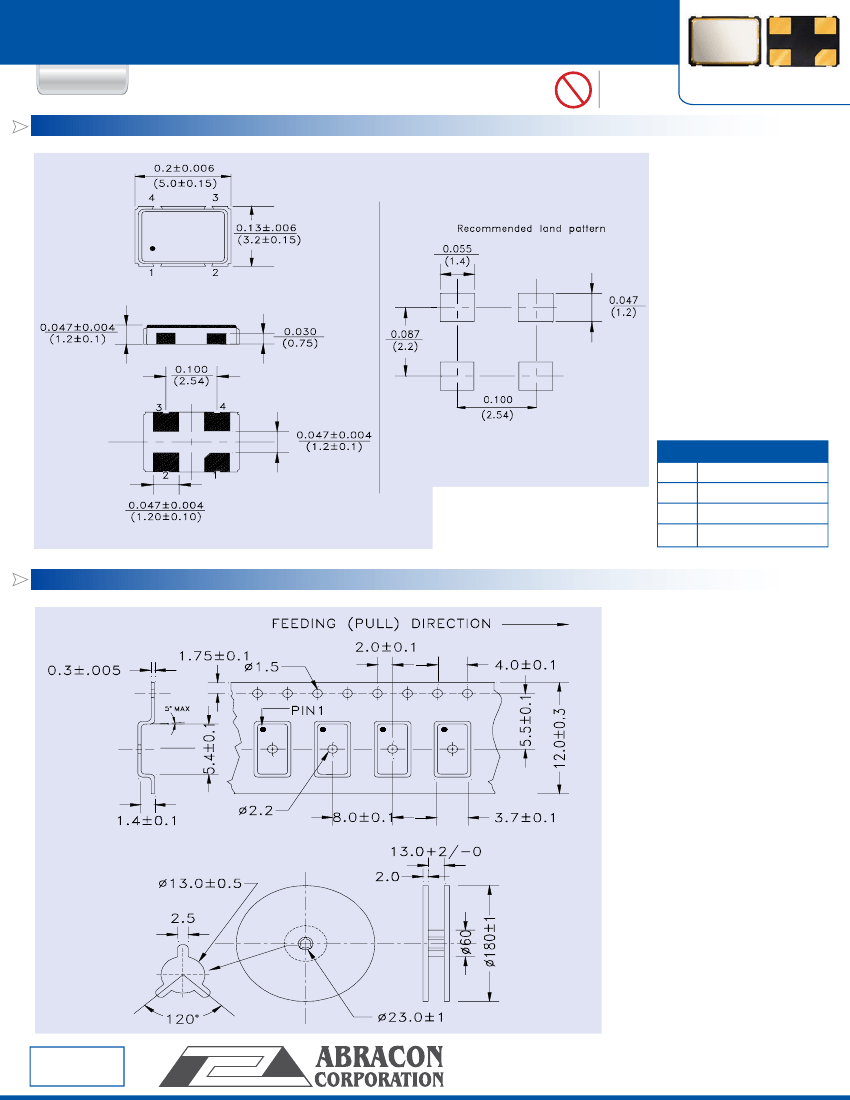

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 07.11.07

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

|

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
