LF2020BNP-242: DescriptionAC COMMON MODE COIL; CategoryAnalog mixed-signal IC filter; File Size124KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

LF2020BNP-242 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LF2020BNP-242	-	-	View	Buy Now

LF2020BNP-242 Overview

AC COMMON MODE COIL

LF2020BNP-242 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	unknow
Factory Lead Time	27 weeks
Other features	INDUCTANCE 2.4 MILLIHENRY
filter type	SINGLE PHASE EMI FILTER
high	22 mm
length	21 mm
Manufacturer's serial number	LF
Installation type	THROUGH HOLE MOUNT
working frequency	50/60Hz Hz
physical size	L21.0XB15.0XH22.0 (mm)/L0.827XB0.591XH0.866 (inch)
Rated current	1.7 A
Base Number Matches	1

Preview

Download Datasheet

View All

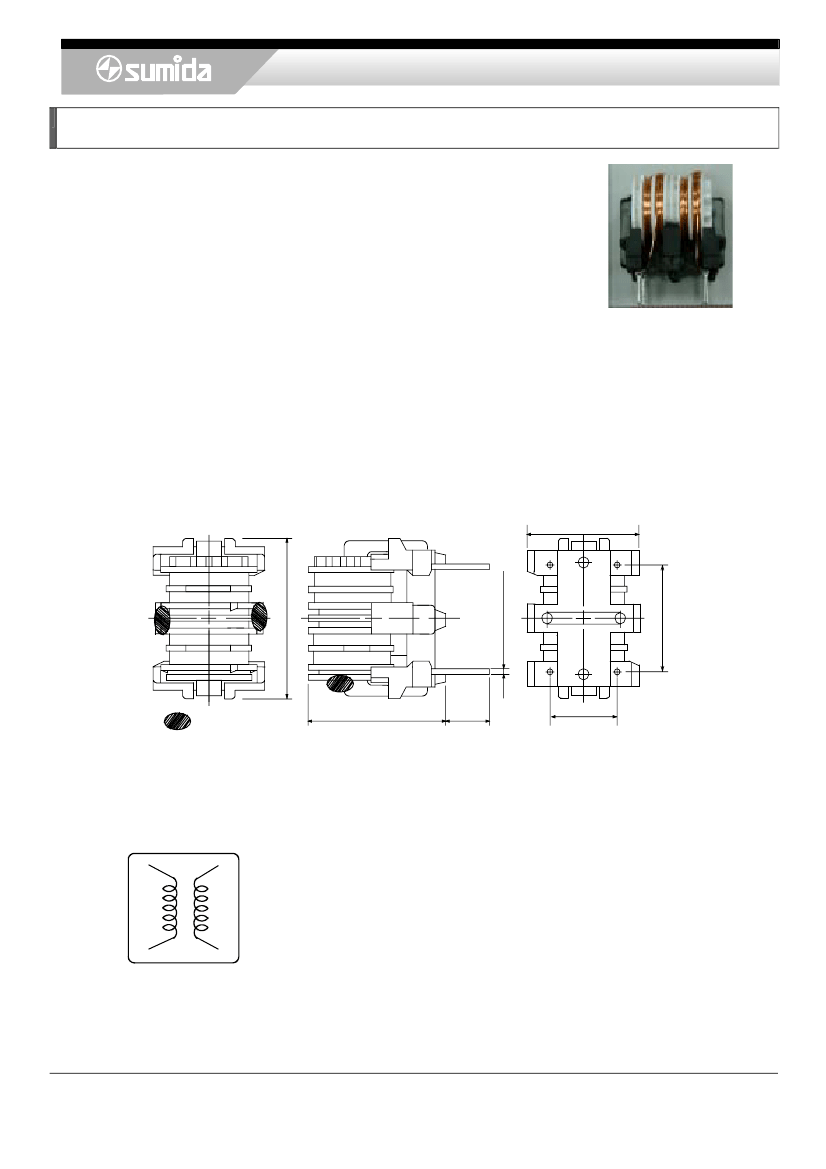

AC COMMON MODE COIL <Pin Type: LF Series>

Type: LF2020B

◆

Product Description

・22.0×16.0mm

Max.(L×W), 23.0mm Max. Height.

・Inductance

range: 0.6mH½82mH.

・Rated

current range: 0.3½3.0A

・In

addition to the standard versions of parameters shown here,

custom designs are available to meet your exact requirements.

◆

Feature

・Small

size and large inductance type.

・Exellent

attenuation characteristics in low frequency.

・Ideally

used in TV,VCR,AV,OA equipment for noise prevention.

・RoHS

Compliance

◆

Dimensions (mm)

15.0±1.0

4-φ0.8±0.1

21.0±1.0

Adhesive

22.0±1.0

±1.0

5.0

10.0±0.5

＊

Dimension does not include solder used on coil.

＊

Terminal pitch is measured at the base(not from tip of the pin)

◆

Schematics (Bottom)

②

③

①

④

＊

Winding start is #1,#4 or #2,#3．

＊

#1 and #4,#2 and #3：should be the same polarity.

Please refer to the sales offices on our website for a representative near you

www.sumida.com

13.0±0.5

1/2
