BT-N516RD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BT-N516RD

BT-N516RD: Description14.2mm(0.56) high three digits seven segments display.; CategoryLED optoelectronic/LED photoelectric; File Size215KB，3 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric View All

BT-N516RD Overview

14.2mm(0.56) high three digits seven segments display.

BT-N516RD Parametric

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	TD-09, 12 PIN
Reach Compliance Code	unknow
color	SUPER RED
Configuration	COMMON CATHODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT
Display height	14.224 mm
Maximum forward current	0.03 A
Number of functions	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Preview

Download Datasheet

View All

BRIGHT LED ELECTRONICS CORP.

SINCE 1981

BT-N516RD

●

Features :

0.56 inch (14.20mm) Digit Height.

Continuous uniform segments.

Low power requirement.

Excellent characters appearance.

Solid state reliability.

Categorized for luminous intensity.

Multiplex drive common cathode.

●

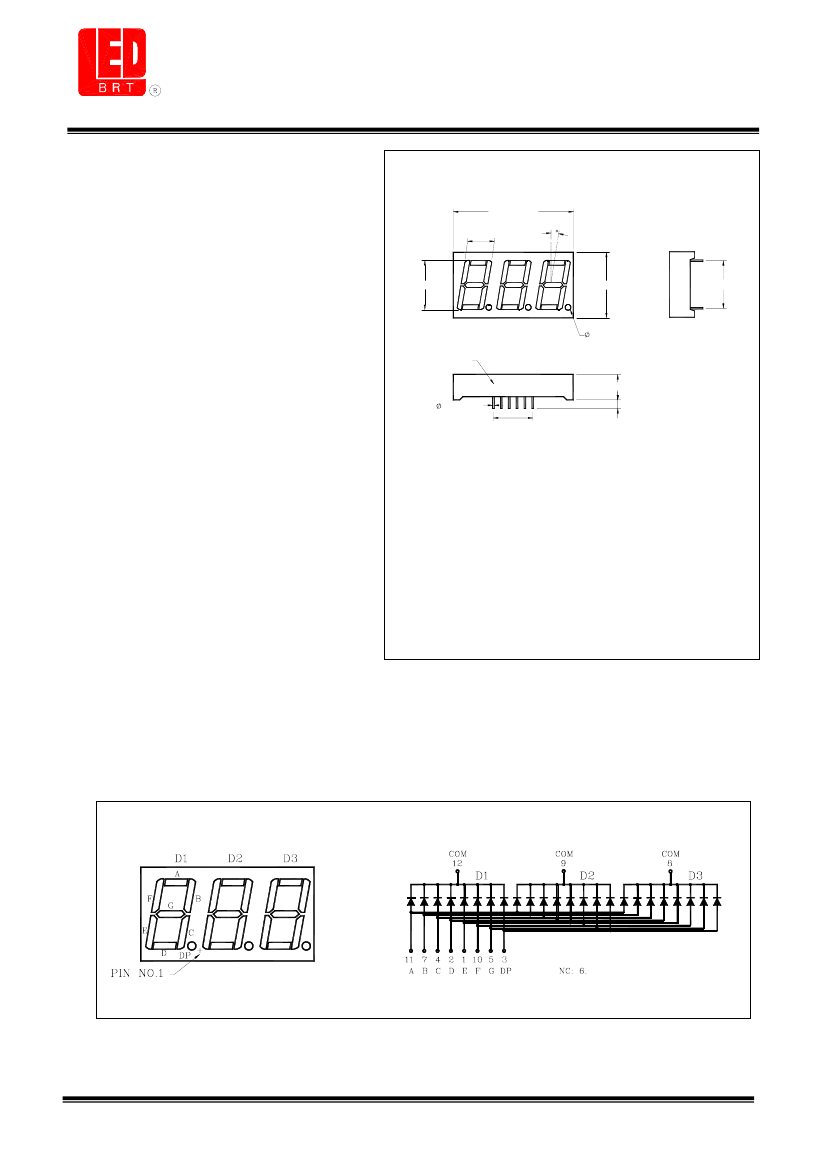

Package Dimensions :

37.50(1.476)

8.10(.319)

14.20(.560)

18.90(.744)

15.24(.600)

1.7(.067)

MARK

xxxxxx

0.50(.020)

8.00(.315)

●

Description :

The BT-N516RD is a 14.2mm(0.56")

2.54x5=12.70(.500)

3.0(.118)MIN.

high three digits seven segments display. Notes:

1. All dimensions are in millimeters(inches).

This product use super red chips,

2. Tolerance is ±0.25mm(.01")unless otherwise

which are made from AlGaAs

specified.

3. Specifications are subject to change without

on GaAs substrate.

notice.

This product have a black face and

white segments.

This product doesn't contain restriction

substance, comply ROHS standard.

●

Internal Circuit Diagram :
