R141.009.000W: DescriptionRF BNC Connector, 1 Contact(s), Male, Locking, Plug,; CategoryThe connector The connector; File Size28KB，2 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

R141.009.000W Overview

RF BNC Connector, 1 Contact(s), Male, Locking, Plug,

R141.009.000W Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
subject depth	1.102 inch
Body/casing type	PLUG
Cable type	RG-141
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact point gender	MALE
Contact style	COAX
Dielectric withstand voltage	1500VAC V
Durability	500 Cycles
Insertion loss	0.115 dB
Insulation resistance	5000000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE
Installation option 1	LOCKING
Installation method	STRAIGHT
Number of ports	1
Maximum operating frequency	4 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Total number of contacts	1
voltage standing wave ratio	1.2
Base Number Matches	1

Preview

Download Datasheet

View All

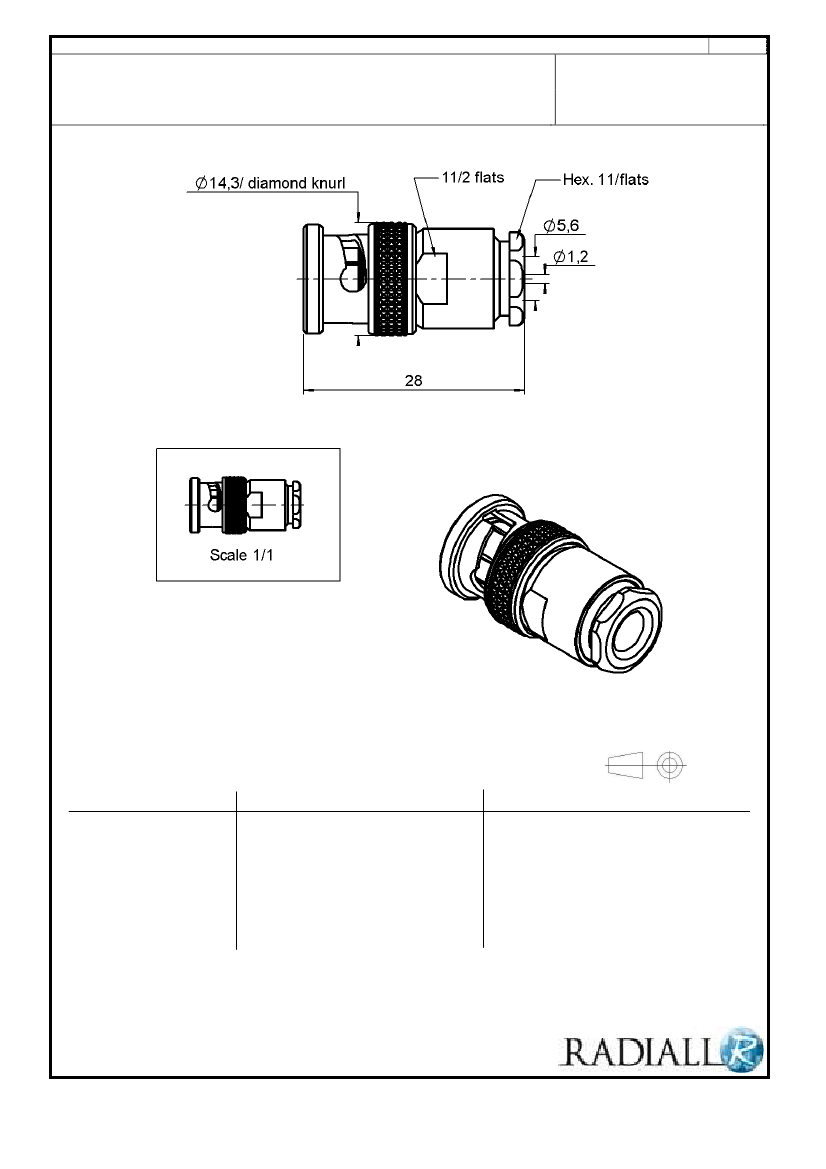

TECHNICAL DATA SHEET

1/2

STRAIGHT PLUG CLAMP TYPE

CABLE 5/50 S+D

R141.009.000

Series :

BNC

All dimensions are in mm.

.

pn

.

ao

COMPONENTS

BODY

CENTER CONTACT

OUTER CONTACT

INSULATOR

GASKET

OTHERS PARTS

-

MATERIALS

BRASS

-

PTFE

SILICONE RUBBER

BRASS

-

PLATING

(µm)

NICKEL 2

GOLD 0.5 OVER NICKEL 2

-

NICKEL 2

-

Issue : 0309 B

In the effort to improve our products, we reserve the right to make changes judged to

be necessary.
