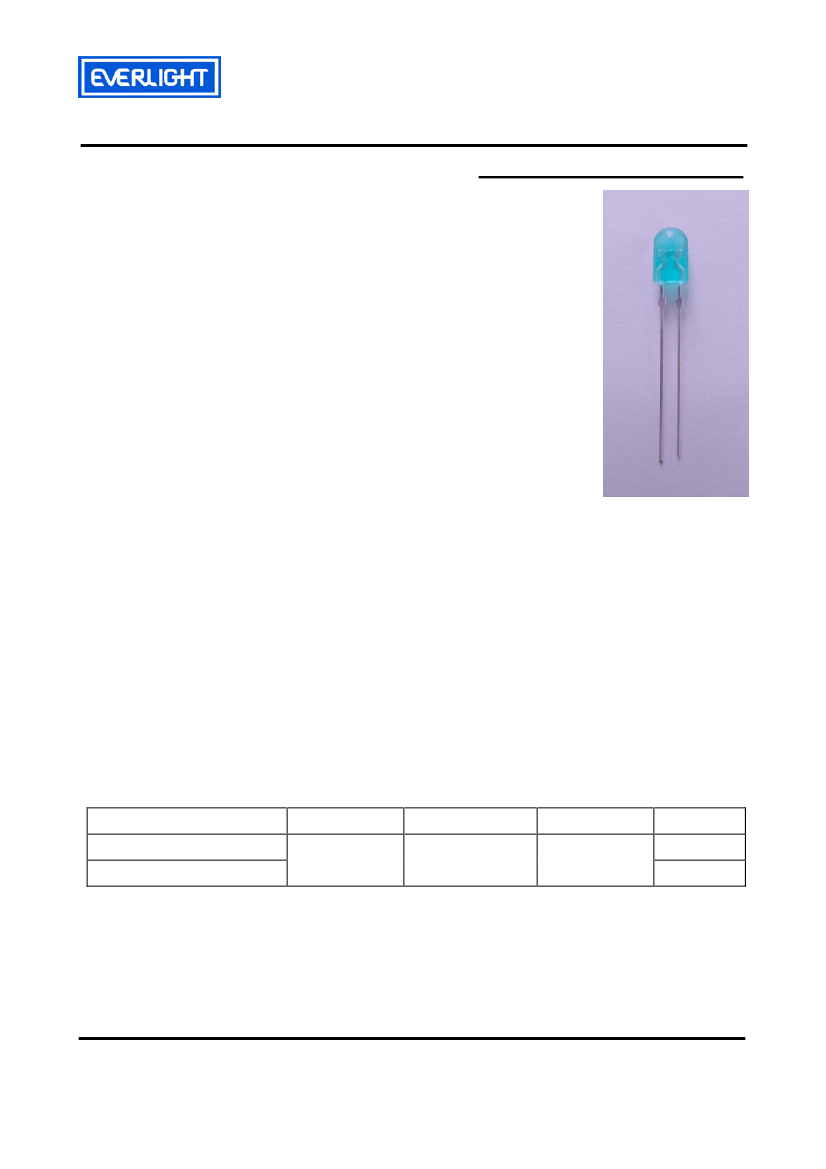

Technical Data Sheet
3474/BADB-AGKA/XR/MS
Features
․High
luminous intensity output
․Oval
Shape
․Well
defined spatial radiation
․Wide
viewing angle (2θ
1/2
) : 100
o
/ 50
o
․The
product itself will remain within RoHS compliant version
․UV
resistant epoxy
Descriptions
․This
precision optical performance oval LED is specifically
designed for passenger information signs
․This
lamp has matched radiation patterns with red and green
mixing color applications
․Superior
performance in outdoor environment
Applications
․Color
graphic signs
․Message
boards
․Variable
message signs (VMS)
․Commercial
outdoor advertising
Device Selection Guide
LED Part No.
3474/BADB-AGKA/R/MS
3474/BADB-AGKA/PR/MS
Chip Material
InGaN
Emitted Color
Super Blue
Lens Color
Blue Diffused
Stopper
No
Yes
Everlight Electronics Co., Ltd.
Device Number : DT1-347-001
http\\:www.everlight.com
Prepared date: 07-19-2006
Rev 1
Page: 1 of 8
Prepared by: Grace Shen
Technical Data Sheet
3474/BADB-AGKA/XR/MS

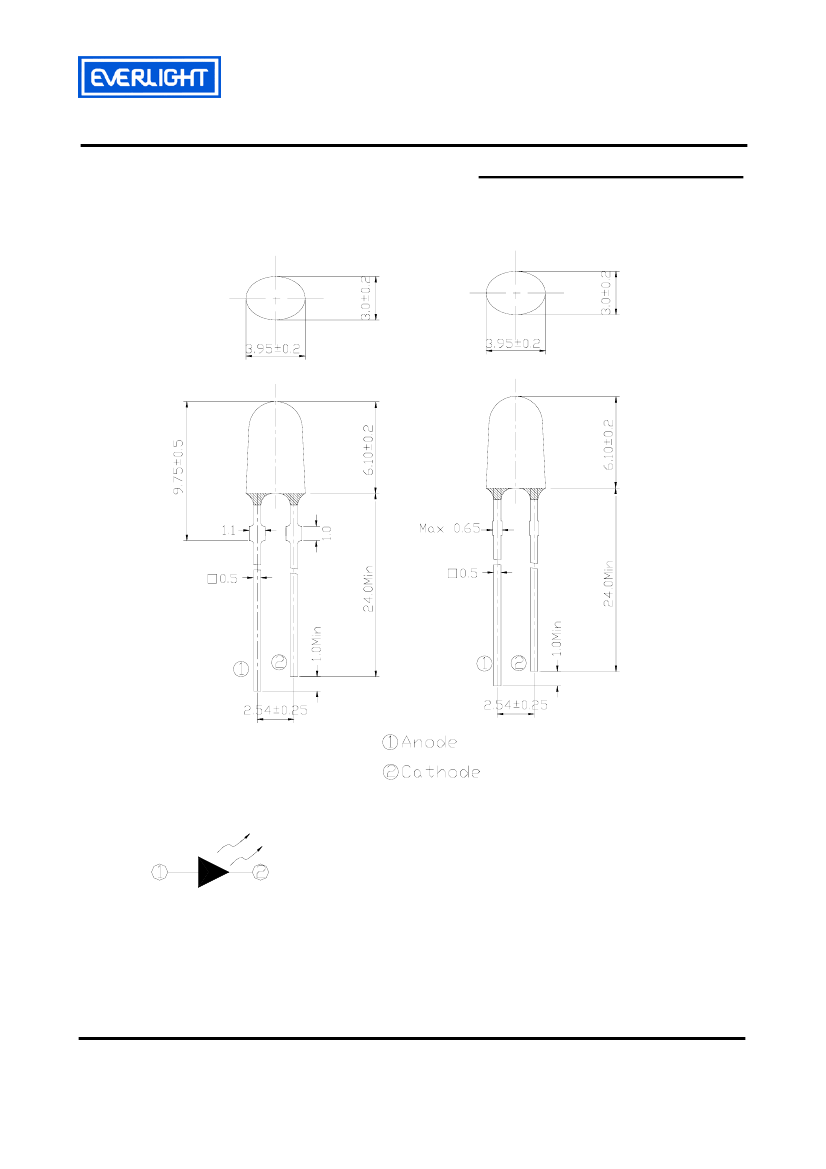

Package Dimensions
Stopper Type
No Stopper Type
Notes:
․All
dimensions are in millimeters, tolerance is 0.25mm except being specified.
․Protruded
resin under flange is 1.5mm Max LED.
․Bare
copper alloy is exposed at tie-bar portion after cutting.
Everlight Electronics Co., Ltd.
Device Number : DT1-347-001
http\\:www.everlight.com
Prepared date: 07-19-2006
Rev 1
Page: 2 of 8
Prepared by: Grace Shen
Technical Data Sheet
3474/BADB-AGKA/XR/MS
Absolute Maximum Rating (T
a
=25℃)
Parameter
Forward Current
Pulse Forward Current
(Duty1/10@ 1KHz)
Operating Temperature
Storage Temperature
Soldering Temperature
Power Dissipation
Reverse Voltage
Notes: Soldering time≦5 seconds.
Symbol
I
F
I
FP
T
opr
T
stg
T
sol
P
d
V
R
Absolute Maximum Rating
30
100
-40 ~ +85
-40 ~ +100
260
±5
100
5
Unit
mA
mA
℃
℃
℃
mW
V
Electro-Optical Characteristics (T
a
=25℃)
Parameter
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Half width
Forward Voltage
Reverse Current
Rank
Luminous Intensity
Rank
Forward Voltage
Rank
Dominant Wavelength
Symbol
I
V
2θ
1/2
λ
p
λ
d
Δλ
V
F
I
R
G
565~715
1
3.0~3.2
1
Min.
565
--
--
465
--
3.0
--
Typ.
715
X:100Y:50
468
470
26
3.4
--
H
715~900
2
3.2~3.4
2
Unit:nm
Max.
1425
--
--
475
--
3.6
50
J
900~1125
3
3.4~3.6
Unit
mcd
deg
nm
V
μA
Condition
I
F
=20mA
V
R
=5V
K
1125~1425
Unit:mcd
Rank Combination (I
F
=20mA)
*Measurement Uncertainty of Luminous Intensity:
±15%
*Measurement Uncertainty of Forward Voltage:
±0.1V
Unit:V
465~470
470~475
*Measurement Uncertainty of
Dominant Wavelength
±1.0nm
*The quantity ratio of the ranks is decided by EVERLIGHT.
Everlight Electronics Co., Ltd.
Device Number : DT1-347-001
http\\:www.everlight.com
Prepared date: 07-19-2006
Rev 1
Page: 3 of 8
Prepared by: Grace Shen
Technical Data Sheet
3474/BADB-AGKA/XR/MS

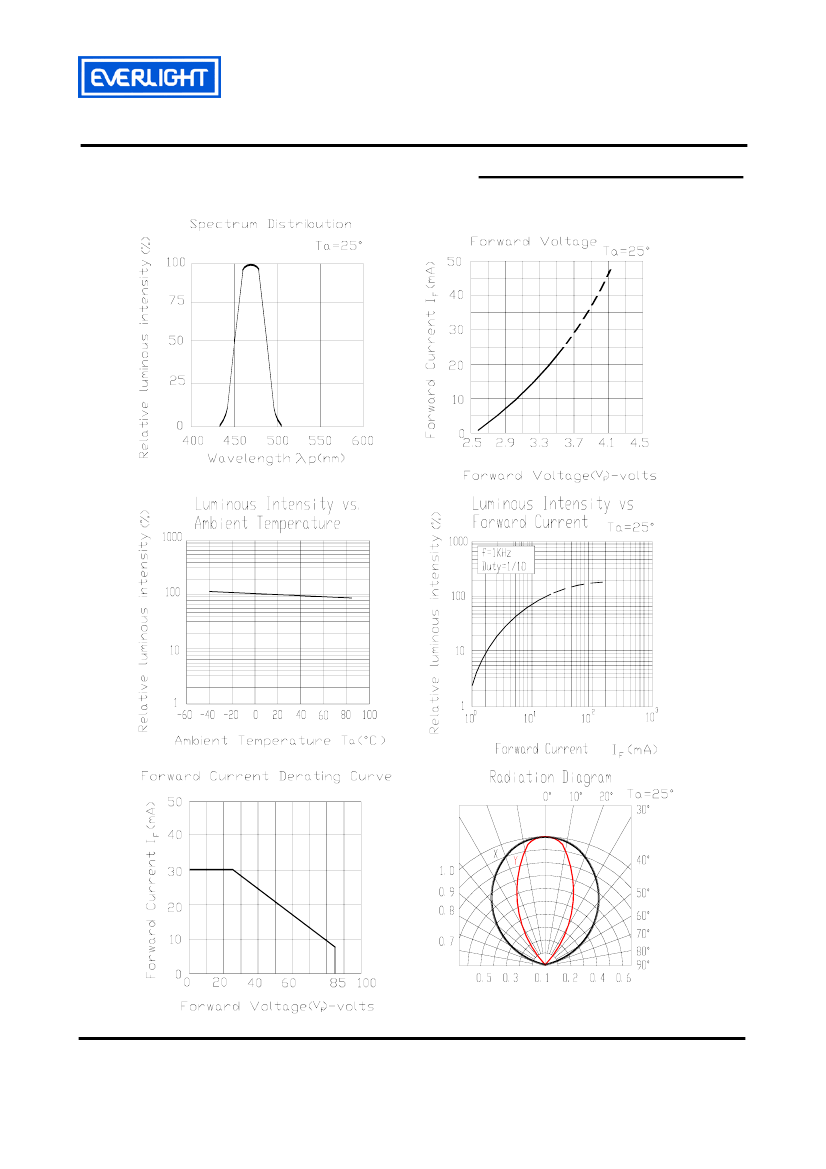

Typical Electro-Optical Characteristics Curves
Everlight Electronics Co., Ltd.
Device Number : DT1-347-001
http\\:www.everlight.com
Prepared date: 07-19-2006
Rev 1
Page: 4 of 8
Prepared by: Grace Shen
Technical Data Sheet
3474/BADB-AGKA/XR/MS

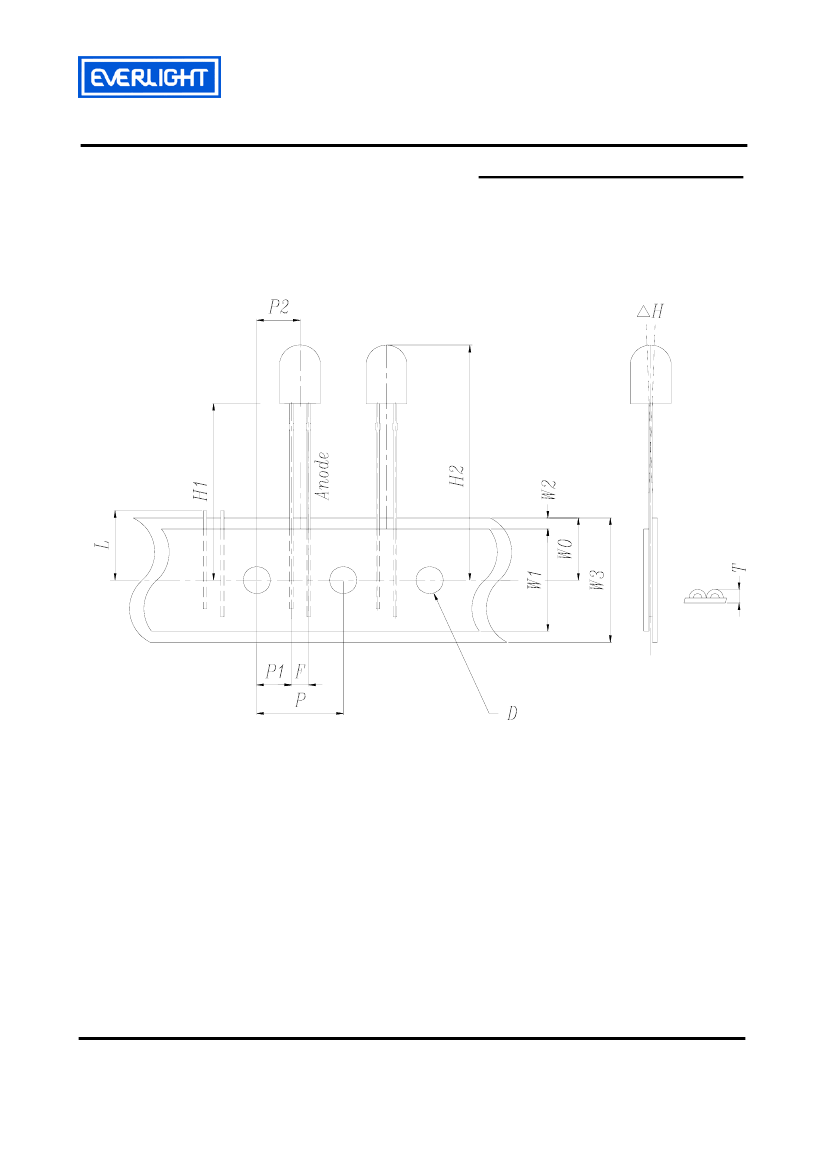

Taping Dimensions
Everlight Electronics Co., Ltd.
Device Number : DT1-347-001
http\\:www.everlight.com
Prepared date: 07-19-2006
Rev 1
Page: 5 of 8
Prepared by: Grace Shen
