QC26-5001S: DescriptionCONNECTOR, PANEL MOUNT, CABLE TERMINATED, MALE, RF CONNECTOR, CRIMP, PLUG; CategoryThe connector The connector; File Size416KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

QC26-5001S Overview

CONNECTOR, PANEL MOUNT, CABLE TERMINATED, MALE, RF CONNECTOR, CRIMP, PLUG

QC26-5001S Parametric

Parameter Name	Attribute value
Objectid	1731238057
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	APPLICABLE CABLE: RG 58C/U
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CRIMP

Preview

Download Datasheet

View All

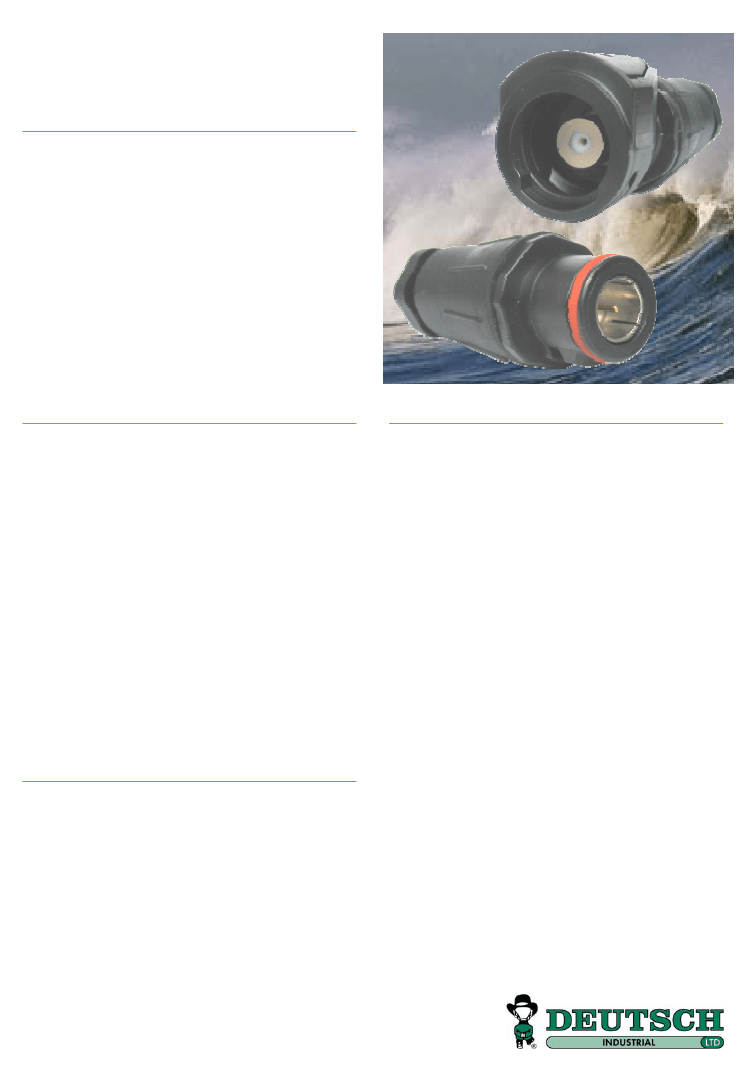

QUICK CONNECT

(CO-AX)

The

ULTEMate

electrical connection solution for

harsh environments.

Being constructed from Ultem

®

, a high

temperature and corrosion resistant composite

material, makes this the ‘ULTEMate’ electrical

connection solution. The Quick Connect series

co-ax composite connector is chemical resistant

and environmentally sealed up to IP68. It is ideal

for the most rigorous applications.

FEATURES

Quick latch mechanism

Contacts use lock nut and soldered conductors

Universal mounting

Choice of cable gland & over moulding options

Standard sealing O-ring

Constructed from

Ultem

®

,

a high temperature

resistant composite material

Meets UL94 Class V-0 flammability requirements

Can be sealed against dust and moisture up to

IP68

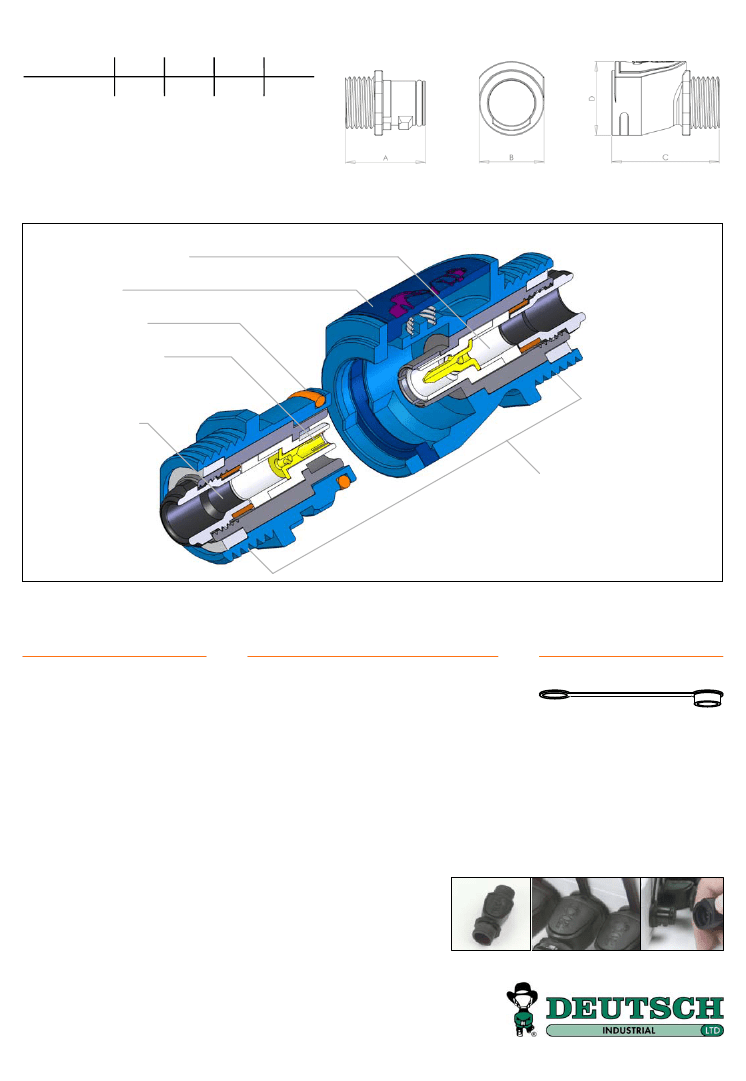

GENERAL SPECIFICATION

Crimp contacts, insert / extraction tools, dust caps

and back fittings

Materials

Shell / Insulators:

Contacts:

Back Fitting Options

Cable Gland:

Over-mould:

Panel Nut:

Conduit Adapter:

Heat Shrink:

Strain Relief

Cable Sealing

Universal Mount

Wire management

One-stop-shop kit option

Temperature and corrosion

resistant composite, Ultem

®

BENEFITS

Positive location

No costly crimp tooling

Flexible panel mounting of both halves

Variety of options for maximum design-in flexibility

Cost Effective

O-ring’s match design requirements

Prevents mis-mating

Key prevents damage to connector and cable

Can be washed, sterilised and autoclaved without

performance degradation

Withstands heat, dust, moisture

Recommended Cable

50

Ω

75

Ω

Voltage:

URM 43/72/76/108, RG58C/U

URM 41/56/70, T3242

Up to 1000 Vac (rms)

Insulation Resistance:1000 MΩ

Temperature Rating [connector]

-55

o

C to 150

o

C

(The upper limit is the maximum internal hot-

spot temperature resulting from the combination of ambient

temperature and heating due to current)
