PLB08M94ST40A1: DescriptionRectangular Power Connector, 8 Contact(s), Female, Press Fit Terminal; CategoryThe connector The connector; File Size129KB，2 Pages; ManufacturerPositronic Industries

Download Datasheet Parametric View All

PLB08M94ST40A1 Overview

Rectangular Power Connector, 8 Contact(s), Female, Press Fit Terminal

PLB08M94ST40A1 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	POLARIZED
Connector type	RECTANGULAR POWER CONNECTOR
Contact completed and terminated	GOLD FLASH OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	PLB
Plug information	PLB08F94ST40A1
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYESTER
Termination type	PRESS FIT
Total number of contacts	8
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

Power

Connection

Systems

Compliant Termination

Repairable Contact

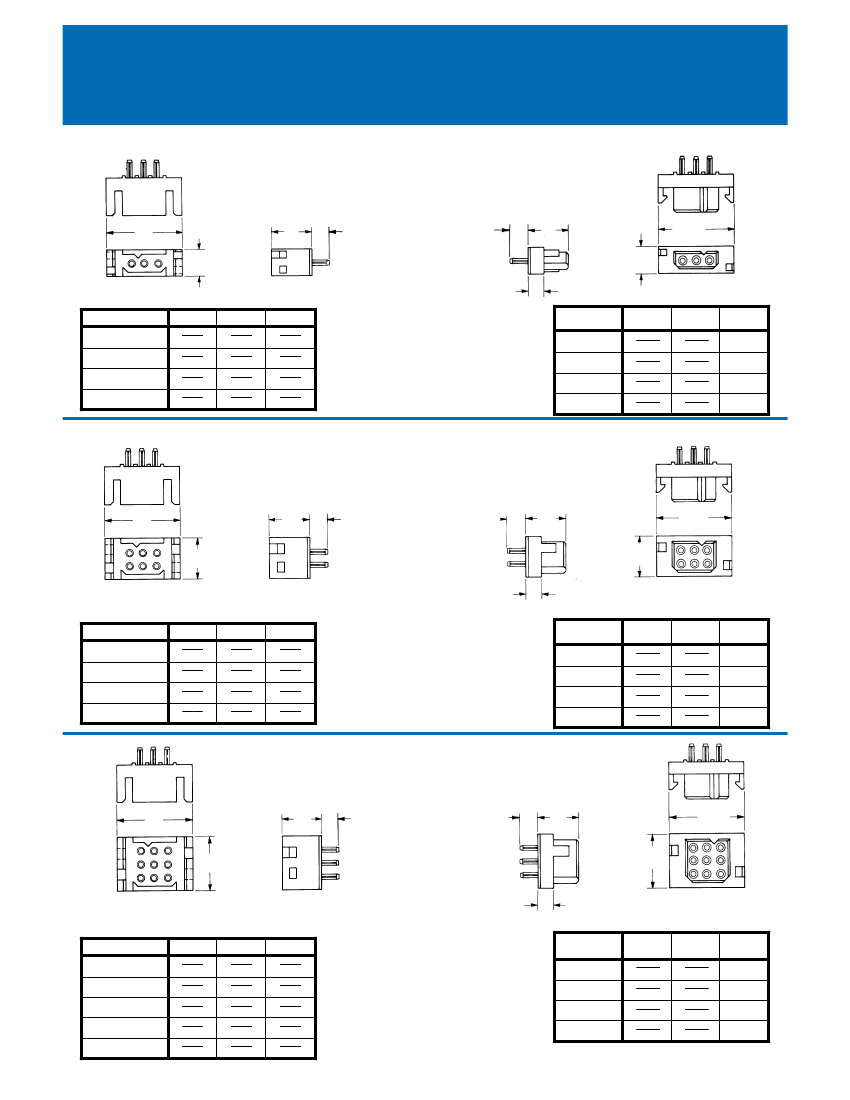

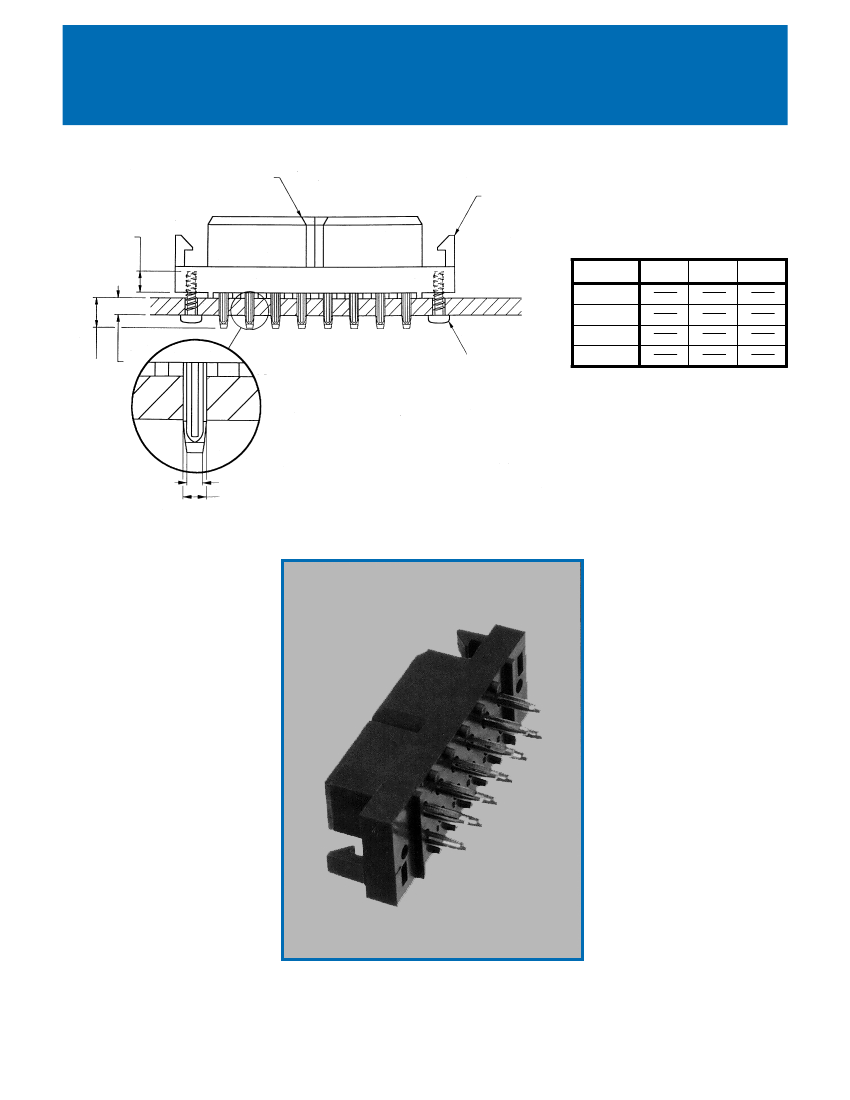

Press-Fit Power Connectors

PLA COMPLIANT TERMINATION CONNECTORS

Male

Power

Connection

Systems

Female

±0.015

±0.020

±0.015

Typical part number:

PLA03M93ST30A1

PART NUMBER

PLA03**00A1

PLA04**00A1

PLA06**00A1

PLA08**00A1

1.126

(28.60)

1.324

(33.63)

1.718

(43.64)

2.112

(53.64)

0.408

(10.36)

0.408

(10.36)

0.408

(10.36)

0.408

(10.36)

0.600

(15.24)

0.600

(15.24)

0.600

(15.24)

0.600

(15.24)

0.230

(5.84)

Typical part number:

PLA03F93ST30A1

0.183

(4.65)

0.218

(5.54)

0.294

(7.47)

0.309

(7.85)

PCB

THICKNESS

0.093

(2.36)

0.125

(3.18)

0.187

(4.75)

0.219

(5.56)

SCREW

CODE

ST2

ST3

ST4

ST5

Plating – 0.000010 (2.54µ) gold

over nickel or 0.000030 (0.75µ)

gold over nickel on contacts.

* For connection systems

1,4 and 6.

CONTACT

CODE

PLB COMPLIANT TERMINATION CONNECTORS

Male

±0.020

±0.015

Female

±0.020

±0.015

0.230

(5.84)

0.606

(15.39)

0.606

(15.39)

0.606

(15.39)

0.606

(15.39)

0.600

(15.24)

0.600

(15.24)

0.600

(15.24)

0.600

(15.24)

CONTACT

CODE

0.183

(4.65)

0.218

(5.54)

0.294

(7.47)

0.309

(7.85)

Typical part number:

PLB06M93ST30A1

PART NUMBER

PLB06**00A1

PLB08**00A1

PLB12**00A1

PLB16**00A1

1.126

(28.60)

1.324

(33.63)

1.718

(43.64)

2.112

(53.64)

Typical part number:

PLB06F93ST30A1

PCB

THICKNESS

0.093

(2.36)

0.125

(3.18)

0.187

(4.75)

0.219

(5.56)

SCREW

CODE

ST2

ST3

ST4

ST5

Plating – 0.000010 (2.54µ) gold

over nickel or 0.000030 (0.75µ)

gold over nickel on contacts.

* For connection systems

1,4 and 6.

PLC COMPLIANT TERMINATION CONNECTORS

Male

±0.020

±0.015

Female

±0.020

±0.015

Typical part number:

PLC09M93ST30A1

PART NUMBER

PLC09**00A1

PLC12**00A1

PLC18**00A1

PLC24**00A1

PLC30**00A1

1.126

(28.60)

1.324

(33.63)

1.718

(43.64)

2.112

(53.64)

2.506

(63.65)

0.802

(20.37)

0.802

(20.37)

0.802

(20.37)

0.802

(20.37)

0.802

(20.37)

0.600

(15.24)

0.600

(15.24)

0.600

(15.24)

0.600

(15.24)

0.600

(15.24)

0.230

(5.84)

CONTACT

CODE

Typical part number:

PLC09F93ST30A1

0.183

(4.65)

0.218

(5.54)

0.294

(7.47)

0.309

(7.85)

PCB

THICKNESS

0.093

(2.36)

0.125

(3.18)

0.187

(4.75)

0.219

(5.56)

SCREW

CODE

ST2

ST3

ST4

ST5

Plating – 0.000010 (2.54µ) gold

over nickel or 0.000030 (0.75µ)

gold over nickel on contacts.

* For connection systems

1,4 and 6.

**Asterisks determine gender of

connector, M for male, F for female

and contact code 92, 93, 94 or 95.

DIMENSIONS ARE IN INCHES (MILLIMETERS).

ALL DIMENSIONS ARE SUBJECT TO CHANGE.
