PCR-E50LMD-SL+: DescriptionTelecom and Datacom Connector, 50 Contact(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size70KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

PCR-E50LMD-SL+ Overview

Telecom and Datacom Connector, 50 Contact(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT

PCR-E50LMD-SL+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	YES
IEC compliance	NO
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	ZINC ALLOY
Termination type	SOLDER
Total number of contacts	50
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

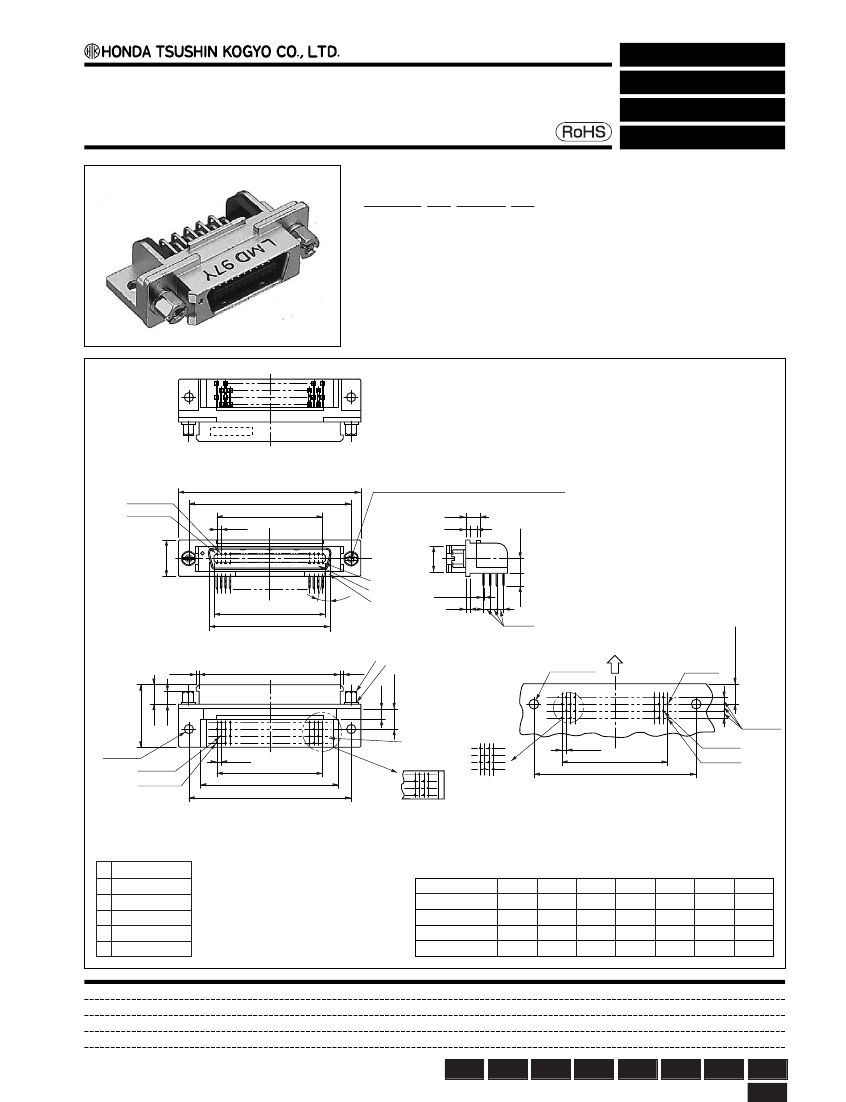

1.27 mm pitch connector

Right-angle through hole type male connector for PCB

(with screw lock)

PCR-E( )LMD-SL+

●

Configuration of product Part No.

For PCB

Right-angle Through hole

EMI-filtered

PCR-E ( ) LMD- SL+

➀

➁

➂

➃

➀

Series name

➁

No. of contacts: 20, 28, 36 or 50

➂

Type of connector

LMD: Right-angle through hole type, male connector

➃

With screw locks

POS.#2

POS.#1

1.27

10.5

A

B

C

M2.6 (For 50-contact connector)

M2 (For 20, 28 or 36-contact connectors)

4.1

1.3

7.1

D

E

4

1.905

Connector

mating side

2-ø2.8

±0.1

ø0.8

±0.06

5.905MAX

1.905

±0.05

1.27

±0.05

C

±0.1

B

±0.1

Recommended PCB layout

Except 50-contact

connector

POS.#2

POS.#1

G

20.23

25.31

30.39

39.28

Through

hole

17.5

5.4

3.9

2.8

5.905

0.85

F

0.85

∞§

2-M2.5

POS.#2

POS.#1

¢

1.27

C

G

B

Except 50-contact

connector

●

Components

➀

Contacts

➁

Insulator

➂

Shell

➃

Bracket

➄

Screw locks

➅

Spring washers

●

Dimensions

A

PCR-E20LMD-SL+

33.40

PCR-E28LMD-SL+

38.48

PCR-E36LMD-SL+

43.56

PCR-E50LMD-SL+

52.45

Part No.

B

27.40

32.48

37.56

46.45

C

11.43

16.51

21.59

30.48

D

13.20

18.28

23.36

32.25

E

16.45

21.53

26.61

35.50

F

21.60

26.68

31.76

40.65

Mating connectors:

PCR series cable-side IDC type female connector

PCR series cable-side soldering type female connector

Accessories:

Dust-proof cap, PCS-E( )C

Others

Wire

wrapping Crimping Soldering

3.4

15˚

¡

™

£

œ0.4

1.3

4.37

2

IDC

Press-in

SMT

PCR-E50LMD-SL+ Related Products

	PCR-E50LMD-SL+	PCR-E20LMD-SL+	PCR-E20LMD-SL	PCR-E28LMD-SL+	PCR-E28LMD-SL	PCR-E36LMD-SL+	PCR-E36LMD-SL	PCR-E50LMD-SL
Description	Telecom and Datacom Connector, 50 Contact(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT	Telecom and Datacom Connector, 20 Contact(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT	Telecom and Datacom Connector, 20 Contact(s), Male, Right Angle, Solder Terminal,	Telecom and Datacom Connector, 28 Contact(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT	Telecom and Datacom Connector, 28 Contact(s), Male, Right Angle, Solder Terminal,	Telecom and Datacom Connector, 36 Contact(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT	Telecom and Datacom Connector, 36 Contact(s), Male, Right Angle, Solder Terminal,	Telecom and Datacom Connector, 50 Contact(s), Male, Right Angle, Solder Terminal,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	incompatible	conform to	incompatible	conform to	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	YES	YES	YES	YES	YES	YES	YES	YES
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	50	20	20	28	28	36	36	50
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1
ECCN code	-	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99
