SENSITRON
SEMICONDUCTOR
Technical Data
Data Sheet 3603, Rev. -
LS-0805GWT
Surface Mount Device LED
Features:
•
•
•
•
Top view, wide view angle, single color chip LED.
Compatible with automatic Pick & Place equipment.
Compatible with Infrared and Wave soldering reflow solder processes.
EIA STD package.
Ordering Information:
•
•
Package in 8mm tape on 7" diameter reels.
Tape quantity: 3000 pcs per reel with part number suffix "-T1"

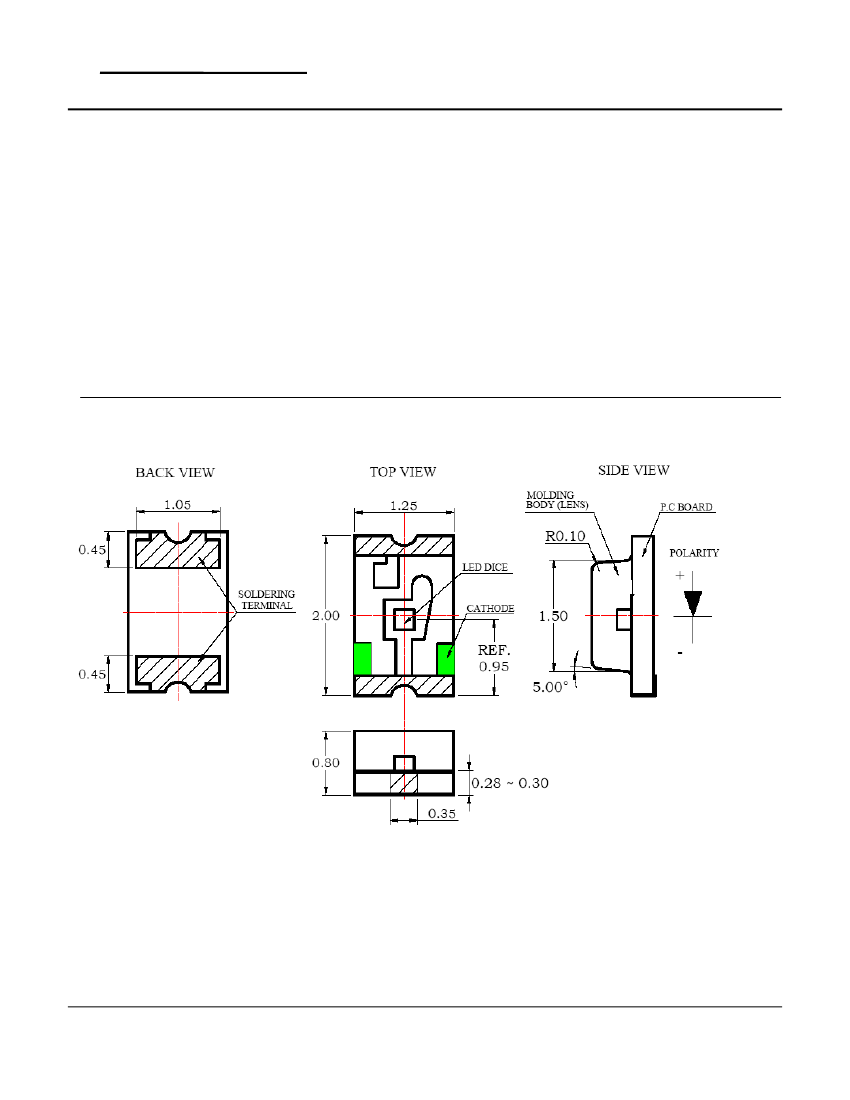

Mechanical Dimensions: In Inches / mm
Notes:
1. All dimensions are in millimeters.
2. Tolerance is ± 0.1 mm (.004") unless otherwise specified.
•
221 West Industry Court
Deer Park, NY 11729-4681
(631) 586-7600 FAX (631) 242-9798
•
•
World Wide Web Site - http://www.sensitron.com
•
E-Mail Address - sales@sensitron.com
•
SENSITRON
SEMICONDUCTOR
Technical Data
Data Sheet 3603, Rev. -
LS-0805GWT
Absolute Maximum Ratings (T
A
= 25
°C)
Parameter
Power Dissipation
Peak Forward Current (1/10
Duty Cycle, f = 1kHz)
Continuous Forward Current
Reverse Voltage
Derating Linearly from 25
°C
Operating Temperature Range
Storage Temperature Range
Wave Soldering Condition
(Two times Max)
Infrared Soldering Condition
(Two times Max)
Symbol
P
AD
I
PF
I
AF
V
R
-
T
opr
T
stg
-
-
Parameters
60
60
30
5
0.25
-40 ~ +85
-40 ~ +85
260
±
5 (for 5 seconds)
240
±
5 (for 5 seconds)
Unit
mW
mA
mA
V
mA/°C
°C
°C
°C
°C
Electro-Optical Characteristic (T
A
= 25
°C)
Parameter
Chip Material
Light Color
Lens Color
Luminous Intensity
@I
F
= 20 mA
Viewing Angle Typical
@I
F
= 20 mA
Dominant Wavelength
@I
F
= 20 mA
Spectral Line Half-Width
@I
F
= 20 mA
Forward Voltage
@I
F
= 20 mA
Max. Reverse Current @ 5V
Symbol
-
-
-
I
V
2θ
1/2
λ
D
△
λ
V
F
I
R
Parameters
AlInGaP
Super Green
Water Clear
30.0 (Typ.)
16.0 (Min)
130
570
15
2.4 (Max)
2.0 (Typ.)
100
Unit
-
-
-
mcd
Degree
nm
nm
V
µA
•
221 West Industry Court
Deer Park, NY 11729-4681
(631) 586-7600 FAX (631) 242-9798
•
•
World Wide Web Site - http://www.sensitron.com
•
E-Mail Address - sales@sensitron.com
•
SENSITRON
SEMICONDUCTOR
Technical Data
Data Sheet 3603, Rev. -
LS-0805GWT
DISCLAIMER:
1- The information given herein, including the specifications and dimensions, is subject to change without prior not ice to
improve product characteristics. Before ordering, purchasers are advised to contact the Sensitron Semiconductor sales
department for the latest version of the datasheet(s).
2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation,
traffic equipment, medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices
that feature assured safety or by means of users’ fail-safe precautions or other arrangement .
3- In no event shall Sensitron Semiconductor be liable for any damages that may result from an accident or any other
cause during operation of the user’s units according to the datasheet(s). Sensitron Semiconductor assumes no
responsibility for any intellectual property claims or any other problems that may result from applications of information,
products or circuits described in the datasheets.
4- In no event shall Sensitron Semiconductor be liable for any failure in a semiconductor device or any secondary damage
resulting from use at a value exceeding the absolute maximum rating.
5- No license is granted by the datasheet(s) under any patents or other rights of any third party or Sensitron
Semiconductor.
6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written
permission of Sensitron Semiconductor.
7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their
application will hinder maintenance of international peace and safety nor are they to be applied to that purpose by their
direct purchasers or any third party. When exporting these products (technologies), the necessary procedures are to be
taken in accordance with related laws and regulations.
•
