CYM9247PB-20C datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> CYM9247PB-20C

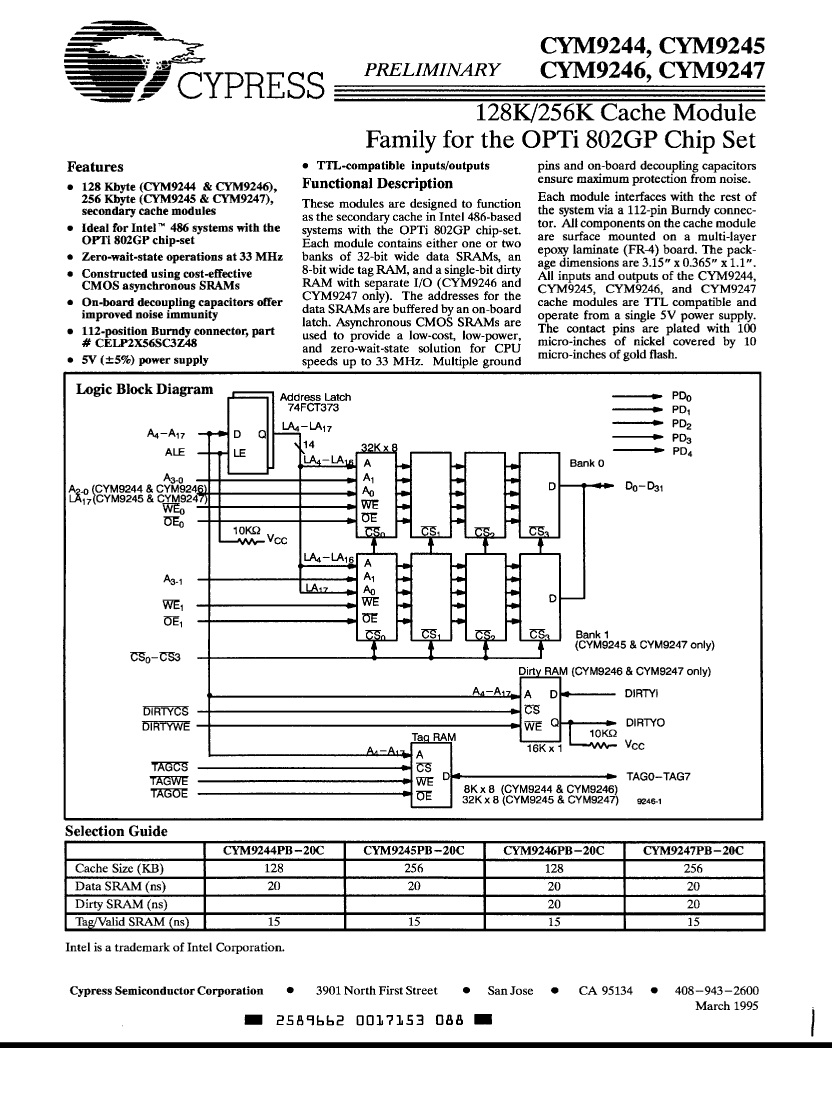

Preview

CYM9247PB-20C: DescriptionCache SRAM Module, 256KX8, 27ns, CMOS; Categorystorage storage; File Size434KB，13 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

CYM9247PB-20C Overview

Cache SRAM Module, 256KX8, 27ns, CMOS

CYM9247PB-20C Parametric

Parameter Name	Attribute value
package instruction	DIMM, DIMM112
Reach Compliance Code	unknown
ECCN code	3A991.B.2.A
Maximum access time	27 ns
Other features	CONFIGURABLE AS 64K X 32; 32K X 8 TAG; 16K X 1 DIRTY BIT
I/O type	COMMON
JESD-30 code	R-XDMA-N112
memory density	2097152 bit
Memory IC Type	CACHE SRAM MODULE
memory width	8
Number of functions	1
Number of terminals	112
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX8
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	DIMM
Encapsulate equivalent code	DIMM112
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Minimum standby current	4.75 V
Maximum slew rate	1.8 mA
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

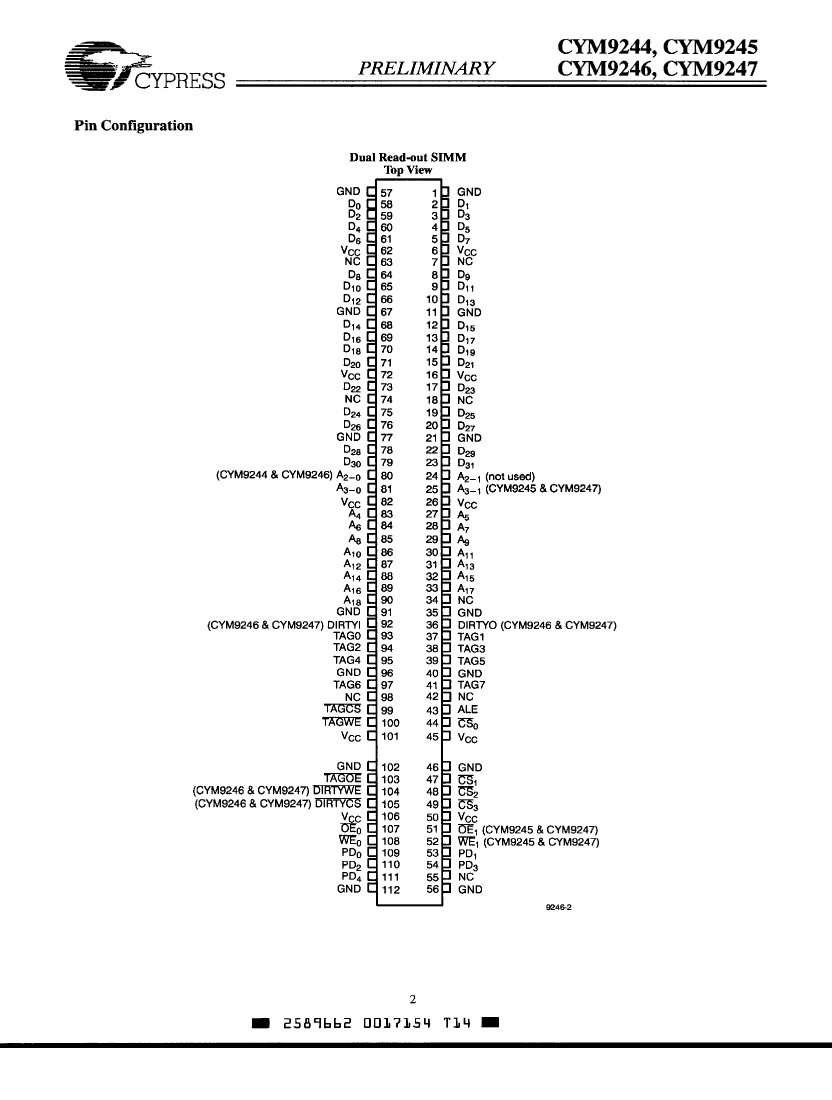

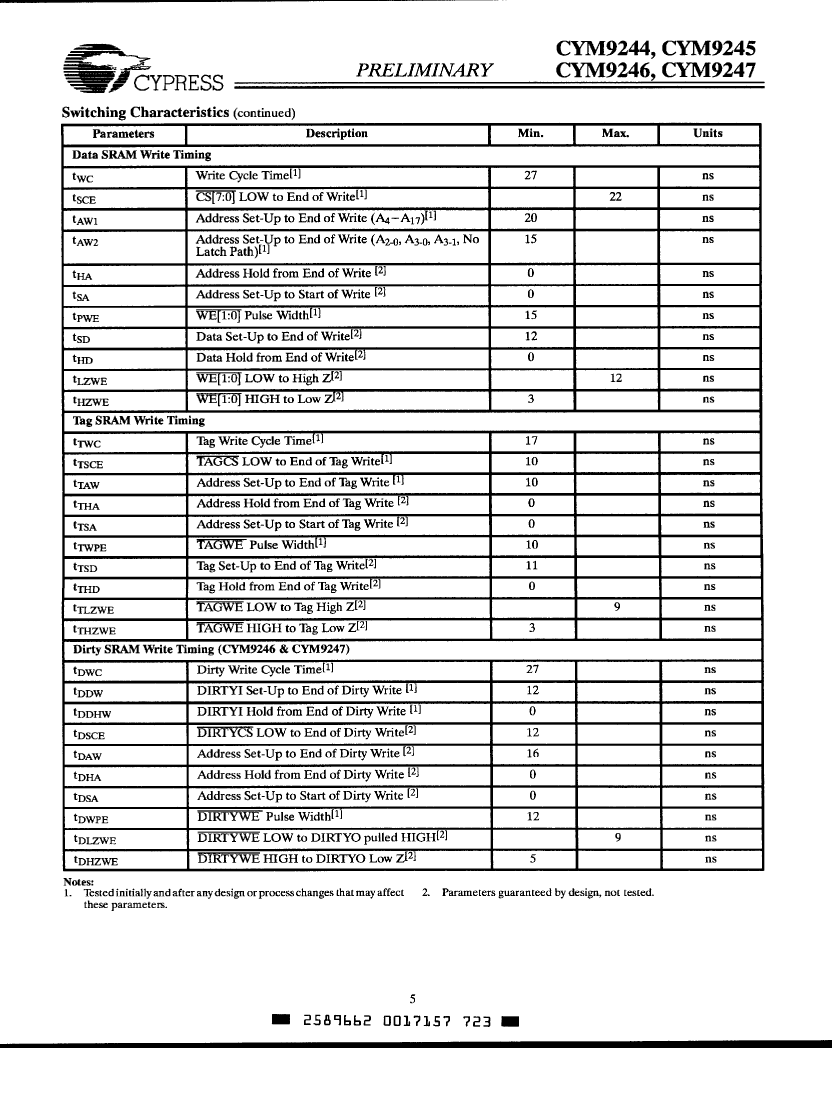

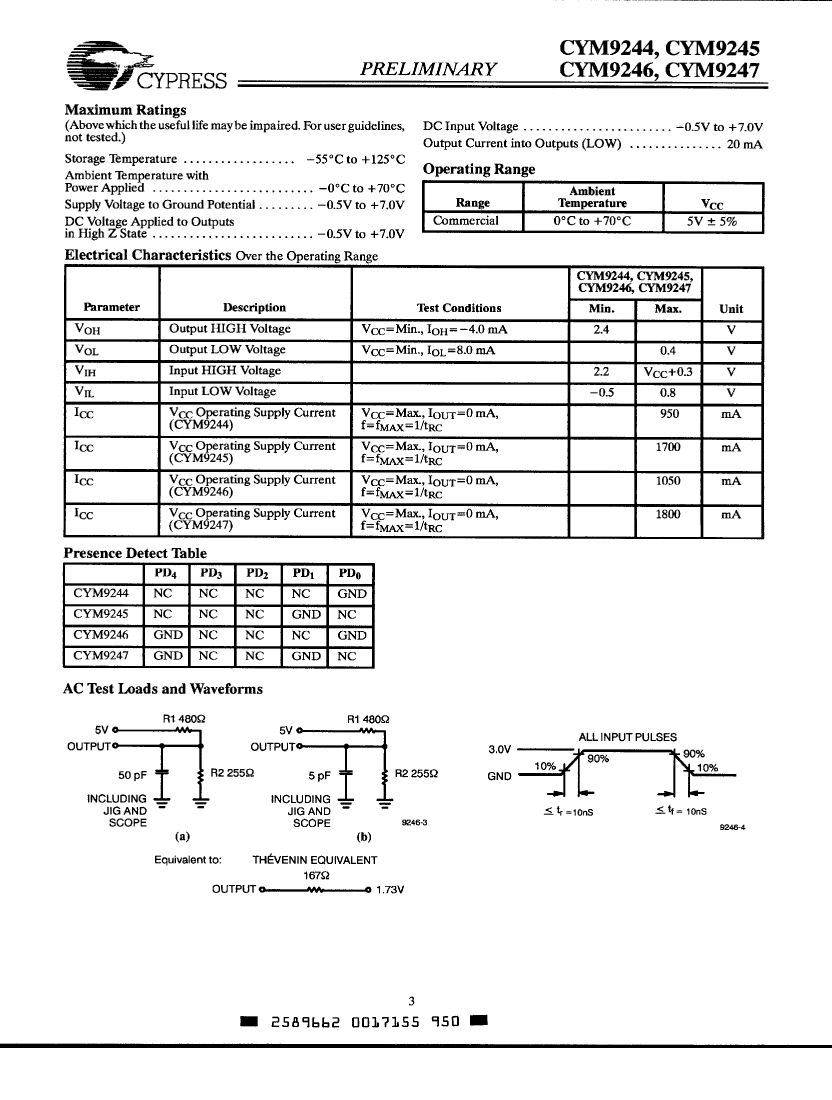

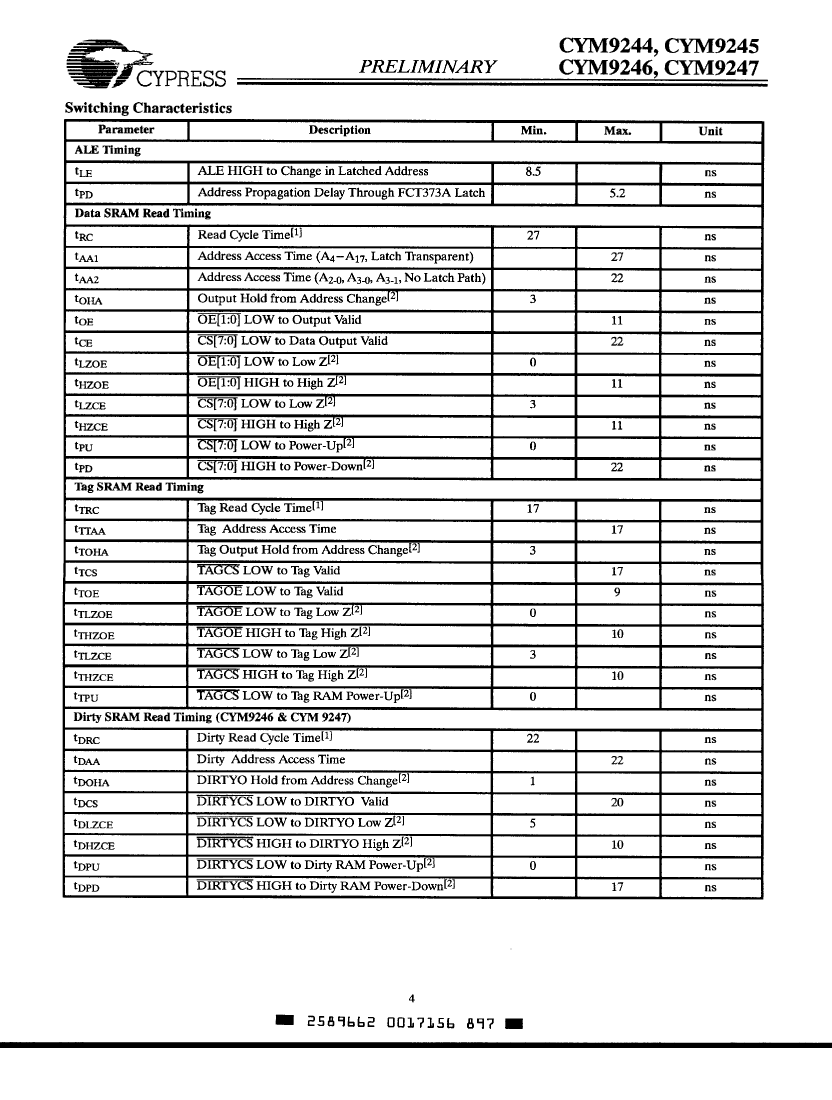

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

CYM9247PB-20C Related Products

	CYM9247PB-20C	CYM9244PB-20C	CYM9246PB-20C	CYM9245PB-20C
Description	Cache SRAM Module, 256KX8, 27ns, CMOS	Cache SRAM Module, 128KX8, 27ns, CMOS	Cache SRAM Module, 128KX8, 27ns, CMOS	Cache SRAM Module, 256KX8, 27ns, CMOS
package instruction	DIMM, DIMM112	DIMM, DIMM112	DIMM, DIMM112	DIMM, DIMM112
Reach Compliance Code	unknown	unknown	compliant	unknown
ECCN code	3A991.B.2.A	EAR99	EAR99	3A991.B.2.A
Maximum access time	27 ns	27 ns	27 ns	27 ns
Other features	CONFIGURABLE AS 64K X 32; 32K X 8 TAG; 16K X 1 DIRTY BIT	CONFIGURABLE AS 32K X 32; 8K X 8 TAG	CONFIGURABLE AS 32K X 32; 8K X 8 TAG; 16K X 1 DIRTY BIT	CONFIGURABLE AS 64K X 32; 32K X 8 TAG
I/O type	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XDMA-N112	R-XDMA-N112	R-XDMA-N112	R-XDMA-N112
memory density	2097152 bit	1048576 bit	1048576 bit	2097152 bit
Memory IC Type	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE
memory width	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	112	112	112	112
word count	262144 words	131072 words	131072 words	262144 words
character code	256000	128000	128000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	256KX8	128KX8	128KX8	256KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIMM	DIMM	DIMM	DIMM
Encapsulate equivalent code	DIMM112	DIMM112	DIMM112	DIMM112
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Minimum standby current	4.75 V	4.75 V	4.75 V	4.75 V
Maximum slew rate	1.8 mA	0.95 mA	1.05 mA	1.7 mA
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	-
