DS1345ABLPM-100 datasheet, PDF

Datasheet> All Categories > storage> storage> DS1345ABLPM-100

DS1345ABLPM-100: DescriptionNon-Volatile SRAM Module, 128KX8, 100ns, CMOS, PDFP34,; Categorystorage storage; File Size44KB，1 Pages; ManufacturerDALLAS; Websitehttp://www.dalsemi.com

Download Datasheet Parametric Compare View All

DS1345ABLPM-100 Overview

Non-Volatile SRAM Module, 128KX8, 100ns, CMOS, PDFP34,

DS1345ABLPM-100 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Maximum access time	100 ns
Other features	OVER 10 YEARS DATA RETENTION
JESD-30 code	R-PDFP-U34
memory density	1048576 bit
Memory IC Type	NON-VOLATILE SRAM MODULE
memory width	8
Number of functions	1
Number of terminals	34
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX8
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLATPACK
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J INVERTED
Terminal location	DUAL
Base Number Matches	1

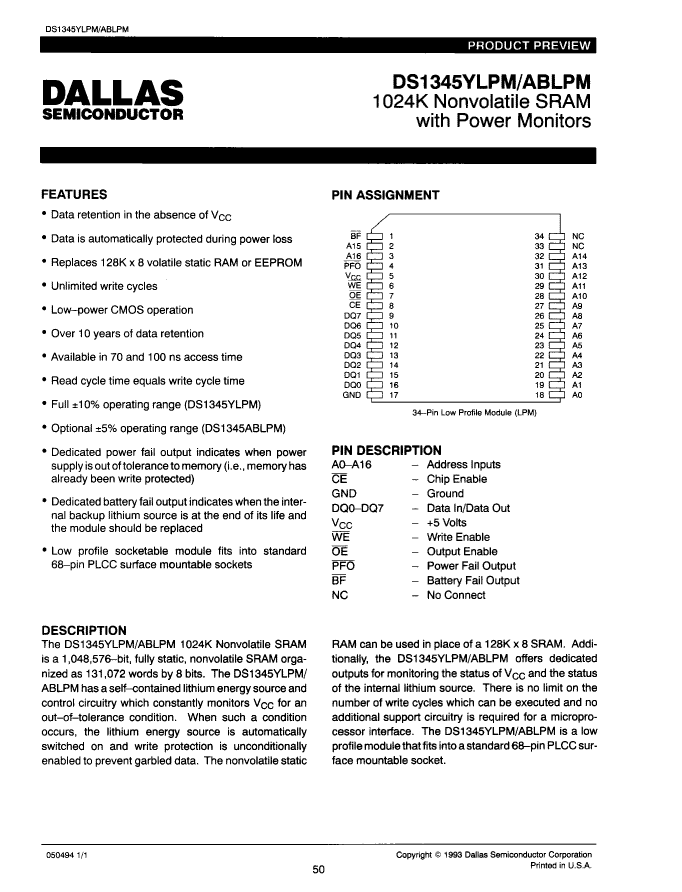

Preview

Download Datasheet

View All

DS1345ABLPM-100 Related Products

	DS1345ABLPM-100	DS1345YLPM-70	DS1345ABLPM-70	DS1345YLPM-100
Description	Non-Volatile SRAM Module, 128KX8, 100ns, CMOS, PDFP34,	Non-Volatile SRAM Module, 128KX8, 70ns, CMOS, PDFP34,	Non-Volatile SRAM Module, 128KX8, 70ns, CMOS, PDFP34,	Non-Volatile SRAM Module, 128KX8, 100ns, CMOS, PDFP34,
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum access time	100 ns	70 ns	70 ns	100 ns
Other features	OVER 10 YEARS DATA RETENTION	OVER 10 YEARS DATA RETENTION	OVER 10 YEARS DATA RETENTION	OVER 10 YEARS DATA RETENTION
JESD-30 code	R-PDFP-U34	R-PDFP-U34	R-PDFP-U34	R-PDFP-U34
memory density	1048576 bit	1048576 bit	1048576 bit	1048576 bit
Memory IC Type	NON-VOLATILE SRAM MODULE	NON-VOLATILE SRAM MODULE	NON-VOLATILE SRAM MODULE	NON-VOLATILE SRAM MODULE
memory width	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	34	34	34	34
word count	131072 words	131072 words	131072 words	131072 words
character code	128000	128000	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	128KX8	128KX8	128KX8	128KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.25 V	5.5 V	5.25 V	5.5 V
Minimum supply voltage (Vsup)	4.75 V	4.5 V	4.75 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	J INVERTED	J INVERTED	J INVERTED	J INVERTED
Terminal location	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	-
Maker	-	DALLAS	DALLAS	DALLAS
