BL-PDW-SJD-C10: DescriptionDomiLED InGaN High brightness surface mount LED.; CategoryLED optoelectronic/LED photoelectric; File Size372KB，12 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BL-PDW-SJD-C10 Overview

DomiLED InGaN High brightness surface mount LED.

BL-PDW-SJD-C10 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	2.80 X 3.20 MM, 1.80 MM HEIGHT, SURFACE MOUNT PACKAGE-2
Reach Compliance Code	unknow
color	WHITE
Configuration	SINGLE
Maximum forward current	0.02 A
Lens type	DIFFUSED
Nominal luminous intensity	315.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.75 mm
method of packing	TAPE AND REEL
shape	ROUND
size	2.4 mm
surface mount	YES
Terminal pitch	3 mm
perspective	120 deg
Base Number Matches	1

Preview

Download Datasheet

View All

DomiLED InGaN

•

High brightness surface mount LED.

Based on InGaN technology.

120° viewing angle.

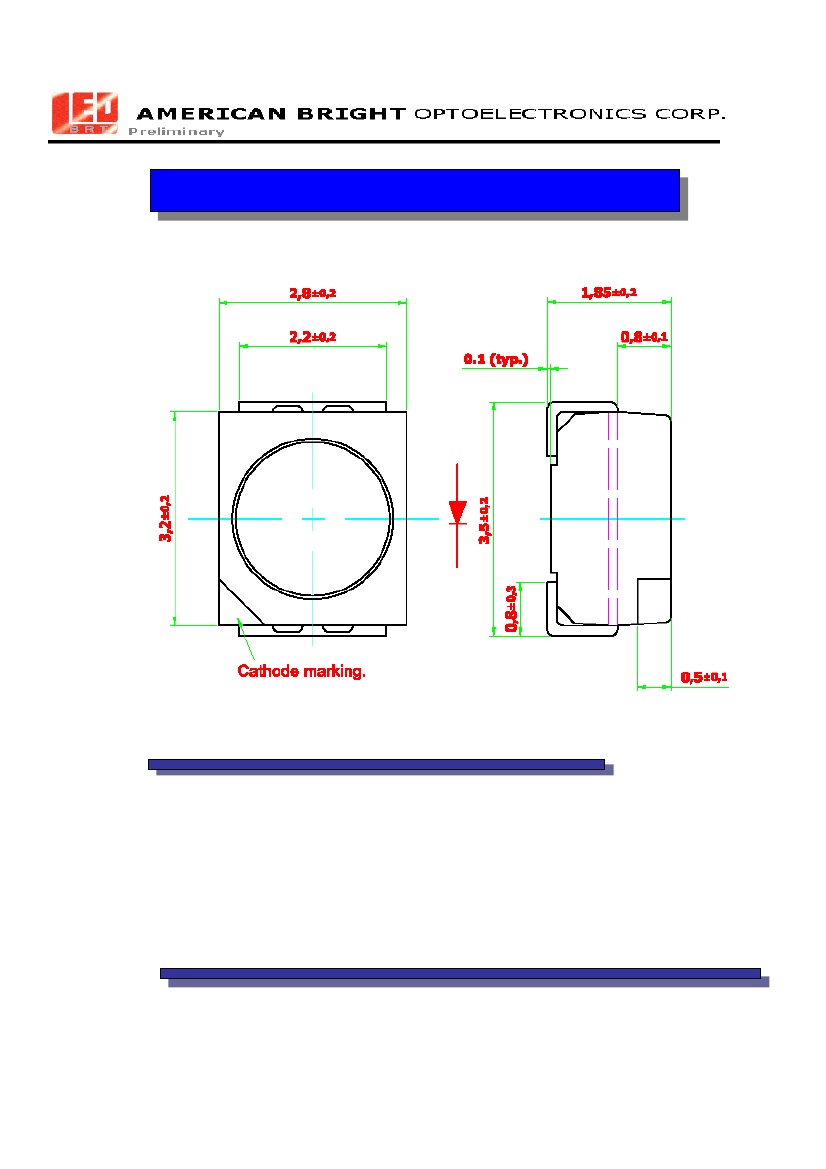

Small package outline (LxWxH) of 2.8 x 3.2 x 1.8 mm.

Qualified according to JEDEC moisture sensitivity Level 2.

Compatible to both IR reflow soldering and TTW soldering.

06/06/05

DomiLED InGaN DDx-xJx - Catalogue-v8

Page 1 of 1
