BL-PSA-SSS-C10

Description
High brightness surface mount LED.
CategoryLED optoelectronic/LED    photoelectric
File Size381KB,8 Pages
ManufacturerBRIGHT
Websitehttp://www.brightled.co.kr/
Download Datasheet Parametric Compare View All

BL-PSA-SSS-C10 Overview

High brightness surface mount LED.

BL-PSA-SSS-C10 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerBRIGHT
package instructionSURFACE MOUNT PACKAGE-2
Reach Compliance Codeunknow
colorAMBER
ConfigurationSINGLE
Maximum forward current0.02 A
Lens typeWATER CLEAR
Nominal luminous intensity198.75 mcd
Installation featuresSURFACE MOUNT
Number of functions1
Number of terminals2
Maximum operating temperature100 °C
Minimum operating temperature-40 °C
Optoelectronic device typesSINGLE COLOR LED
total height1.3 mm
method of packingTAPE AND REEL
shapeRECTANGULAR
size2.5 mm
surface mountYES
Terminal pitch4.2 mm
perspective120 deg

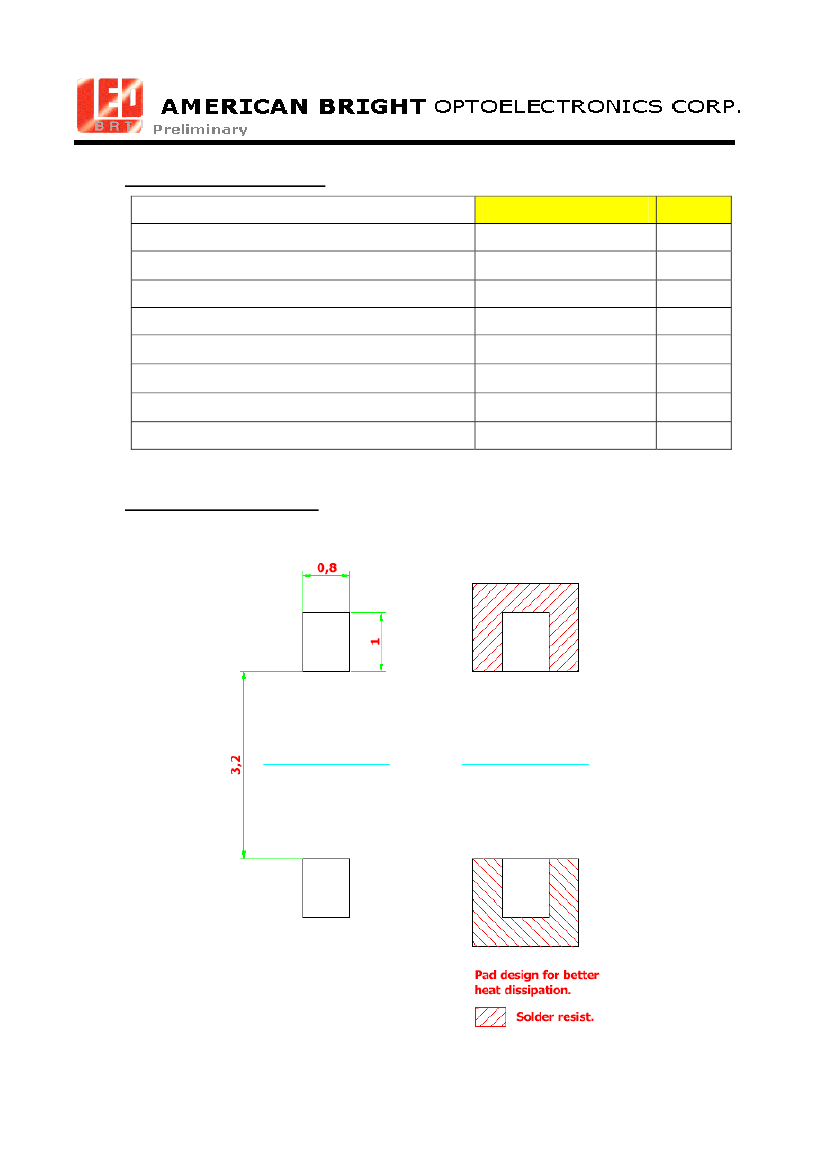

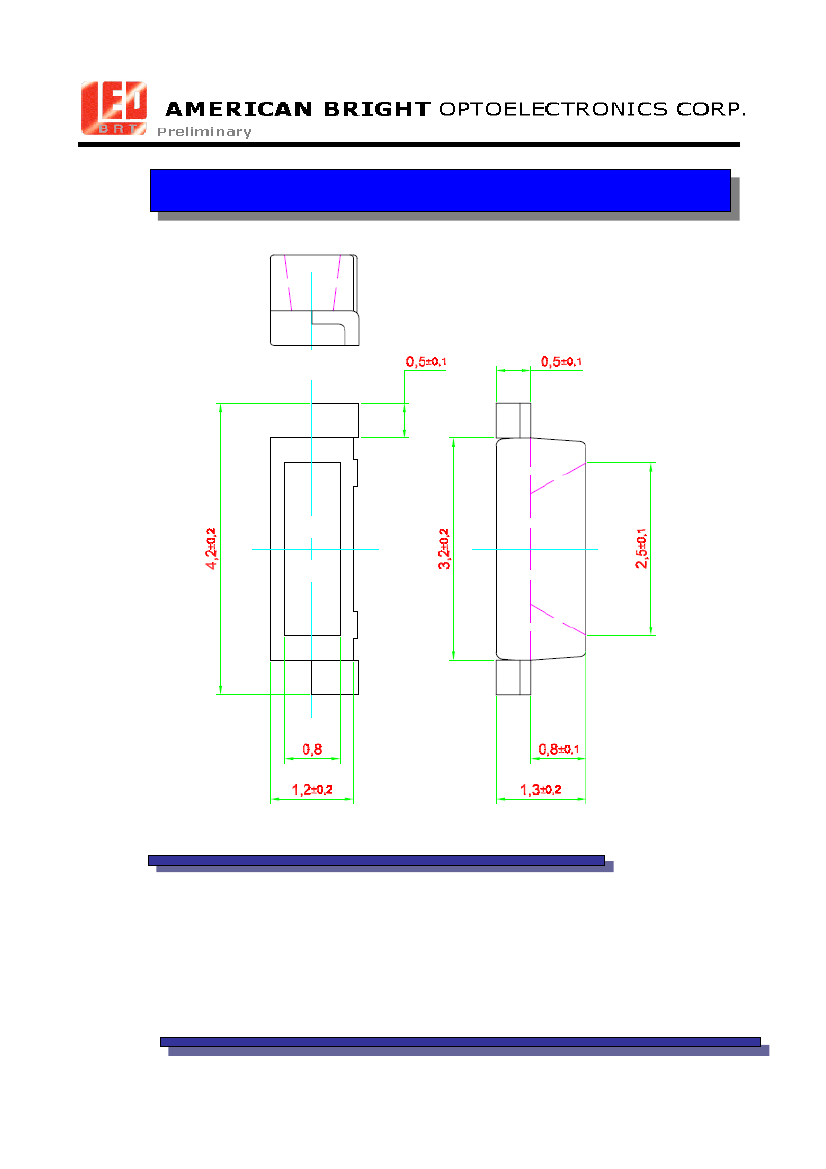

High brightness surface mount LED.
Designed for sideway illumination.
Small package outline.
Qualified according to JEDEC moisture sensitivity Level 2.
Compatible to both IR reflow soldering and TTW soldering.

BL-PSA-SSS-C10 Related Products

BL-PSA-SSS-C10 BL-PSG-SSS-C10 BL-PSO-SSS-C10 BL-PSS-SSS-C10 BL-PSR-TSS-C10 BL-PSA-CSS-C10 BL-PSO-CSS-C10 BL-PSY-CSS-C10 BL-PSR-CSS-C10 BL-PSR-SSS-C20
Description High brightness surface mount LED. High brightness surface mount LED. High brightness surface mount LED. High brightness surface mount LED. High brightness surface mount LED. High brightness surface mount LED. High brightness surface mount LED. High brightness surface mount LED. High brightness surface mount LED. High brightness surface mount LED.
Is it lead-free? Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible
package instruction SURFACE MOUNT PACKAGE-2 SURFACE MOUNT PACKAGE-2 SURFACE MOUNT PACKAGE-2 SURFACE MOUNT PACKAGE-2 SURFACE MOUNT PACKAGE-2 SURFACE MOUNT PACKAGE-2 SURFACE MOUNT PACKAGE-2 SURFACE MOUNT PACKAGE-2 SURFACE MOUNT PACKAGE-2 SURFACE MOUNT PACKAGE-2
Reach Compliance Code unknow unknow unknow unknow unknow unknow unknow unknow unknow unknow
color AMBER GREEN ORANGE SUPER RED RED AMBER ORANGE YELLOW RED RED
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Maximum forward current 0.02 A 0.02 A 0.02 A 0.02 A 0.02 A 0.02 A 0.02 A 0.02 A 0.02 A 0.02 A
Nominal luminous intensity 198.75 mcd 67.5 mcd 198.75 mcd 125.75 mcd 315.0 mcd 125.75 mcd 125.75 mcd 125.75 mcd 125.75 mcd 125.75 mcd
Installation features SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Number of functions 1 1 1 1 1 1 1 1 1 1
Number of terminals 2 2 2 2 2 2 2 2 2 2
Maximum operating temperature 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C
Optoelectronic device types SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED
total height 1.3 mm 1.3 mm 1.3 mm 1.3 mm 1.3 mm 1.3 mm 1.3 mm 1.3 mm 1.3 mm 1.3 mm
method of packing TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL
shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
size 2.5 mm 2.5 mm 2.5 mm 2.5 mm 2.5 mm 2.5 mm 2.5 mm 2.5 mm 2.5 mm 2.5 mm
surface mount YES YES YES YES YES YES YES YES YES YES
Terminal pitch 4.2 mm 4.2 mm 4.2 mm 4.2 mm 4.2 mm 4.2 mm 4.2 mm 4.2 mm 4.2 mm 4.2 mm
perspective 120 deg 120 deg 120 deg 120 deg 120 deg 120 deg 120 deg 120 deg 120 deg 120 deg
Maker BRIGHT BRIGHT BRIGHT BRIGHT - BRIGHT BRIGHT BRIGHT - BRIGHT
