BL-PWA-SJS-C10

Description
Power DOMILED AlInGaP High brightness surface mount LED.
CategoryLED optoelectronic/LED    photoelectric
File Size257KB,7 Pages
ManufacturerBRIGHT
Websitehttp://www.brightled.co.kr/
Download Datasheet Parametric Compare View All

BL-PWA-SJS-C10 Overview

Power DOMILED AlInGaP High brightness surface mount LED.

BL-PWA-SJS-C10 Parametric

Parameter NameAttribute value
MakerBRIGHT
package instruction3.20 X 2.80 MM, 1.80 MM HEIGHT, SURFACE MOUNT PACKAGE-4
Reach Compliance Codeunknow
Is SamacsysN
colorAMBER
ConfigurationSINGLE
Maximum forward current0.07 A
Lens typeWATER CLEAR
Nominal luminous intensity787.5 mcd
Installation featuresSURFACE MOUNT
Number of functions1
Number of terminals4
Maximum operating temperature100 °C
Minimum operating temperature-40 °C
Optoelectronic device typesSINGLE COLOR LED
total height1.8 mm
method of packingTAPE AND REEL
shapeROUND
size2.4 mm
surface mountYES
Terminal pitch3 mm
perspective120 deg
Base Number Matches1
AMERICAN BRIGHT
OPTOELECTRONICS CORP.
Power DOMILED AlInGaP BL-PW Series
Feature:
1. High brightness surface mount LED.
2. 120° viewing angle.
3. Small package outline (LxWxH) of 2.8 x 3.2 x 1.8 mm.
4. Qualified according to JEDEC moisture sensitivity Level 2.
5. Compatible to both IR reflow soldering and TTW soldering.

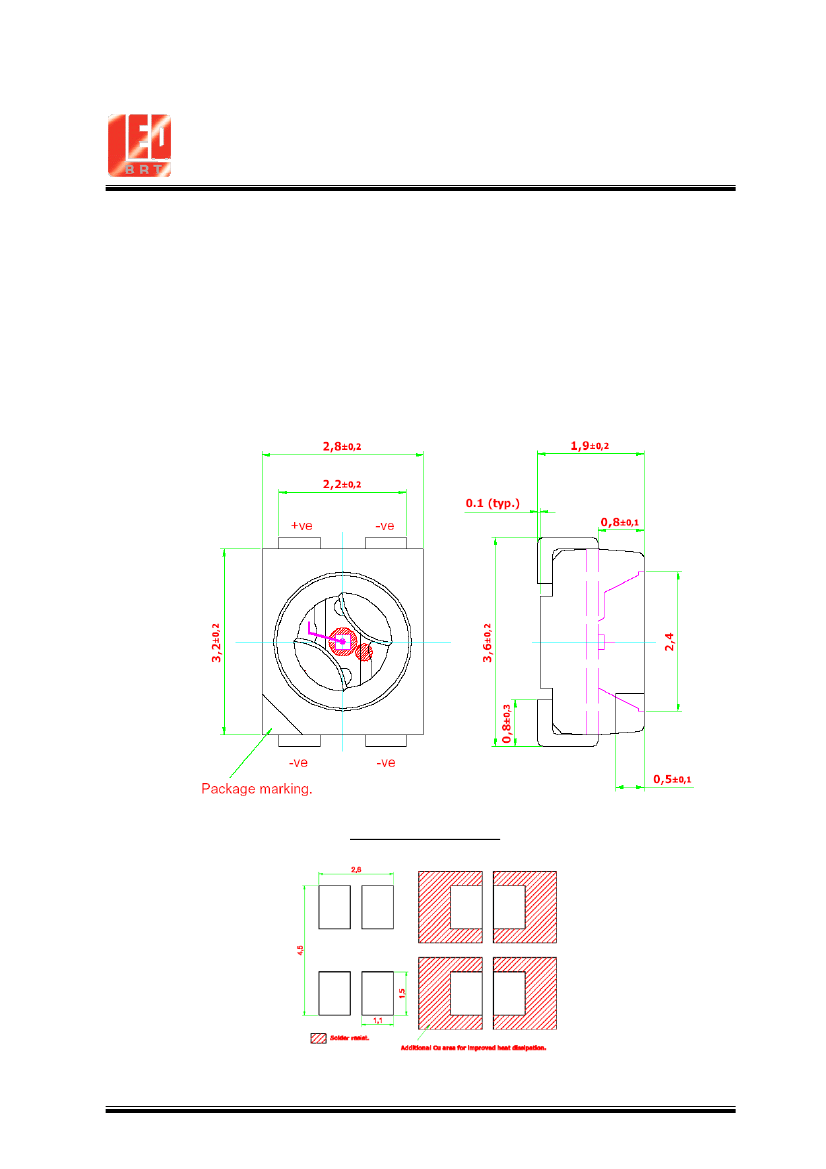

Package Dimension:
Recommended Solder Pad
V.6 Page: 1 of 7

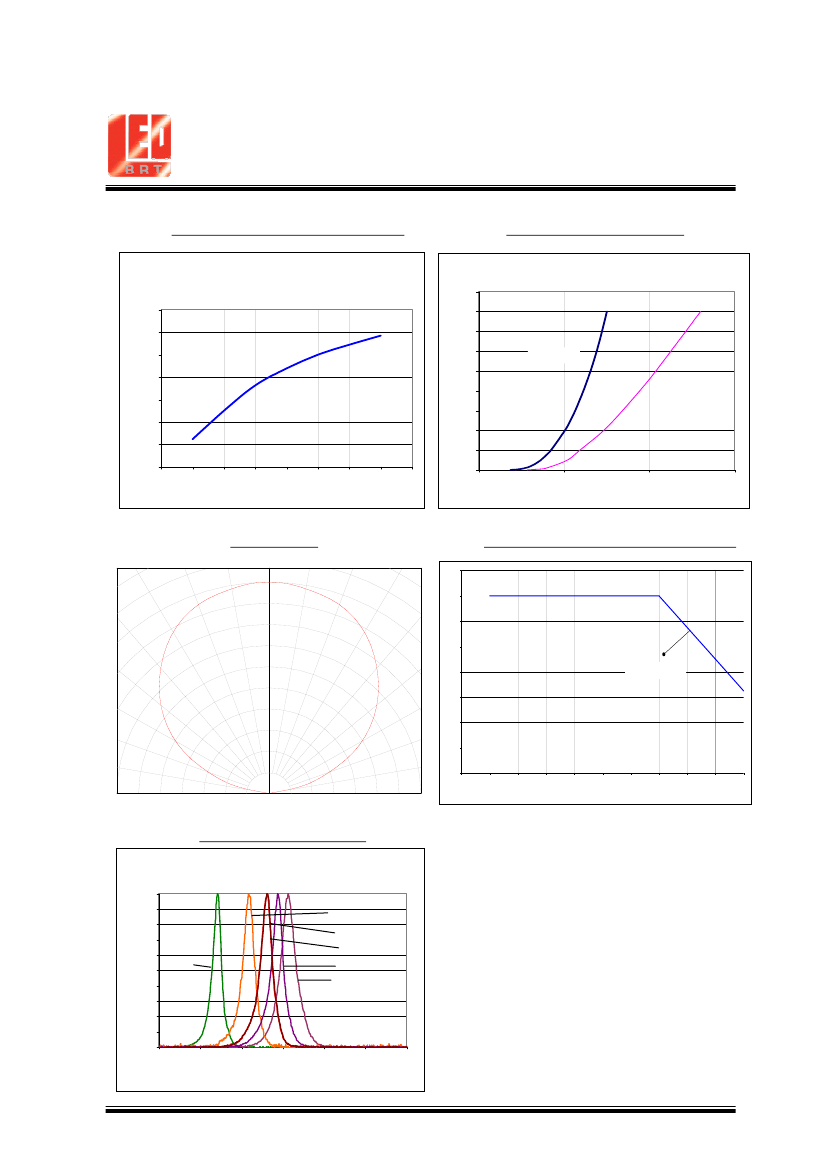

BL-PWA-SJS-C10 Related Products

BL-PWA-SJS-C10 BL-PWA-TJS-C10 BL-PWR-SJS-C10 BL-PWO-SJS-C10 BL-PWR-TJS-C10 BL-PWS-SJS-C10
Description Power DOMILED AlInGaP High brightness surface mount LED. Power DOMILED AlInGaP High brightness surface mount LED. Power DOMILED AlInGaP High brightness surface mount LED. Power DOMILED AlInGaP High brightness surface mount LED. Power DOMILED AlInGaP High brightness surface mount LED. Power DOMILED AlInGaP High brightness surface mount LED.
package instruction 3.20 X 2.80 MM, 1.80 MM HEIGHT, SURFACE MOUNT PACKAGE-4 3.20 X 2.80 MM, 1.80 MM HEIGHT, SURFACE MOUNT PACKAGE-4 3.20 X 2.80 MM, 1.80 MM HEIGHT, SURFACE MOUNT PACKAGE-4 3.20 X 2.80 MM, 1.80 MM HEIGHT, SURFACE MOUNT PACKAGE-4 3.20 X 2.80 MM, 1.80 MM HEIGHT, SURFACE MOUNT PACKAGE-4 3.20 X 2.80 MM, 1.80 MM HEIGHT, SURFACE MOUNT PACKAGE-4
Reach Compliance Code unknow unknow unknown unknown unknow unknow
color AMBER AMBER RED ORANGE RED SUPER RED
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Maximum forward current 0.07 A 0.07 A 0.07 A 0.07 A 0.07 A 0.07 A
Nominal luminous intensity 787.5 mcd 1257.5 mcd 500.0 mcd 787.5 mcd 787.5 mcd 315.0 mcd
Installation features SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Number of functions 1 1 1 1 1 1
Number of terminals 4 4 4 4 4 4
Maximum operating temperature 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C
Optoelectronic device types SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED
total height 1.8 mm 1.8 mm 1.8 mm 1.8 mm 1.8 mm 1.8 mm
method of packing TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL
shape ROUND ROUND ROUND ROUND ROUND ROUND
size 2.4 mm 2.4 mm 2.4 mm 2.4 mm 2.4 mm 2.4 mm
surface mount YES YES YES YES YES YES
Terminal pitch 3 mm 3 mm 3 mm 3 mm 3 mm 3 mm
perspective 120 deg 120 deg 120 deg 120 deg 120 deg 120 deg
Maker BRIGHT - BRIGHT BRIGHT BRIGHT -
Lens type WATER CLEAR - WATER CLEAR WATER CLEAR - WATER CLEAR
Base Number Matches 1 1 1 1 - 1
