PD-97948C
30SCLJQ045
SCHOTTKY RECTIFIER
HIGH EFFICIENCY SERIES
15 Amp. 45V
Major Ratings and Characteristics
Characteristics
I
F(AV)
V
RRM
(Per Leg)
I
FSM
@ tp = 8.3ms half–sine (Per Leg)
V
F
@ 15Apk, T
J
= 125°C (Per Leg)
T
J
, T
stg
Operating and storage
30SCLJQ045 Units
30
45
112
0.69
-55 to 150
A
V
A
V
°C
Description/Features
The 30SCLJQ045 center tap Schottky rectifier has
been expressly designed to meet the rigorous
requirements of IR HiRel environments. It is
packaged in the hermetic surface mount SMD-0.5
ceramic package. The device's forward voltage
drop and reverse leakage current are optimized for
the lowest power loss and the highest circuit
efficiency for typical high frequency switching power
supplies and resonant power converters. Full
MIL-PRF-19500 quality conformance testing is
available on source control drawings to TX, TXV and
S quality levels.
Hermetically Sealed
Center Tap
Low Forward Voltage Drop
High Frequency Operation
Guard Ring for Enhanced Ruggedness and
Long term Reliability
Surface Mount
Lightweight
CASE STYLE

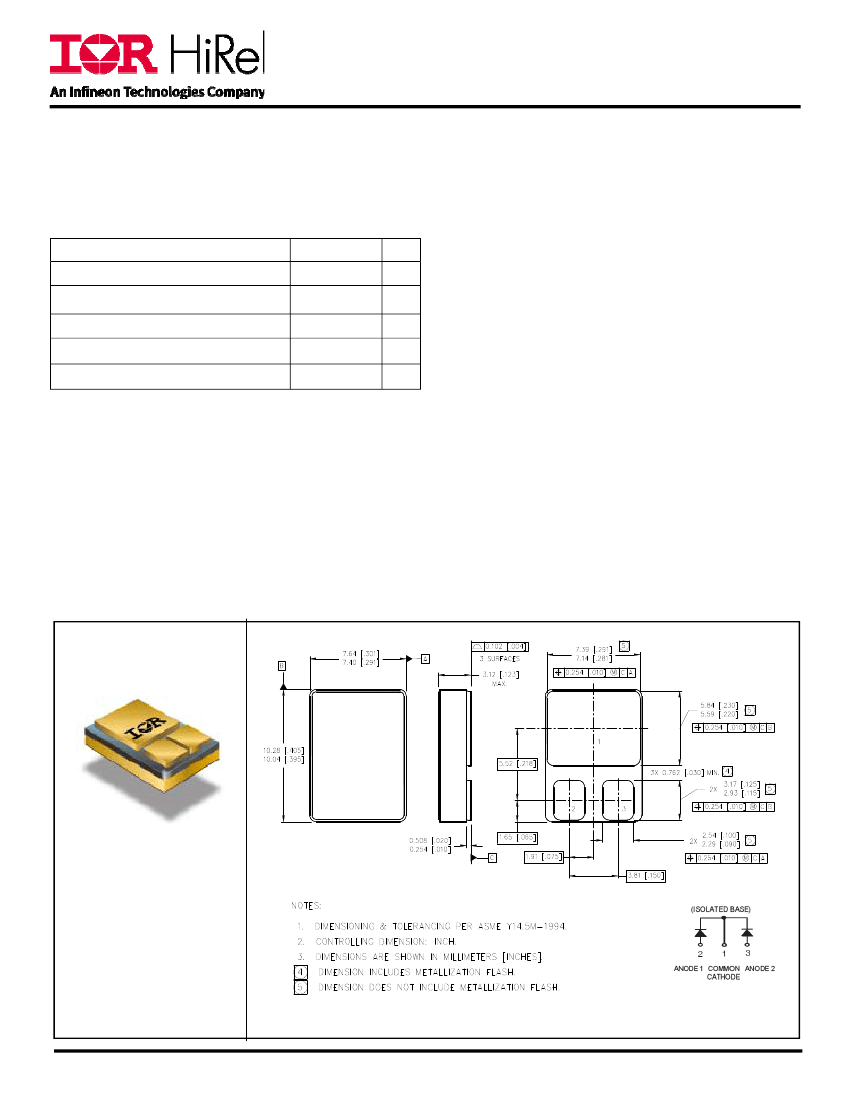

Case Outline and Dimensions - SMD-0.5
1
2016-03-31
30SCLJQ045
Voltage Ratings
Part Number
V
R
Max. DC Reverse Voltage (V) (Per Leg)
V
RRM
Max. Working Peak Reverse Voltage (V) (Per Leg)
30SCLJQ045
45
Absolute Maximum Ratings
Parameter
I
F(AV)
Max. Average Forward Current See Fig. 5
I
FSM
Max. Peak One Cycle Non - Repetitive
Surge Current (Per Leg)
Limits Units
30
112
A
A
Conditions
50% duty cycle @ T
C
= 105°C, square waveform
@ tp = 8.3 ms half-sine
Electrical Specifications
Parameter
Limits
0.58
0.70
V
FM
Max. Forward Voltage Drop
(Per Leg) See Fig. 1
0.54
0.70
0.50
I
RM
C
T
L
S
Max. Reverse Leakage Current
(Per Leg) See Fig. 1
Max. Junction Capacitance (Per Leg)
Typical Series Inductance (Per Leg)
0.69
0.1
55
400
4.8
Units
V
V
V
V
V
@ I
F
= 7.5A
@ I
F
= 15A
@ I
F
= 7.5A
@ I
F
= 15A
@ I
F
= 7.5A
Conditions
T
J
= -55°C
T
J
= 25°C
T
J
= 125°C
V
R
= rated V
R
V
@ I
F
= 15A
mA
T
J
= 25°C
mA
T
J
= 125°C
pF
nH
V
R
= 5V
DC
(1MHz, 25°C)
Measured from center of cathode pad to center of
anode pad
Thermal-Mechanical Specifications
Parameter
T
J
T
stg
R
thJC
R
thJC
Wt
Max.Junction Temperature Range
Max. Storage Temperature Range
Max. Thermal Resistance, Junction
to Case (Per Leg)
Max. Thermal Resistance, Junction
to Case (Per Package)
Weight (Typical)
Die Size (Typical)
Case Style
Pulse Width < 300µs, Duty Cycle < 2%
Limits
-55 to 150
-55 to 150
3.5
1.75
1.0
70 x 92
SMD-0.5
Units
°C
°C
°C/W
°C/W
g
mils
DC operation
DC operation
See Fig. 4
Conditions
2
2016-03-31
30SCLJQ045
100
Reverse Current - I R ( mA )
10
125°C
100°C
1
75°C
0.1
25°C
0.01
100
0.001
0
10
20
30
40
50
Reverse Voltage - V R (V)
Fig 2.
Typical Values of Reverse Current
Vs. Reverse Voltage (Per Leg)
Instantaneous Forward Current - I F (A)
10
1000
Tj = 125°C
Tj = 25°C
Tj = -55°C
Junction Capacitance - CT (pF)
100
1
0.0
0.2
0.4
0.6
0.8
1.0
Forward Voltage Drop - V F (V)
0
10
20
30
40
50
Reverse Voltage -V R (V)
Fig 1.
Max. Forward Voltage Drop Characteristics
(Per Leg)
Fig 3.
Typical Junction Capacitance Vs. Reverse Voltage
(Per Leg)
3
2016-03-31
30SCLJQ045
10
Thermal Response (Z
thJC
)
D = 0.50
1
0.20
0.10
0.05
0.1
0.02
0.01
P
DM
SINGLE PULSE
(THERMAL RESPONSE)
t
1
t
2
Notes:
1. Duty factor D = t
1
/ t
2
2. Peak T
J
= P
DM
x Z
thJC
+ T
C
0.0001
0.001
0.01
0.1
1
0.01
0.00001
t
1
, Rectangular Pulse Duration (sec)

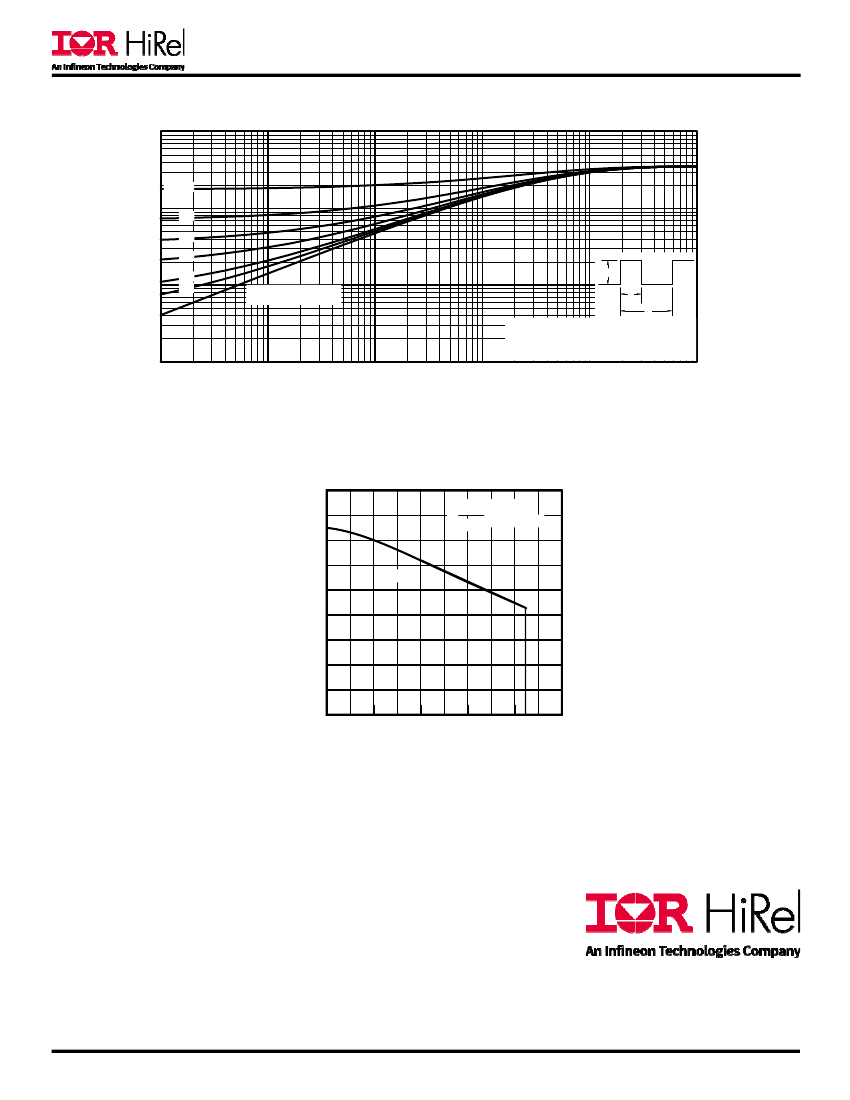

Fig 4.
Max. Thermal Impedance ZthJC Characteristics (Per Leg)
180
160
140
120
100
80
60
40
20
0
0
10
20
30
40
50
30SCLJQ045
Allowable Case Temprature - (°C)
R thJC = 1.75°C/W
DC
Average Forward Current - I F(AV) (A)
Fig 5.
Max. Allowable Case Temperature Vs.
Average Forward Current
IR HiRel Headquarters:
101 N. Sepulveda Blvd., El Segundo, California 90245, USA Tel: (310) 252-7105
IR HiRel Leominster:
205 Crawford St., Leominster, Massachusetts 01453, USA Tel: (978) 534-5776
IR HiRel San Jose:
2520 Junction Avenue, San Jose, California 95134, USA Tel: (408) 434-5000
Data and specifications subject to change without notice.
4
2016-03-31
30SCLJQ045
