FFSD-20-S-02-01-N-RW datasheet, PDF

Datasheet> All Categories > The connector> The connector> FFSD-20-S-02-01-N-RW

FFSD-20-S-02-01-N-RW: DescriptionInterconnection Device; CategoryThe connector The connector; File Size92KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

FFSD-20-S-02-01-N-RW Overview

Interconnection Device

FFSD-20-S-02-01-N-RW Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	30 AWG, GLASS FILLED POLYESTER
Connector type	INTERCONNECTION DEVICE
Base Number Matches	1

Preview

Download Datasheet

View All

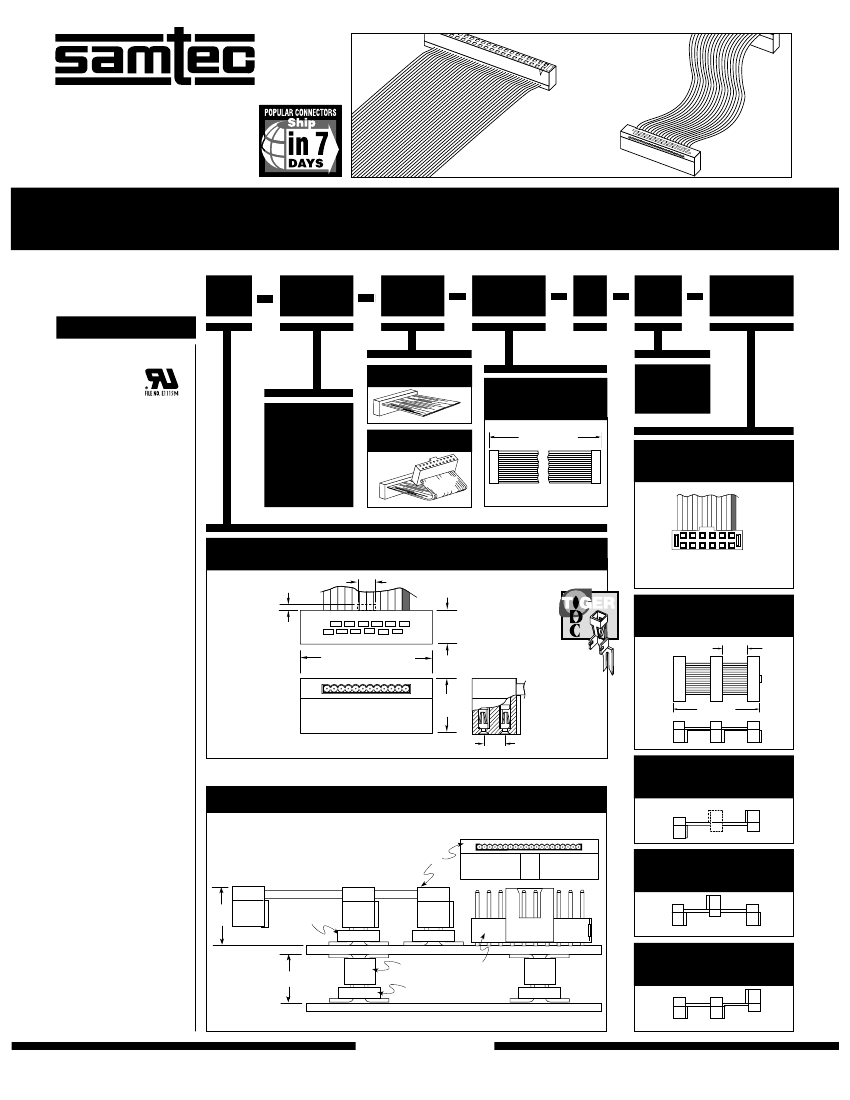

FACTSHEET F-202-1

FFSD–10–D–02–01–N

FFSD–20–S–10–01–N

. 050"

(1,27mm)

CABLE STRIPS

FFSD SERIES

Mates with:

FTS, FTSH

TYPE

STRIP

NO. PINS

PER ROW

END

OPTION

OVERALL

LENGTH

OTHER

OPTION

SPECIFICATIONS

For complete specifications

see www.samtec.com?FFSD

Insulator Material:

Black Glass Filled

Polyester

Contact:

BeCu

Current Rating:

0.5A

Operating Temp Range:

-40°C to +105°C

Plating:

10µ" (0,25µm) Au over 50µ"

(1,27µm) Ni on contact area;

150µ" (3,81µm) Sn over 50µ'

(1,27µm) Ni on balance

Lead Size Accepted:

(0,41mm) .016" SQ

Contact Resistance:

10 mΩ maximum

Insertion Depth:

(2,64mm) .104" to

(3,17mm) .125"

Wire:

30 AWG

–S

= Single End

= Assembled Length

–“XX.XX”

Assembled Length

in INCHES (±1/8")

2 inches minimum

= Notch

Polarization

–N

–05, –10,

–13, –17,

–20, –25

(Call for other

sizes)

–D

= Double End

= Reverse Wiring

–RW

FFSD

= Socket Strip

(1,90) .075

Blue or black wire

opposite position #1.

(1,02)

.040

No. of Positions X

.050 (1,27)+ .165 (4,19)

(3,05)

.120

–D “XX”

= Daisy Chain

min.

“XX”

1/8"

(5,08)

.200

(1,27)

.050

4" minimum

= Reversed

–R

APPLICATIONS

FFSD

= Middle Reverse

(6,35)

.250

FTS

(Style -01)

–M

Requires –DXX

CLP

(3,48)

.137

FTS

(Style -02)

FTSH

( -K)

= Outside Reverse

–O

Note:

This Series is

non-standard, non-returnable.

Requires –DXX

Due to technical progress, all designs, specifications and components are subject to change without notice.

WWW.SAMTEC.COM

SAMTEC USA

• Tel: 1-800-SAMTEC-9 or 812-944-6733 • Fax: 812-948-5047

SAMTEC UK

• Tel: 01236 739292 • Fax: 01236 727113

SAMTEC GERMANY

• Tel: +49 (0) 89 / 89460-0 • Fax: +49 (0) 89 / 89460-299

SAMTEC FRANCE

• Tel: 01 60 95 06 60 • Fax: 01 60 95 06 61

SAMTEC ITALY

• Tel: 39 039 6890337 • Fax: 39 039 6890315

SAMTEC ASIA PACIFIC

• Tel: 65 6745-5955 • Fax: 65 6841-1502

SAMTEC CHINA

• Tel: 86-21-5385-4089 • Fax: 86-21-5385-4047

SAMTEC JAPAN

• Tel: 81-424-42-8318 • Fax: 81-424-42-8319

SAMTEC TAIWAN

• Tel: (02) 2364-6077 • Fax: (02) 2367-9531

SAMTEC HONG KONG

• Tel: 852-26904858 • Fax: 852-26904842
