TX2-L2-1.5V-X

Description
Electromechanical Relay, DPDT, 2.25VDC (Coil), 2A (Contact), 220VDC (Contact), Random, DC Output
CategoryMechanical and electronic products    relay
File Size127KB,6 Pages
ManufacturerPanasonic
Websitehttp://www.panasonic.co.jp/semicon/e-index.html
Download Datasheet Parametric View All

TX2-L2-1.5V-X Overview

Electromechanical Relay, DPDT, 2.25VDC (Coil), 2A (Contact), 220VDC (Contact), Random, DC Output

TX2-L2-1.5V-X Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
body width7.4 mm
body height8.2 mm
Body length or diameter15 mm
Coil operating voltage (DC)1.125 V
Coil release voltage (DC)1.125 V
Coil resistance11.2 Ω
Maximum coil voltage (DC)2.25 V
Nominal coil voltage1.5 V
Coil/Input Power TypeDC
Maximum contact current (DC)2 A
Contact (DC) maximum rated power R load60W@220VDC
Contact (DC) maximum rated R load2A@220VDC
Contact resistance100 mΩ
Maximum contact voltage (DC)220 V
Contact/Output Power TypeDC
Dielectric strength between coil and contacts2000 Vrms
Dielectric strength between breaking contacts1000 Vrms
Electrical life100000 Cycle(s)
End contact materialSilver
End contact platingGOLD
Input switching control typeRandom
Insulation resistance1000000000 Ω
Number of terminals10
operating hours4 ms
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
PCB hole count10
method of packingTAPE AND REEL
physical size15mm x 7.4mm x 8.2mm
GuidelineBSI; UL
Relay style2 FORM C
Relay functionDPDT
release time4 ms
Terminal length0.0035 inch
Termination typeSOLDER
weight2 g
Base Number Matches1
TESTING

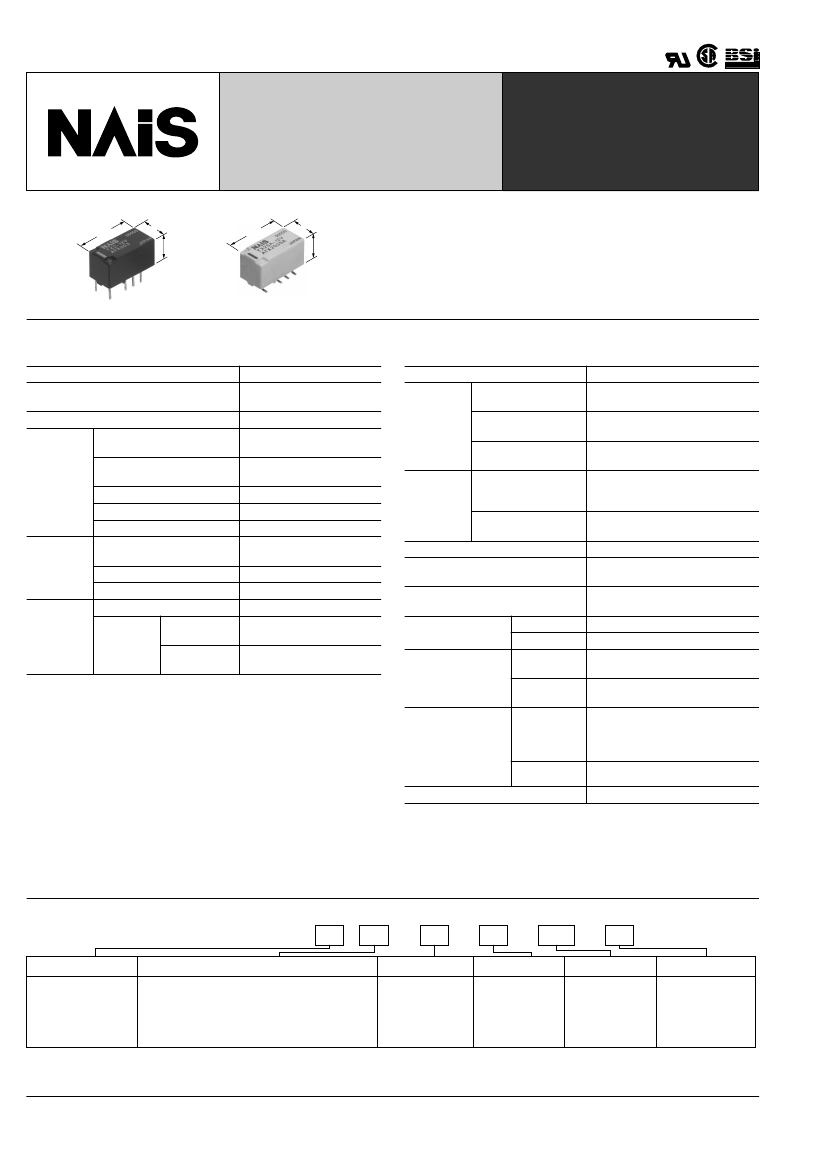

2 AMP. HIGH CAPACITY
RELAY WITH HIGH
SURGE VOLTAGE & HIGH
BREAKDOWN VOLTAGE
15
.591
7.4
.291
8.2
.323
15
.591
7.4
.291
8.4
.331
TX-RELAYS
FEATURES
• Breakdown voltage between contacts and coil: 2,000 V
• Surge withstand between contacts and coil: 2,500 V
• High contact capacity: 2 A 30 V DC
• Surface-mount type available
mm
inch
SPECIFICATIONS
Contact
Arrangement
Initial contact resistance, max.
(By voltage drop 6 V DC 1 A)
Contact material
Nominal switching capacity
(resistive load)
Max. switching power
(resistive load)
Rating
Max. switching voltage
Max. switching current
Min. switching capacity
f
1
Nominal
operating
power
Single side stable
1 coil latching
2 coil latching
Mechanical (at 180 cpm)
2 A 30 V DC
resistive
Electrical
(at 20 cpm) 1 A 30 V DC
resistive
2 Form C
100 m
Gold-clad silver alloy
2 A 30 V DC
60 W
220 V DC
2A
10
µ
A 10 mV DC
140 mW (1.5 to 24 V DC)
270 mW (48 V DC)
100 mW (1.5 to 24 V DC)
200 mW (1.5 to 24 V DC)
10
8
10
5
5
×
10
5
Characteristics
Initial insulation resistance*
1
Between open con-
tacts
Initial
breakdown Between contact sets
voltage
Between contact and
coil
Between open
contacts
Initial surge (10
×
160
µ
s)
voltage
Between contacts
and coil (2
×
10
µ
s)
Temperature rise*
2
(at 20
°
C)
Operate time [Set time]*
3
(at 20
°
C)
Release time [Reset time]*
4
(at
20
°
C)
Functional*
5
Shock resistance
Destructive*
6
Functional*
7
Min. 1,000 M
(at 500 V DC)
1,000 Vrms for 1 min.
(Detection current: 10 mA)
1,000 Vrms for 1 min.
(Detection current: 10 mA)
2,000 Vrms for 1 min.
(Detection current: 10 mA)
1,500 V (FCC Part 68)
2,500 V (Bellcore)
Max. 50
°
C
Max. 4 ms (Approx. 2 ms)
[Max. 4 ms (Approx. 2 ms)]
Max. 4 ms (Approx. 1 ms)
[Max. 4 ms (Approx. 2 ms)]
Min. 750 m/s
2
{75 G}
Min. 1,000 m/s
2
{100 G}
Expected
life (min.
operations)
Notes:
f
1This value can change due to the switching frequency, environmental conditions,
and desired reliability level, therefore it is recommended to check this with the ac-
tual load.
f
2The upper limit for the ambient temperature is the maximum temperature that
can satisfy the coil temperature rise. Under the packing condition, allowable tem-
perature range is from –40 to +70°C
–40°C to +158°F.
Remarks
* Specifications will vary with foreign standards certification ratings.
*
1
Measurement at same location as "Initial breakdown voltage" section.
*
2
By resistive method, nominal voltage applied to the coil; contact carrying current:
2 A.
*
3
Nominal voltage applied to the coil, excluding contact bounce time.
*
4
Nominal voltage applied to the coil, excluding contact bounce time without diode.
*
5
Half-wave pulse of sine wave: 6 ms; detection time: 10
µ
s.
*
6
Half-wave pulse of sine wave: 6 ms.
*
7
Detection time: 10
µ
s.
*
8
Refer to 4. Conditions for operation, transport and storage mentioned in Cautions
for use (Page 178).
196 m/s
2
{20 G}, 10 to 55 Hz
at double amplitude of 3.3 mm
Vibration resistance
294 m/s
2
{30G}, 10 to 55 Hz
Destructive
at double amplitude of 5 mm
Conditions for oper-
–40
°
C to +85
°
C (up to 24 V coil)
ation, transport and Ambient tem-
–40
°
F to +185
°
F
(up to 24 V coil)
storage*
8
perature
f
2
–40
°
C to +70
°
C (48 V coil)
(Not freezing and
–40
°
F to +158
°
F
(48 V coil)
condensing at low
Humidity
5 to 85% R.H.
temperature)
Unit weight
Approx. 2 g .071
oz
ORDERING INFORMATION
Ex. TX
Contact arrangement
2: 2 Form C
Surface-mount availability
Nil: Standard PC board terminal type or
Nil:
self-clinching terminal type
SA: Standard surface-mount terminal type
SL : High connection reliability surface-mount
SL :
terminal type
SS: Space saving surface-mount terminal type
2
SA
L
H
3V
Z
Packing style
Operating function Terminal shape
Nil: Single side
Nil:
stable
L: 1 coil latching
L2: 2 coil latching
Coil voltage (DC)
Nil: Standard PC 1.5, 3, 4.5, 5, 6, Nil: Tube packing
board terminal or 9, 12, 24, 48* V Z: Tape and reel
surface-mount
packing(picked
terminal
from the 8/9/10/12
H: Self-clinching
-pin side
terminal
Notes: 1. Tape and reel (picked from 1/3/4/5-pin side) is also available by request. Part number suffix “-X” is
*48 V coil type: Single side stable only
needed when ordering.
(ex.) TX2SA-3 V-X
2. Tape and reel packing symbol “-Z” or “-X” are not marked on the relay.
154
