WF1M32BP-120G2TC5 datasheet, PDF

Datasheet> All Categories > storage> storage> WF1M32BP-120G2TC5

WF1M32BP-120G2TC5: DescriptionFlash Module, 1MX32, 120ns, CQFP68,; Categorystorage storage; File Size315KB，8 Pages; ManufacturerWhite Electronic Designs Corporation; Websitehttp://www.wedc.com/

Download Datasheet Parametric Compare View All

WF1M32BP-120G2TC5 Overview

Flash Module, 1MX32, 120ns, CQFP68,

WF1M32BP-120G2TC5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Maximum access time	120 ns
startup block	BOTTOM
Data polling	NO
JESD-30 code	S-XQFP-G68
JESD-609 code	e0
memory density	33554432 bit
Memory IC Type	FLASH MODULE
memory width	32
Number of departments/size	1,2,1,7
Number of terminals	68
word count	1048576 words
character code	1000000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX32
Package body material	CERAMIC
encapsulated code	QFP
Encapsulate equivalent code	QFP68,.99SQ,50
Package shape	SQUARE
Package form	FLATPACK
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Department size	16K,8K,96K,128K
Maximum standby current	0.0001 A
Maximum slew rate	0.3 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	HYBRID
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	QUAD
switch bit	NO
type	NOR TYPE
write protect	HARDWARE
Base Number Matches	1

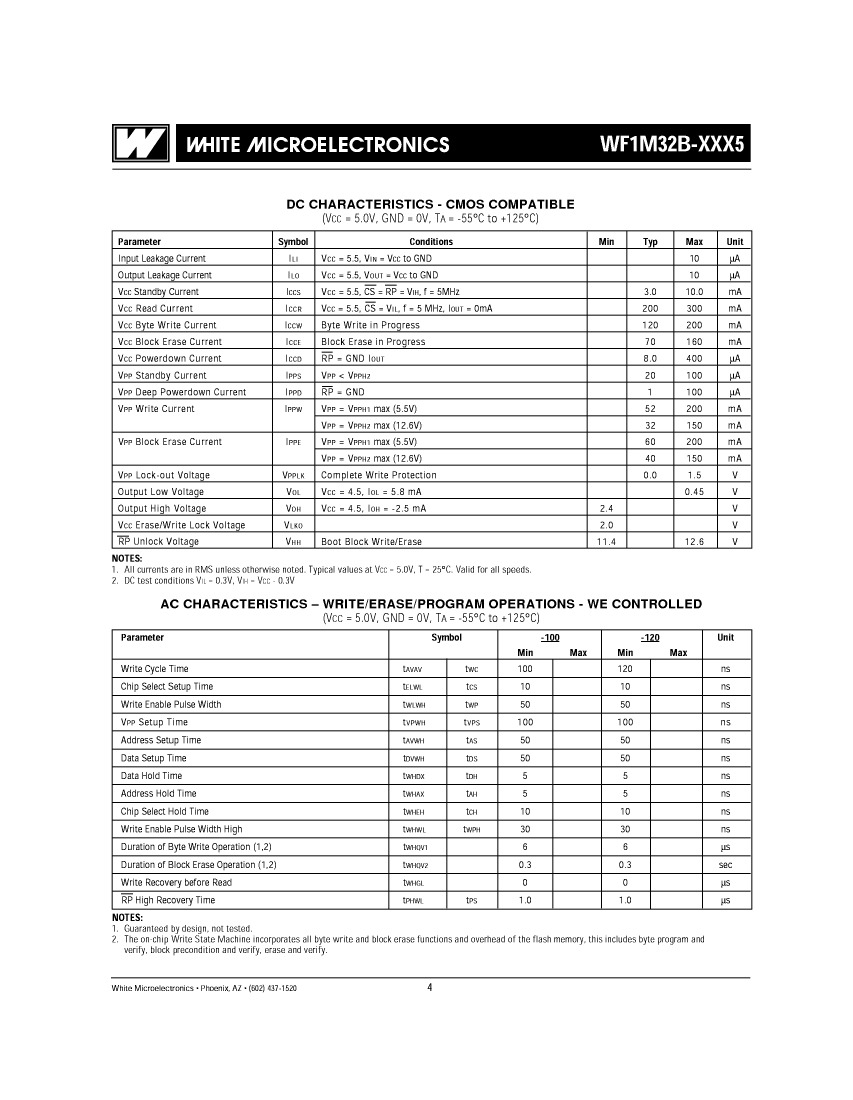

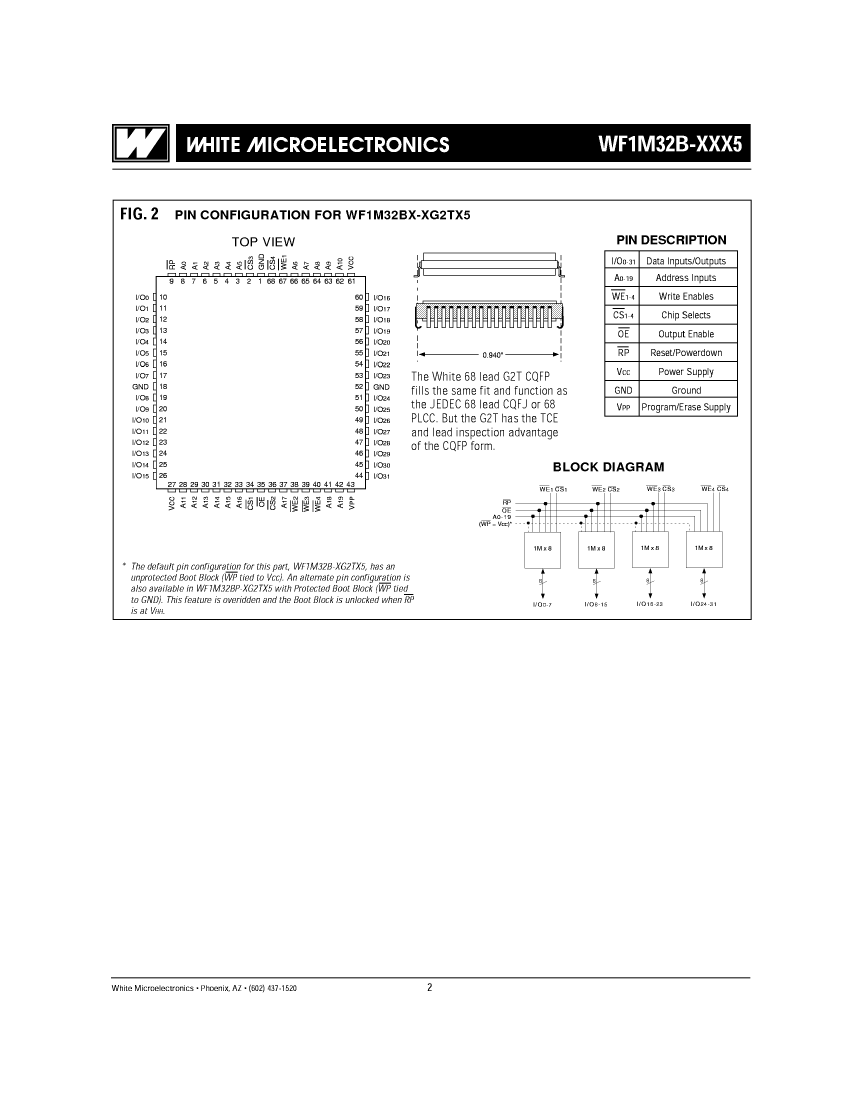

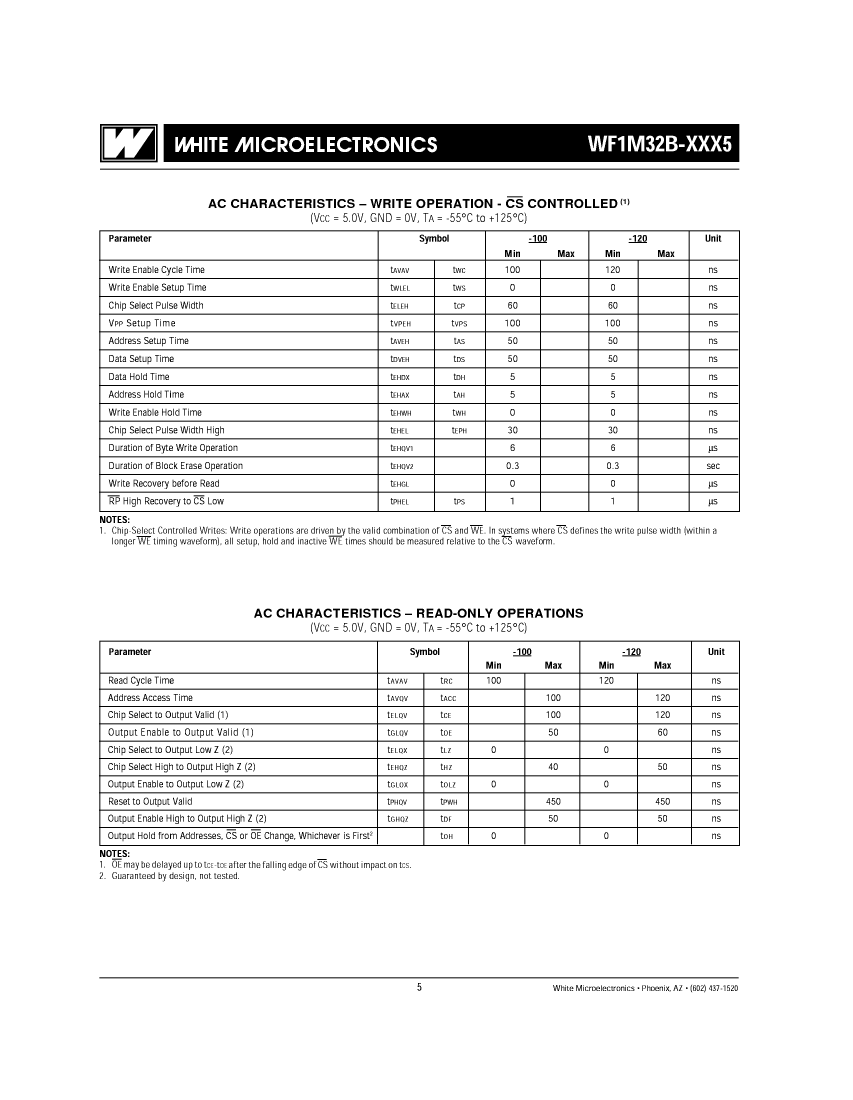

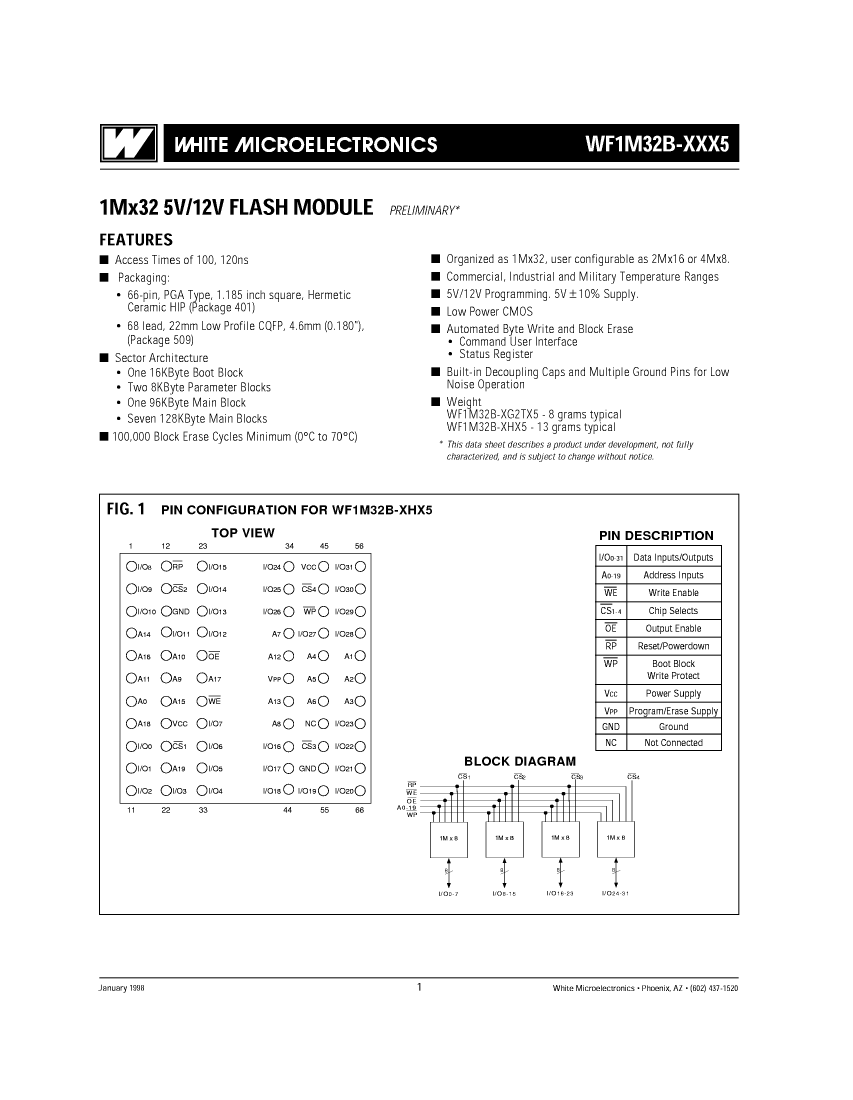

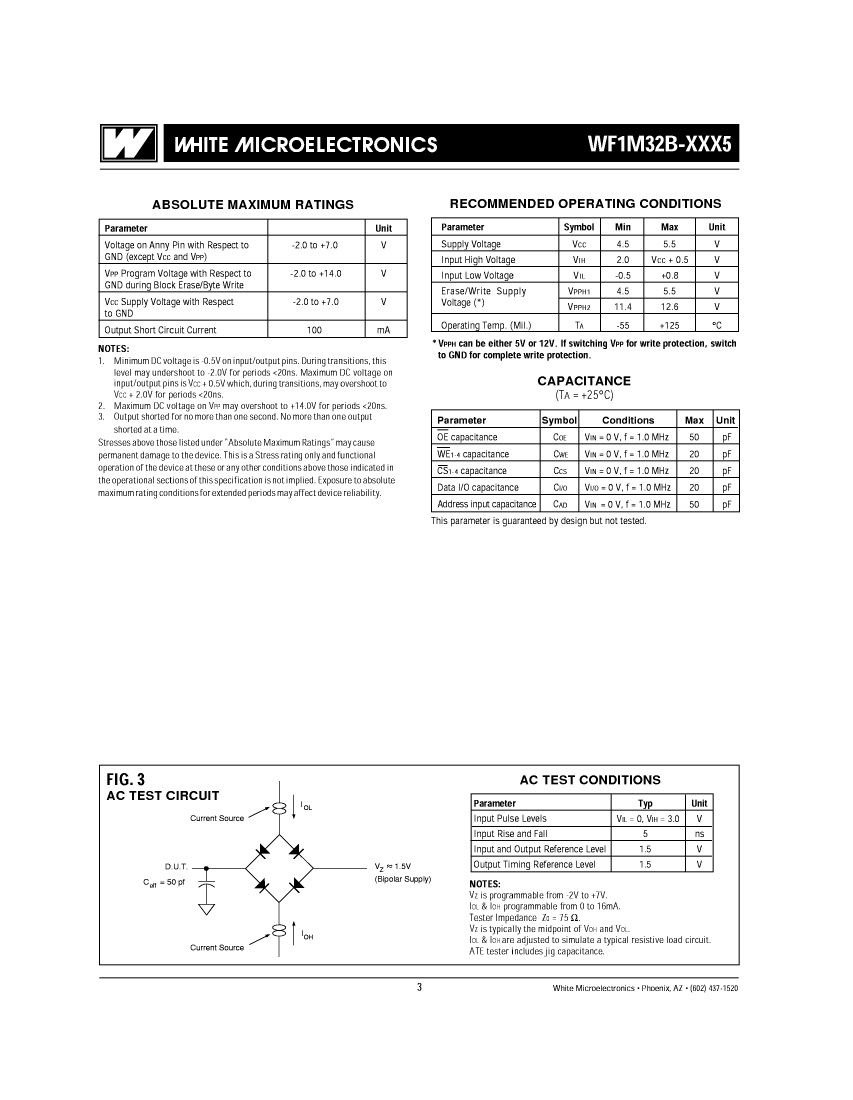

Preview

Download Datasheet

View All

WF1M32BP-120G2TC5 Related Products

	WF1M32BP-120G2TC5	WF1M32BP-120G2TM5	WF1M32BP-120G2TI5	WF1M32BP-100G2TM5	WF1M32BP-100G2TC5	WF1M32BP-100G2TI5
Description	Flash Module, 1MX32, 120ns, CQFP68,	Flash Module, 1MX32, 120ns, CQFP68,	Flash Module, 1MX32, 120ns, CQFP68,	Flash Module, 1MX32, 100ns, CQFP68,	Flash Module, 1MX32, 100ns, CQFP68,	Flash Module, 1MX32, 100ns, CQFP68,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	120 ns	120 ns	120 ns	100 ns	100 ns	100 ns
startup block	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Data polling	NO	NO	NO	NO	NO	NO
JESD-30 code	S-XQFP-G68	S-XQFP-G68	S-XQFP-G68	S-XQFP-G68	S-XQFP-G68	S-XQFP-G68
JESD-609 code	e0	e0	e0	e0	e0	e0
memory density	33554432 bit	33554432 bit	33554432 bit	33554432 bit	33554432 bit	33554432 bit
Memory IC Type	FLASH MODULE	FLASH MODULE	FLASH MODULE	FLASH MODULE	FLASH MODULE	FLASH MODULE
memory width	32	32	32	32	32	32
Number of departments/size	1,2,1,7	1,2,1,7	1,2,1,7	1,2,1,7	1,2,1,7	1,2,1,7
Number of terminals	68	68	68	68	68	68
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000	1000000
Maximum operating temperature	70 °C	125 °C	85 °C	125 °C	70 °C	85 °C
Minimum operating temperature	-	-55 °C	-40 °C	-55 °C	-	-40 °C
organize	1MX32	1MX32	1MX32	1MX32	1MX32	1MX32
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	QFP	QFP	QFP	QFP	QFP	QFP
Encapsulate equivalent code	QFP68,.99SQ,50	QFP68,.99SQ,50	QFP68,.99SQ,50	QFP68,.99SQ,50	QFP68,.99SQ,50	QFP68,.99SQ,50
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Department size	16K,8K,96K,128K	16K,8K,96K,128K	16K,8K,96K,128K	16K,8K,96K,128K	16K,8K,96K,128K	16K,8K,96K,128K
Maximum standby current	0.0001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A
Maximum slew rate	0.3 mA	0.3 mA	0.3 mA	0.3 mA	0.3 mA	0.3 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	COMMERCIAL	MILITARY	INDUSTRIAL	MILITARY	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
switch bit	NO	NO	NO	NO	NO	NO
type	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE
write protect	HARDWARE	HARDWARE	HARDWARE	HARDWARE	HARDWARE	HARDWARE
Base Number Matches	1	1	1	1	1	1
Maker	-	White Electronic Designs Corporation	White Electronic Designs Corporation	White Electronic Designs Corporation	White Electronic Designs Corporation	White Electronic Designs Corporation
